Description
Features:
The features of this machine include:

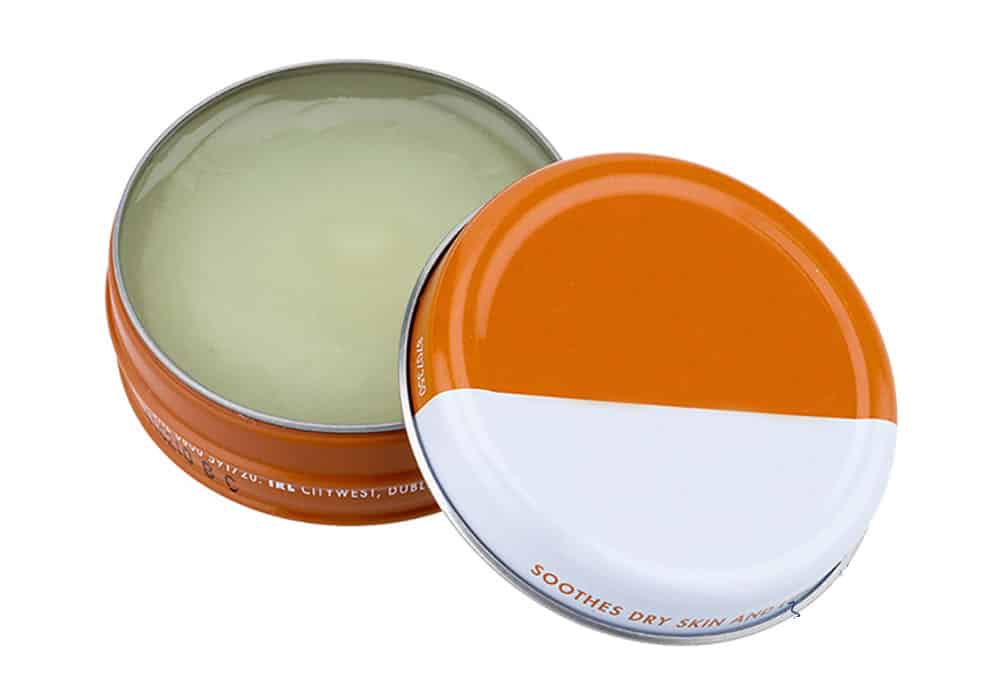

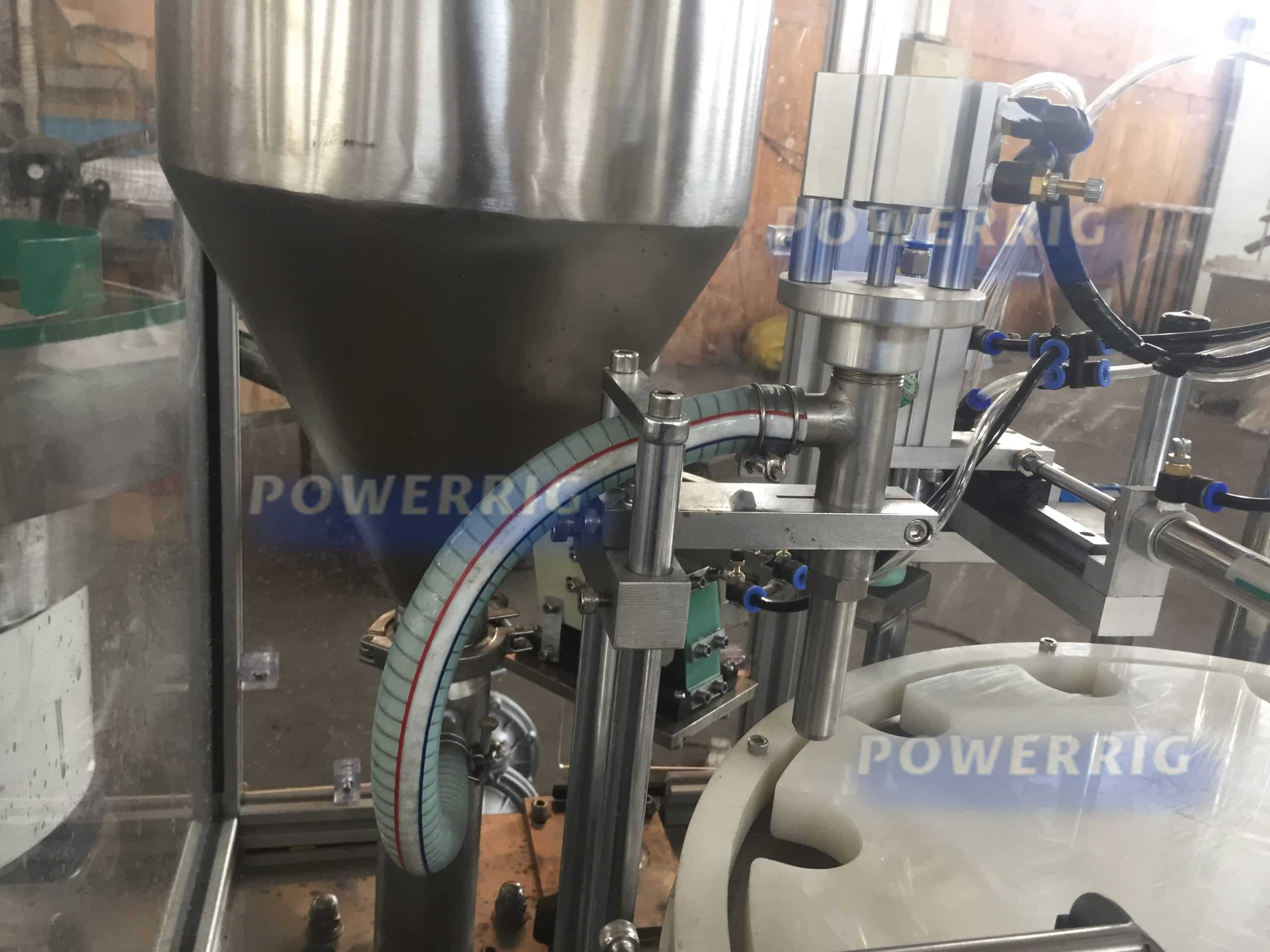

1.Filling System: The filling system of the machine is designed to fill the ointment jars or containers accurately and precisely. It uses a pump to measure and dispense the correct amount of ointment.
2.Capping System: The capping system of the machine is designed to automatically cap the filled ointment jars or containers. It uses a cap feeder to supply caps to the machine, and then the caps are applied to the jars or containers using a capping mechanism.
3.Control Panel: The machine has a control panel that allows the operator to adjust the filling and capping parameters, such as filling volume, capping torque, and filling speed.
4.Material Contact Parts: The material contact parts of the machine are made of stainless steel, which ensures that the ointment does not get contaminated during the filling and capping process.
5.Easy to Operate: The machine is easy to operate and requires minimal training for the operator.
6.High Speed: The machine is capable of filling and capping a large number of ointment jars or containers per hour, making it ideal for large-scale production.
Here’s a general overview of the process:
Container Feeding: The containers, which are typically in the form of jars or bottles, are fed into the machine from a hopper or conveyor.
Cap Feeding: The caps are also fed into the machine, typically from a hopper or magazine.
Cap Sorting and Orientation: The caps are sorted and oriented so that they can be properly positioned for the next step.

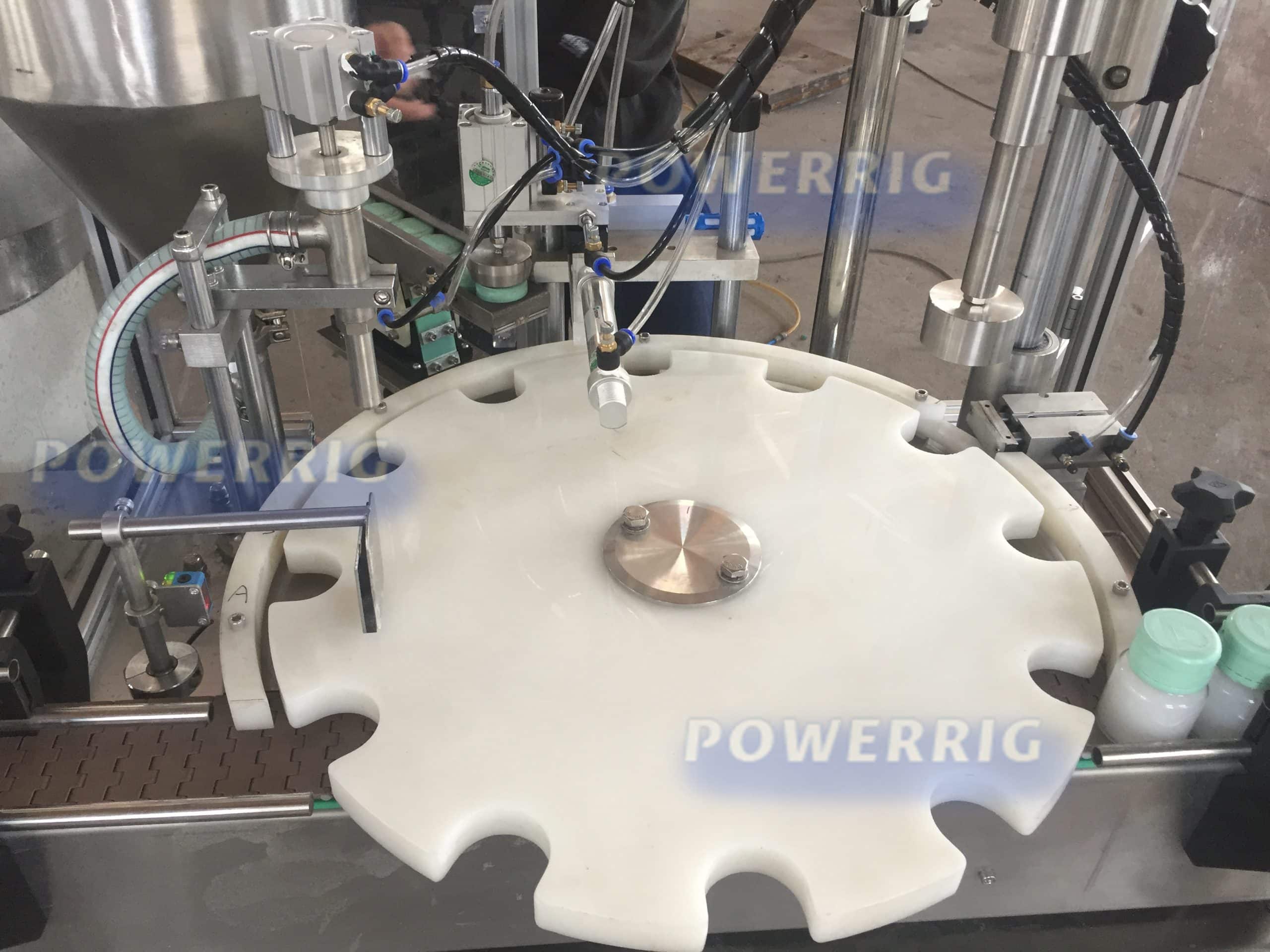

Cap Placing: The caps are placed onto the containers using a variety of mechanisms, such as pick-and-place arms or vacuum suction cups.
Cap Tightening: The caps are tightened onto the containers using a torque control mechanism, which ensures that they are securely sealed.

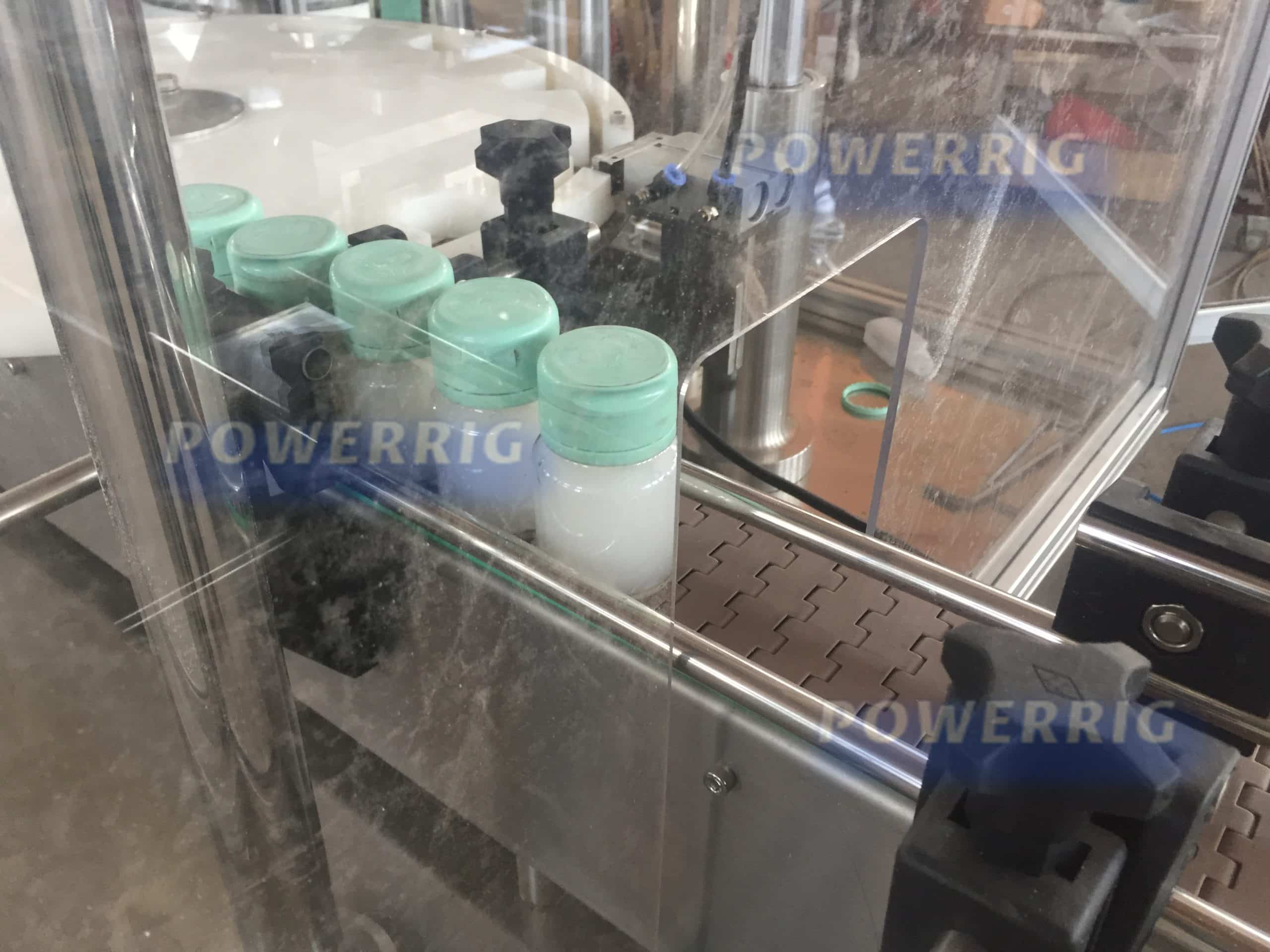

Container Discharge: The sealed containers are discharged from the machine and can be further processed or packaged.
The entire process is automated, meaning that it is controlled by a programmable logic controller (PLC) or similar system. The machine can typically handle a range of container sizes and cap types, and can be adjusted for different production speeds and volumes.
PARAMETER:
CONFIGURATION:
Suitable Filling Volume  | 20-100ml |
Production Speed  | 30-40 Bottles/min |
Filling Accuracy  | ≤±1% |
Voltage  | 220V/50Hz Single Phase |
Spain Rolling Cover Rate  | ≥99% |
Automatic Loading Brush Rate  | ≥99% |
Air Source  | 2 m³/h 0.4-0.8Mpa |
Power  | 2kw |
Machine Weight  | 500kg |
Size  | 1530*2990*1500mm |
Parts | Brand |
PLC Programmable Logic Controller | Delta Taiwan |
PLC Module | Delta Taiwan |
Touch Screen | Taiwan Taian |
Main Motor | Taiwan Leeming |
Conveyance Motor | Xiamen Lapping |
AC Contactor | Schneider |
Intermediate Relay | Schneider |
Power Indicator | Schneider |
Photoelectric Sensors | Sick |
The Electromagnetic Valve | Explosion-proof Solenoid Valves |
Switching Power Supply | Ming Wei |
Inverter | Delta Taiwan |
Pneumatic Components | AirTAC |
Barometer | AirTAC |
Regulator Filter | AirTAC |
