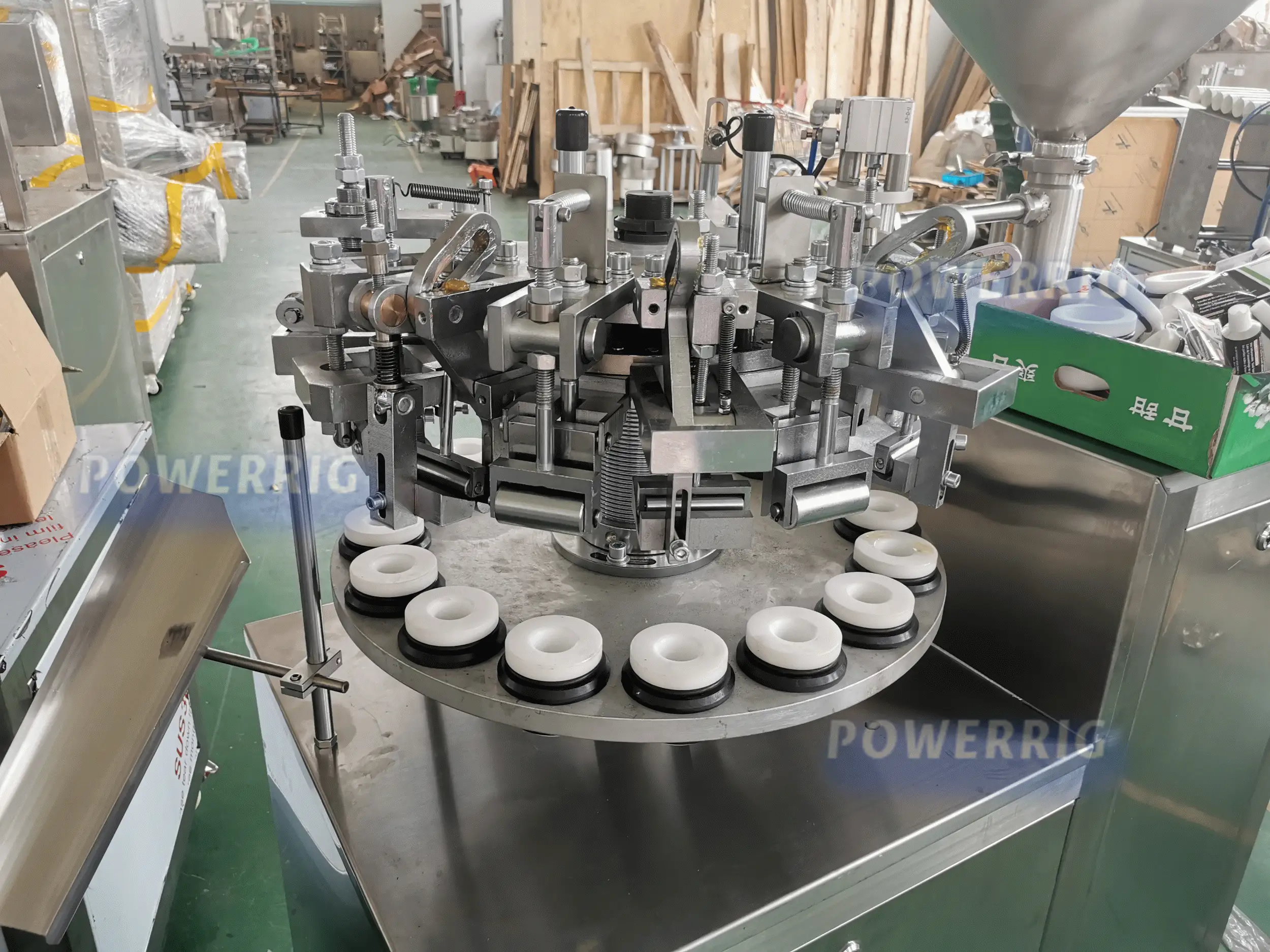

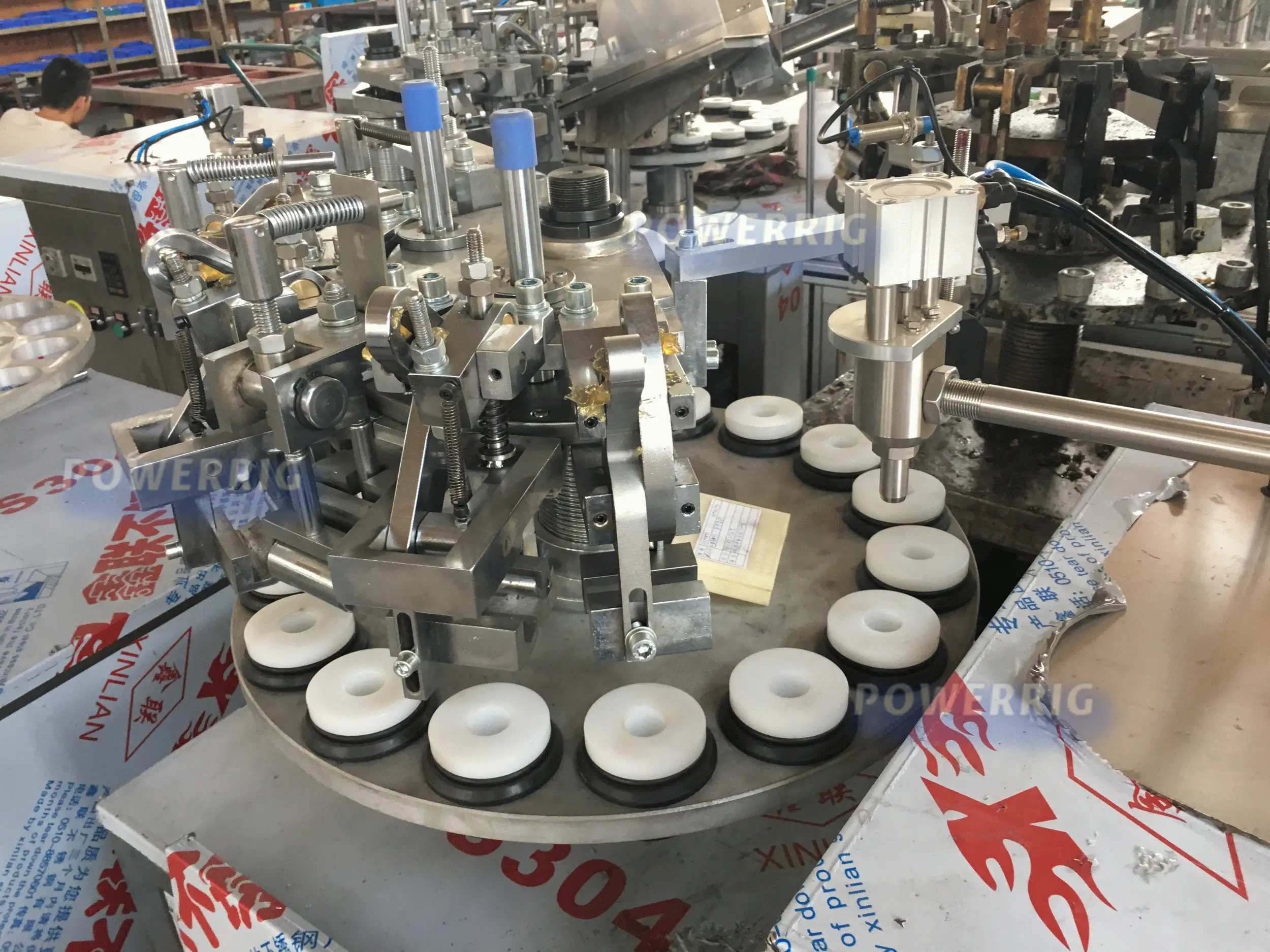

Automatic Ointment Filling Machine(R30I Soft Tube Filling & Sealing Machine)

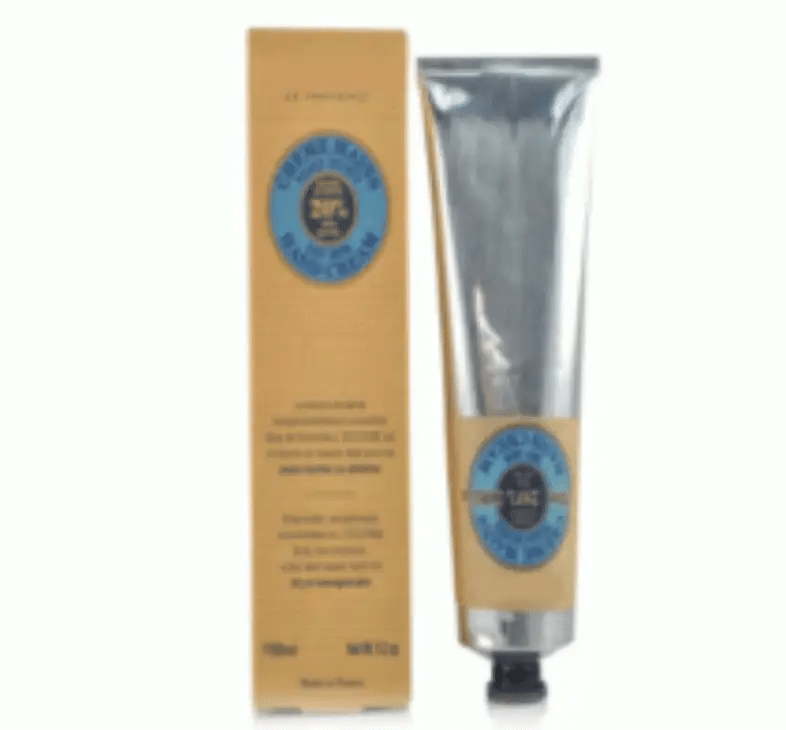

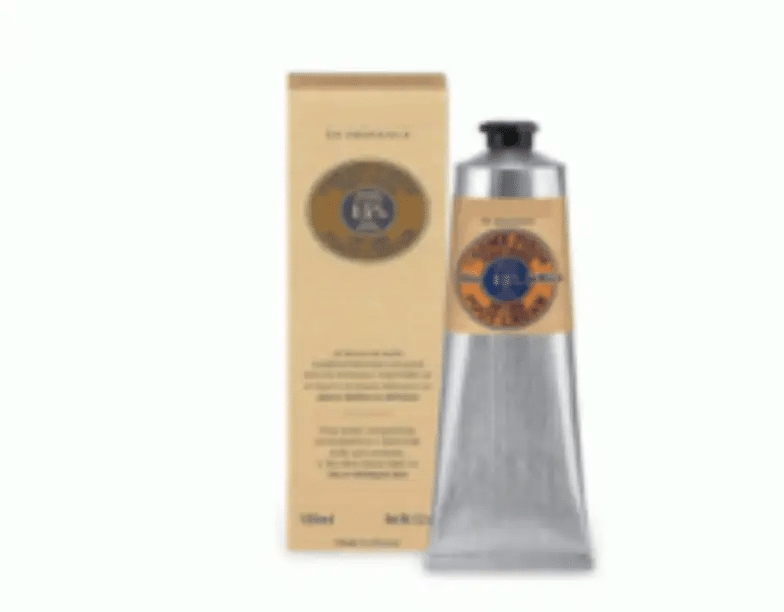

It can filling the metal aluminum tube with various materials in a certain number. The material could be ranged from food, daily chemical to chemical and medical extent, etc. Specifically, including food gel, shoe polish, cosmetic cream, face cream, hair dye, facial cleanser, ointment, resin and AB glue etc.

Description

Features:

Brief Introduction of Our Metal Aluminum Tube Filling & Sealing Machine:

It can filling the metal aluminum tube with various materials in a certain number. The material could be ranged from food, daily chemical to chemical and medical extent, etc. Specifically, including food gel, shoe polish, cosmetic cream, face cream, hair dye, facial cleanser, ointment, resin and AB glue etc.

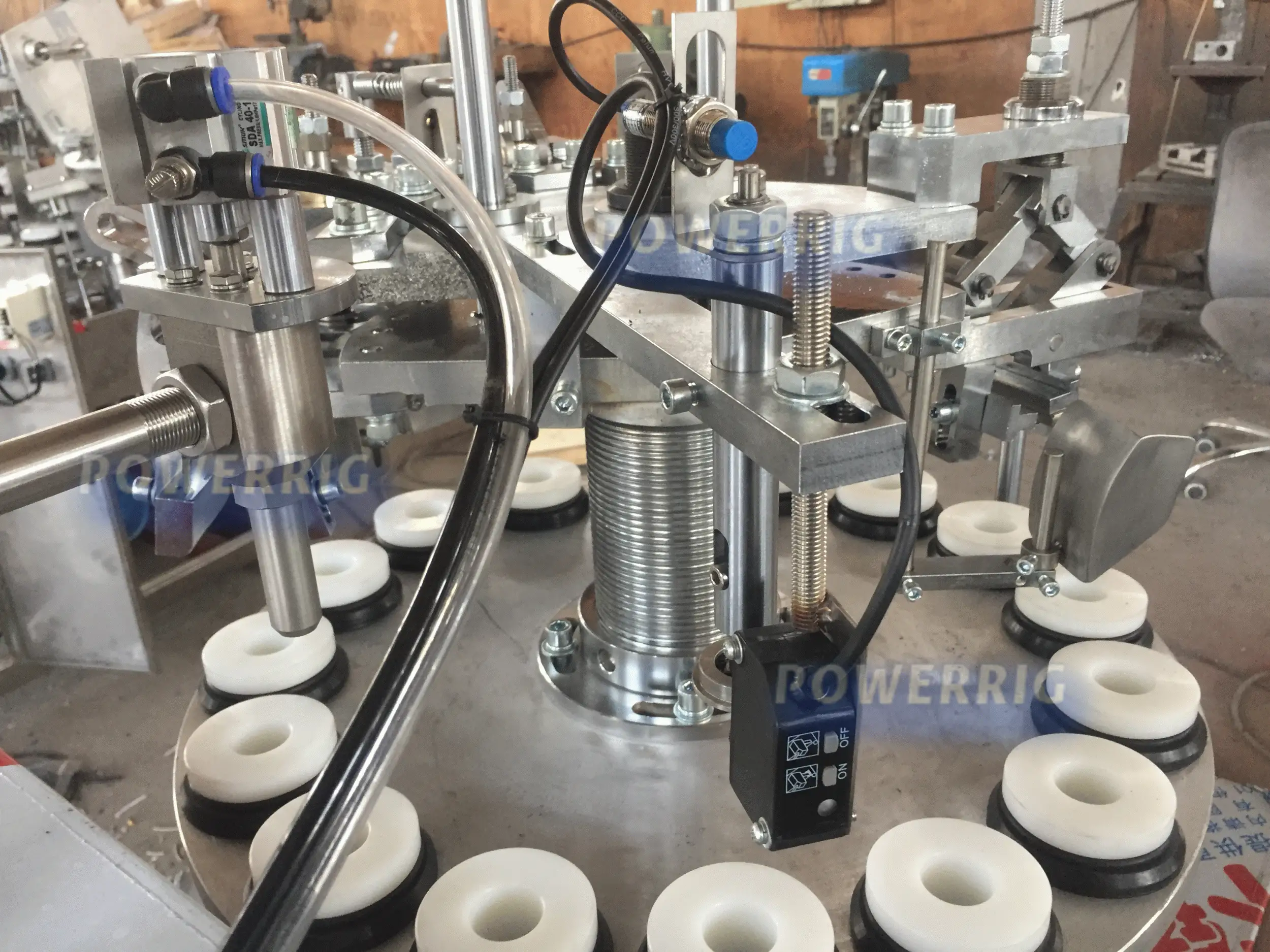

The Working Process of Our Metal Aluminum Tube Filling & Sealing Machine:

1.Manually load the metal tube

2.The mechanical transmission automatically adjust the position

3.Fill the tube automatically after the light sensor sense the tube

4.Fold and seal

5.Unload the finished products

Four Competitive Edges of Our Aluminum Tube Filling & Sealing Machine:

1. It deploy the Stainless steel 316 or SUS304 in a high quality and meet the requirements of GMP standards, which make it durable and have the anti-drip feature.

2. The speed of outcome reach up to 30-45 tubes per minute.

3. We choose the panasonic bench marking system to simplify controlling operation and ensure its accuracy further.

4. The special bottom filling function avoid wire-drawing and make the machine suitable for high material as well.

Some Matters Needs Attention of Our Metal Aluminum Tube Filling & Sealing Machine:

If your material is of high viscosity, then the heating and stirring system will be useful for your filling machine. Considering a new set of tube holder mold will need specific data to design and manufacture, it is advisable that you can provide following data concerning your personal request when you consults the machine. Therefore, we are able to send you more information and the best quotation.

1.Filling material description

2.Filling volume

3.Tube material

4.Tube diameter

5.Tube pictures

6.Production speed

Depending on the your personal needs, we will choose the best type of machine for your industry.

PARAMETER:

CONFIGURATION:

Voltage220V /380V
Main Power0.75KW
Air Pressure0.6-0.7Mpa
Air Consumption0.2m3/min
Capacity10-40 tubes/min
Accuracy Measurement+/-1%
Dimensions1130*750*1680mm
Weight300kg
Filling Volume2-30/5-75/30-150ML
PartsBrand
Main M otorWu XI Qi Peng
PLCPanasonic JAPAN
Stepping M otorEast Japan
Stepping D riveEast Japan
SensorGermany Sick
Approach S witchBFNFC
Intermediate R elaySchneider
E lectromagn etic V a l veSi Mai Ge
EncoderOmron
Mixing M o t or (O pti onal)XiangGang Ease
Air C y linde rSi Mai Ge
Be aringNsk
Bu ttonSchneider
Air S witchCHNT
Power S witchOmron
Temperatur e C ontrolHuoYU

APPLY:
