Resin Aluminum OintmentTube Filling And Sealing Machine(L60aluminum Tube Filling Sealing Machine)

An automatic ointment capping machine is a specialized equipment used for closing or sealing containers of ointments, creams, and other viscous substances. The machine typically consists of several stations and mechanisms that work together to ensure that the caps are securely applied to the containers.

Description

Features:

The principle of the filling process for ointment sealing machines involves the following steps:

The ointment or cream is first loaded into the hopper of the machine.

The containers are then placed on the conveyor belt and transported to the filling station.

At the filling station, the filling mechanism dispenses a precise amount of ointment or cream into each container.

Once the containers are filled, they are transported to the sealing station where the sealing mechanism seals the container.

The sealed containers are then removed from the machine and ready for packaging and distribution.

The filling process is typically controlled by sensors and actuators, which ensure that the filling and sealing operations are carried out accurately and efficiently.



An ointment sealing machine is a specialized equipment used to fill and seal ointment and cream containers.

Here are some features:

1.Filling mechanism: The filling mechanism is designed to accurately measure and fill a specific amount of ointment or cream into containers.

2.Sealing mechanism: The sealing mechanism is designed to seal the container after filling to prevent contamination.

3.Conveyor belt: The conveyor belt is used to transport containers through the filling and sealing process.

4.Hopper: The hopper is a container where the ointment or cream is stored before filling.

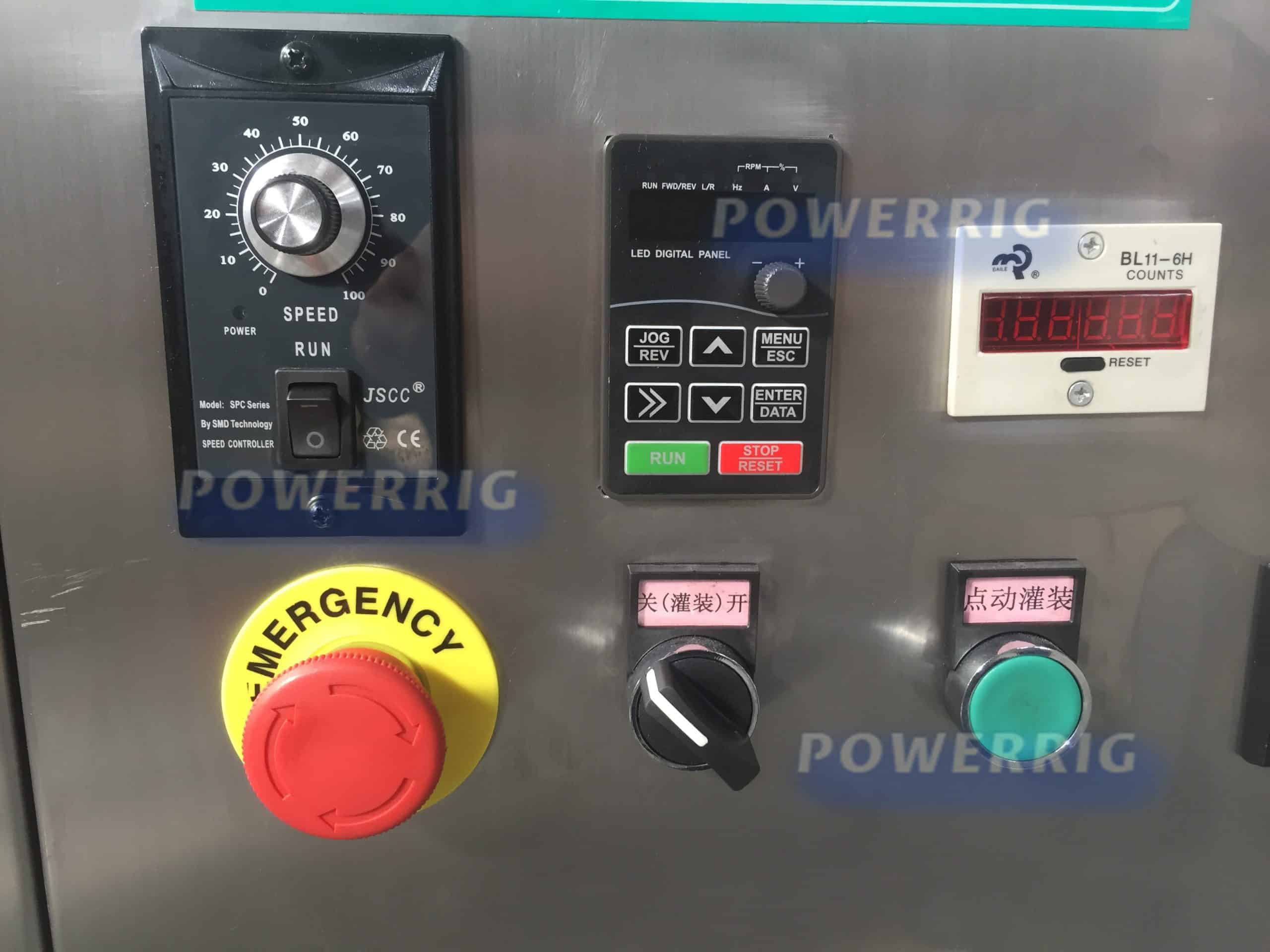

5.Control panel: The control panel is used to set the parameters of the filling and sealing process, such as the filling volume, sealing time, and conveyor speed.

PARAMETER:

CONFIGURATION:

Weight



850Kg

Power





380v/50hz/3 phases

Filling Quantity





3-30ml

Suitable Filling Material



Aluminum tube

Date Printed



1-2 rows(numbers & letters)

Dimension



1950*800*1850mm
Motor



2.2Kw
Capacity


60-80 tubes/min
Maximum Tube Dia.


80mm
Additional Function


Air Blow after filling

Name

Brand

Framework

SUS 304 Stainless steel

Touch screen

Simems

Main Motor

Taiwan, Mingbang

PLC

Siemems

Stepping motor

Japan EAST

Stepping drive

Japan EAST

Color Mark sensor

Germany Sick

Approch switch

Omron

Media relay

Omron

Heater gun

Switzerland Leister

Magnetic vavle

Taiwan AIRTAC

Protractor

China, Shangdong

Stirring motor

XiangGang EAST

Pneumatic elements

Taiwan AIRTAC

Pump for filling

Own produce (MIC)

Hopper (50L)

SUS316

Bearings

Japan NSK

Buttoms

Schneider
