Description
Features:

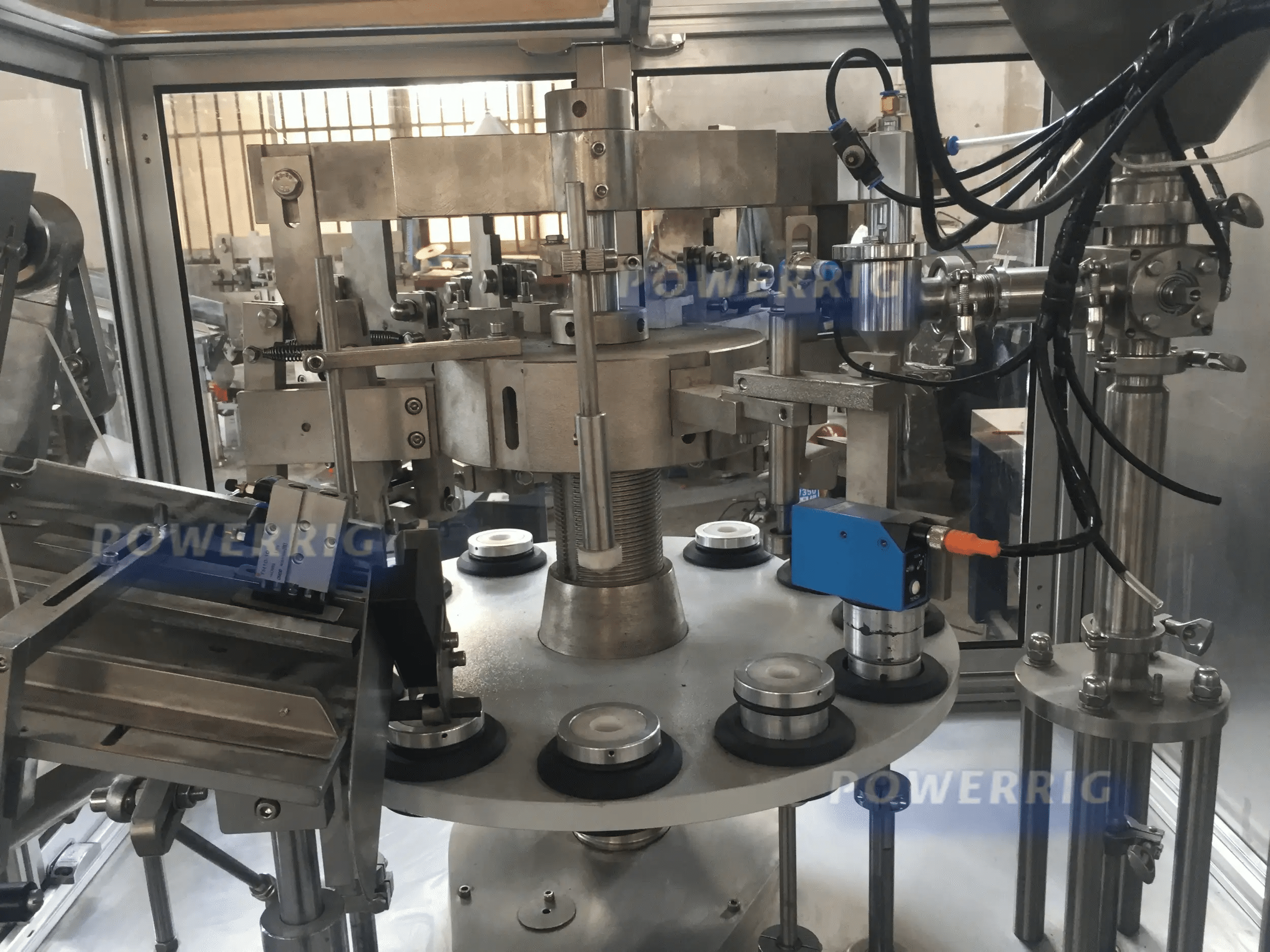

Brief Introduction of Our L60 Type of Automatic Aluminum Tube Filling Machine:
We employ the imported high-precision PLC system from original German Siemens and imported frequency control system(VicRuns). It is the gear reducer from Taiwan that we adopt in the main motor, which has smaller working sound for a better environment. We also use the original pneumatic(AIRTAC) and photoelectric sensor (SICK) that imported from Siemens.
The content could be ranged from food, daily chemical to cosmetics and medicine, etc. For example,they can be used for producing ointments, creams, gels and viscosity fluids. You can choose the most suitable one for your enterprise.
The Working Process of Our L60 Type of Automatic Aluminum Tube Filling Machine:

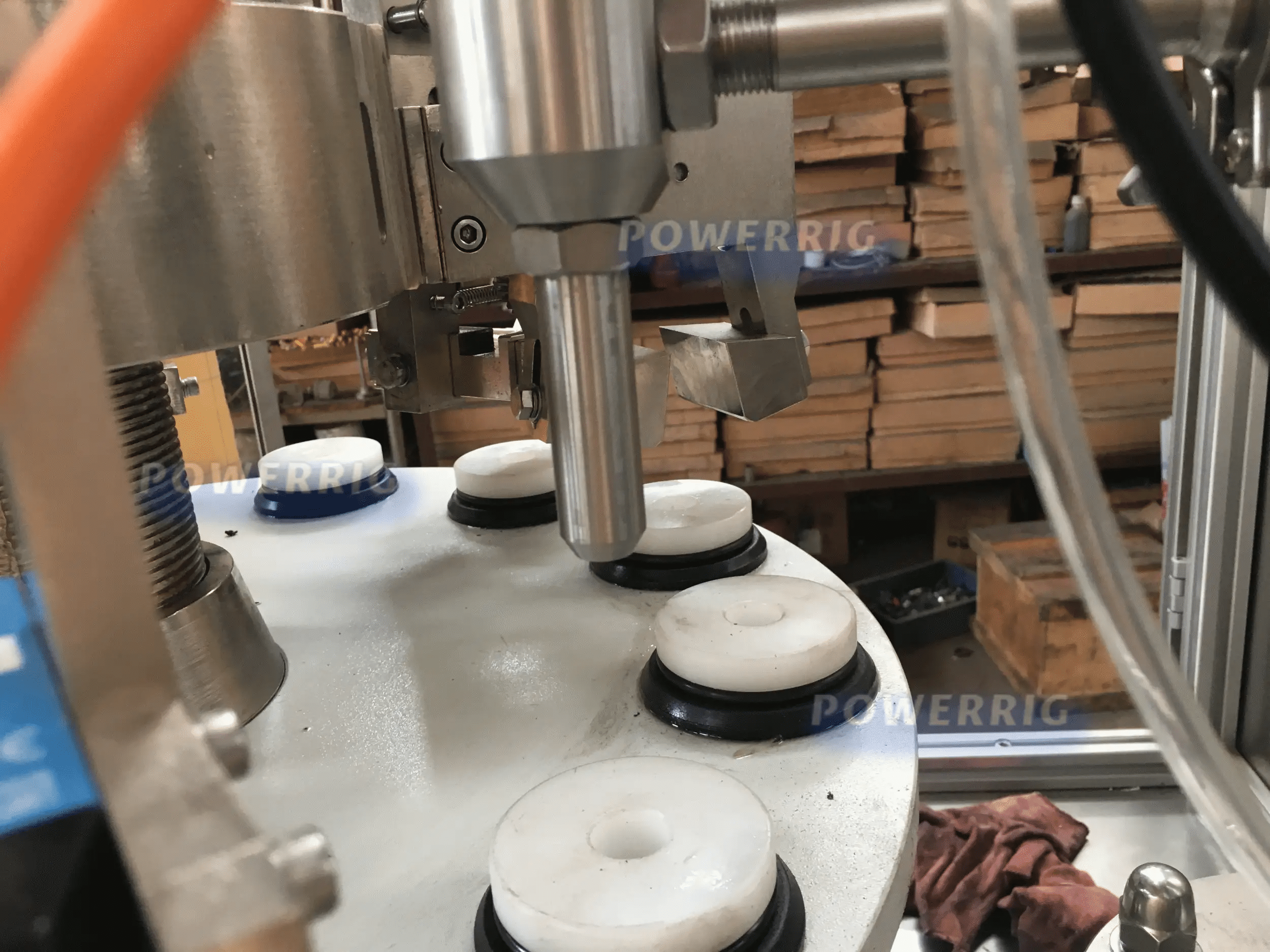

1.Filling the aluminum tube
2.Folding the tail of the aluminum tail
3.Printing the code
4.producing the finished product
Five Cutting-Edges of Our L60 Type of Aluminum Tube Filling Machine:
1.We adopt German FAG bearings to ensure its stable mechanical structure and high accuracy and vacuum-fired German DC53 material for sealing parts to guarantee a longer serving life.
2.One-time molding make the production more effective and beautiful.
3.The highest speed can reach 80 tubes per minute thanks to steady structure.
4.Ceramic pump structure is adopted in the filling machine, which means high precision, wear resistance and no pollution.
5.The main part of machine is iron cast, the 30mm thick iron substrate, which is hard to damage as well as hold a good ability for seismic resistance and ensure its long-term operation further.
The Important device in Our L60 Type of Aluminum Tube Filling Machine:
Hydraulic feeder that we adopt in the machine can be taken as a planet gear mixer or force-dividing equipment, which is used to dispense or discharge high viscosity glue. The feeder is formed by a hydraulic system, control box, rack, lifting bracket and other accessories.
It has its speciality as well. The hydraulic cylinder in it is able to be adjusted from 0-20 Mpa pressure arrangement. Piston rod can be placed at any part for a better functioning.
It could maintain a good performance in a long time under the high pressure and changeable condition.
There is a special design that aprons platen is contacted with the tank wall of the container, which make it possible to carry a vacuum gear for drawing the air so the contents inside can be dried smoothly.
A hydraulic crane can be used to lift the whole device to the top, which make it easier for workers to operate based on its simple structure and convenient function mode.
Â
Depending on the your personal needs, we will choose the best type of machine for your industry.
PARAMETER:
CONFIGURATION:
Weight  | 1200KG |
Dimension   | 1900*1400*2000mm |
Power   | 220v/50Hz |
Motor   | 2.2Kw |
Filling Quantity   | 3-20ml,15-75ml,75-250ml |
Capacity   | 50-60tpm |
Name | Brand |
Framework | SUS 304 Stainless Steel |
Junction Box | CZ Explosion-proof |
Button | CZ Explosion-proof |
Main Servo Motor | Siemens(Explosion-proof One Zone) |
PLC | Siemens |
Stepping Motor | Siemens(Explosion-proof One Zone) |
Stepping Drive | Siemens |

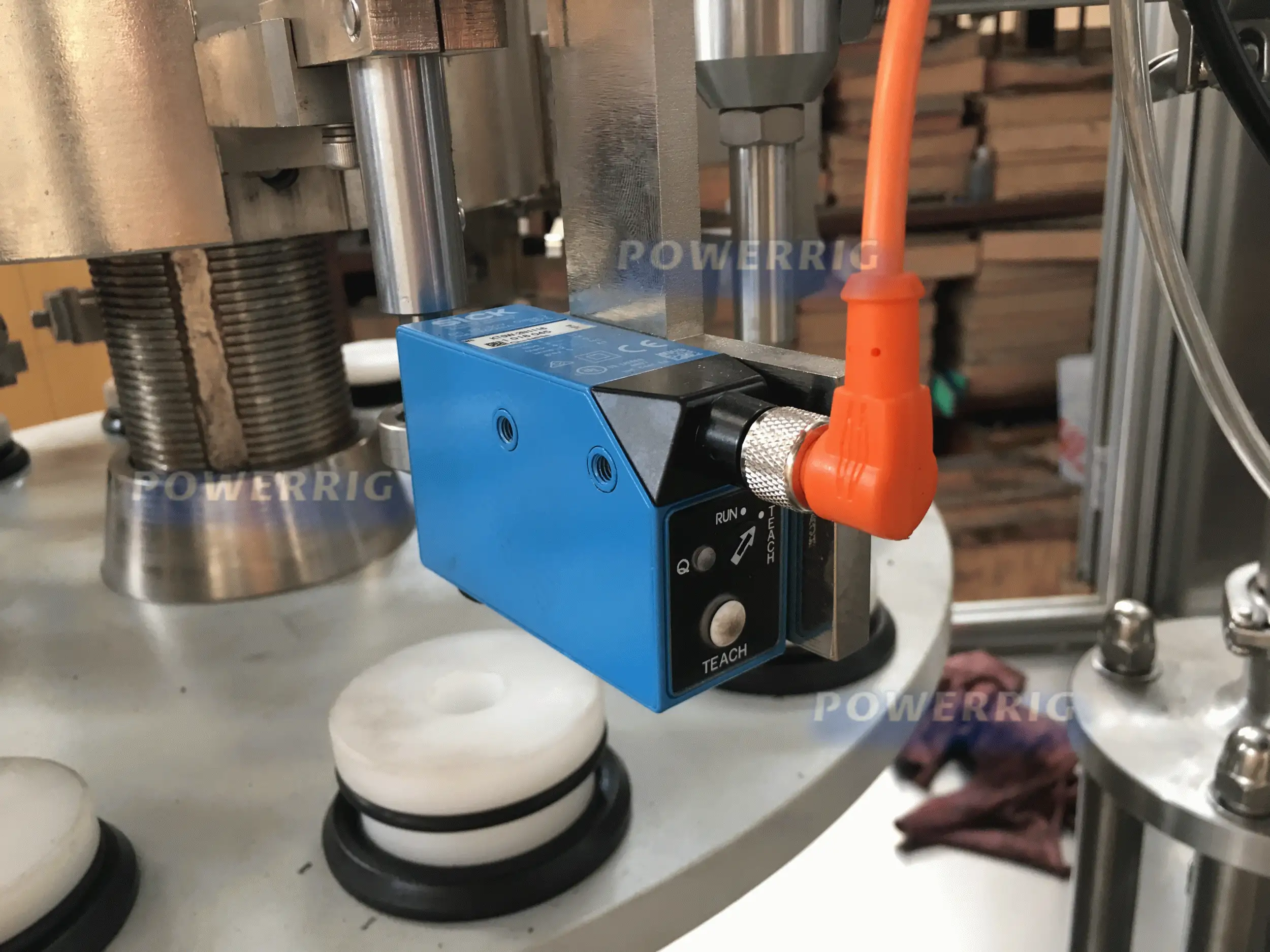

Color Mark Sensor | P+F,Germany |
Approch Switch | P+F,Germany |
Media Relay | Siemens |
Magentic Valve | SMC,Japan |
Divider | Yddex,Shandong |
Pneumatic Elements | SMC,Japan |
Servo Pump for Filling | Micmachinery |
Bearings | FAG,Germany |
