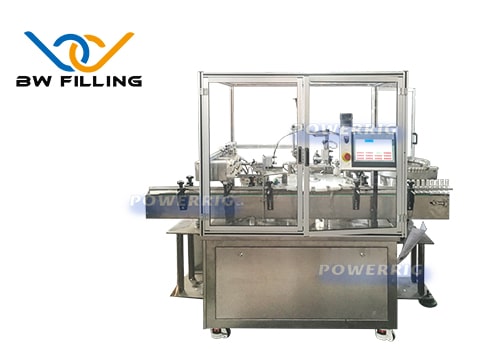

ZF16 Edible Oil Filling Machine(Speed 3200 bottles per hour)

This ZF16 Automatic Bottle Filling Machine adopts serve ball-screw system to drive the piston cylinder. It’s widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Syrup, Detergent, Honey, Shampoo, Lotion, Lubricant oil, etc.

Description

FEATURES:

Brief Introduction of Our ZF16 Edible Oil Filling Machine:
ZF16 Edible oil filling machine is suitable for filling liquid, such as high viscosity material and foam liquid, general filling oil, sauce, tomato sauce, syrup, detergent, honey, shampoo, lotion, lubricating oil, etc. It is widely used in food, chemical, medicine, cosmetics, agrochemical and other industries.

Three Competitive Edges of Our ZF16 Edible Oil Filling Machine:

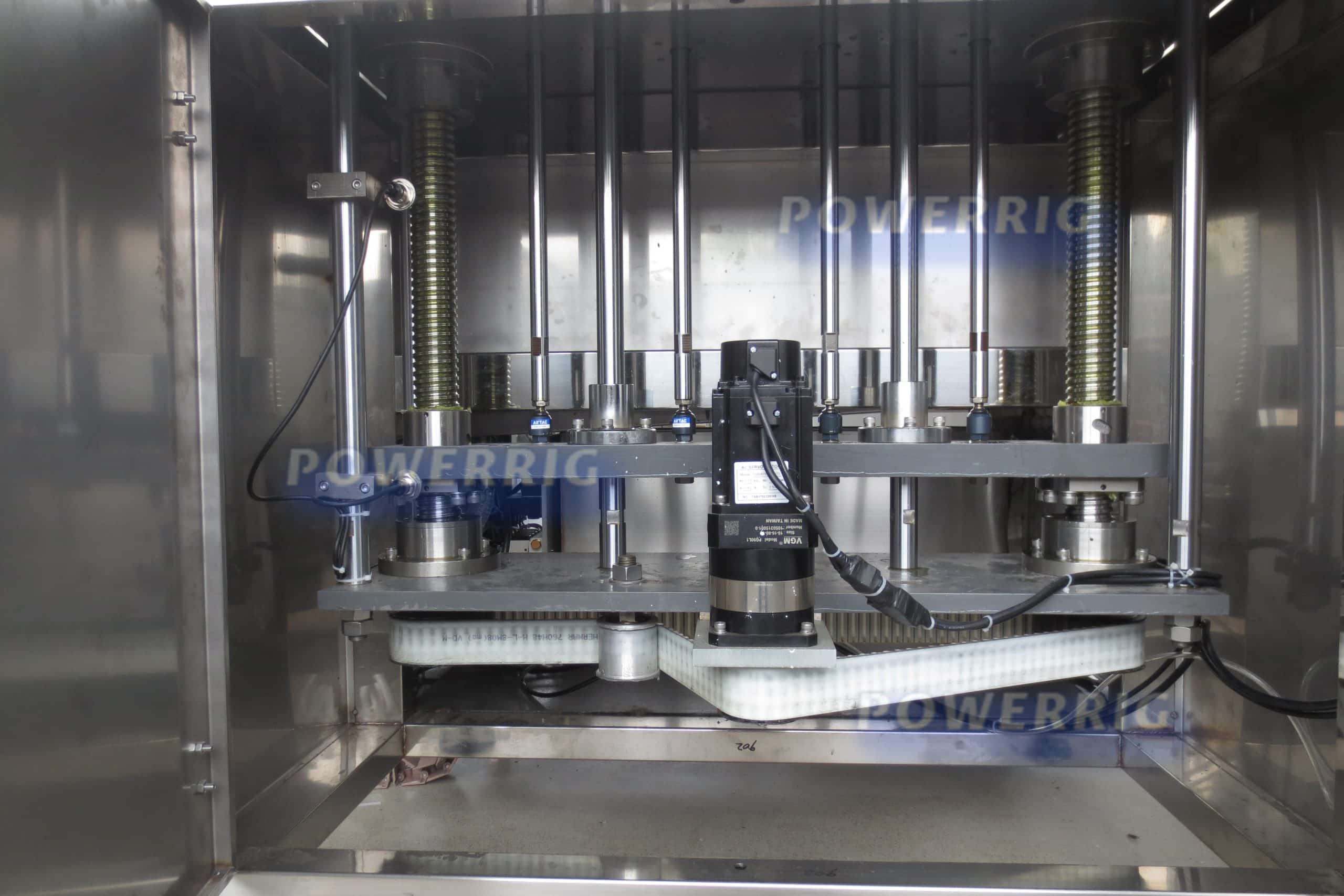

1.Serve ball-screw system to drive the piston cylinder.
2.This machine adopts touch screen, PLC control machine, all operations can be completed on the touch screen, more simple and clear.
3.Can be filled with particles, long solid material, the machine can be customized according to the material

Our factory also offer installation services if you need them.After the machine arrives at your factory, you need to order installation service from our company. During the installation process, we will alsoteach you how to operate and maintain the equipment.

If you are interested in this machine,please contact us.

PARAMETER:

CONFIGURATION:

Filling head16 heads
Filling typeGravity
Filling capacity100ml- 5000 ml
Production speedIt can achieve 3200 bottles per hour
Power ?supply220V/380V ? Single-phase
Power2Kw
Suitable bottle sizeФ40mm-Ф100mm
The measurement error≤±0.5%
Working pressure0.55Mpa-0.7Mpa
Dimension2440mm × 1240mm × 2350mm
Gas consumption0.9m3/min
Machine weight700 kg
Touch screenCanada X inje color screen
PLC programmableSchneider France
Solenoid valveTaiwan Yadeke

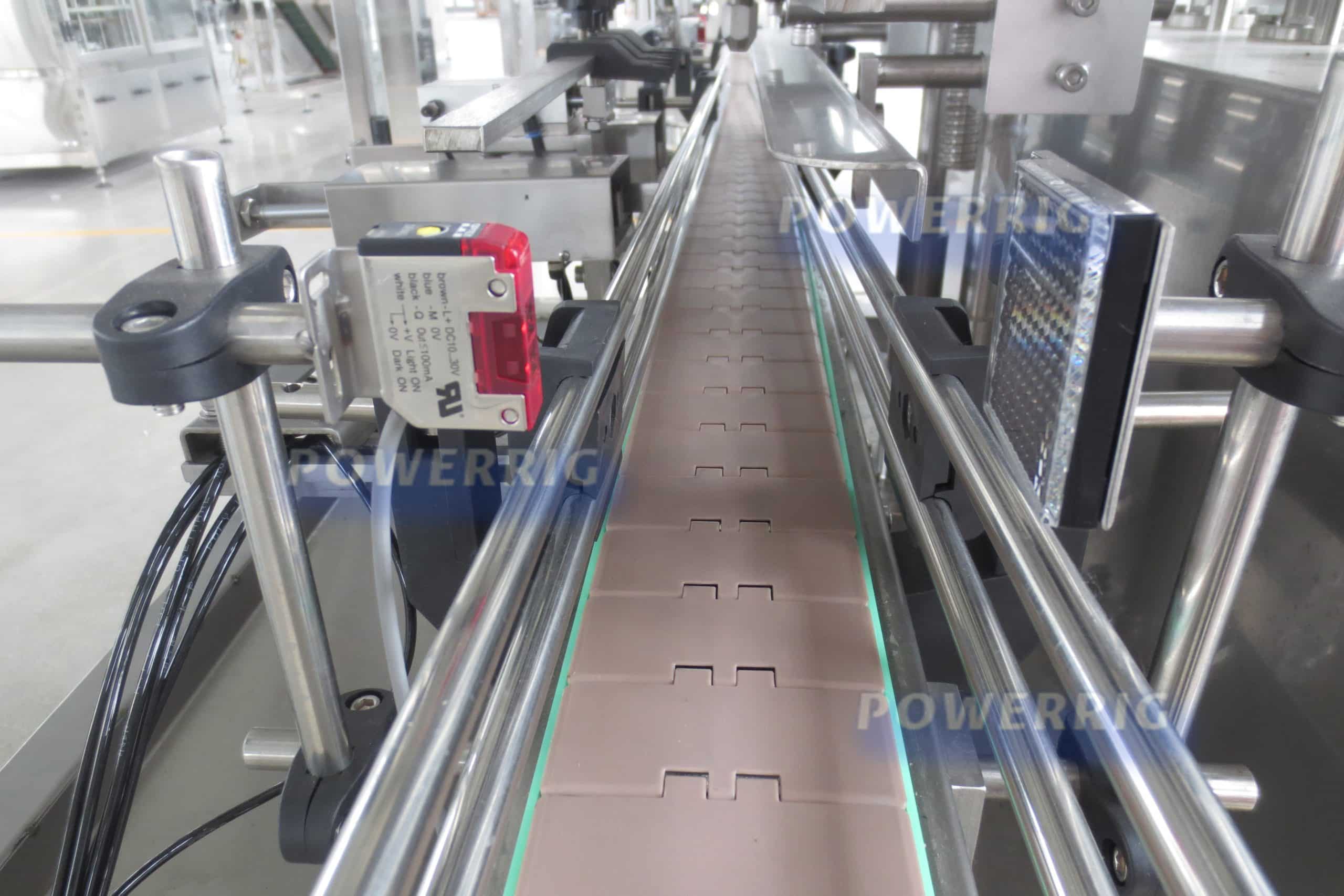

Photoelectric systemJapan stately
Differential switchHolland
SourceTaiwan Yadeke
Button and other low-voltage
electrical appliances
France Schneider
ReducerTaiwan VGM
AlarmR eal-time fault alarm ?and emergency stop automatically
MaterialUse 316 stainless steel ?i n contact with the material ,
the other main parts are made of 304 stainless steel
Sealing ringU se of carbon PTFE fiber materials,
anti- corrosion,wear ? resistance, good sealing

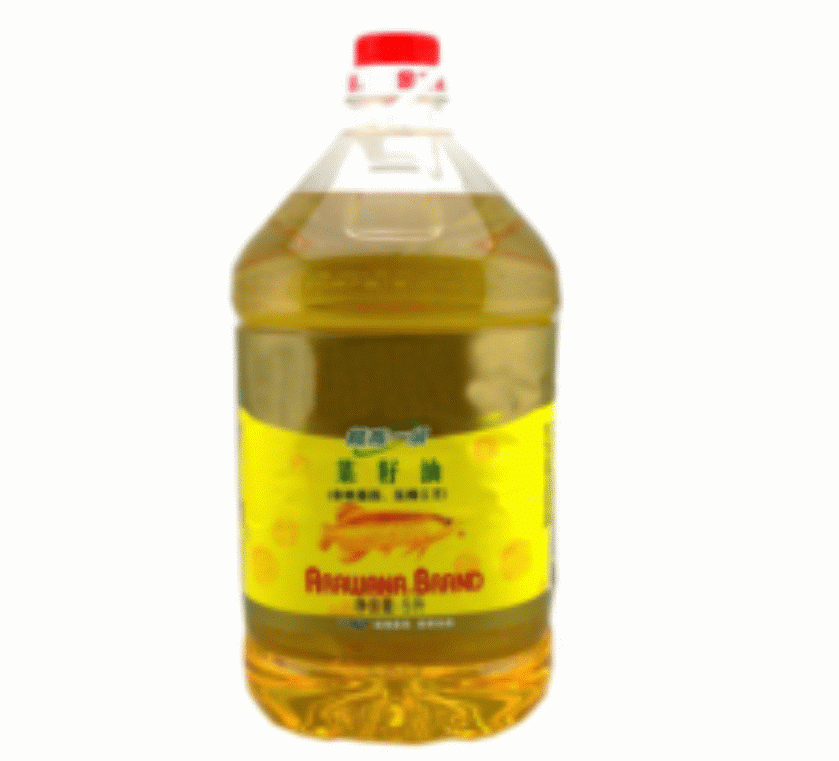

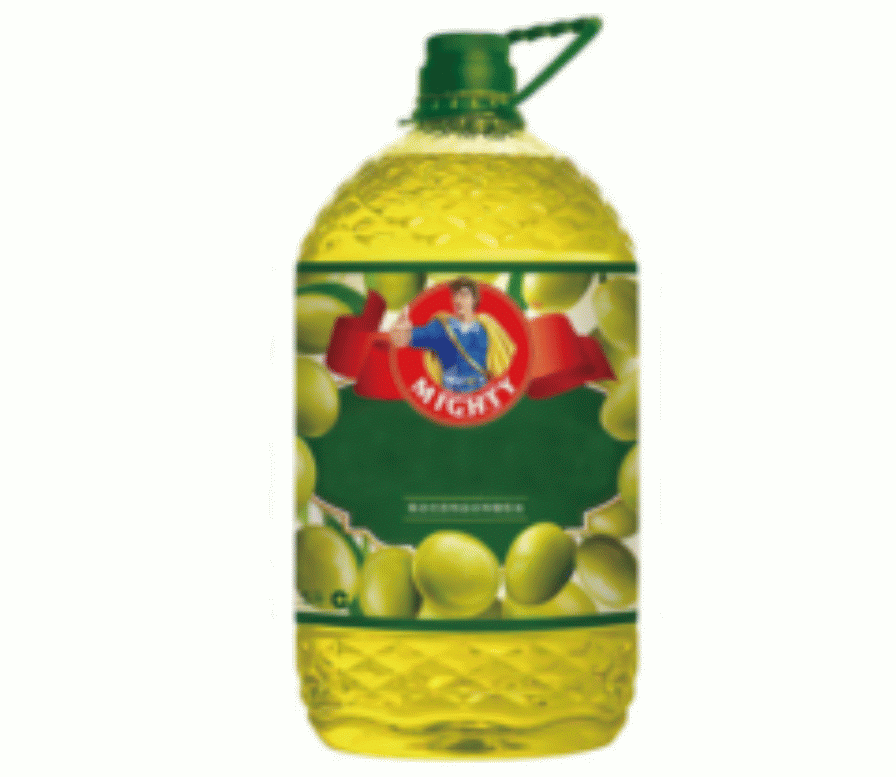

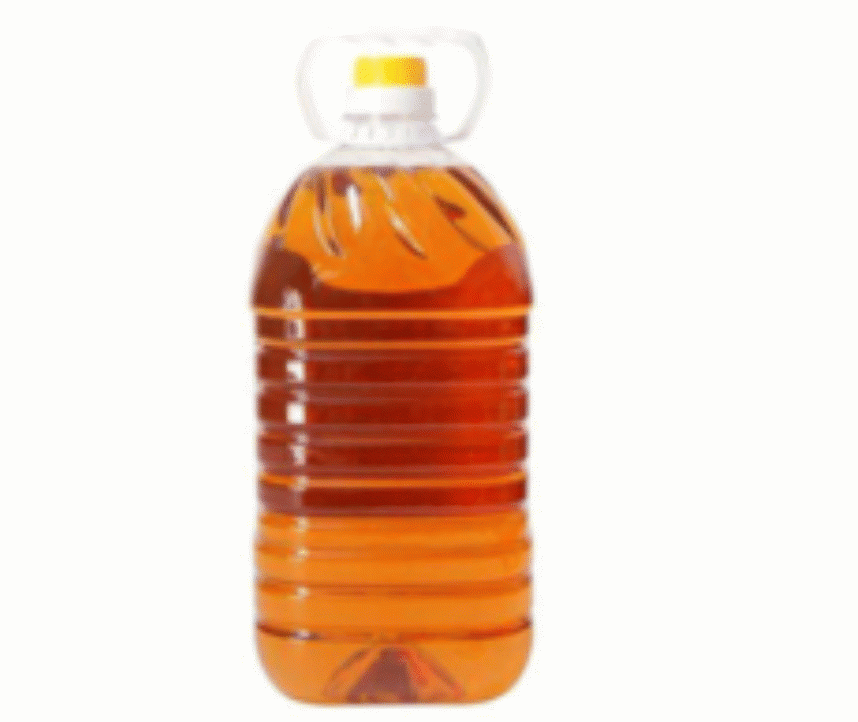

APPLY:
