Motor Oil Filling Machine(20L-35L,ZF4 Automatic Weighting Filling Machine)

It can be used in lube oil, chemical material, Detergent, bean oil, industrial oil, paint and other same kinds of goods. It uses PLC control system and the weighing feedback system with the combination of automatic weighing and filling machine. The machine has stable and reliable filling parameter setting, which can be adapted quickly, has high filling accuracy, and can be operated by clicking on the touch screen. In addition, the use of f the roller conveyor model can save transportation time and workload.

Description

Features:

Brief Introduction of Our ZF4 Weighing Filling Machine:
It can be used in lube oil, chemical material, Detergent, bean oil, industry oil, paint and other same kinds of goods. It uses PLC control system and the weighing feedback system with the combination of automatic weighing and filling machine. The machine has stable and reliable filling parameter setting, which can be adapted quickly, has high filling accuracy, and can be operated by clicking on the touch screen. In addition, the use of roller conveyor model can save transportation time and workload.

Seven Competitive Edges of Our ZF4 Weighing Filling Machine:
1.The machine uses weighing and metering mould to control filling, which can carry out filling with high accuracy.
2.It can be used for 5L-30Llarge capacity barrels, which meets the requirements of GMP. The disassembly and installation is very simple, clear and convenient, and the maintenance method is simple.
3.This equipment is mainly used for packaging liquid bottles of chemical, pesticide and water agent. Different types of containers can be used, and can be combined with capping machine and labeling machine to form a complete production process.
4.The quality of components is good, which ensures the high quality and performance of products.
5.The barrel and the three-way valve are connected by handcuffs, which does not need any tools and is easy to disassemble, keep and wash.
6.The machine is equipped with photoelectric counter, which can fill accurately.
7.The machine has anti drip irrigation system, which can avoid drip irrigation and wire drawing.

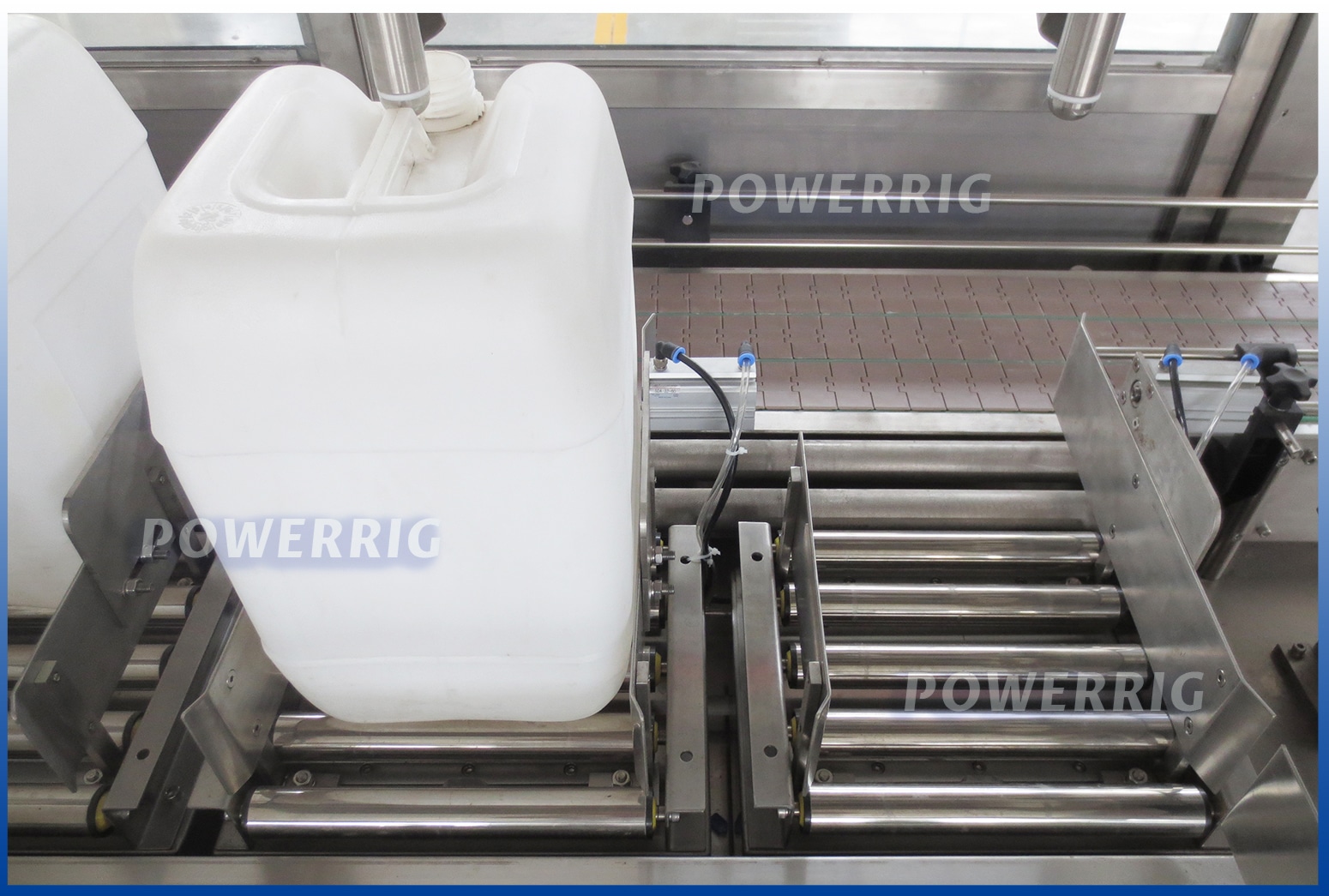

Weighting

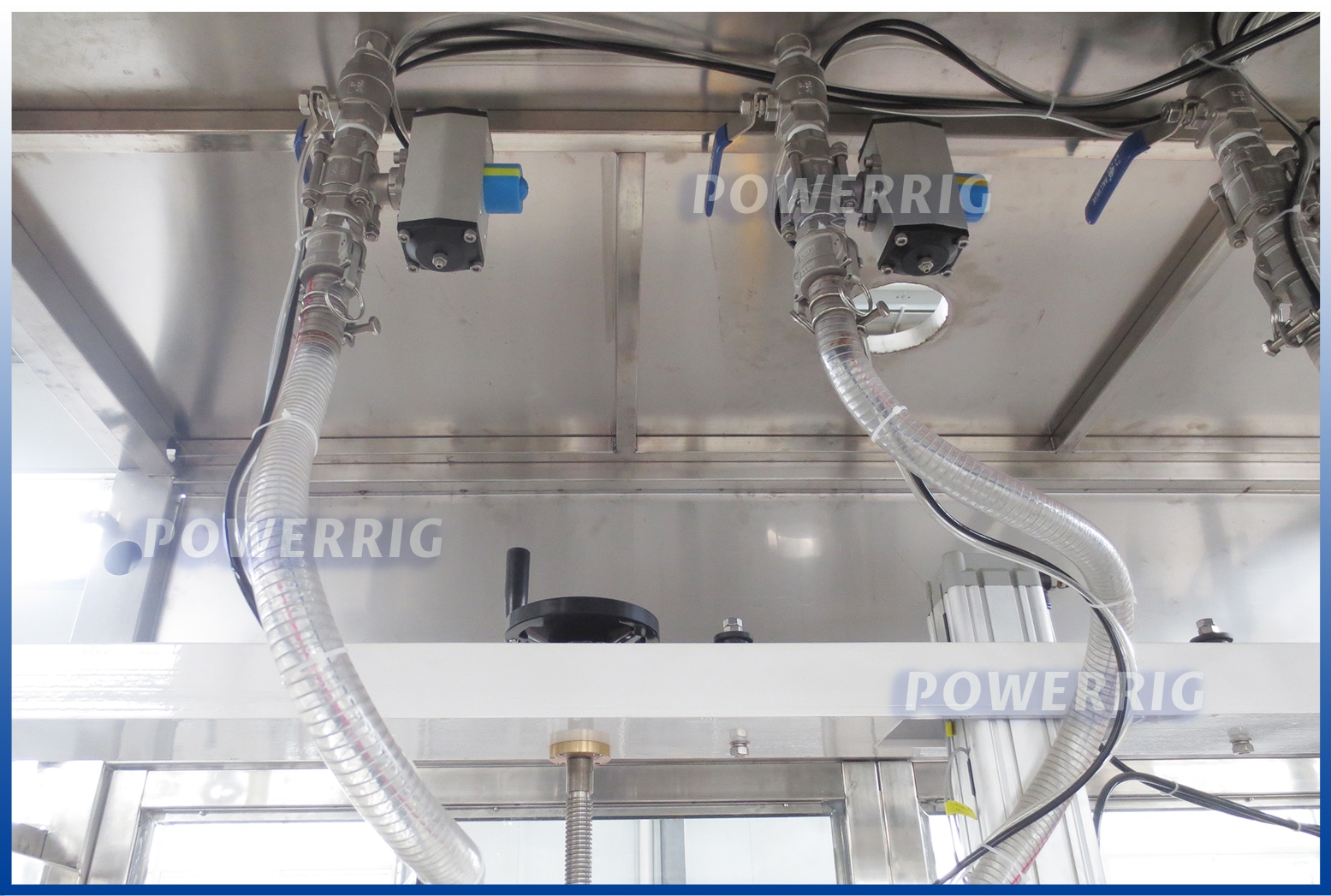

Three-way Valve

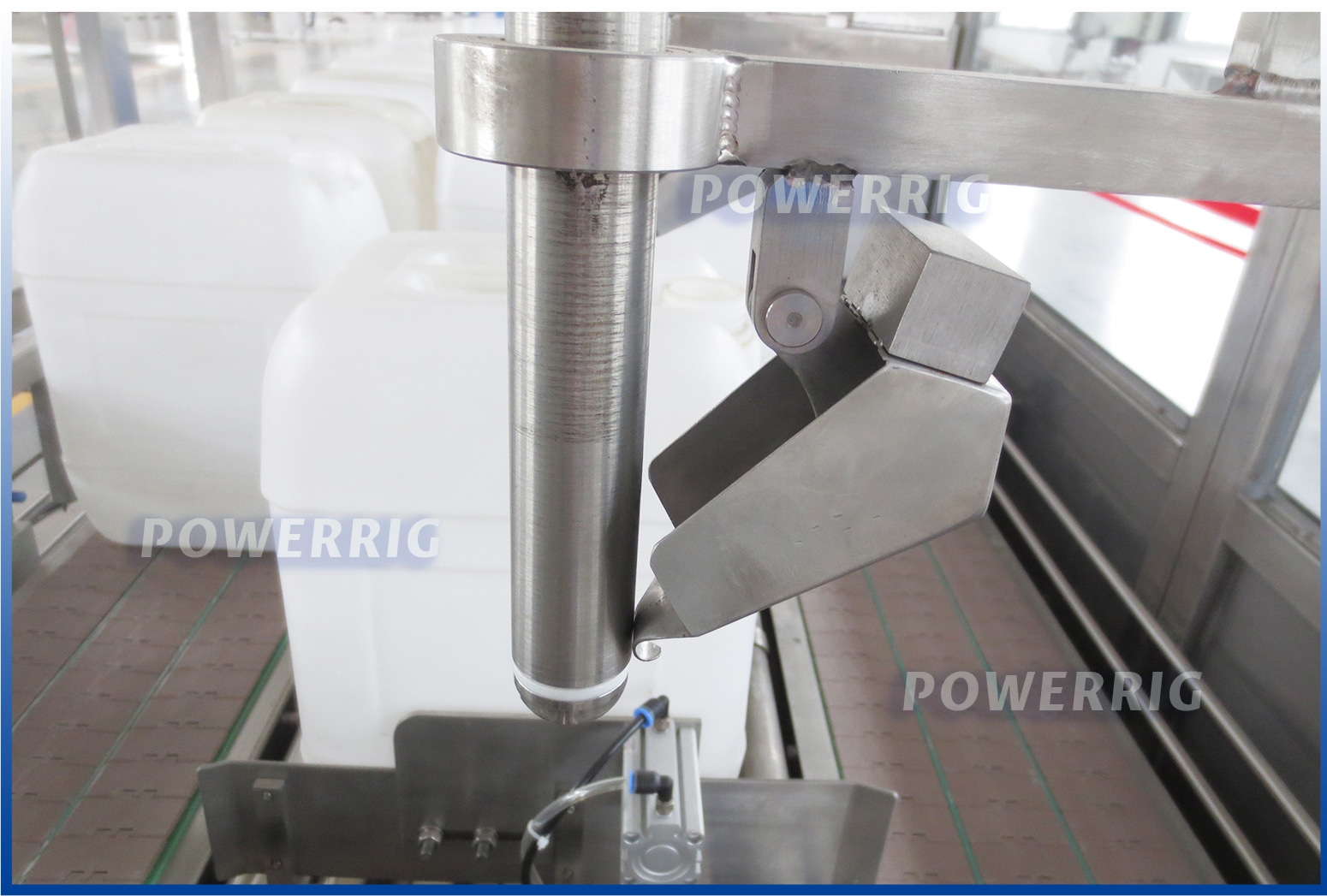

Filling Head

PARAMETER:

CONFIGURATION:

Filling Head4heads
Filling Volum5-30L
Filling Speed300PBH(20liters basis)
Power Supply220V/380V
Power3.0Kw
Bucket Length180mm-300mm
Bucket Width120mm-250mm
bucket Height280mm-450mm
Metering Error≤±0.5%
Air Consumption0.6m3/min
Working Pressure0.55Mpa-0.65Mpa
Dimension2500mm × 1800mm× 2500mm
Weight800 kg
PartsBrand
Touch ScreenCanada
PLCSchneider, France
Weighing SensorCanada
Weight DisplayCanada
Solenoid ValveTaiwan Yadeke
CylinderTaiwan Yadeke
Gas Source TreatmentTaiwan Yadeke
Photoelectric SystemJapan Stately
Pneumatic OriginalTaiwan Yadeke
Utton and Other Low-voltage ElectricalSchneider, France
Switching Mode Power SupplyTaiwan Meanwell
Machine Material BoxThe material contact position is 316, and the other part is 304 stainless steel

APPLY:
