LL45 Automatic 30ml Filling Machine(Small Glass Bottle Liquid Filling Machine,Speed 20-40 Bottles Per Minute))

It can be used in glass bottle, plastic bottle, perfume, spray, syrup, oil lotion and liquid,material, eye drop, cosmetic oil, e-liquid, gel, and other products. Dropper bottle, cork bottle, rubber cork bottle, chubby gorilla bottle and small bottle can also be drip irrigation. Penicillin bottle and spray bottle can customize different bottle caps according to customers’ needs.

Description

Features:

Brief Introduction of Our Syrup Capping Machine:
It can be used in glass bottle, plastic bottle, perfume, spray, syrup, oil lotion and liquid,material, eye drop, cosmetic oil, e-liquid, gel, and other products. Dropper bottle, cork bottle, rubber cork bottle, chubby gorilla bottle and small bottle can also be drip irrigation. Penicillin bottle and spray bottle can customize different bottle caps according to customers’ needs.

The Working Process of Our Syrup Capping Machine:
1.The automatic conveyor puts the glass bottles onto the turntable. You can put the bottle directly on it. Bottle sorting machine is used to automatically sort bottles and complete automatic bottle loading.
2.When the bottle is on the turntable, start the sensor and the turntable starts to work.
3.The filling nozzle is used for filling syrup. Peristaltic or piston type can be customized according to different materials and filling volume. Fill the syrup with a piston pump. If you want to increase the filling speed, you can increase the number of filling nozzles.
4.Next, close the bottle cap. It can be capped manually or automatically. The automatic cover shall match the vibration plate of the cover. The vibrating plate can be customized according to the bottle cap and is used to install the inner cap and outer cap. The bottle cap only needs a set of vibrating plates, which are used to classify different types of bottle caps and automatically put each bottle into the bottle guide. The inner cover and the outer cover are combined in one cover.
5.The last step is to cap the station. Place the bottle on the disc mold and tighten the lid.


Three Competitive Edges of Our Our Syrup Capping Machine:
Theprecision and efficiency is very high.
No bubbles will be generatedwhen filling.
No bottle no filling


Pay attention to:
Some materials also match the vacuum system. It prevents bubbles during filling.

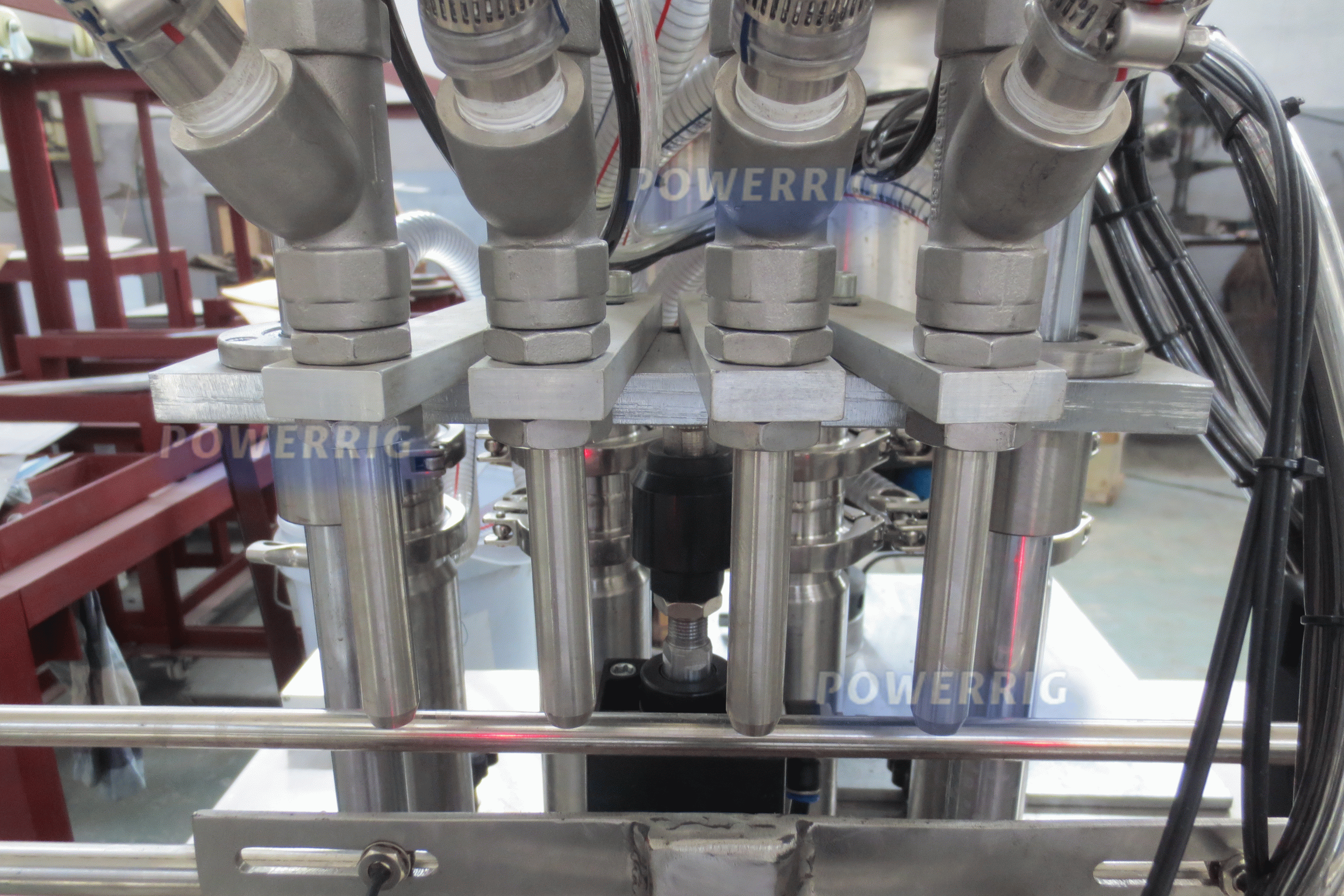

Filling Head

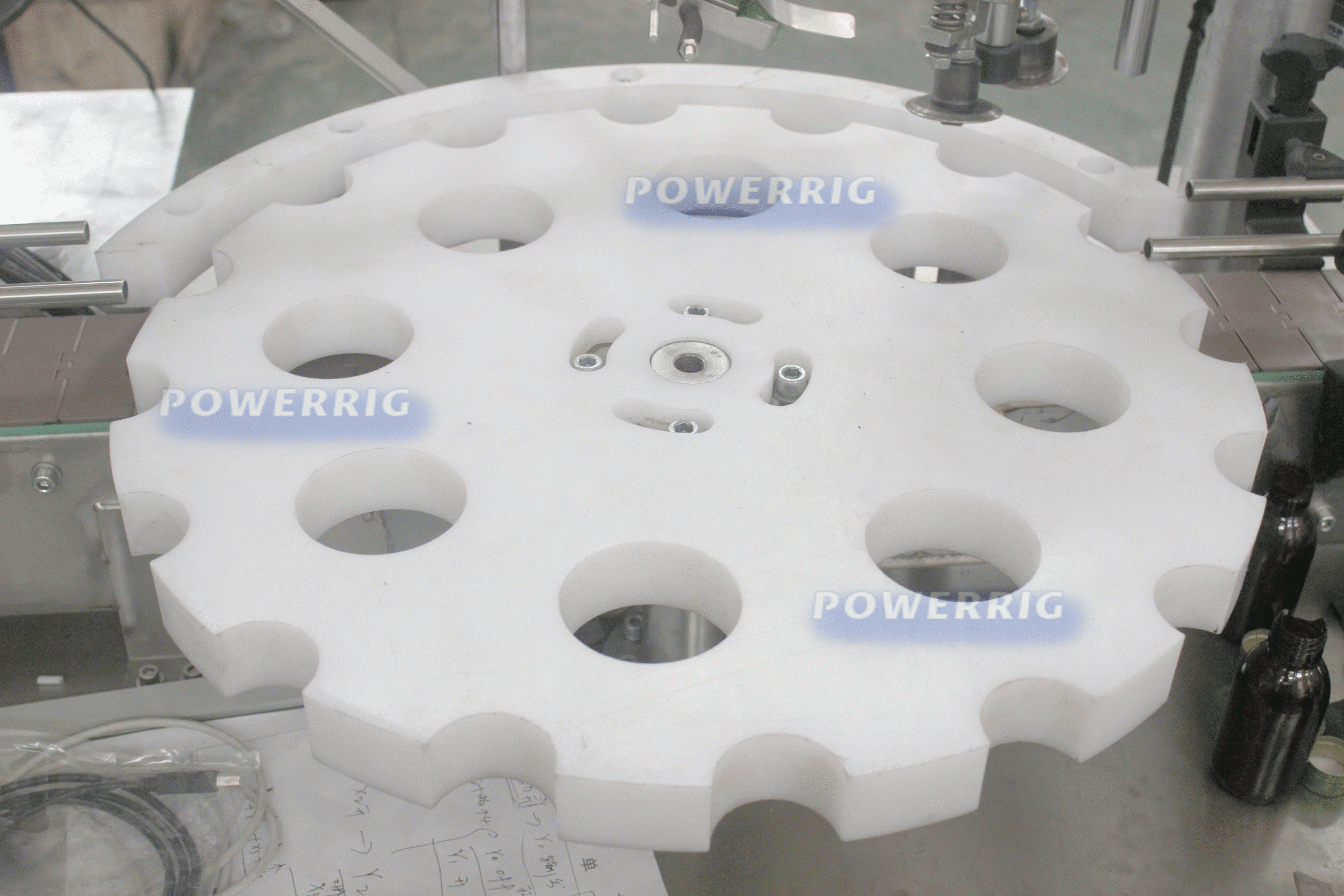

Turntable

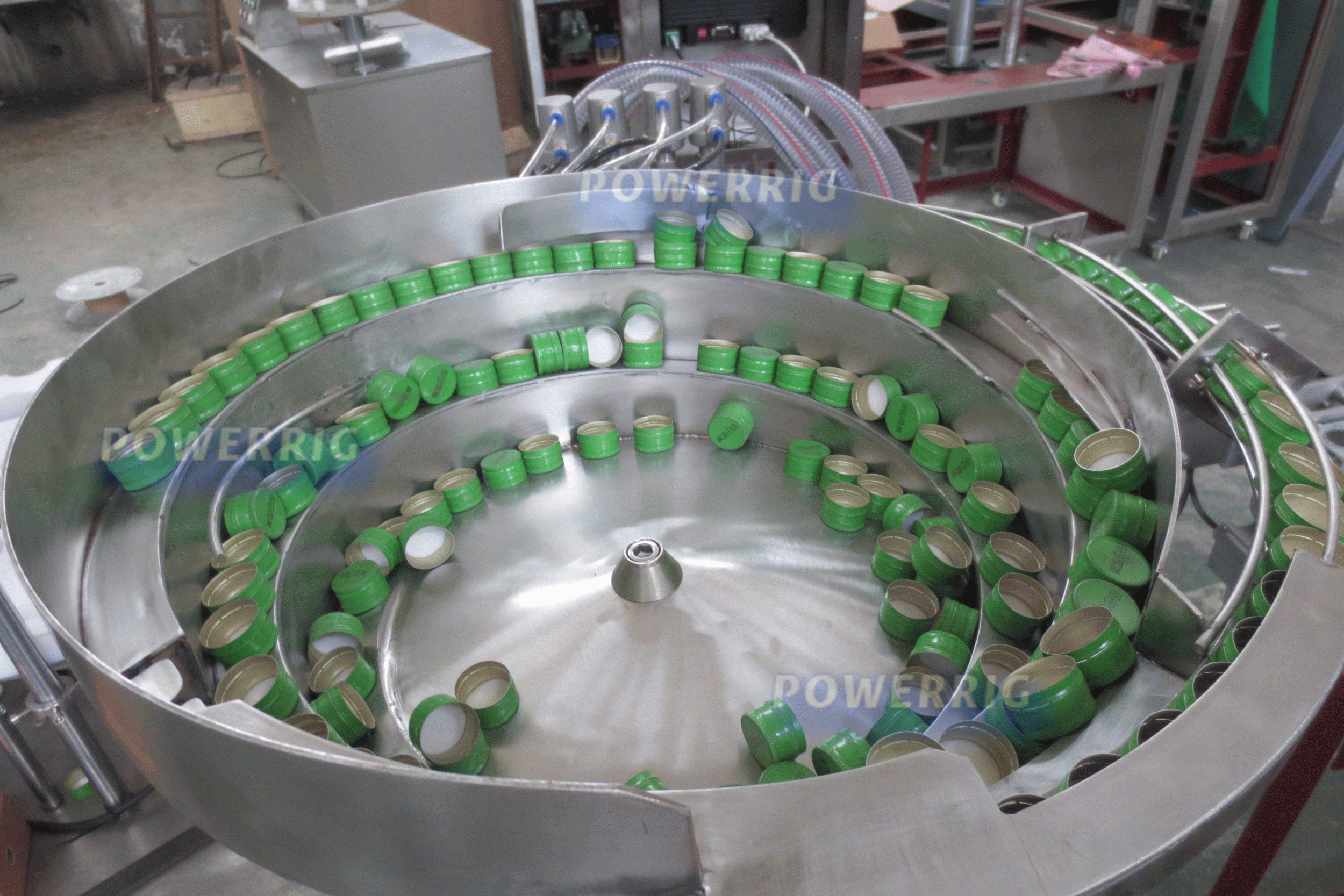

Vibrating Disk
Cap Covering

PARAMETER:

CONFIGURATION:

Filling Volume10-120ml4 Filling Heads
Output20-40 Bottles/minAccording to the Size of Bottle
Bottle TypeGlass Bottle or Plastic BottleRound or Square
Cap TypePlastic Bottle or Aluminum Cap/
Filling Precision≤±1%/
Power Supply380V/50HzCan be Customized
Capping Rate≥99%/
Stoppering Rate≥99%/
Air Supply1.3 m3/h 0.4-0.8Mpa/
Power2.0Kw/
Weight650 kg/
Dimension2100*1200*1500mm/
NameBrand
Press-buttonSchneider
Magnetic ContactorSchneider
RelayOmron
Frequency TransformerMitsubishi
MotorJSCC made in Germany
Air CylinderAirtac
Solenoid ValveAirtac
Speed ReducerMade in Taiwan
BearingNSK
PLCMitsubishi
Touch ScreenMitsubishi
Fibre-opticalAutonics
Switching Mode Power SupplyNWELL
Step MotorSNAYO Made in Japan

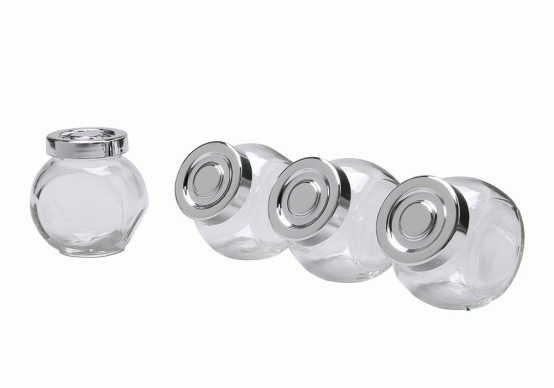

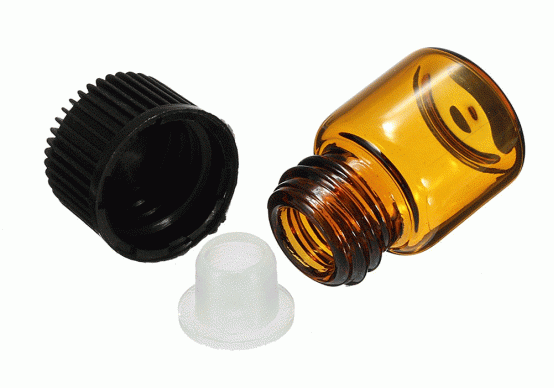

APPLY:
