Description
FEATURES:
Brief Introduction of Our L40 Perfume Bottle Filling Machine:
Perfume filling machine varry out three automatic filling. Vacuum negative pressure is used and During the filling process, if the machine does not sense the bottle, it will not fill.Auto dropping of crimp pump cap, circulation of spray bottles’ die set. We can customize the machine according to your requirements by container size and filling capacity. This machine has automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.
Â
L40 Perfume Bottle Filling Machine Advantage:
1.Bottle loading automatically or manually
2.Automatic sensoring when the bottle is comming
3.Negative pressure vacuum filling perfume into the bottle
4.Putting inner cap and outer cap automatically
5.This capping head fix the capÂ
6.Capped bottles come out at the conveyor belt
Â
It can make different products according to different bottle caps, such as glass perfume bottles with metal spray caps; Glass perfume bottle with customized inner plug and outer screw cap; Custom made plastic perfume bottle with plastic spray cover; The plastic perfume bottle has a customized inner plug and outer screw cap.
Â
If you are interested in this machine,please contact us.L
PARAMETER:
CONFIGURATION:
Filling nozzle | 2 piece one piston filling nozzle one vacuum filling nozzle | Filling volume | 50-150ml |
Filling form | Piston and vacuum filling | Filling speed | 20-30 bottle per min |
Filling accuracy | +/- 1mm | Material tank / bottle table | 25L / 600*300 mm length and width 2 pieces (input and output) |

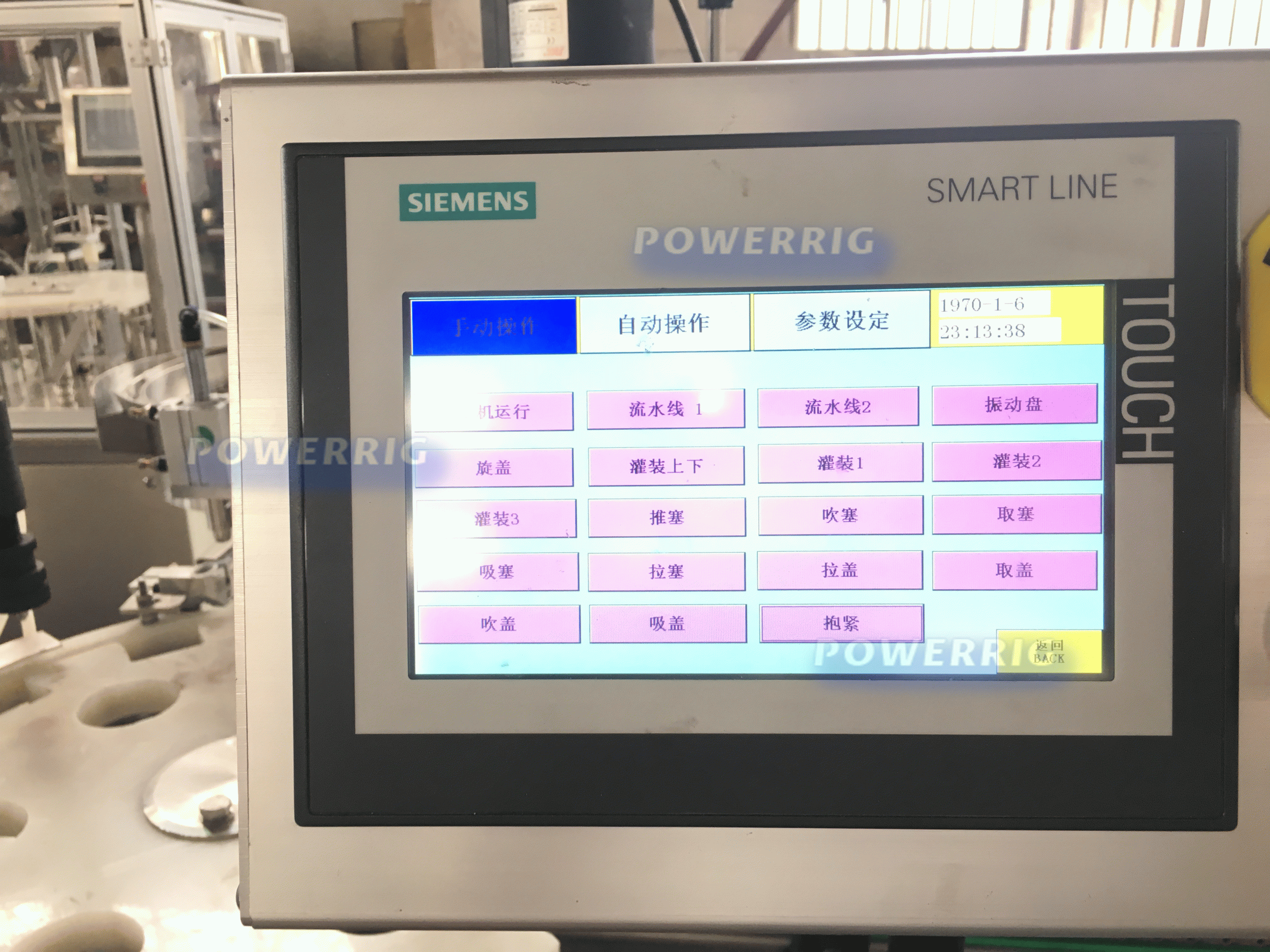

Controller | PLC+ touch screen | Machine Filling nozzle tank | SUS 304 |
Air pressure | 0.6-0.8Mpa | Conveyor belt | 82mm SUS 304 Chain belt 750mm +/- 25mm |
Conveyor motor | 370W adjust transducer motor | Power | 1Kw 220v single phase 5 wire |
Setup component | Brand |
Rack material | SUS 304 |
Tank, nozzle, liquid touches place | SUS 304 / medical silica gel |
Air componnet | Airtac |
Touch screen | Siemens Germany 21 cm color |
Sensor | LEUZE Germany or SICK |

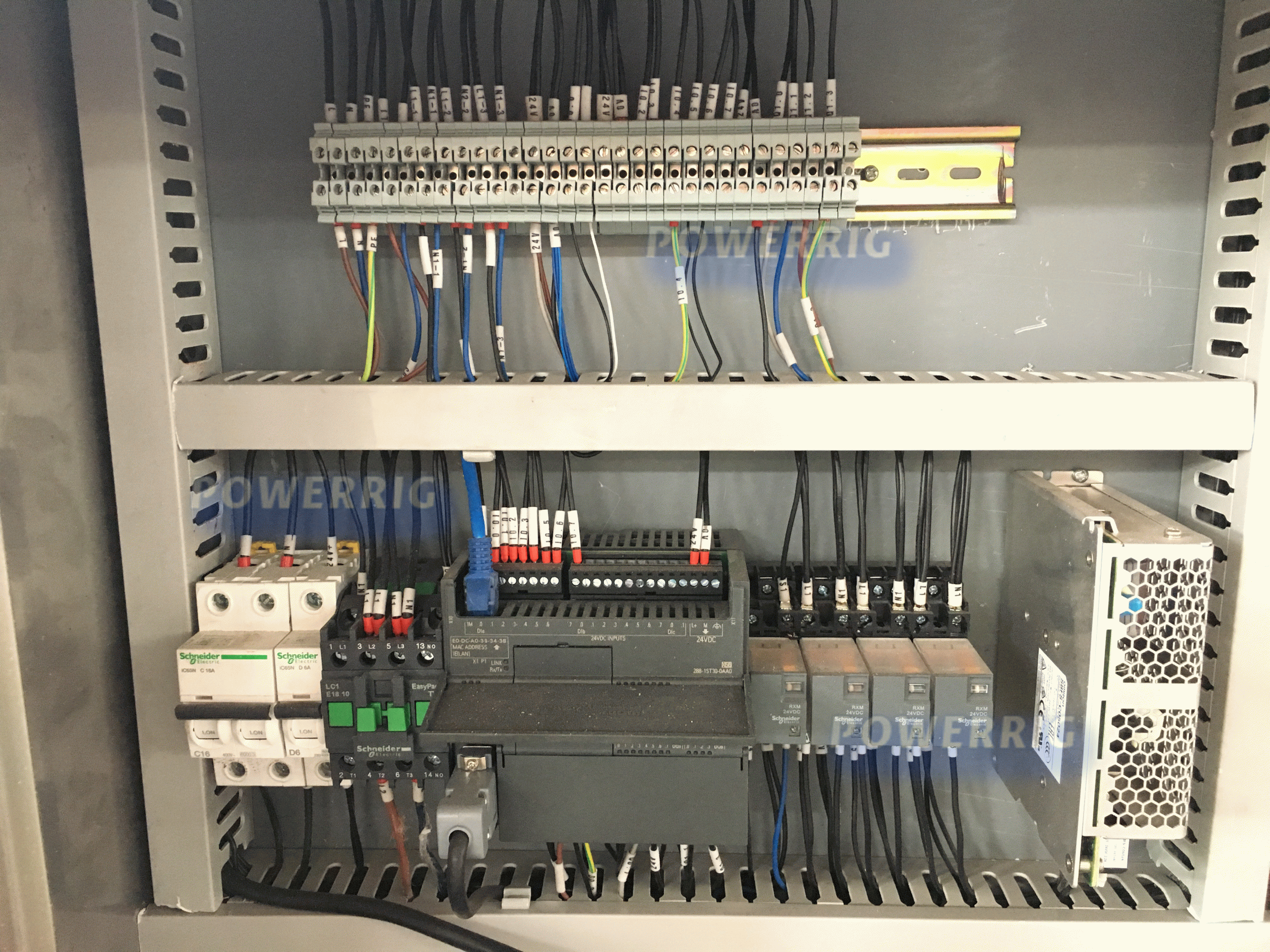

Relay & air switch | Schneider French |
Transducer Motor | Schneider French |
Conveyor material | 82mm width SUS 304 Chain belt |
Conveyor motor | AC motor China brand |
Filling form | Piston filling (80-90) and vacuum filling (for accuracy) |

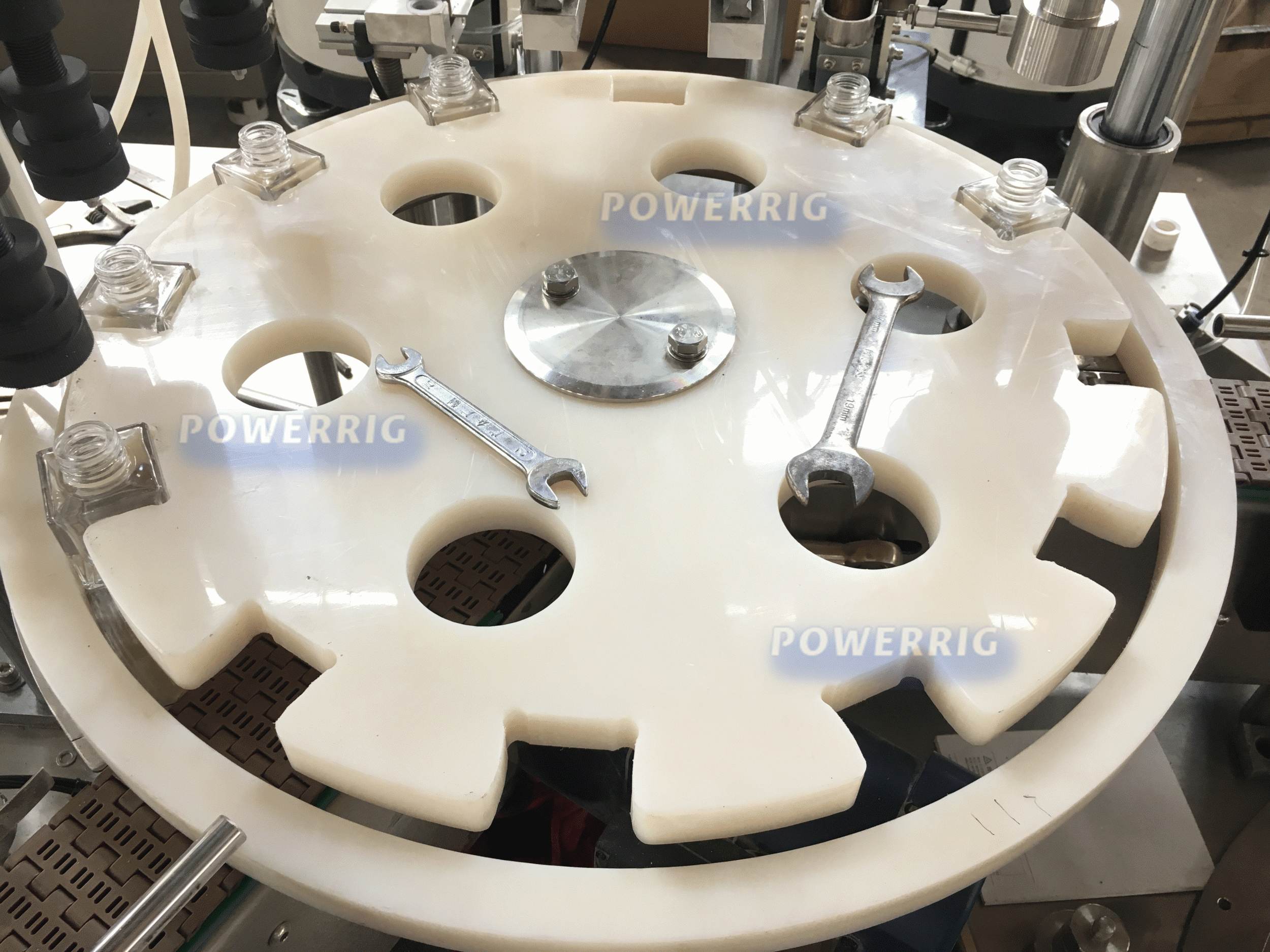

Turnable tray motor, capping motor, | China brand |
Explore parts | SUS 304, Positive oxidation treatment aluminum alloy  Electroplate No.#45 steel and plastic. |
Vacuum pump | China brand |
