250L Homogenizer Mixer(Motor Speed: 2800r per minute)

It is made up of oil tank, water tank, vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and pipeline system. It is very suitable for producing high-grade skin care products or other skin care products.

Description

FEATURES

Brief Introduction of Our 250L Cosmetic Cream Liquid Detergent Vacuum Mixer Homogenizer Emulsifier Machine:

It is made up of oil tank, water tank, vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and pipeline system. It is very suitable for producing high-grade skin care products or other skin care products.


Some Details of Our 250L Cosmetic Cream Liquid Detergent Vacuum Mixer Homogenizer Emulsifier Machine:

1.The overall size is 2600mm × 1900mm × 2500-3500mm, 1800mm for oil tank × 800mm × 1200mm.

2.The inner wall, sheath and outer layer are made of 304 stainless steel, polished inside and outside, and the surface is subject to special light treatment.

3.The oil tank capacity is 130L; The water tank capacity is 130L; The capacity of primary tank is 250L and the working volume is 200L; The limit vacuum is -0.09mpa.

4.Double layer oil tank and water tank, with inner, middle and outer thickness of 4mm.

5.The mezzanine electric heating power of the heating system is 6kW. For heat insulation, the outer layer is covered with asbestos, which can reduce heat loss and avoid scalding employees.

6.The oil tank and water tank of the hybrid system are equipped with a 0.75KW disperser to heat the water and oil faster and more evenly.

7. The vacuum emulsifying pot is made of three layers of stainless steel. The thickness of the interlayer is 4mm, the thickness of the middle layer is 4mm, and the thickness of the outer layer is 3mm. Special light treatment is carried out.

8.The homogenizer can adjust the time setting according to the homogenization needs of the product. It is on the top of the emulsion tank, with a voltage of 3800V and a power of 3KW. The product is made in Shanghai, using German technology, and the maximum speed is 2800 rpm. The high-speed movement of materials between rotor and stator can produce strong hydraulic shear force to separate boredom, and produce centrifugal force to squeeze, grind and crush materials, and finally mix, stir and reduce the materials to the required product requirements.

9.The voltage of the vacuum system is 380V and the power is 1.1KW. The materials in the water tank and oil tank are absorbed into the main tank in vacuum. Shanghai haibokang company manufactures rotary vane pump, which removes bubbles and improves homogenization effect. (water circulation cooling)

10.8kw electric heating device is installed at the bottom of the heating system. The temperature will be displayed during heating, which is very convenient to control.

11.The voltage of the mixing system is 380V, the power is 2.2KW, and the speed is 10 to 120 revolutions per minute. It is monitored by transparent filter, and the interlayer is scraped during mixing. The speed is variable frequency speed regulation.

12.The voltage of electric lifting is 380V and the power is 1.1KW. The operation of the machine is highly recommended, so the material can be effectively emulsified under closed conditions.

13.The control system has digital time relay device, which can adjust different time and speed according to different materials. All the control buttons are put together, which is very clear.

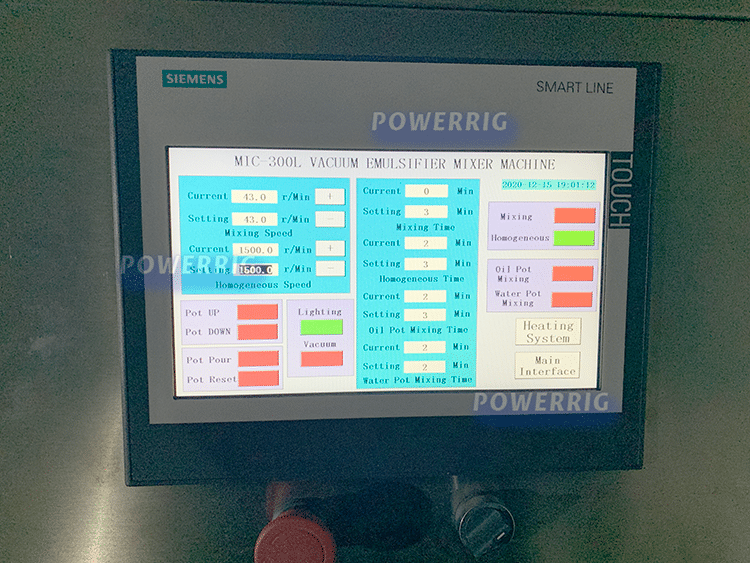

Control System

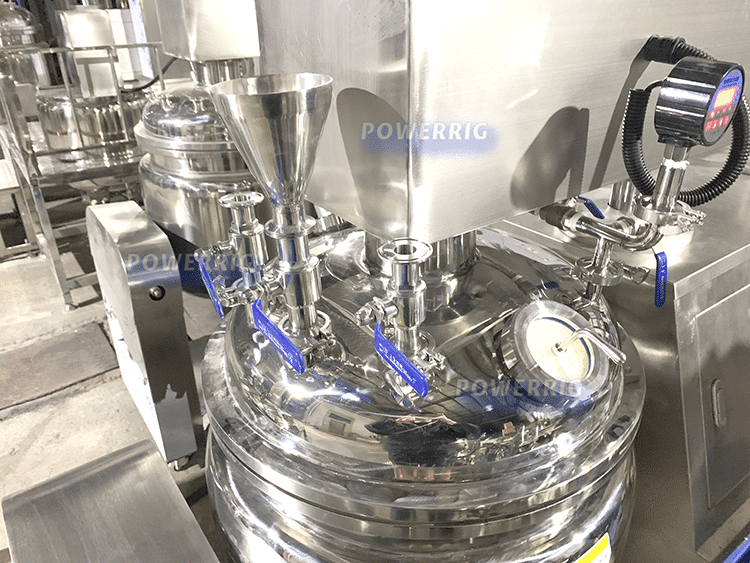

Pot Lid Feeding System

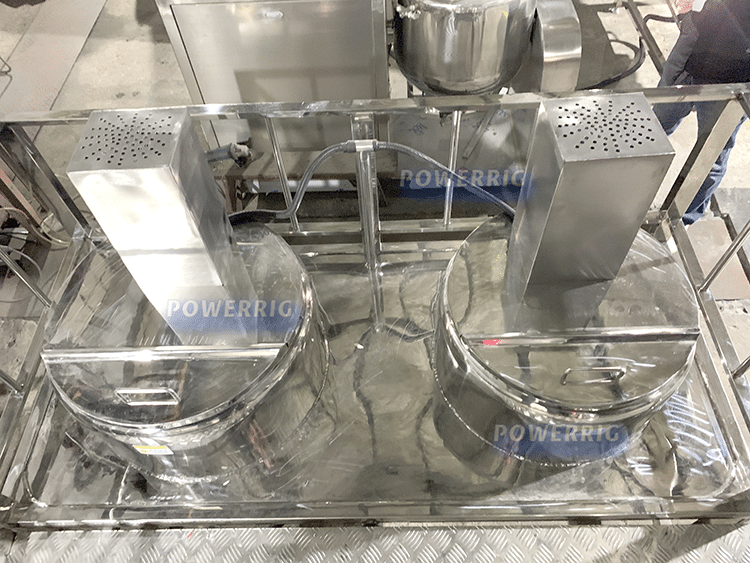

Oil And Water Tank

PARAMETER

CONFIGURATION

Device Name

250L Emulsifying Machine

Working ability

Design volume: 250L



Working volume:200L



Minimum operating volume: 80L

Material

Contact Parts: 304 stainless steel thickness: 4mm



Interlayer: 304 stainless steel thickness: 4mm



Outer layer: 3 04 stainless steel thickness: 3mm

Weight

1200kg

Size

2600mm×1900mm×2500-3500 mm

Service life

10 years

Stirring

Fixed paddle stirring, PE blade Scraping

Homogenizer

Power: 4KW



Motor speed: 2800r/min



Particle size: 0.2-0.6um

Uncapping

Electric lift

Heating

Electric heating

Discharge

Tilt pot discharge and bottom valve discharge

Process parameters

Working pressure: -0.09MPa

Flimsy parts

1 year renewal except artificial

Warranty period

1 year

Water Pot

Device Name

250L water pot

Working ability

Design volume: 130L

Working volume: 100L

Stirring

Blades stirring

Mixing Power: 0.75KW

Speed: 150r/min

Uncapping

Removeable uncapping

Temperature display

Digital Temperature display

Discharge

Bottom absorbing discharge

Process parameters

Working pressure: -0.09MPa

Material

Contact segment: 304 stainless steel thickness: 3mm

Outer layer: 304 stainless steel thickness: 3mm

Oil Pot

Device Name

5L oil pot

Design capacity

Design volume: 5L

Working volume: 4L

Stirring

Blades stirring

Mixing Power: 60W

Speed: 200r/min

Uncapping

Removeable uncapping

Temperature display

Digital temperature display

Discharge

Bottom absorbing discharge

Process parameters

Jacket working pressure: -0.3MPa

Material

Contact segment: 304 stainless steel thickness: 4mm

Outer layer: 304 stainless steel thickness: 4mm
