100L Homogenizer Mixing Tank(Motor Speed: 2900r per minute)

It is composed of vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and pipeline system. The pipeline system can be oil tank and water tank. It is the best equipment and can be used to produce hand sanitizers, disinfectants, mayonnaise and other pastes or cream.

Description

FEATURES

Brief Introduction of Our 100L Vacuum Emulsifying Machine(Hand Sanitizer, Disinfectan,ETC.):

It is composed of vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and pipeline system. The pipeline system can be oil tank and water tank. It is the best equipment and can be used to produce hand sanitizers, disinfectants, mayonnaise and other pastes or cream.



The working principle of a liquid mixing machine depends on the specific type of mixing system used.  However, in general, the machine works by agitating the liquid in the tank to ensure that the ingredients are uniformly mixed together.

The mixing system, such as impellers, turbines, propellers, or baffles, is driven by a motor that rotates it at a certain speed.  As the mixing system moves through the liquid, it creates turbulence, which promotes mixing by breaking up any clumps or clusters of ingredients and distributing them evenly throughout the tank.

The mixing process can be controlled by adjusting various parameters, such as the speed of the mixing system, the temperature of the liquid, and the duration of the mixing process.  These parameters can be optimized to achieve the desired outcome for the specific application.

Overall, the working principle of a liquid mixing machine is to create turbulence and agitation in the liquid to ensure that the ingredients are uniformly mixed together, which is critical for achieving consistent quality in the final product.





Pay Attention to:

1.Its inner wall is stainless steel 316.

2.Its sheath and outer layer are made of 304 stainless steel.

3.The inside and outside of the machine are polished with special light

4.The main tank is 120L (working volume is 100L); The fuel tank is 40 liters; The water tank is 60 liters

Pot Lid Feeding System

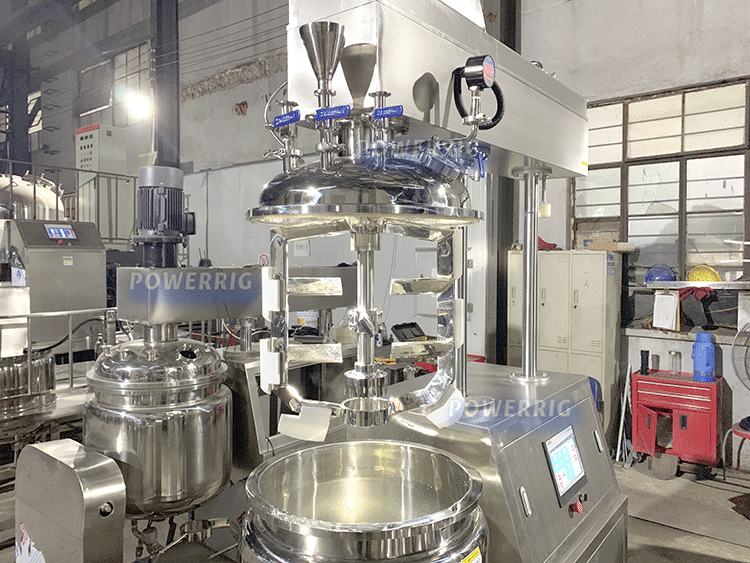

Mixing System

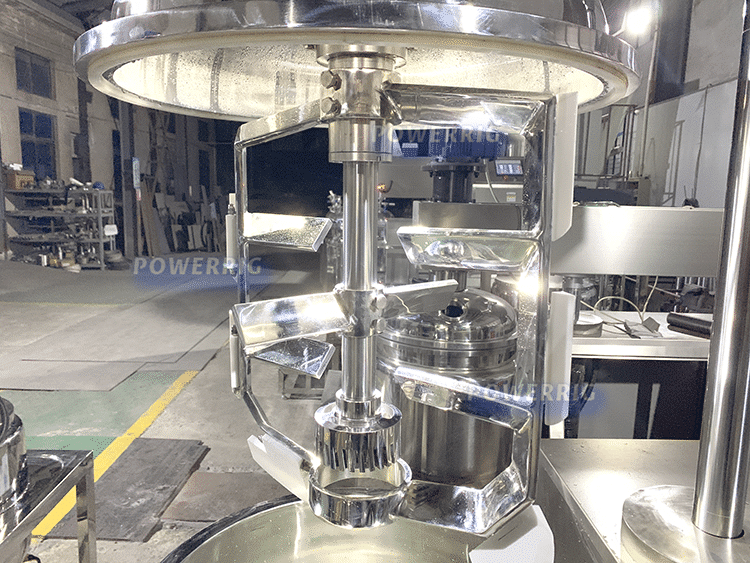

Emulsifying Head

PARAMETER

CONFIGURATION

Device Name

100L Emulsifying Machine

Working ability





Design volume: 120L

Working volume:100L

Minimum operating volume: 30L

Material





Contact Parts: 304 stainless steel thickness: 4mm

Interlayer: 304 stainless steel thickness: 4mm

Outer layer: 304 stainless steel thickness: 3mm

Weight

800kg

Size

1700mm×650mm×1700-2700mm

Service life

10 years

Stirring

Fixed paddle stirring, PE blade Scraping

Homogenizer





Power: 3KW

Motor speed: 2900r/min

Particle size: 0.2-0.6um

Uncapping

Electric lift

Heating

Electric heating

Discharge

Tilt pot discharge and bottom valve discharge

Process parameters

Working pressure: 0.09MPa

Flimsy parts

1 year renewal except artificial

Warranty period

1 year

Water Pot

Device Name

100L water pot

Working ability

Design volume: 60L

Working volume: 50L

Stirring

Blades stirring

Mixing Power: 0.75KW

Speed: 150r/min

Uncapping

Removeable uncapping

Temperature display

Digital Temperature display

Discharge

Bottom absorbing discharge

Process parameters

Working pressure: 0.09MPa

Material

Contact segment: 304 stainless steel thickness: 4mm

Outer layer: 304 stainless steel thickness: 3mm

Oil Pot

Factory

MIC Machinery Co., Ltd

Device Name

100L oil pot

Design capacity

Design volume: 50L

Working volume: 40L

Stirring

Blades stirring

Mixing Power: 0.75KW

Speed: 150r/min

Uncapping

Removeable uncapping

Temperature display

Digital temperature display

Discharge

Bottom absorbing discharge

Process parameters

Working pressure: 0.09MPa

Material

Contact segment: 304 stainless steel thickness: 4mm

Outer layer: 304 stainless steel
thickness: 3mm
