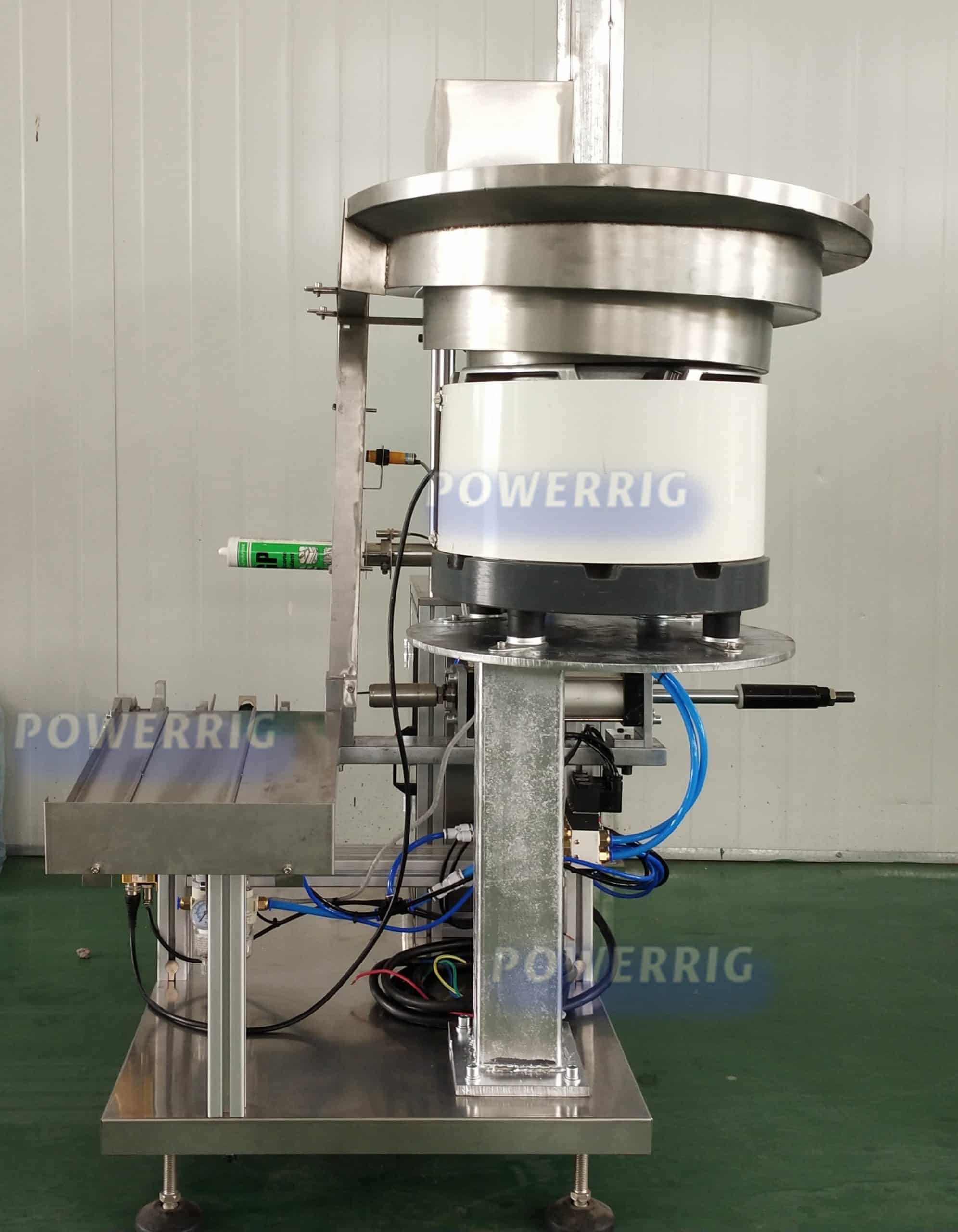

Semi Automatic Silicone Cartridge Filling Machine(Speed 20-30 Cartridges Per Minute)

A silicone filling machine is used in a variety of applications where silicone materials need to be accurately dispensed into containers. Some common applications of silicone



The specific working mechanisms of a silicone filling machine can vary depending on the type and model of the machine, but generally, it involves the following steps:

1. Material preparation: The silicone material is first prepared and loaded into the hopper or reservoir of the filling machine. The hopper may be equipped with a mixer or agitator to ensure that the material is properly mixed and free of air bubbles.

2. Container loading: The containers to be filled are then loaded onto the filling machine. This can be done manually or automatically, depending on the machine’s design.

3. Metering: The filling machine uses a metering system, such as a positive displacement pump, to measure and control the flow of silicone material. This ensures that the correct amount of material is dispensed into each container.

4. Filling: The silicone material is then dispensed into the containers through a filling mechanism, such as a nozzle or valve. This may be done using gravity, or a positive displacement system such as a piston or rotary valve.

5. Leveling: Once the containers are filled, the filling machine may have a mechanism to level off the silicone material, ensuring that the containers are filled to a consistent level.

6. Capping or sealing: Finally, the filled containers may be capped or sealed, depending on the product being produced.

The advantages of using a silicone filling machine include:

1. Increased efficiency: Silicone filling machines are designed to fill containers quickly and accurately, which can increase production rates and efficiency. This can help to reduce labor costs and improve overall productivity.

2. Improved accuracy: Filling machines are designed to dispense a precise amount of silicone material into each container, which helps to ensure that each product is consistent in quality and quantity.

3. Reduced waste: By accurately measuring and dispensing silicone material, filling machines can help to reduce material waste, which can lower production costs and improve environmental sustainability.

4. Consistency: The use of filling machines can help to ensure that each container is filled with the same amount of silicone material, ensuring consistency in product quality.

5. Flexibility: Filling machines can be adjusted to fill containers of different shapes and sizes, which allows for greater flexibility in product offerings.

6. Improved safety: Filling machines can improve safety by reducing the risk of spills or accidents that can occur when filling containers manually.

Overall, the use of a silicone filling machine can offer significant advantages for manufacturers who need to accurately and efficiently dispense silicone materials into containers.


Application300-310ml catridge
Air Pressure0.6Mpa compressed air
Filling MaterialPU glue,silicone sealant
Capacity20-30 pcs per min
Filling MethodPiston filling connect drum press
