30ml Bottle Filling Machine(Speed 60-90 Bottles Per Minute)

It is one of the traditional filling and capping equipment. It is used in food, medicine, chemical industry, scientific research and other industries. It can fill and cap all kinds of low-dose liquids, such as oil and injection. It can automatically fill and cap bottles. The design is novel and reasonable. It is suitable for filling and capping bottles of various materials such as liquids, such as perfume, syrup, tincture, alcohol, wine, etc. It can be used alone or on the filling line, meeting the new GMP standard and EU certification.

Description

FEATURES:

Brief Introduction of Our Penicillin Bottle Filling Machine:
It is one of the traditional filling and capping equipment. It is used in food, medicine, chemical industry, scientific research and other industries. It can fill and cap all kinds of low-dose liquids, such as oil and injection. It can automatically fill and cap bottles. The design is novel and reasonable. It is suitable for filling and capping bottles of various materials such as liquids, such as perfume, syrup, tincture, alcohol, wine, etc. It can be used alone or on the filling line, meeting the new GMP standard and EU certification.

Three Competitive Edges of Our Penicillin Bottle Filling Machine:
1.The machine is made of SUS304 and SUS316 stainless steel, which is easy to use and easy to operate and can carry out high-precision positioning.
2.The sealing adopts the method of three knife centrifugation, which can seal firmly and look very beautiful.
3.The machine complies with GMP standards.

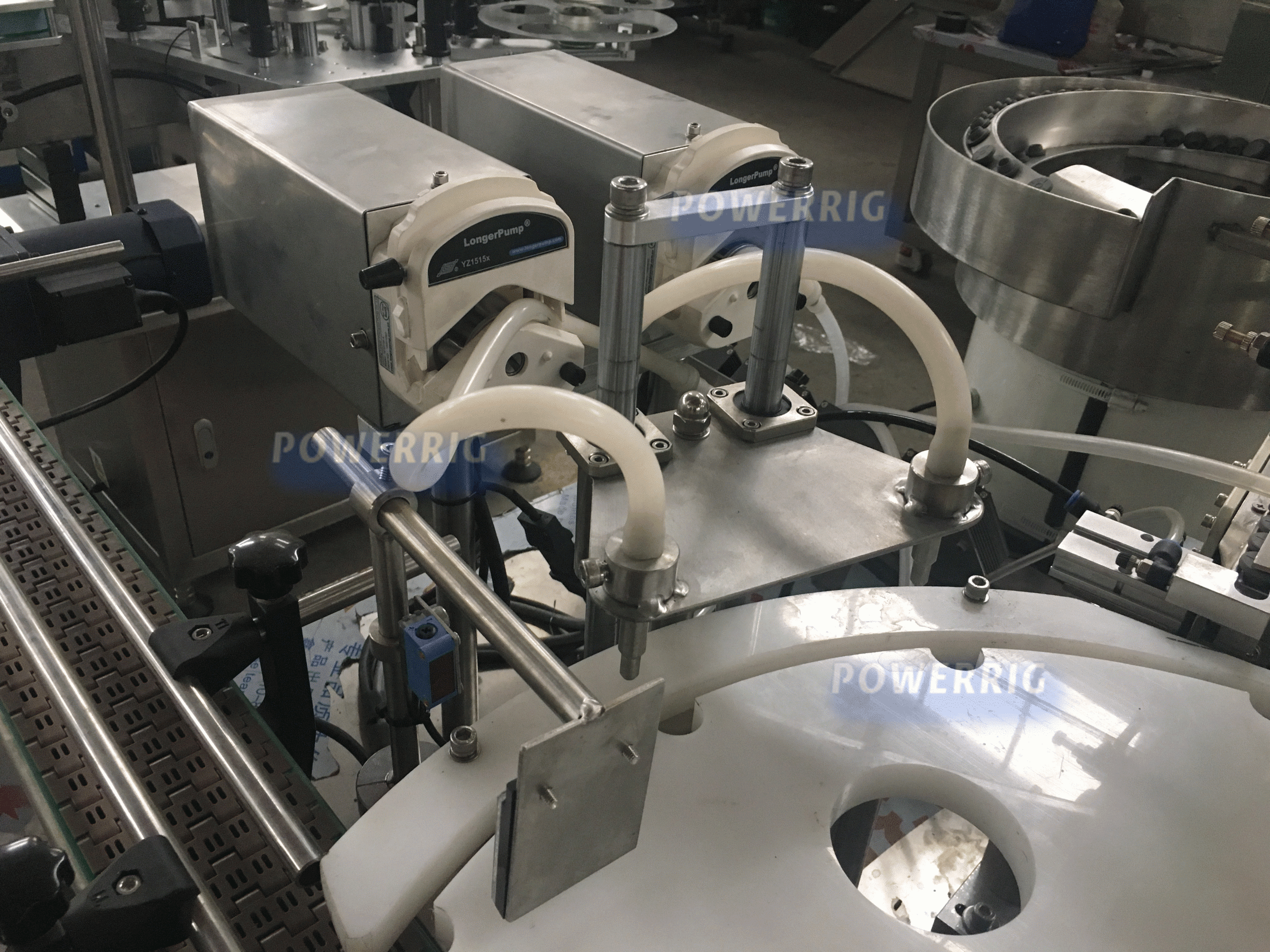

Filling Head

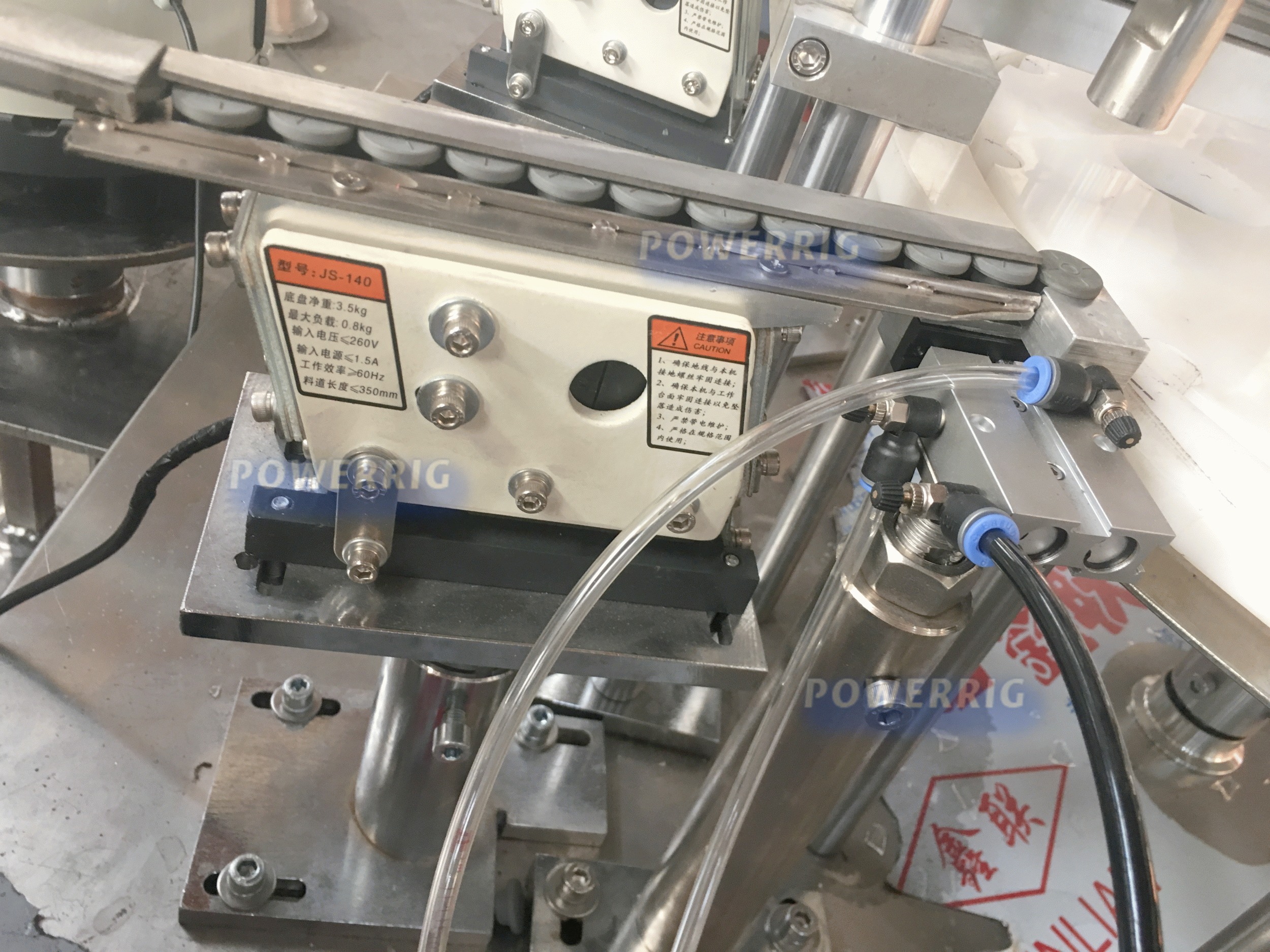

Cap Loading

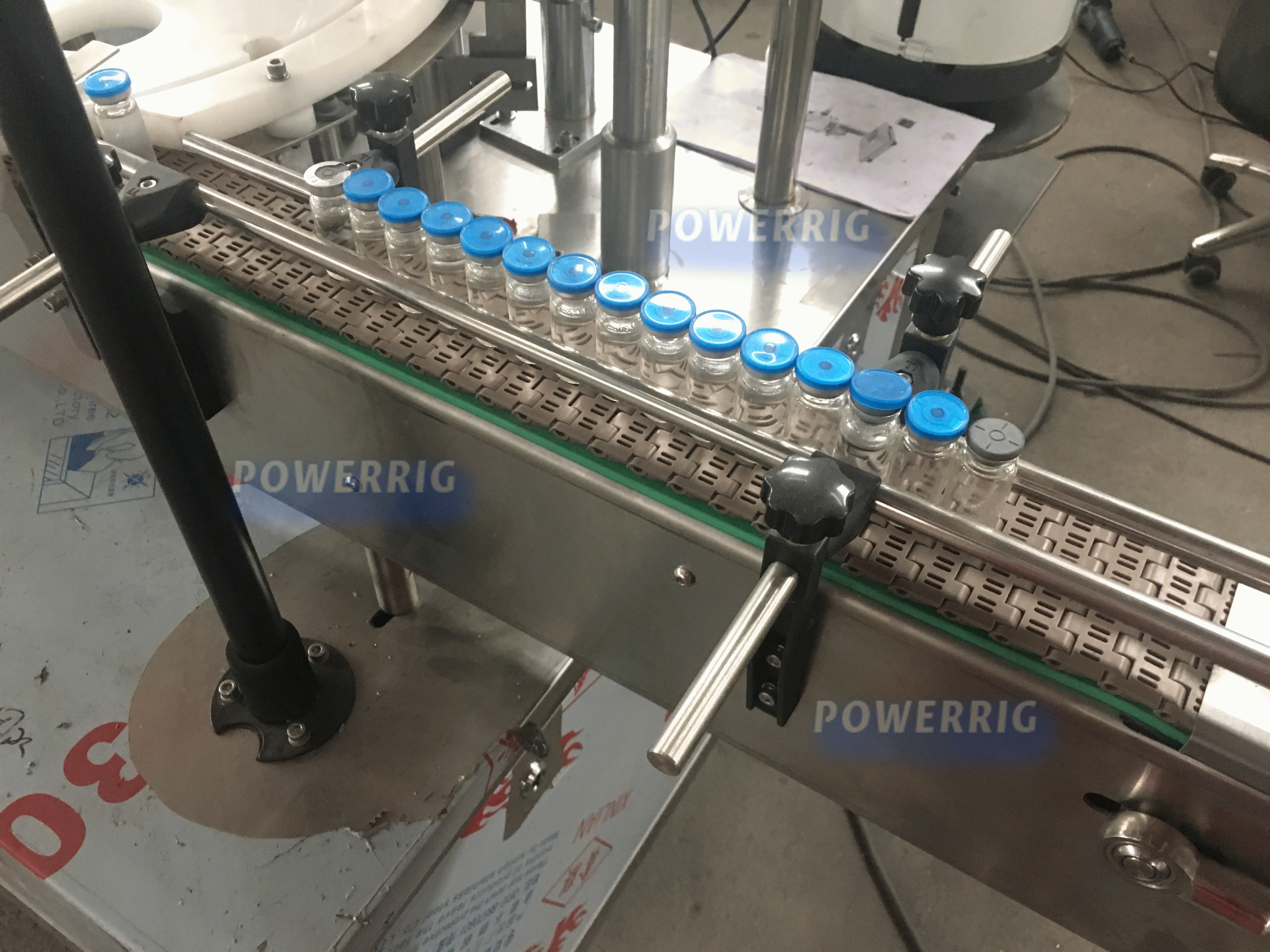

Conveyor Belt

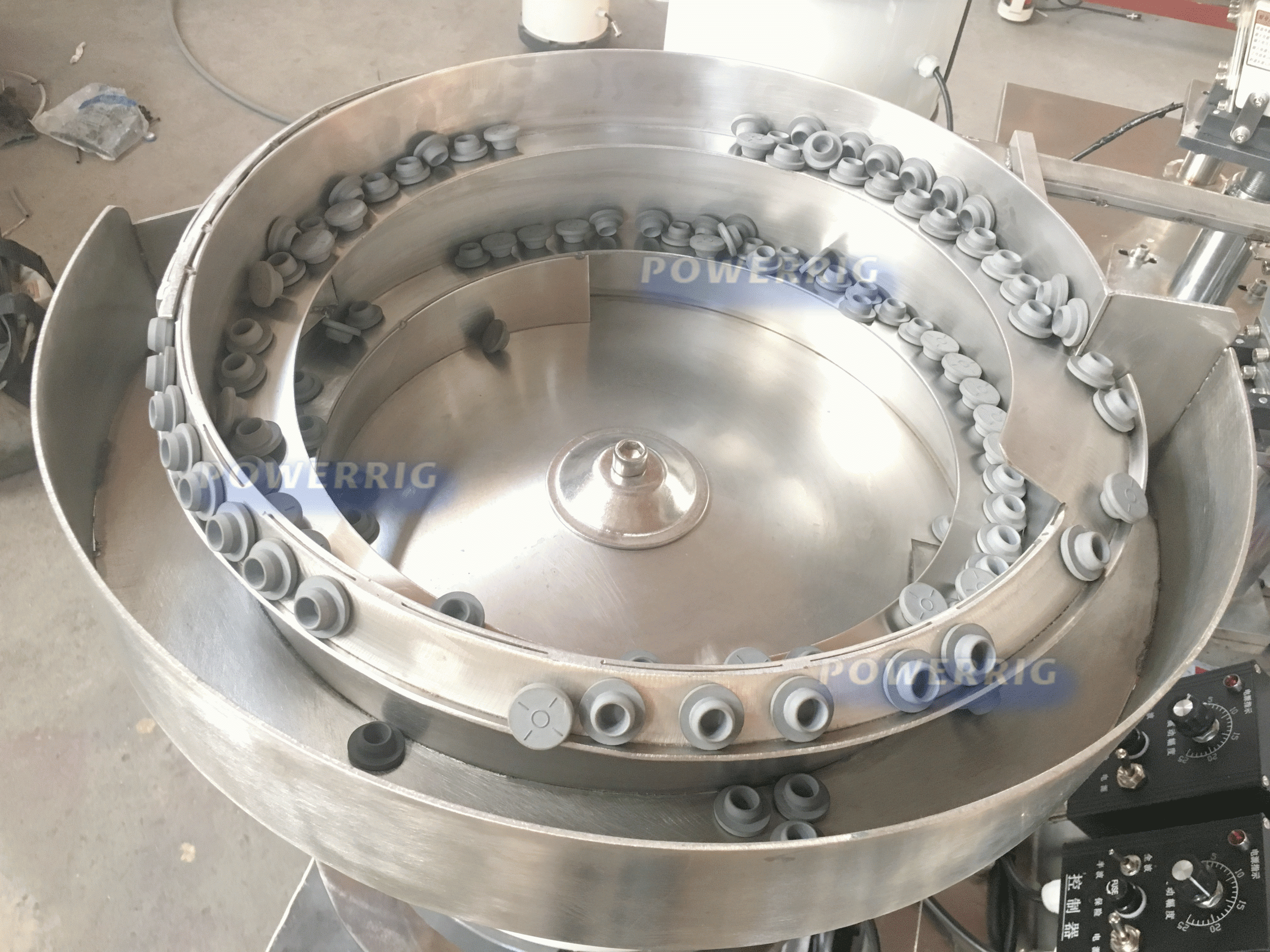

Vibrating Disk

PARAMETER:

CONFIGURATION:

Filling volume5-50ml
Loading error≤ ±1%
Rotation (rolling) Cover pass rate≥99%
Production capacity30-50BPM
60-90BPM
Power supply380V/50Hz
Power2.0 kw
Weight600 kg
Dimension2000*1000*1500mm
NameBrand
Press-buttonSchneider
Magnetic ContactorSchneider
RelayOmron
Frequency TransformerMitsubishi
MotorJSCC made in Germany
Air CylinderAirtac
Solenoid ValveAirtac
Speed ReducerMade in Taiwan
BearingNSK
PLCMitsubishi
Touch ScreenMitsubishi
Fibre-opticalAutonics
Switching Mode Power SupplyNWELL
Step MotorSNAYO made in Japan

APPLY:
