Semi Automatic Syringe Filling Machine ( Speed 10-30 syringes per minute )

We employ the advanced filling system of piston quantification valve in the machine to minimize the filling error.

There is a back suction device in the filling nozzle to make sure no material will be left in the tube. So, the valve and pipeline are convenient for changing and cleaning.

Description

Four Features of the Machine:
1.We employ the advanced filling system of piston quantification valve in the machine to minimize the filling error.
2.There is a back suction device in the filling nozzle to make sure no material will be left in the tube. So, the valve and pipeline are convenient for changing and cleaning.
3.The sealed hopper that we adopt in the machine can make a better condition for filling by pressing viscous materials.
4.No gas explosion will be in the filling process, because the material barrel is equipped with the exhaust function during raw materials adding.

PARAMETER:

CurrentAC220V/50HZ
Power100w
Hopper20L
HopperDimension:330*540mm
HopperCapacity for one time ≤ 15KG
HopperHopper material:304 stainless steel
Worktable sizeDistance from filling nozzle to ground 850mm
Filling rang1-12ml
Filling accurancy± 0.1ml
Filling nozzle2 filling mouth for different syrings
Capacity10-30 per minute

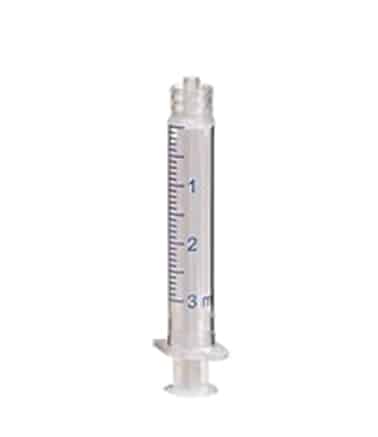

APPLY:
