L45I Silicone Tube Filling Machine(Speed 40-45 Tubes Per Minute)

The silicone filling machine typically consists of a hopper or reservoir that holds the silicone material, a metering system that controls the amount of material dispensed, and a filling mechanism that delivers the material into containers, such as bottles, tubes, or cartridges.

Description

Features:

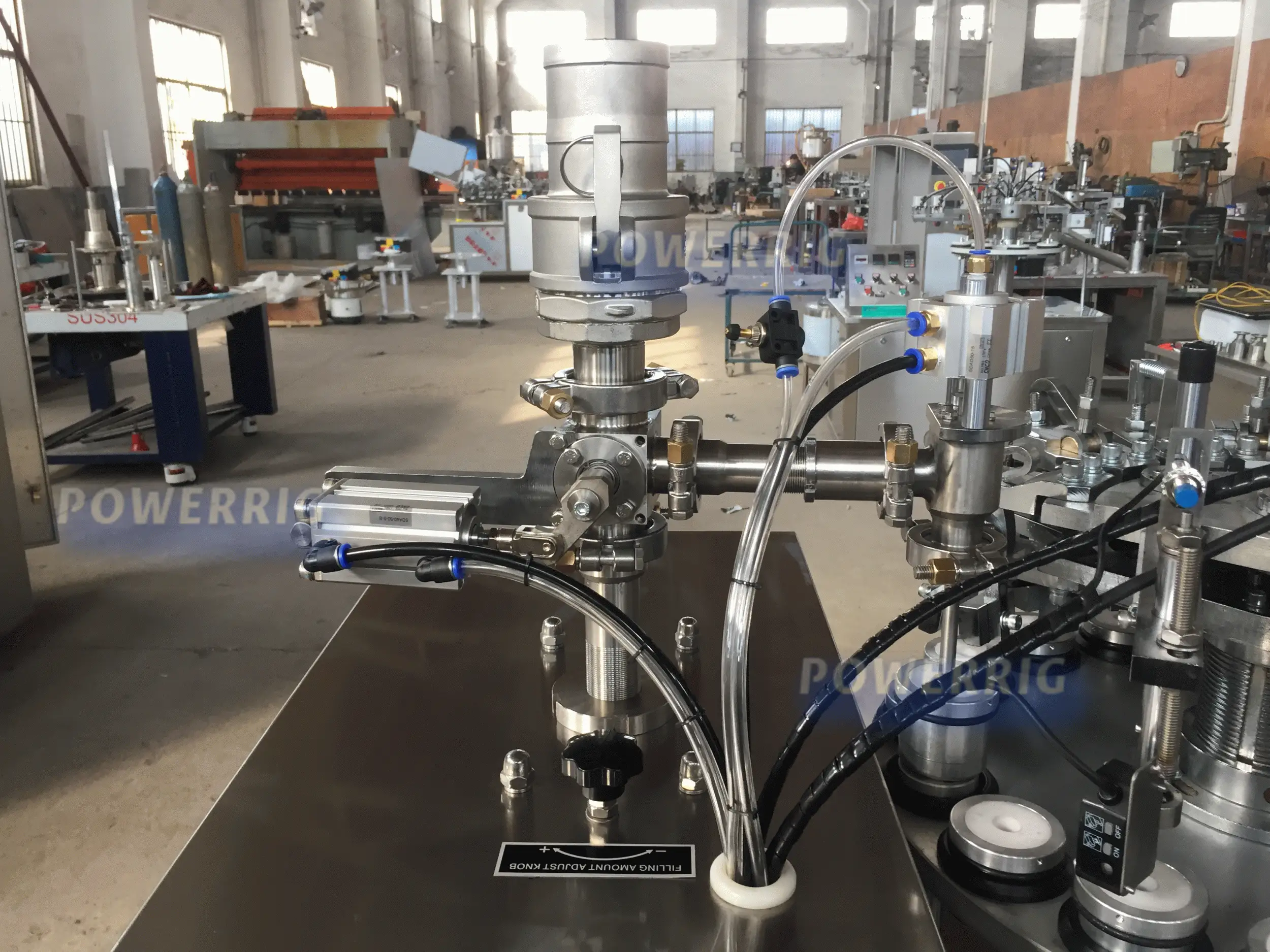

The silicone filling machine typically consists of a hopper or reservoir that holds the silicone material, a metering system that controls the amount of material dispensed, and a filling mechanism that delivers the material into containers, such as bottles, tubes, or cartridges. The filling mechanism may use gravity or a positive displacement system, such as a piston or rotary valve, to accurately measure and dispense the silicone material.

Brief Introduction of Our L45-I Silicone Tube Filling Machine:
It can used for both metal and aluminum tube filling and sealing. Its application range from chemical, pharmaceutical, cosmetics, adhesive and other industries. The specific material filled inside can be food paste, ointment, creams, pigments, adhesives, AB glue, epoxy glue, hair dye, shoe polish, toothpaste, silicone etc.

The Working Process of Our L45-I Silicone Tube Filling Machine:

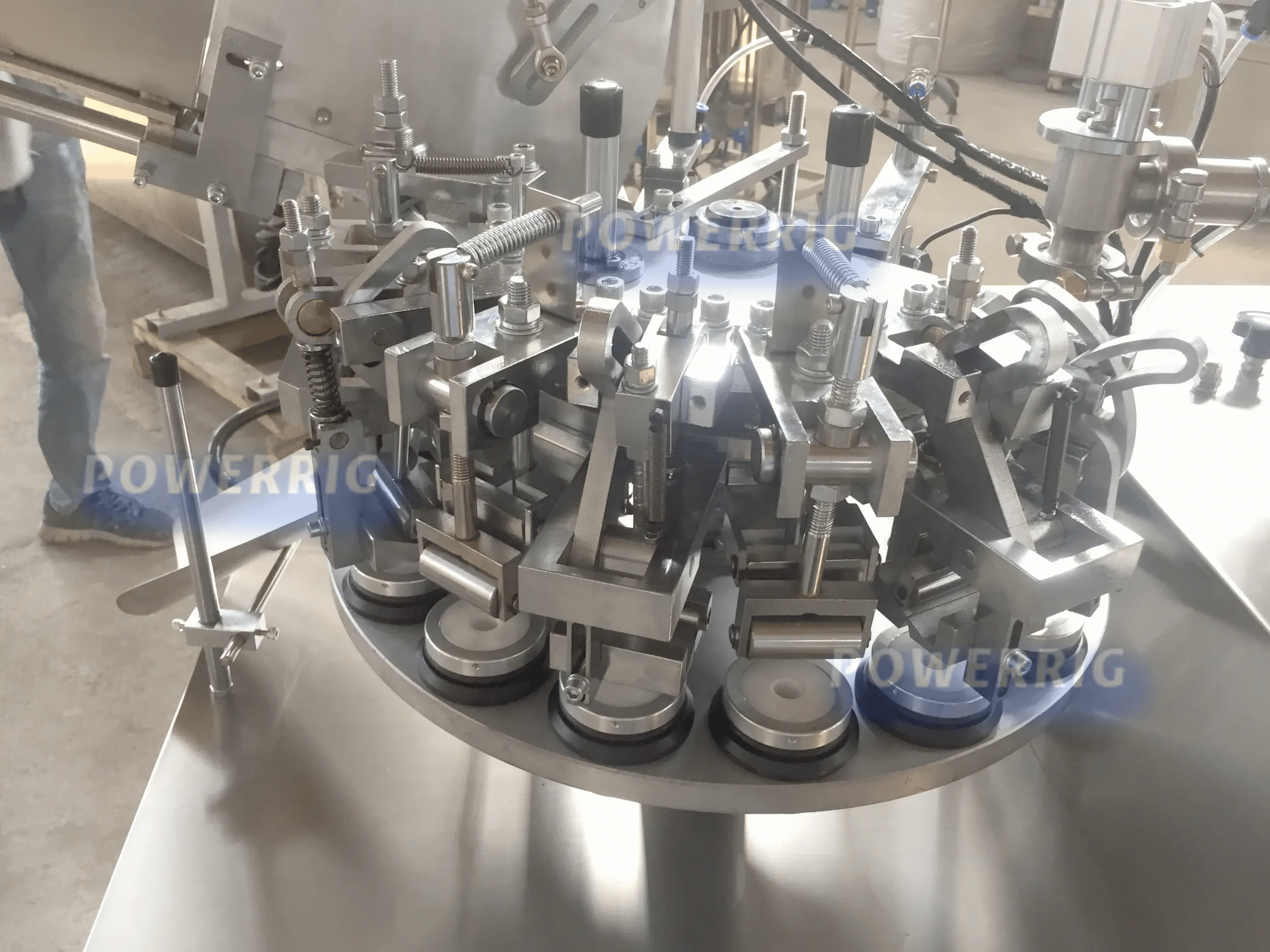

1.Automatically putting the tubes into the molds

2.Filling the tube as the fore-setting data

3.Sealing the tube 4 times

4.Unloading the finished product

Four Competitive Edges of Our L45-I Silicone Tube Filling Machine:

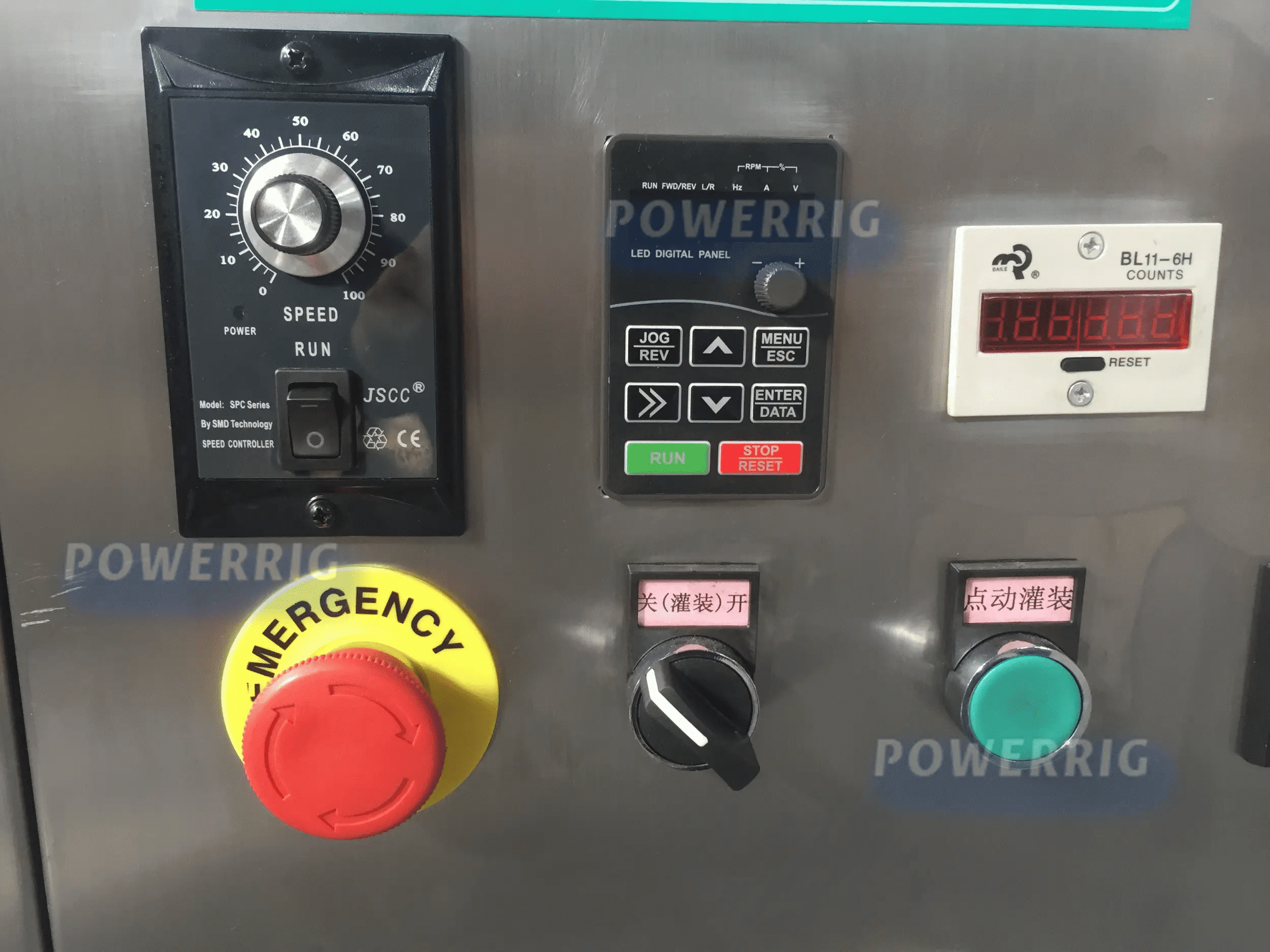

1.The PLC control system with touch screen or control panel adopted in the machine ensure the simple operation and easy using, which also means saving the learning time and high accuracy for computer controlling.

2.The tube mold can be designed as your personal demands. It is convenient to customize the mould based on the specific diameter of the tubes, which make one machine suitable for different producing scenarios.

3.High-accuracy filling with firm and appreciable sealing, the machine is anti-drip as well.

4.Made of high-quality 314 or 316 stainless steels, the machine has steady performance with features of noise-free and pollution-free. What’s more, we adopt a quick-change device in the part which need to be washed, so it will be easy for cleaning process.

Something for Your Attention Before Making Your Order:
You can personalize your machine for choosing the best one for your business,even with different folding ways. But it would be kind of you to provide the specific data about your filling volume, tube material, diameters of your tube, type of filling material and the production speed you need before we offer the suitable quotation for you.

We will recommend the right tube filling sealing machine based on your tube material.

PARAMETER:

CONFIGURATION:

Weight800 Kg
Dimension1950*800*1850mm
Power220V/50Hz
Motor2.2 Kw
Filling Quantit y3-20ml, 15-75ml, 75-250ml
Capacity40-45 tpm
NameBrand
FrameworkSUS 304 Stainless Steel
ButtonSchneider
Main MotorQIPENG, China
PLCPanasonic
Stepping M otorJapan EAST
Stepping D riveJapan EAST
Color Mark S ensorPanasonic
Approch S w itchOmron
Media R elayOmron
Magnetic V avleTaiwan AIRTAC
DividerChina, Shangdong
Heating T u beChina
Pneumatic E l ementsTaiwan AIRTAC
Pump for F illingOwn Produce (MIC)
Hopper (35L *2 )SUS304
