M30 Super Glue Filling Machine(502 Glue,Super Glue,30-60 Bottles Per Minute)

It can be used to fill and seal plastic bottles, mainly used for super glue, 502 glue, cyanoacrylate glue and other products. This machine has a working plate and two vibrating plastics (based on the cap), with filler heads and 16 positions.

Description

FEATURES:

Welcome to our Glue Filling Machine – the perfect solution for all your glue filling needs.

Our machine is designed to provide high-precision glue filling with minimal operator input, making it the perfect choice for a range of industries.  Whether you’re in the packaging industry, woodworking, or any other industry where glue is used, our machine will help you achieve precise and consistent glue application every time.

One of the key features of our machine is its user-friendly interface, which allows for easy operation and customization of glue filling parameters.  This ensures that the machine can be quickly adapted to different glue types and filling requirements.

Our machine is also built with quality and durability in mind, ensuring reliable performance over the long term.  With its robust design and use of high-quality materials, you can trust our glue filling machine to provide many years of trouble-free operation.

In addition to its high-performance capabilities, our glue filling machine is also easy to maintain, with minimal downtime for routine maintenance tasks.  This means you can focus on your core business activities, without worrying about maintenance and repairs.

Overall, our Glue Filling Machine is the perfect choice for businesses looking to improve their glue filling processes, increase efficiency, and reduce waste.  Contact us today to learn more about how our machine can benefit your business.


Six Competitive Edges of Our Glue Filling Capping Machine:
1.Its structure is simple, easy to install and maintain, it is a world famous brand, it can adjust the speed, filling different materials.
2.The machine adopts automatic bottling and bottle cap, which can run and operate smoothly without noise and pollution.
3.The machine is made of stainless steel, cleaning is very convenient and moves with the wheels.
4.No bottle, no filling, no cap, no cap, the machine will automatically shut down, there is a fault immediately alarm.
5.It uses parts of well-known brands, high configuration, by hand into the bottle mold, aligned with the bottle position, can also automatically put the bottle into the bottle, and then into the material, manually into the bottle cap or automatically into the glue cap, with the screw head to tighten the cap. Make vibration plate according to customer’s hat. Two vibration discs will be used for the inner plug and outer cover.
6.Depending on bottle material and filling volume, the machine can reach speeds of at least 30-60 bottles/minute. Use a vibrating disc to flip the cap. The machine adopts special motor cap to ensure the effective sealing of the lid. Our machines are of good quality.

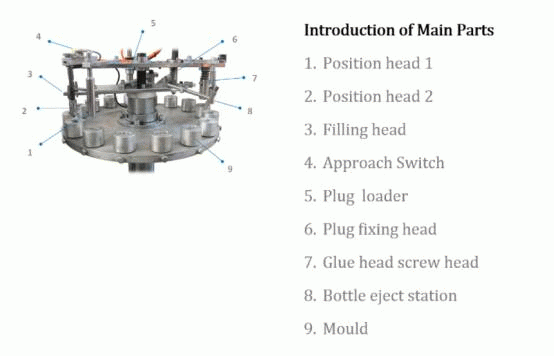

Parts

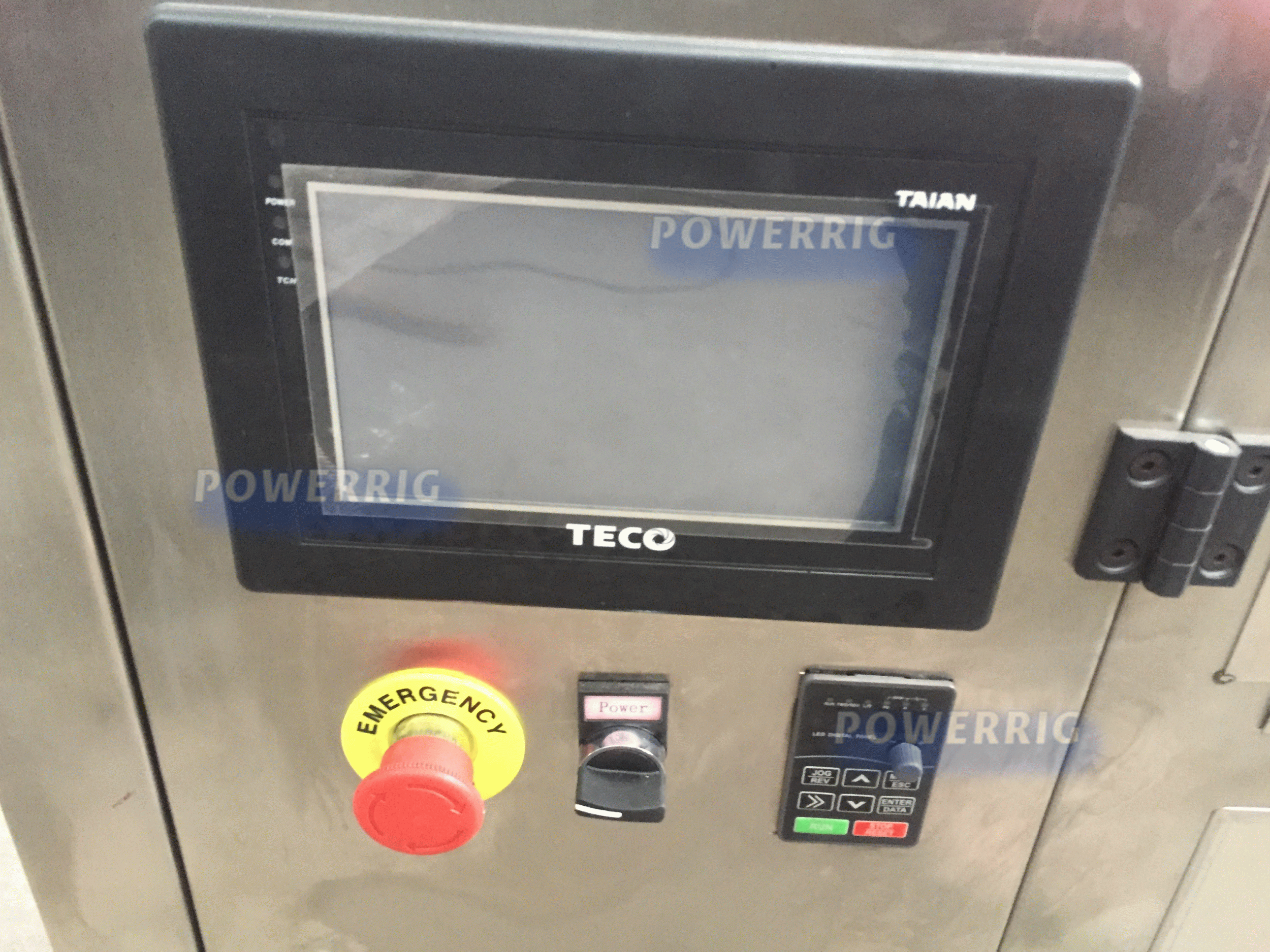

Panel

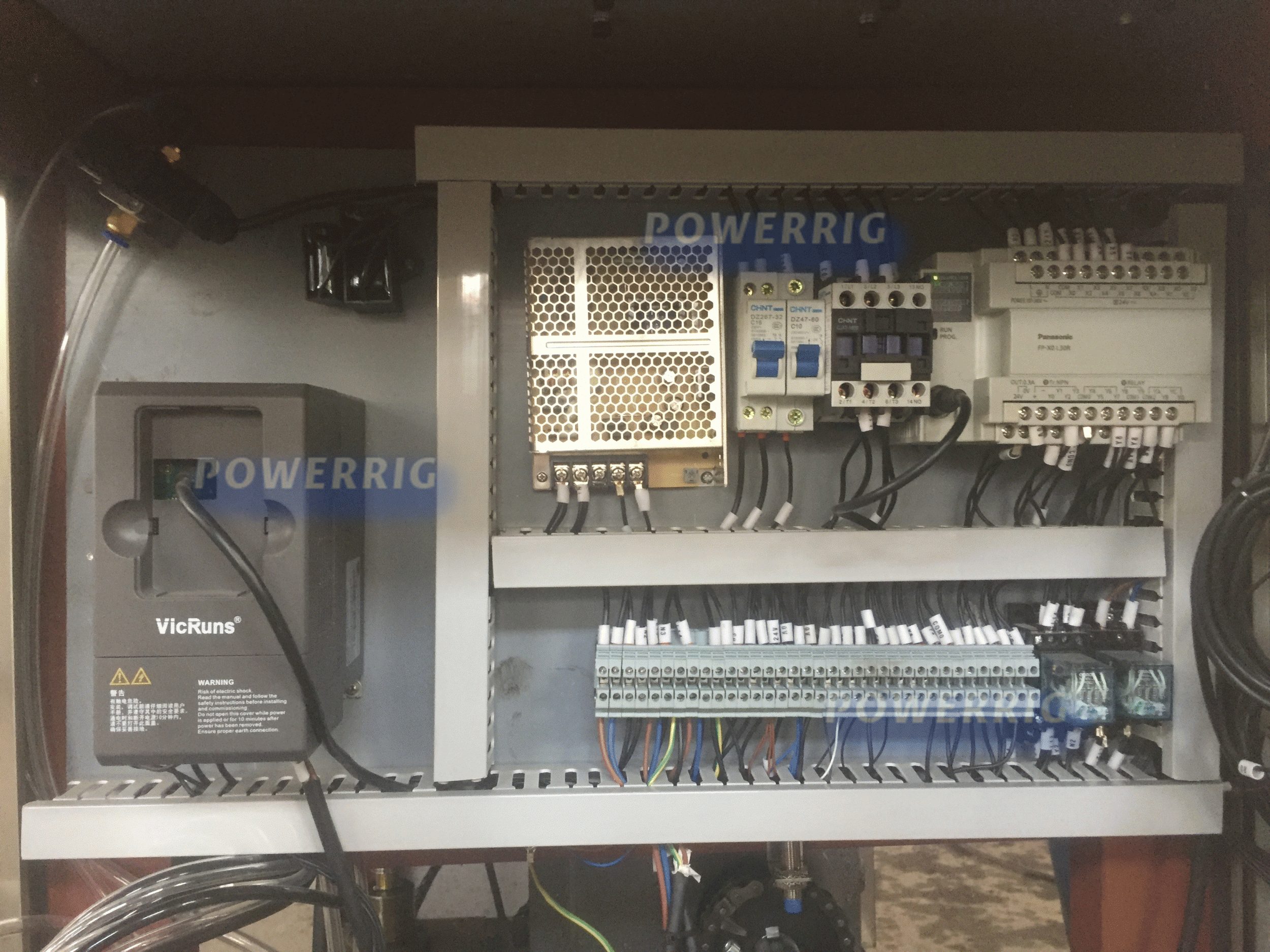

Line

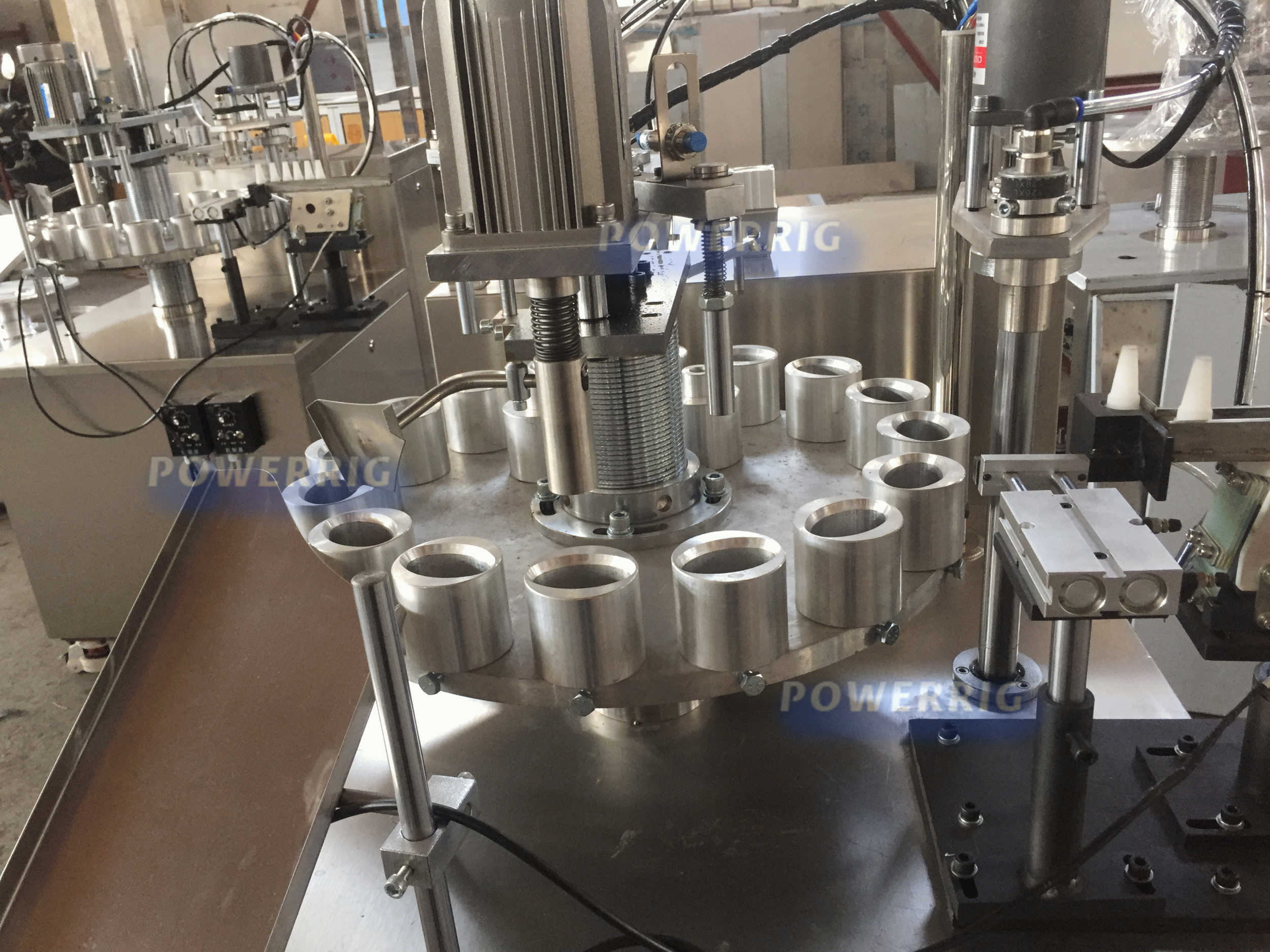

Mould

PARAMETER:

CONFIGURATION:

Power 220V/50Hz
Motor 2.5KW
Filling Quantity 1-50ml
Capacity 30-60 bpm
Gas Consumption 0.5-0.6 m³/min
Heating Power 400W
Air Pressure  0.5-0.8Mpa
Precision ±1%
Tube Socket 16
Vibrating 3 pieces
Filling Form Gravity Filling
Cap Covering Mechanical Arm
Parts Brand
Touch Screen TECO
Relay OMRON
Air Cylinder CNCO
PLC Siemens
Proximity Switch Qianwei
Motor Shangdong(China)
Variable-frequency Drive TECO
Vacuum Graduator CNCO
Solenoid Valve SMUK
Pressure Regulating Valve AIRTAC
Cover Plug Motor CNDF
Cover Caps Motor CNDF

APPLY:
