E-liquid Filling Capping Machine ( Speed 20-30 bottles per minute )

It can be used in daily chemistry, cosmetics industry; Can also be used for filling small glass bottles and plastic bottles, such as electronic liquids, essential oils, syrup, etc. It is used to fill all kinds of electronic liquid bottle caps. According to customer filling material viscosity, can choose piston filling system or peristaltic pump filling system.

Description

FEATURES:

Brief Introduction of Our E-liquid Filling Capping Machine:
It can be used in daily chemistry, cosmetics industry; Can also be used for filling small glass bottles and plastic bottles, such as electronic liquids, essential oils, syrup, etc. It is used to fill all kinds of electronic liquid bottle caps. According to customer filling material viscosity, can choose piston filling system or peristaltic pump filling system.

Five Competitive Edges of Our E-liquid Filling Capping Machine:
1.It is controlled by microcomputer and can be filled with high precision.
2.Stepless frequency conversion is used to adjust speed, which can automatically control production capacity.
3.When the machine breaks down, it will be prompted, such as pressing down, no refueling, no plug, etc.
4.If there is no filling, or if there is no lid, it will stop.
5.The body is made of stainless steel, the working process is controlled by touch screen, and the filling amount can be adjusted.

If necessary, we will send technicians overseas to install and adjust the machine, provide one year free spare parts, and even two years lifetime warranty consultation. Our company can also send engineers to the site to guide the installation and use.

Conveyor Belt
Chuck
Filling Head

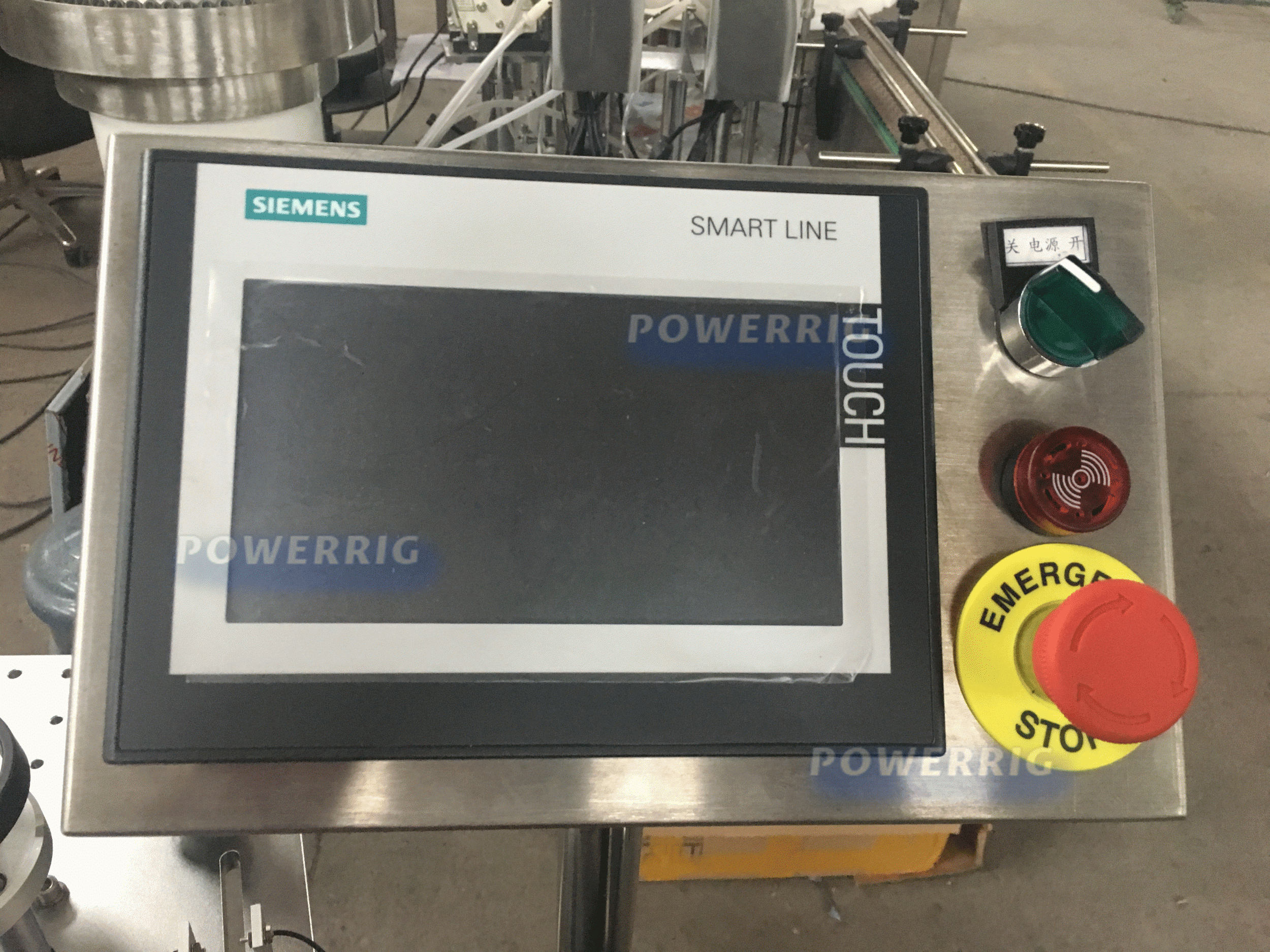

Panel

PARAMETER:

CONFIGURATION:

Filling R ange20-120ml
Capa city20-30 Bottles/Minute
Volta ge220V/380V
Filling P r ecision≤±1%
Cappin g Rate≥99%
Air S upply1.3 m3/h0.4-0.8Mpa
Dimension1200*1000*1800mm
Weight550kg
NameBrand
ButtonSchneider
AC C ontactorSchneider
R elaySchneider
Frequen c y C onverterTaian
Moto rQi peng
Air C y l i n derAIR TAC
The E lectromagnetic V a l veAIR TAC
BearingNSK
PLCSchneider
Touch S creenSchneider
Photoelectric D etecti onSick

APPLY:
