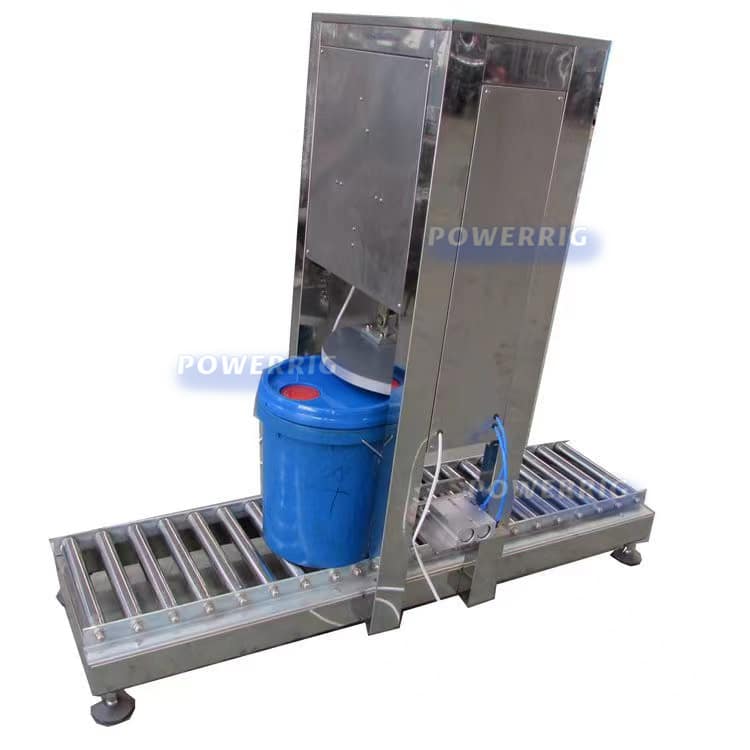

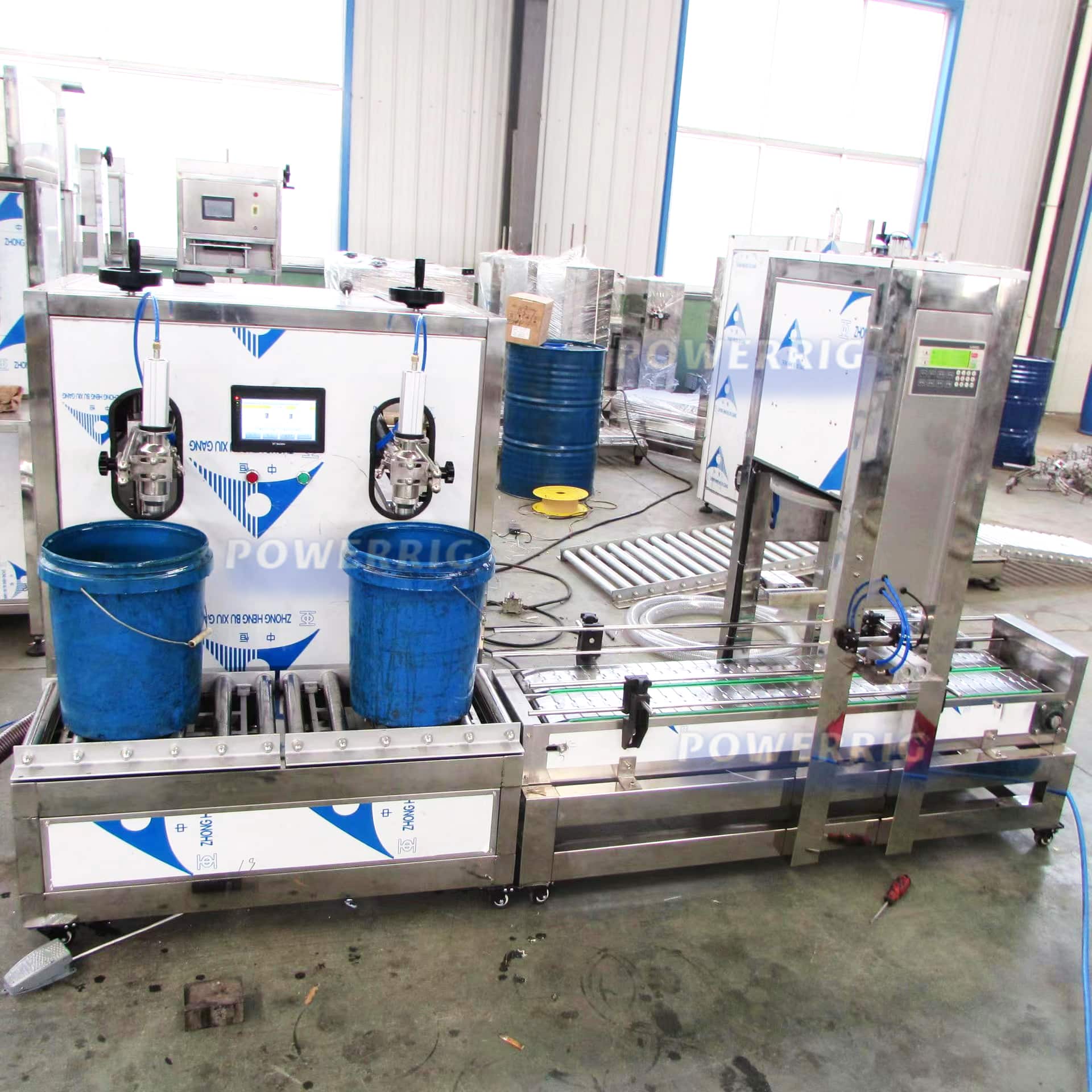

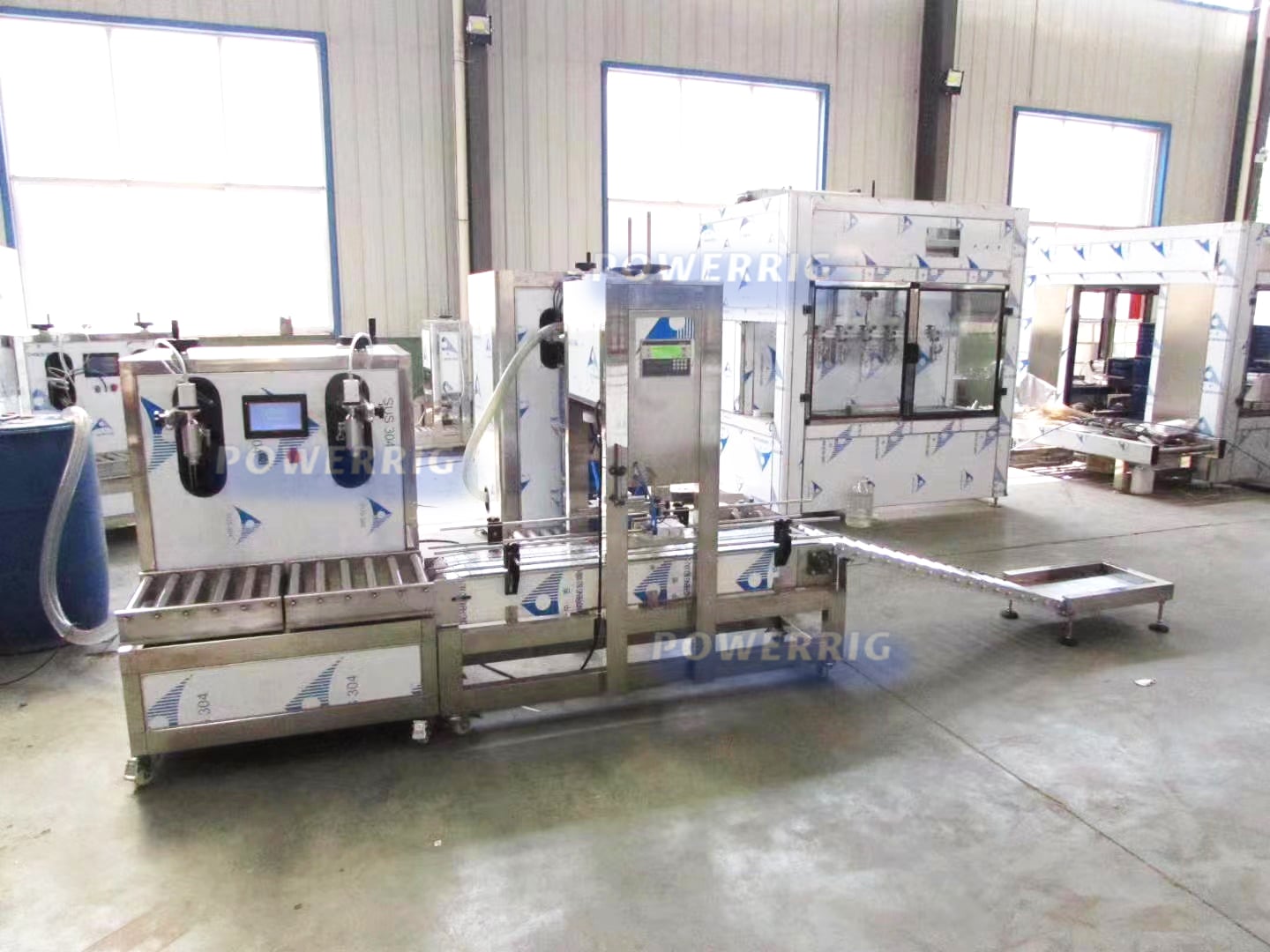

Lube Oil Filling Machine(MC6T-20L Weighing)

This machine can fill machine lubricating oil, engine oil, gasoline, lubricating oil and other large capacity barreled oil products, and can carry out the efficient filling.

Get the most out of your production with the Automatic Lube Oil Barrel Filling Machine. This powerful machine offers speeds of up to 480-1000 barrels per hour, making it an ideal choice for mass production. Thanks to its easy-to-use interface and durable design, this machine provides reliable precision in each application. Reach greater throughput with the Automatic Lube Oil Barrel Filling Machine – make more progress faster.

Description

Features

Brief Introduction of Our Automatic Lube Oil Barrel Filling Machine:

This machine can fill machine lubricating oil, engine oil, gasoline, lubricating oil and other large capacity barreled oil products, and can carry out efficient filling.

Four Competitive Edges of Our Automatic Lube Oil Barrel Filling Machine:

1.It can automatically peel and detect weight, automatically dive and fill.

2.At the end of filling, the deceleration system is used to automatically decelerate. When it is close to the quantitative value, it can prevent removal and has high precision. The required filling weight can be set arbitrarily as long as it is within the set range.

3.The machine uses anti drip irrigation port and anti drip irrigation feed plate, which can reduce the leakage of materials.

4.The machine uses double row or three row conveyor belts, and the push rod type is adopted for entering the barrel, which can effectively save space.

Pay Attention to:

1.The electronic scale has high measurement accuracy and can connect the electronic weighing signal sensor with the data line of the weighing control instrument.

2.The pressure signal of the electronic scale is transmitted to the control instrument during measurement. When the preset quantitative weight is reached, the control instrument controls the pump and closes the pneumatic valve.

3.It is connected by pipes and cans, and the filling adopts the way of self pressure. The high-precision weighing system in the machine weighs accurately. There are two feeding systems in the machine, which can fill different materials.



PARAMETER:

CONFIGURATION:

Filling Head Number

6 head

Filling Range

6L-30L

Production Speed

1,000-480 barrels

Weighing Error

0.2%

Power Supply

L1, L2, L3, N PE

Voltage

380V 50HZ

Equipment Power

5KW

Machine Size

2600 * 1900 * 2400 (MM)

Gas Source of the Equipment

0.6MPa

Customer Supply

Air Pump and Trachea

Name

Place of Production

Brand

PLC

Fujian

WECON

Load Cell

Guangzhou

YZC

Vacuum Generator

Shenzhen

Xin colo.on

Oil-water Separator

Zhejiang

Webforge

Frequency Transformer

Shenzhen

Riye

Mains Switch

Zhejiang

Delixi

Transformer

Zhejiang

Delixi

Electric Relay

Zhejiang

XINGXING

Body Material

304 Stainless steel

Contact Part with the Material

316 Stainless steel
