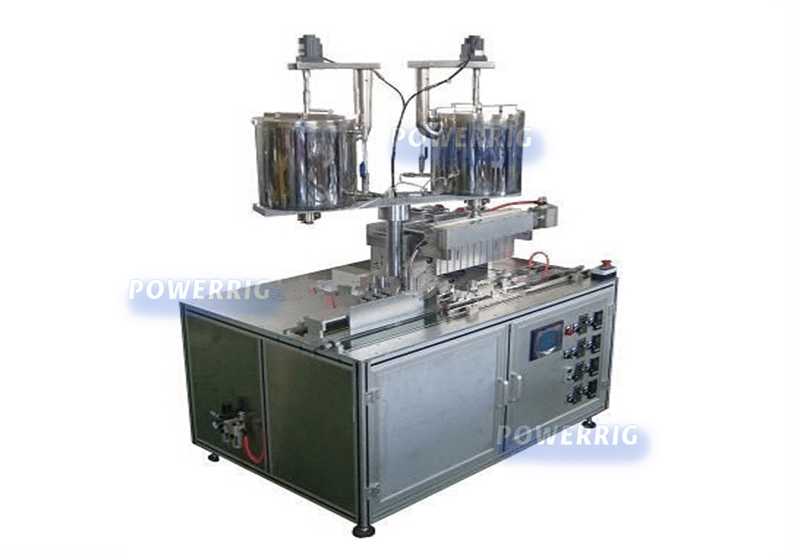

Brief Introduction of Our Lip Balm Tube Filling Machine:
It can be used in liquid cosmetics, such as lipstick, pen lipstick, eyebrow pencil, lip oil, lipstick, etc. it is made for lipstick demoulding equipment. When the red tube is inserted, the machine can dial automatically, and then put down the mold on the top of the machine.
Â
Six Competitive Edges of Our Lip Balm Tube Filling Machine:
1.The machine uses man-machine interface and PLC program control. The man-machine interface sets the parameters to be set for the whole machine, time and temperature control settings, simplifies the process, makes it easier to operate and improves the work efficiency.
2.The machine has the advantages of simple design, no noise, space saving, pneumatic drive and convenient maintenance.
3.The main body of the machine is aluminum extrusion structure and the platform is aluminum alloy. In order to meet different raw material requirements, barrel mixing and temperature control are designed.
4.The system operation is very simple and does not need to spend time training workers.
5.The intelligent temperature controller controls the cylinder, pump, material pipe and nozzle independently and counts automatically.
6.In order to produce hot filling and pouring, automatic cooling channels are designed, including optional stations 2-4 and frost removal tunnels. The frame is made of 304 stainless steel and controlled by digital T.I.C. the conveyor speed and cooling temperature are determined by the control type.
Â
Our equipment is one of the best lipstick tube filling machines and lipstick filling equipment in the world. We have a lot of experience in exporting machines.
PARAMETER:
CONFIGURATION:
Power Supply | 380(220)V/ 50Hz |
Total Power | 5.5KW |
Dimension (LxWxH) | 1100*1100*1990MM |
Production Capacity | 8s/mould |
Workable Height | 740MM(H) |
Filling Range | 1-15ml |
Barrel Capacity 1 | 20L |
Barrel Capacity 2 | 20L |
Temperature Range | 0-150℃ |
Stirring Speed | 0-120 R/M |
Net Weight | 320KG |
Single nozzle head filling machine | ||
Touch screen | Kinco | China |
Switch | Schneider | Germany |
Pneumatic component | SMC | Japanese |
Temperature controller | Autonics | Korea |
PLC | Mitsubishi | Â Japanese |
Relay | Omron | Japanese |
Conveyor and mixing motor | Zhongda | Taiwan |

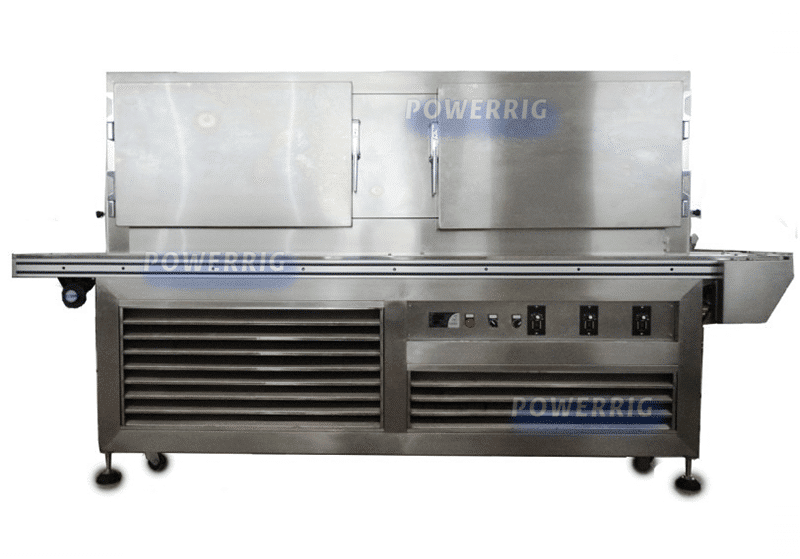

Automatic cooling tunnel | ||
Refrigeration systems | Danfoss | France |
Switch | Schneider | Germany |
Motor | Zhongda | Taiwan |
Controller | KI&BNT | China |
Meter | Danfoss | France |
Pneumatic component | SMC | Japanese |
Fan | KUB | China |

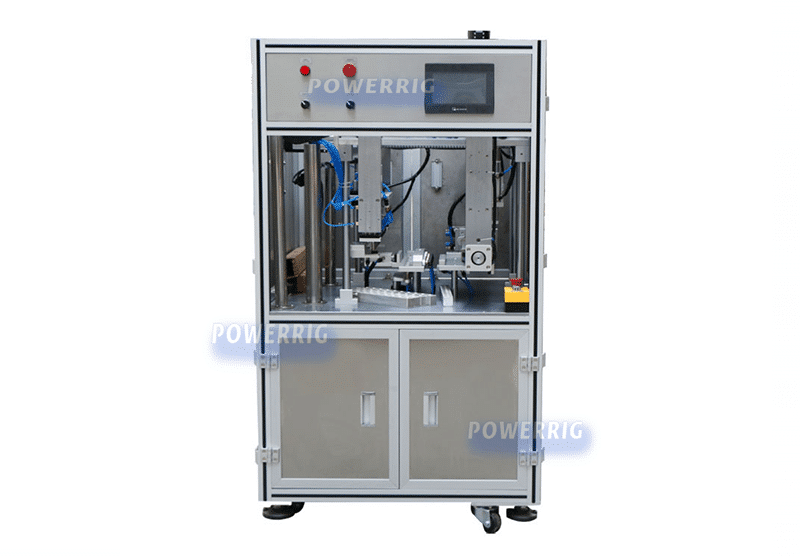

Semi-automatic lipstick releasing machine | ||
Pneumatic component | SMC | Japanese |
Switch | Schneider | Germany |
Relay | Omron | Japanese |
