Tincture Bottle Filling Machine(Perfume,Tincture,Speed 20-30 Bottles Per Minute)

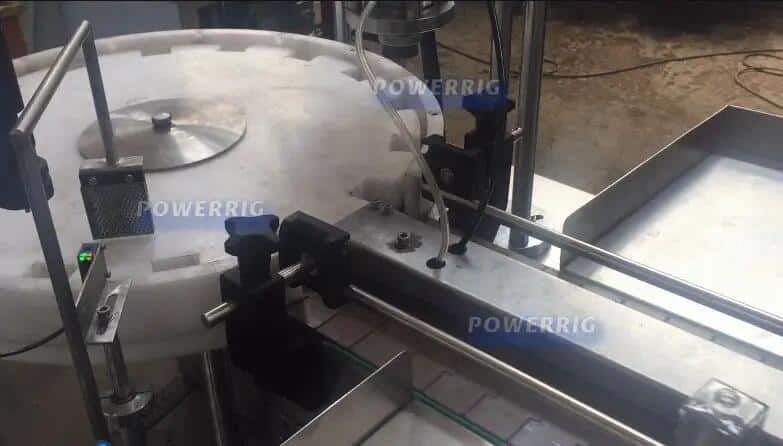

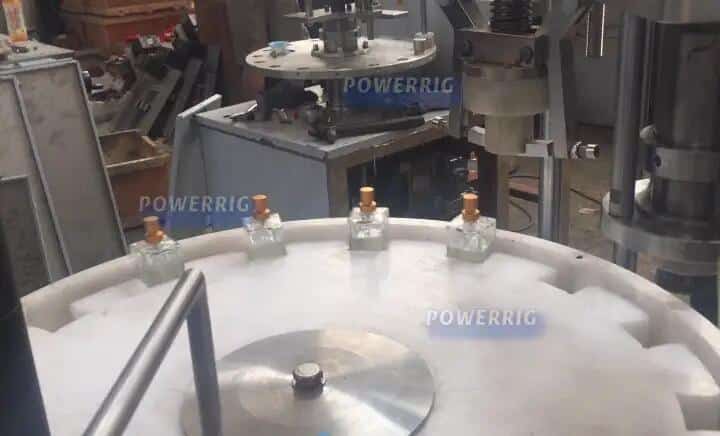

It includes one working disk and two vibrating plates. It has 3 filling heads and 16 positions. It is mainly used for filling and sealing glass bottles perfume.

Description

FEATURES:

Main introduction of perfume filling machine :

It includes one working disk and two vibrating plates. It has 3 filling heads and 16 positions. It is mainly used for filling and sealing glass bottles perfume.



The Working Process of Our Semi Automatic Perfume Filling And Sealing Machine:

1.Put the bottle into the conveyor belt by hand and then into the mold; Correct the position with the locating head.

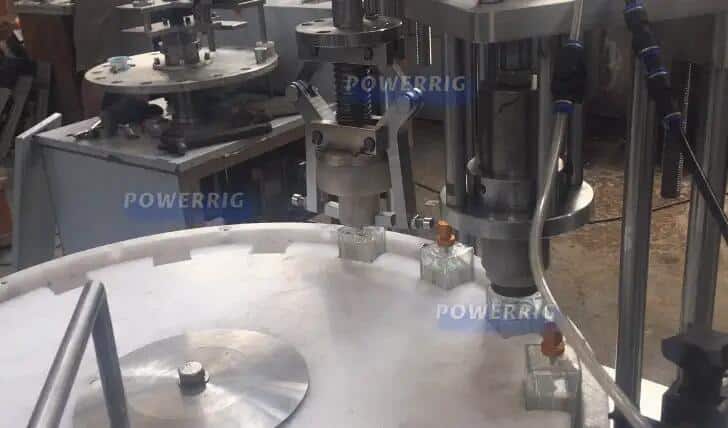

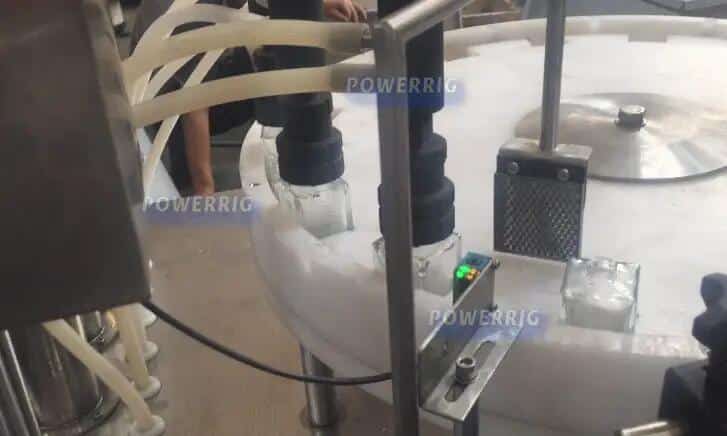

2.Fill the bottle when the bottle reaches the position and the filling speed is 30-60bph.

3.There are two options: cover manually or automaticallyIn order to stabilize the bottle cap, put the bottle cap on the bottle by hand, and the bottle cap folding device squeezes both sides of the bottle cap.

4.Feed the covers from the vibrating tray one by one into the loading channel. Make the correct vibration plate according to the bottle cap size.

5.Crimp the cap to seal the cap.



Four Competitive Edges of Our Semi Automatic Perfume Filling And Sealing Machine:

1.All parts are famous brands. If there is no bottle, it will not be filled or covered, and there will be no drip and bubble in the filling process.

2.The use of high-quality SUS304 or SUS316 stainless steel materials, in line with GMP standards.

3.It uses PLC control, stepless transducer control, including man-machine interface touch screen, which is convenient to operate.

4.The filling accuracy is high, and the vacuum suction filling method is adopted.



Pay Attention to:

Therefore, you can choose semi-automatic or automatic according to your own needs; Manual or automatic bottling; Manual or automatic bottle capping. The machine will be customized according to your needs.

PARAMETER:

CONFIGURATION:

Filling nozzle3 piece Three heads all is vacuum filling nozzle
Filling volume5-50ml
Filling formSealing vacuum filling
Filling speed30-50bpm
Filling accuracy+/- 1mm
bottle tabletable 600*300 mm length and width 2 pieces (input and output)
ControllerPLC+ touch screen

Machine Filling nozzle tank,

liquid contact material

SUS 304 Medical silica gel pipe
Air pressurepressure≥4Kg/cm2
Flow quantity0.11m3/min
Conveyor motor370W adjust transducer motor
Power1Kw 220v single phase 5 wire (can customize
Rack materialSUS304
Tank,nozzle,liquidtouchesplaceSUS304/medical silica gel
Air componnetAirtac
Contorller (PLC)Siemens Germany
Touch screenSiemens Germany 21 cm color
SensorSICK
Relay & air switchSchneider French
Conveyor material82mm width SUS 304 Chain belt
Conveyor motorAC motor China brand
Filling formvacuum filling (for accuracy)
Turnable tray motor, capping motor,China brand
Explore partsSUS 304, Positive oxidation treatment aluminum alloy



Electroplate No.#45 steel and plastic.

Vacuum pumpChina brand
Capping servo motorDelta TAIWAN
