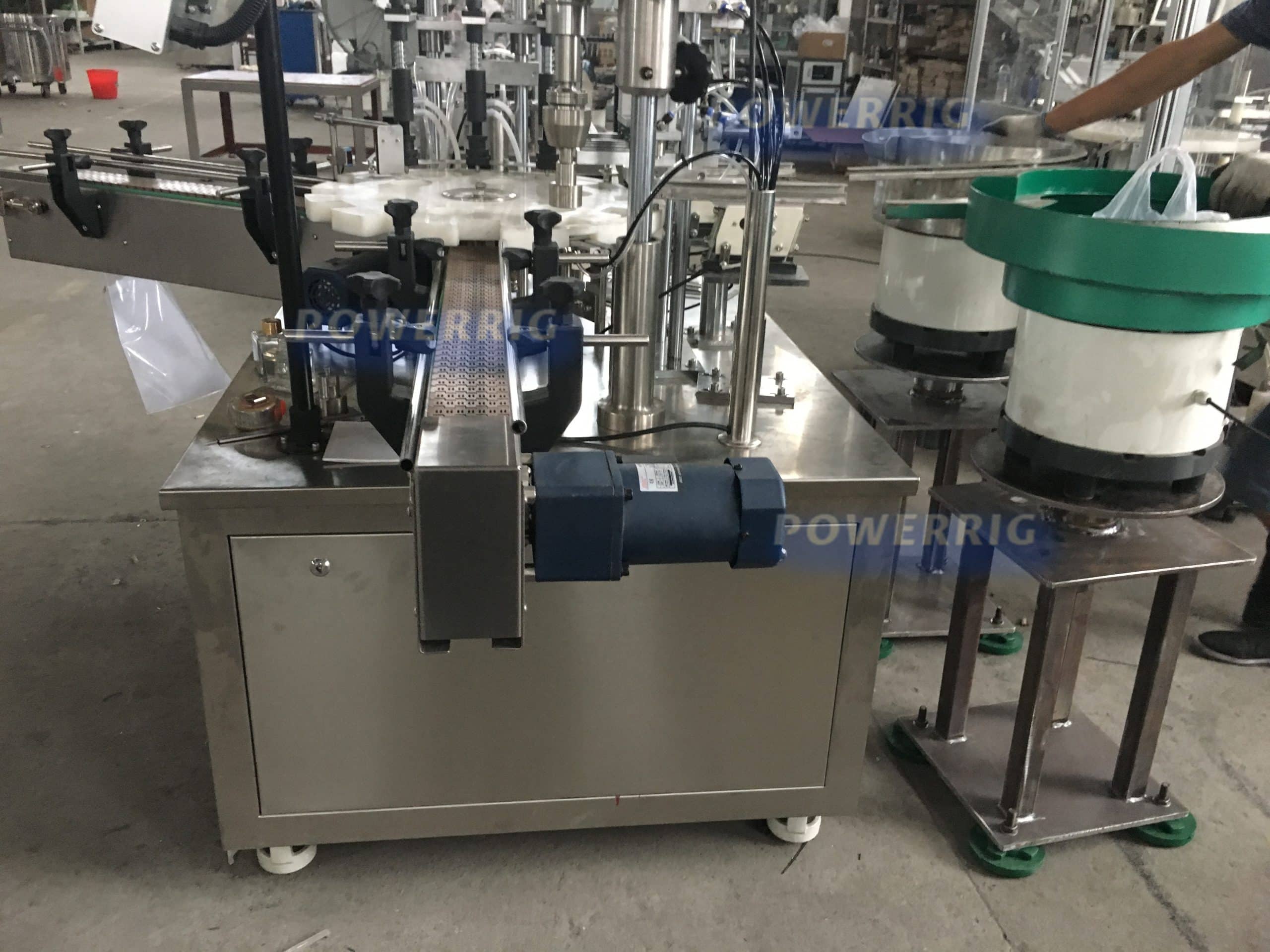

L40 Tincture Bottling Machine(Syrup,Tincture,Vial,Speed 20-30 Bottles Per Minute)

It varry out three automatic filling. Vacuum negative pressure is used and During the filling process, if the machine does not sense the bottle, it will not fill.Auto dropping of crimp pump cap, circulation of spray bottles’ die set. We can customize the machine according to your requirements by container size and filling capacity. This machine has automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.

Description

FEATURES:

Brief Introduction of Our L40 Perfume Bottle Filling Machine:

This machine varry out three automatic filling. Vacuum negative pressure is used and During the filling process, if the machine does not sense the bottle, it will not fill.Auto dropping of crimp pump cap, circulation of spray bottles’ die set. We can customize the machine according to your requirements by container size and filling capacity. This machine has automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.



L40 Perfume Bottle Filling Machine Advantage:

1.Bottle loading automatically or manually

2.Automatic sensoring when the bottle is comming

3.Negative pressure vacuum filling perfume into the bottle

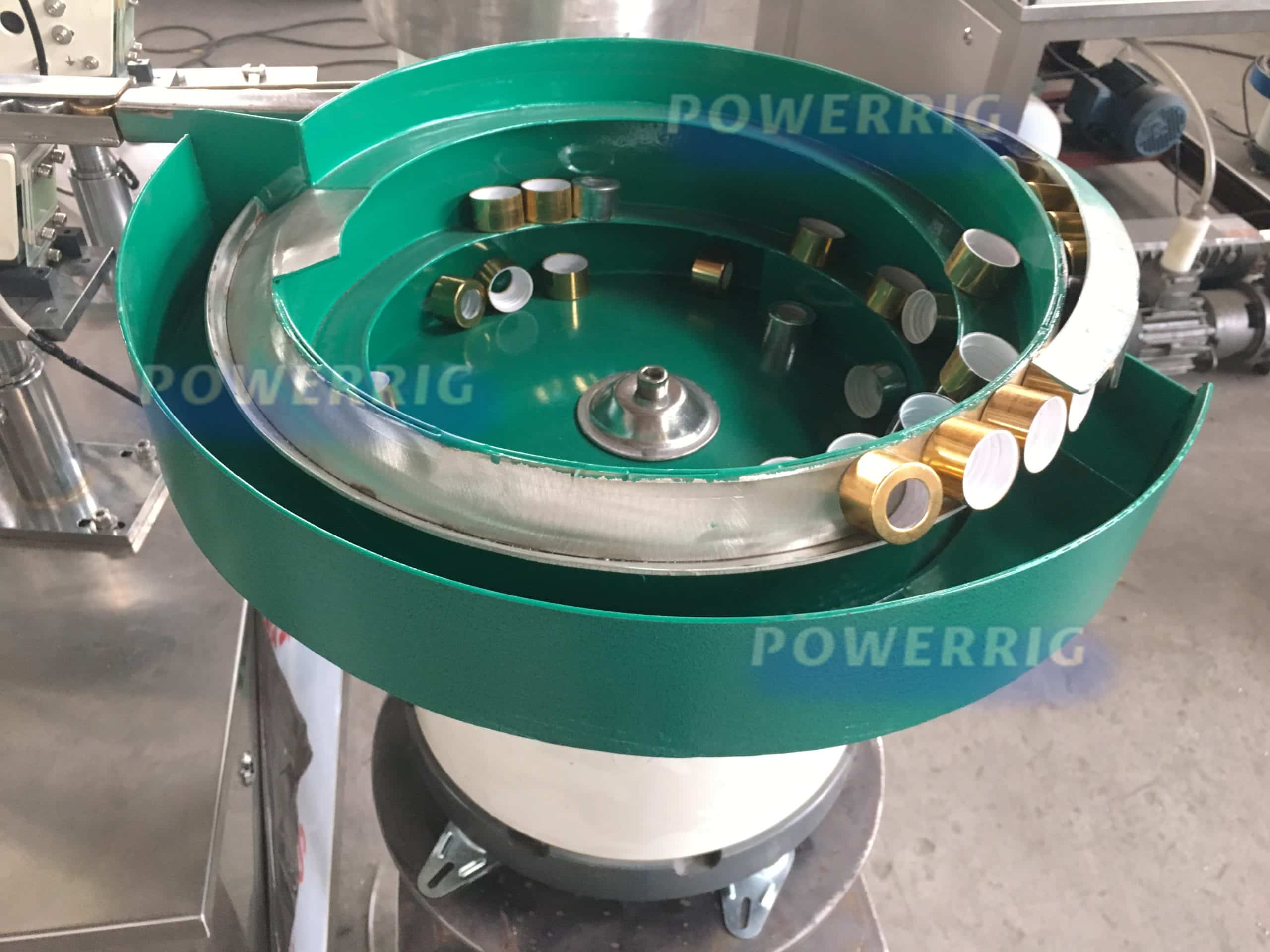

4.Putting inner cap and outer cap automatically

5.This capping head fix the cap

6.Capped bottles come out at the conveyor belt



It can make different products according to different bottle caps, such as glass perfume bottles with metal spray caps; Glass perfume bottle with customized inner plug and outer screw cap; Custom made plastic perfume bottle with plastic spray cover; The plastic perfume bottle has a customized inner plug and outer screw cap.



If you are interested in this machine,please contact us.

PARAMETER:

CONFIGURATION:

Filling nozzle2 piece one piston filling nozzle one vacuum filling nozzleFilling volume50-150ml
Filling formPiston and vacuum fillingFilling speed20-30 bottle per min
Filling accuracy+/- 1mmMaterial tank / bottle table25L / 600*300 mm length and width 2 pieces (input and output)

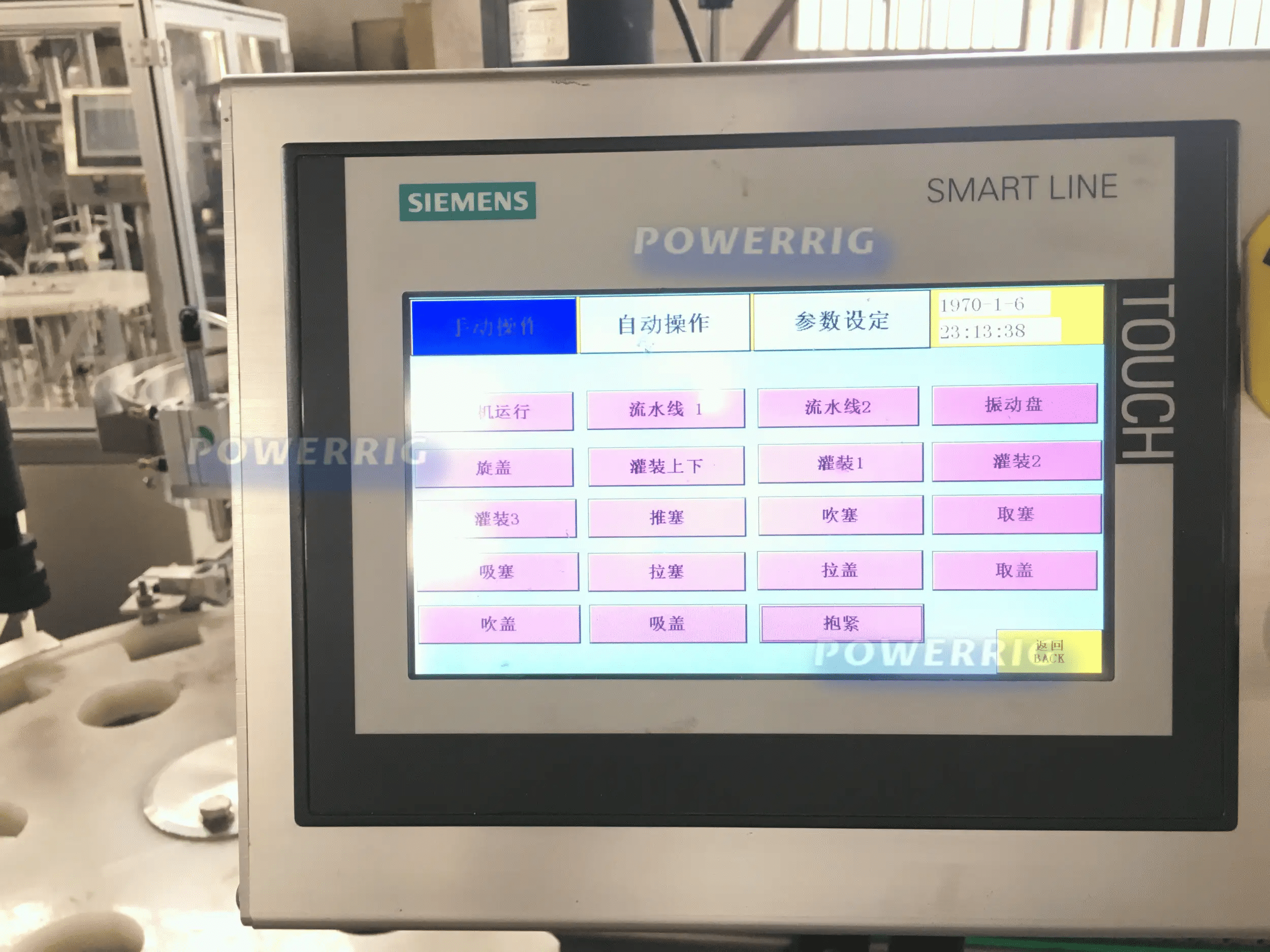

ControllerPLC+ touch screenMachine Filling nozzle tankSUS 304
Air pressure0.6-0.8MpaConveyor belt82mm SUS 304 Chain belt 750mm +/- 25mm
Conveyor motor370W adjust transducer motorPower1Kw 220v single phase 5 wire
Setup componentBrand
Rack materialSUS 304
Tank, nozzle, liquid touches placeSUS 304 / medical silica gel
Air componnetAirtac
Touch screenSiemens Germany 21 cm color
SensorLEUZE Germany or SICK
Relay & air switchSchneider French
Transducer MotorSchneider French
Conveyor material82mm width SUS 304 Chain belt
Conveyor motorAC motor China brand
Filling formPiston filling (80-90) and vacuum filling (for accuracy)

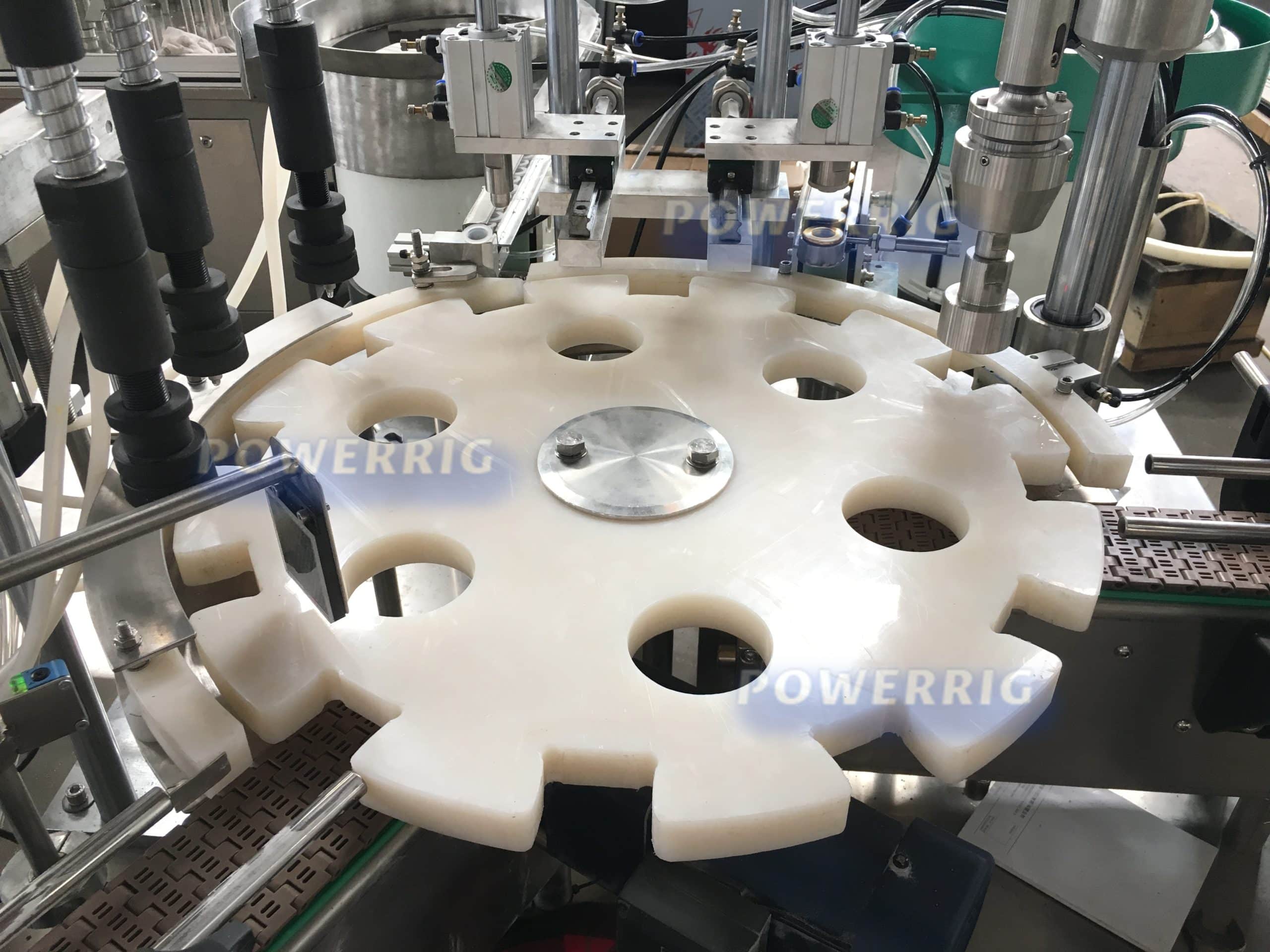

Turnable tray motor, capping motor,China brand
Explore parts

SUS 304, Positive oxidation treatment aluminum alloy

Electroplate No.#45 steel and plastic.

Vacuum pumpChina brand
