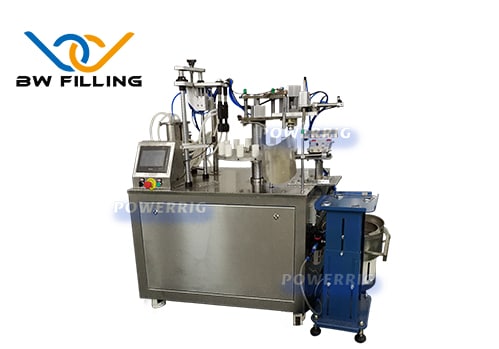

Tincture Filling Machine(Vial,Tincture,Syrup,20-30 Bottles Per Minute)

The machine is designed to handle the liquid perfume with care, avoiding spillage and wastage.
The machine can be adjusted to accommodate different bottle sizes and shapes, and can also be programmed to fill a specific volume of perfume.

Description

FEATURES:

An automatic tincture filling machine is a device designed to automate the process of filling tinctures into bottles or containers. Tinctures are liquid extracts of medicinal herbs or other plants that are used in alternative medicine or natural health products. Automatic tincture filling machines are used in pharmaceutical, natural health product, and herbal medicine manufacturing industries. Here are some features of an automatic tincture filling machine:

1.High-speed filling: Automatic tincture filling machines are designed to fill a large number of bottles or containers quickly, making them suitable for high-volume production.

2.Automated filling: The machine is equipped with a dosing system that automates the filling process, ensuring accurate and consistent filling of each bottle or container.

3.Multiple filling technologies: Automatic tincture filling machines can use different filling technologies, such as piston, peristaltic, and gear pumps, to fill products of different viscosities.

4.Easy to operate: The machine is designed to be easy to operate, with a user-friendly interface that requires minimal training.

5.Flexibility: Automatic tincture filling machines can handle different bottle or container sizes and shapes, making them suitable for a range of production needs.

6.Capping and labeling: Some automatic tincture filling machines are also equipped with capping and labeling systems, reducing the need for additional equipment and labor.

7.High accuracy: Automatic tincture filling machines ensure precise and consistent filling of each bottle or container, resulting in high product quality.

Overall, automatic tincture filling machines are essential for large-scale production of tinctures. They offer high-speed and accurate filling of tinctures into different bottles or containers, providing efficiency and consistency in production.

PARAMETER:

CONFIGURATION:

Filling Volume

10-100ml
Filling Nozzle

2 or 3 nozzles
Output

20-30 bottles per minute
Filling Error

+/-1%
Power Supply

220V 50Hz
Capping Rate

≥99%
Air Supply

1.3 m3/h 0.4-0.8Mpa
Power

2.0kw
Weight

2.0kw
Dimension

1800*1000*1500mm
Setup compentBrand
Rack materialSUS 304
Tank, nozzle, liquid touches placeSUS 304 / medical silica gel
Air componnetAirtac

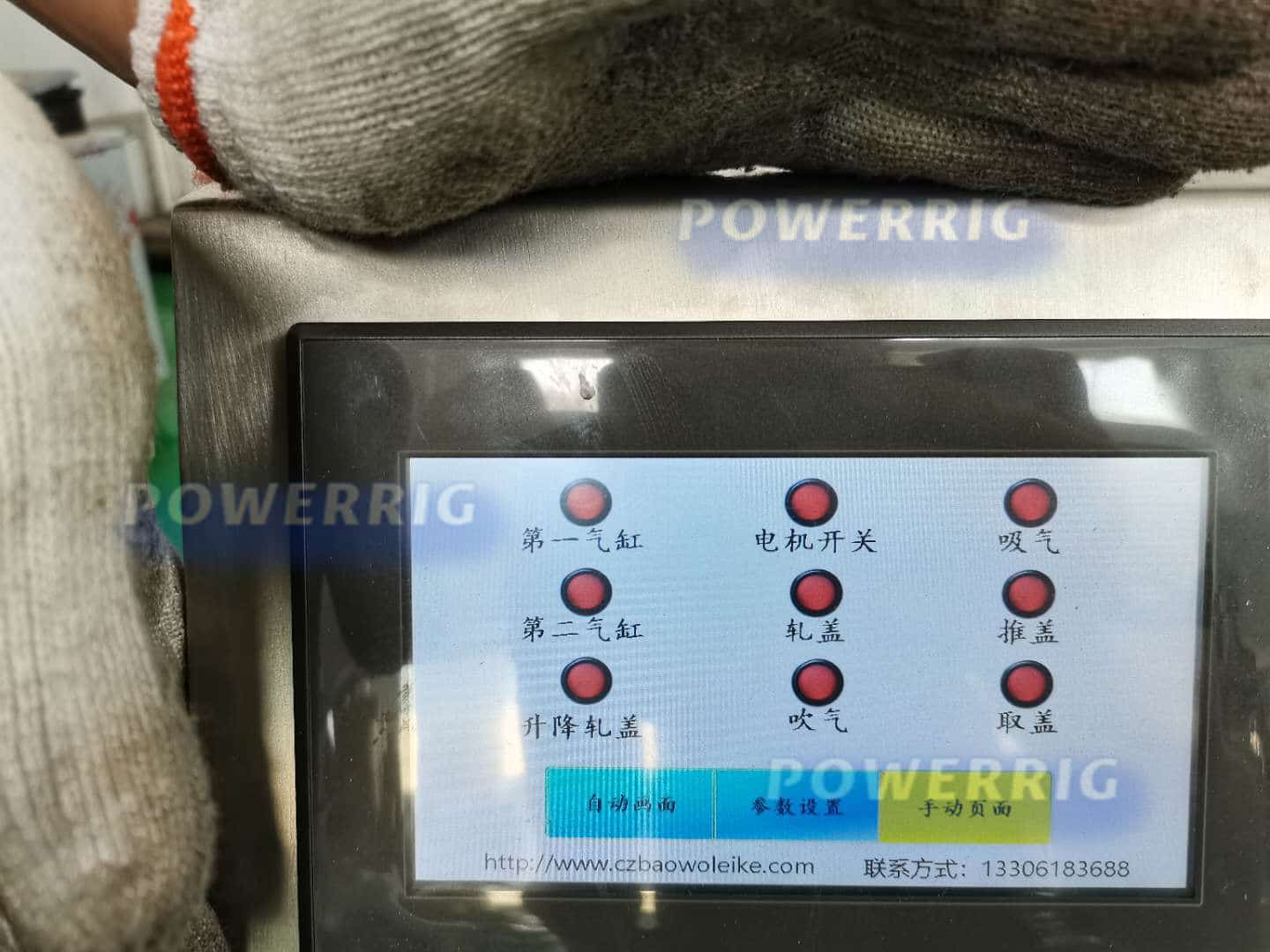

Touch screenSiemens Germany 21 cm color
SensorLEUZE Germany or SICK
Relay & Air SwitchSchneider French
Transducer MotorSchneider French
Conveyor Material82mm width SUS 304 Chain belt
Conveyor MotorAC motor China brand
Filling FormPiston filling (80-90) and vacuum filling (for accuracy)
Turnable tray motor, capping motorChina brand
Explore Parts

SUS 304, Positive oxidation treatment aluminum alloy

Electroplate No.#45 steel and plastic.

Vacuum PumpChina brand

APPLY:
