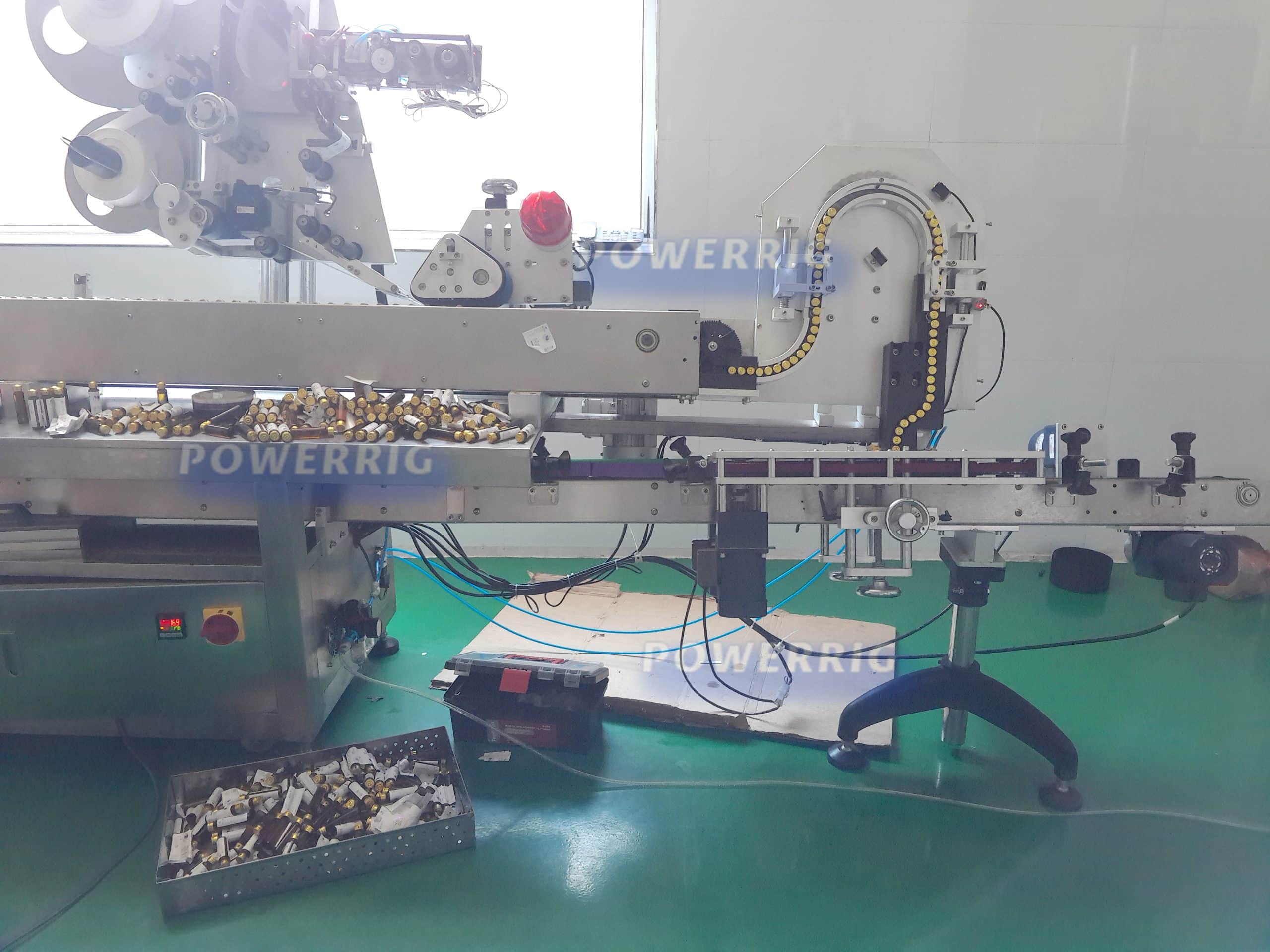

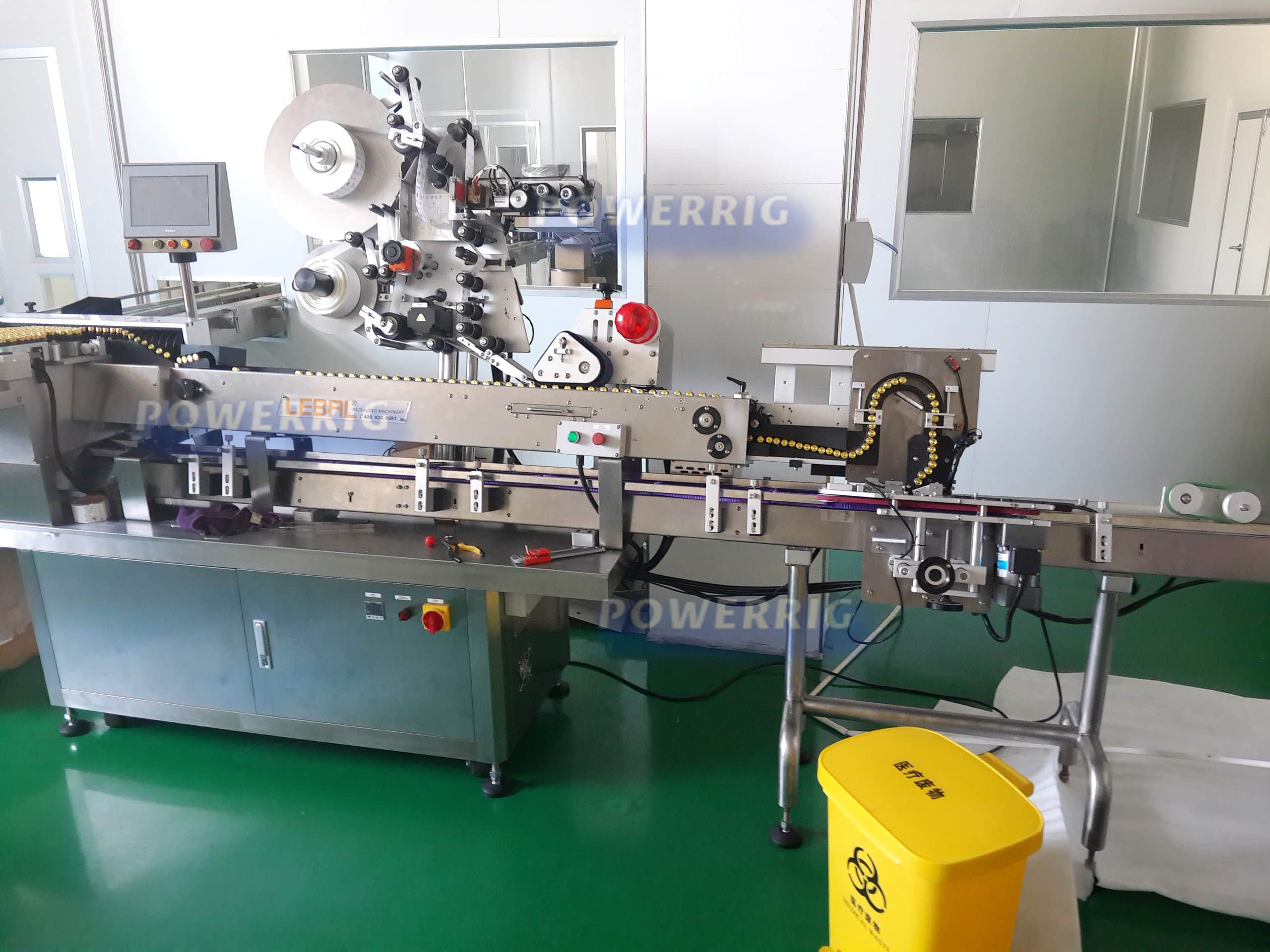

High Speed Servo Horizontal Labeling Machine(Speed 400 bottles per minute)

Take the different round bottles through conversion mechanism into the conveyor belt of the labeling machine. When the bottle enters the labeling area, when it is detected by the electric eye vision, the photoelectric signal is sent to the PLC. After sorting, the signal is output to the servo motor, which marks it, rolls the label on the bottle, and puts the label conveyor belt of the bottle into the next program through the label machine.

Description

FEATURES:

The Working Process of Our High Speed Servo Horizontal Labeling Machine:
Take the different round bottles through conversion mechanism into the conveyor belt of the labeling machine. When the bottle enters the labeling area, when it is detected by the electric eye vision, the photoelectric signal is sent to the PLC. After sorting, the signal is output to the servo motor, which marks it, rolls the label on the bottle, and puts the label conveyor belt of the bottle into the next program through the label machine.


Six Competitive Edges of Our High Speed Servo Horizontal Labeling Machine:
1.The motor system adopts Omron servo marking system, Omron PLC and function module, Omron servo main motor marking and OMRON frequency adjustment: very stable, synchronous, fast response time, up to 1200 times per minute, great torque and never out of step.
2.The machine adopts Japan’s Omron computer control system, which is intelligent and does not need any setting or adjustment. As long as the machine is turned on, the system is ready. Although there is preparation and labeling drill, press the switch to produce perfect products.
3.The machine uses imported touch screen man-machine interface, and the display language is all Chinese. All operations are carried out according to the instructions on the display screen without any experience, which is easy to start and reduces the time cost of trainers; Through the man-machine interface, the production speed can be set and adjusted. If there are faults such as missing labels, broken tape or missing tension, arrival of count setting, abnormal machine, etc., the machine will automatically stop and give an alarm.
4.The label mechanism is super wear-resistant and uses Teflon special materials. It can be used for a long time without wear. The precision of the bottling mechanism is high, up to plus or minus 5mm. Different bottles do not need to replace accessories, which not only saves money, but also is convenient, which is better than other brands.
5.The rack and its components adopt standardized modular design, which is very durable and interchangeable. It can be operated 24 hours a day to determine its safety and stability. The shell is made of stainless steel SUS304 and T6 aluminum alloy, which meets the GMP standard and will not rust.
6.The printing head uses a solenoid valve to control the circular movement of the drum. The reaction speed and printing speed are faster than the movement mode of crank and connecting rod. The printing of production date, production batch number and validity period can be completed at the same time. The printing direction can be adjusted according to the needs of users, and the handwriting is clear.

PARAMETER:

CONFIGURATION:

Voltage specification220V 50/60hz
Air pressure supply5KG
Power consumption2.5KW
Printer air source5Kg/cm2
Labeling speed400 bottles/min (speed adjustable, depending on bottle size and label length)
Labeling accuracy±0.5mm
Container rangeoutside diameter 10mm ~ 22mm, height 20mm ~ 120mm
Label specificationheight 10mm ~ 90mm length 10mm ~ 80mm
Paper roll diameterф 76 mm, outside the paper roll roll: ф 350 mm (maximum)
Label clearance3mm, label roll clockwise
WeightN.W, G.W 350 kg/T: 450 kg
External dimensions2500mm×1650mm×1300mm

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Part namelabelplace of origin
Labeled motoromronJapan
Labeled motor driveomronJapan
Conveyor belt motorA batteryshanghai
Conveyor belt motor gear boxshanghai
Paper horselappingGermany
Paper horse up to gear box
Wheel attached motor
Wheel attached motor gear box
Separating motor
Separating motor gear box
Frequency converteromronJapan
Label eyekeyenceJapan
Label detected electric eyekeyenceJapan
Receiving stop proximity switchomronJapan
Programmable controller (PLC)omronJapan
Electromagnetic relayomronJapan
Electromagnetic valveJapan
ThermostatomronJapan
Proximity switchomronJapan
Marking machinepneumaticJapan
CylinderSMCJapan
