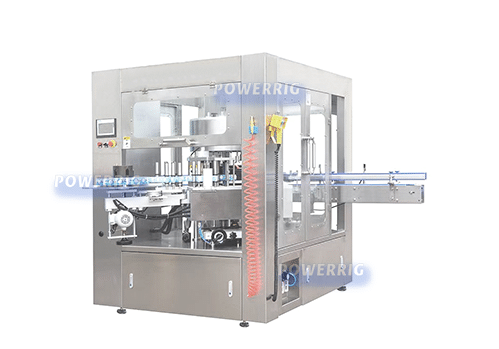

Hot Glue Labeling Machine

2.In order to achieve continuous web tension, adjust the speed of the feed roller according to the required label length. The threading device is very good and can provide the best film.

Description

Features:

 The working process of automatic hot melt labeling machine:

1.First, the feed starwheel picks up the container and places it on the container table. When it is between the container plate and the centering bell, the container rotation starts.

2.In order to achieve continuous web tension, adjust the speed of the feed roller according to the required label length. The threading device is very good and can provide the best film.

3.During cutting, PLC command and servo motor provide accurate cutting point to accurately cut labels.

4.The label is stuck together by two narrow hot-melt tapes, and the glue roller is heated and applied to the leading and trailing edges of the label.

5.The front edge of the label is provided with adhesive tape, which can accurately locate and glue the label on the front.

6.With the rotation of the container, the label is stuck tightly and glued accurately.

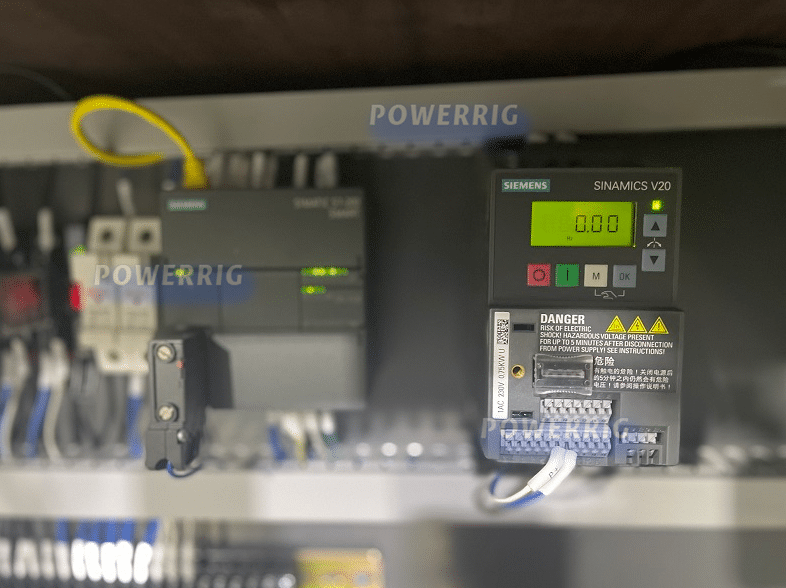

Glue Feeding System

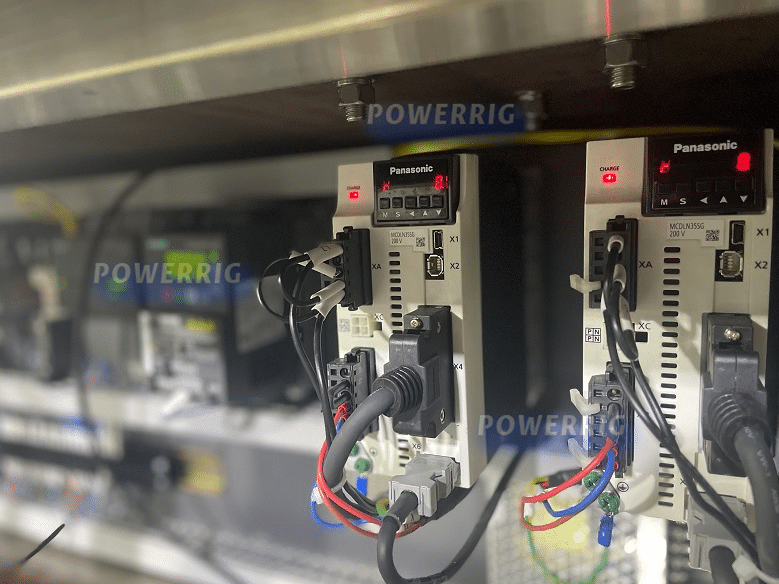

Label Plate

PARAMETER:

CONFIGURATION:

Power supplyThree-phase 380V 60 Hz 5W
Method of speed adjustment:uninterrupted – adjust rate
Labeling precision:±1mm
Labeling speedMax:26000bph
Maximum label width:200mm(standard width, can be adjusted )
Maximum outer diameter of label600mm
Paper core Hot melt152 mm
Labeling glue:glue at both ends of each label with hot melt
Gluing temperature:120~160℃
Labeling type for products:suitable for round or square containers made of plastic, metal, glass
Type of label:bopp 、paper-plastic composite film  、paper label
Labeling stations:customizable
servo systemSchneider
servo drive systemSchneider
Touch-screenGermany Siemens
Digital Color Mark SensorJapan Panasonic
Detection Sensor for coating adhesiveJapan Panasonic
Photoelectric SensorJapan Panasonic
