Description

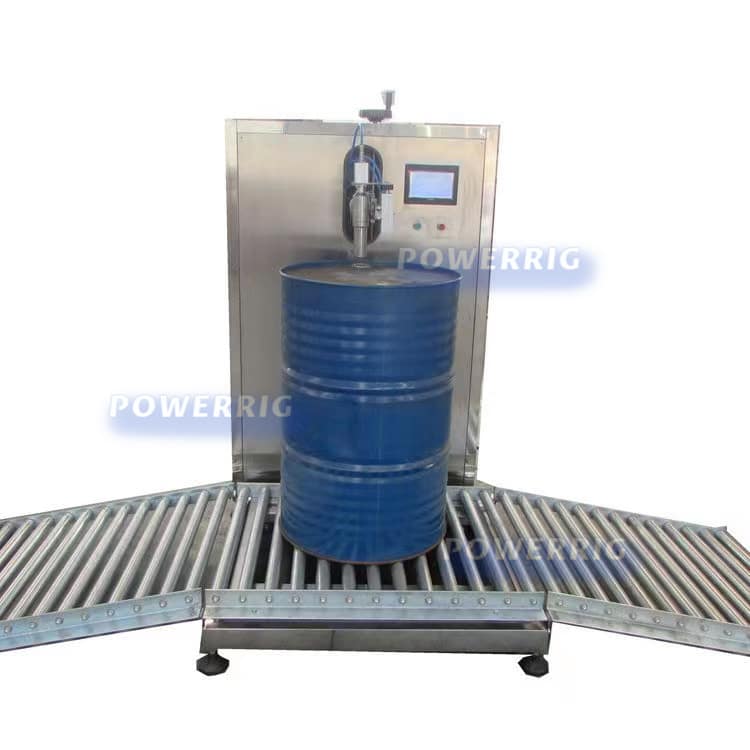

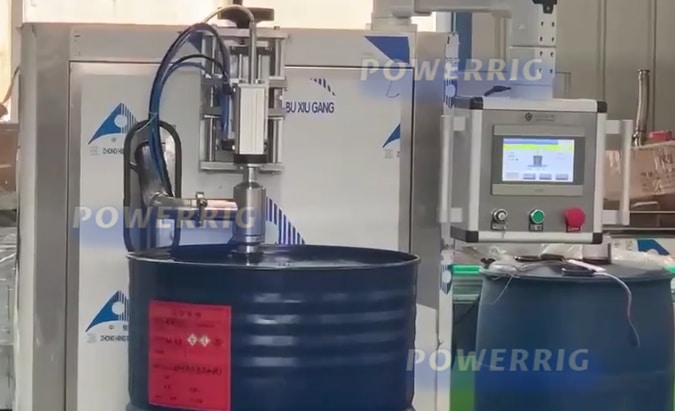

Brief Introduction of Our Semi Automatic Lube Oil Barrel Filling Machine:
It can be used to fill large capacity barreled oil products, such as mechanical lubricating oil, mobil oil, engine oil, gasoline, engine oil, etc, it is very efficient.
Four Competitive Edges of Our Semi Automatic Lube Oil Barrel Filling Machine:
1.The machine is used for weighing and filling, which is not easy to be affected by materials and has very high precision.
2.The feeding valve can feed fast and slow, and the filling speed and accuracy can be increased.
3.It can be measured in a large range with an error of less than 3 ‰.

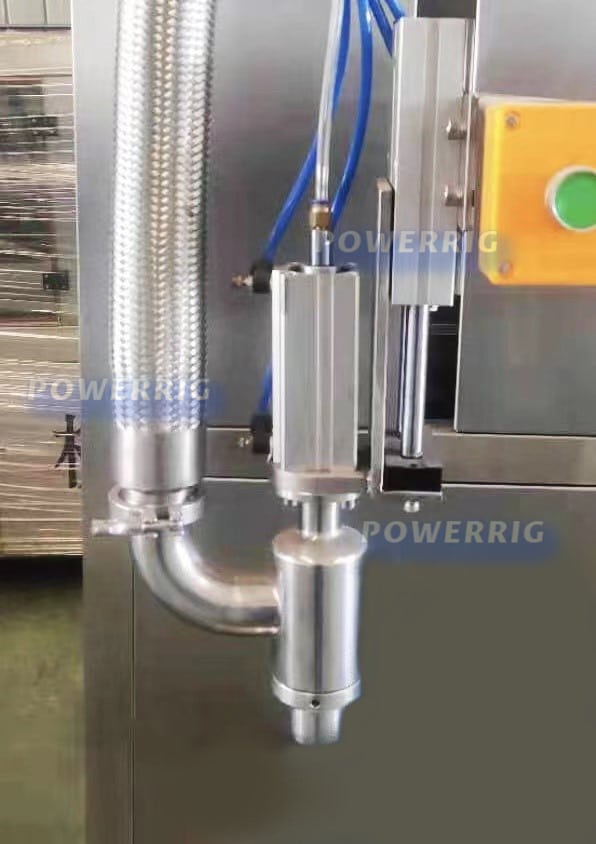

4.The filling head can avoid dripping, no bubbles and efficient filling.
The Working Process of Our Semi-Automatic Lube Oil IBC Filling Machine:
1.The computerized quantitative filling machine includes putting in materials, weighing, frame pneumatic control system and unpowered raceway.
2.The feeding pump is pressurized and the feeding is continuous and stable. The fast and slow feeding is carried out through the feeder through the cylinder solenoid valve.
3.Ordinary conventional filling or lifting diving filling can be customized according to the needs of customers.
4. It includes unpowered roller, frame support and pneumatic control system of filling system. It can control the speed of the feed valve and can not be subjected to other forces when in use.
Powerrig machine is one of the best manufacturers of cup filling machine and cup packaging machine in the world. We are very experienced.
PARAMETER:
CONFIGURATION:
Filling Head Number |
1 head |
Filling Capacity |
100L-250L |
Filling Capacity |
20-30 b / h |
Filling Accuracy |
0.5% |
Voltage |
380V 50HZ |
Power |
4KW |
Weight |
260Kg |
Overall Dimensions |
2200 * 900 * 1600mm (length * width * height) |
Name | Brand | Place of Production |
PLC | Wecon | Fujian (Customized customized weighing) |
Weighing Module | Wecon | Fujian (Customized customized weighing) |
Load Cell | Tianguang | Anhui |
Line Plate | MIC | Ningbo cixi |
Programming | MIC | Ningbo cixi |
Electrical Apparatus Element | schneider | France |
Electromagnetic Valve | AKS (inlet gasket) | Zhejiang |
Decantor | AirTAC | Taiwan |
Air Cylinder | AirTAC | Taiwan (The special-type cylinder is separately customized in China) |
Panel | 304 Stainless steel | WuXi |
