Glue Labeling Machine

It has French Schneider Servo System, French Schneider Servo Drive System, French Schneider motion controller, Siemens color screen human-machine interface, Japan’s Panasonic high-speed high-resolution color label sensor, Japan’s Panasonic high-speed high-resolution gluing and leak detection sensor and Japan Panasonic product detection photoelectric switch.

Description

Features:

Brief Introduction of Our Hot Glue Labeling Machine:
It has French Schneider Servo System, French Schneider Servo Drive System, French Schneider motion controller, Siemens color screen human-machine interface, Japan’s Panasonic high-speed high-resolution color label sensor, Japan’s Panasonic high-speed high-resolution gluing and leak detection sensor and Japan Panasonic product detection photoelectric switch.

Mechancial part of Our Hot Glue Labeling Machine:
It includes host conveying mechanism, conveying mechanism, bottle dividing mechanism and bottle feeding mechanism. In addition, bottle feeding mechanism is the mechancial part of hot glue labeling machine, which is used together with screw bottle submersible and star wheel positioning feeder, more accurate and stable. It also has position mechanism. To locate and label the flattened bottle, cam mechanism track is used. It has pressure mark mechanism and bottle guide mechanism. It uses dual coordinate adjustable guide rail.

Advantages of Our Hot Glue Labeling Machine:
1.It can protect users from dangerous. The machine will close the protective door when working.
2.When no label is available, it will send an alarm to remind you to replace the label.
3.If there is lack of bottles, the machine will automatically stop to remind.
4.In order to improve the quality of labeling, an alarm will be given when missing labeling occurs.

The working process of Our Hot Glue Labeling Machine:
1.It can control the in and out transmission of containers and is a new type of rotary continuous labeling machine.
2.According to the spacing of the star wheel, the bottle separating screw separates the container to a certain distance, and the container is transferred to the container turntable through the inlet star wheel.
3.First, fix the container with the bottle pressing mechanism and the container mold base, and then the container begins to rotate.
4.Mechanical positioning of products in advance during rotation.
5.When the electric eye detects the container, the computer host manipulates the labeling system to issue the label.
6.When the container is rotated, the label can be attached to the container efficiently and accurately.

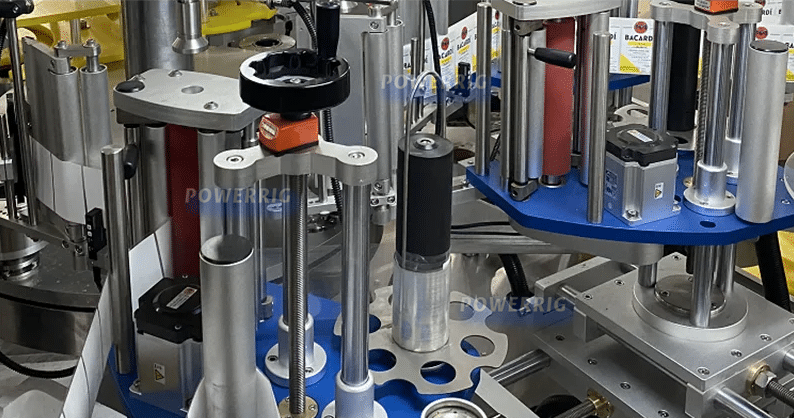

Label System

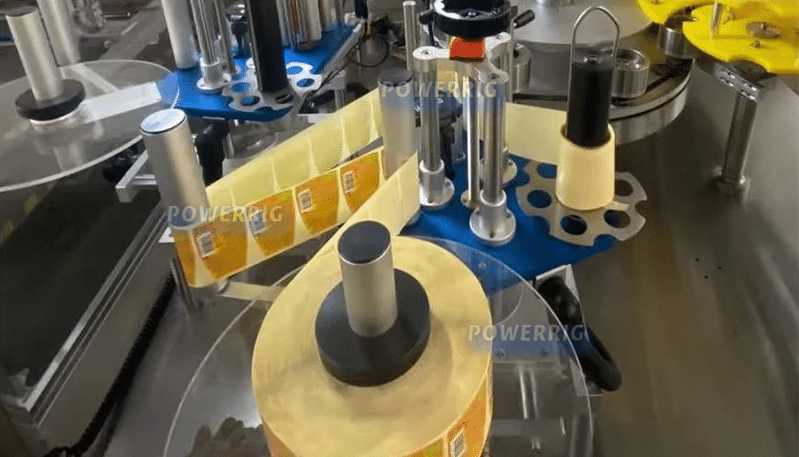

Label Feeding System
Container materialPET or glass bottle
Supply formself-adhesive
Container typecylindrical and square
Container diameter range55- 150mm
Container height range220- 300mm
Entry and exit bottle formRotary
Chain formlinear
Chain length2200mm
Adjustable chain height1,100-1,250mm
Voltage380 V
Frequency50Hz
Main motor power5.5kw
Equipment net weight2.5T
Total equipment power9.0 KW
Bottle mouth specificationstandard water bottle mouth
Defective rateless than 0.1%
Servo SystemFrench Schneider
Servo Drive SystemFrench Schneider
motion controllerFrench Schneider
color screen human-machine interfaceSiemens
high-speed high-resolution color label sensorJapan’s Panasonic
high-speed high-resolution gluing and leak detection sensorJapan’s Panasonic
product detection photoelectric switchJapan’s Panasonic
