Description
Features:
A glue filling machine is designed to accurately fill containers with specific amount of glue or adhesive.It is typically used in manufacturing settings where large quantities of glue need to be dispensed quickly and with precision.
The machine works by first filling hopper or reservoir with the glue or adhesive to be dispensed.The hopper is then connected to a pumping system that moves the glue from the reservoir to the dispensing nozzle.The pumping system is usually controlled by a computer or other electronic device that regulates the flow of glue and the amount dispensed.
Once the machine is set up, the operator can place a container underneath the dispensing nozzle and activate the machine.The glue filling machine will then dispense a precise amount of glue or adhesive into the container.The process can be repeated for multiple containers until the hopper runs out of glue.
Glue filling machines are used in a wide variety of industries, including packaging, woodworking, automotive, and construction.They are particularly useful in settings where a consistent and precise amount of glue or adhesive is required for each container, as they can help minimize waste and ensure product quality.They can also help increase production efficiency by reducing the time and labor required to fill containers by hand.
Some features include:
Accurate dispensing: Glue filling machines are designed to dispense a precise amount of glue or adhesive into each container, helping to minimize waste and ensure consistency in the finished product.
Multiple dispensing options: Glue filling machines may offer multiple dispensing options, such as a single nozzle for filling one container at a time or multiple nozzles for filling multiple containers simultaneously.
Adjustable flow rate: The flow rate of the glue or adhesive can often be adjusted to suit the specific needs of the application, allowing for greater flexibility in production.
Easy to clean: Many glue filling machines are designed to be easy to clean, with smooth surfaces and easy access to components that may need to be cleaned or serviced.
Versatile: Glue filling machines can often be used with a wide range of different types of adhesives, including hot melt, water-based, and solvent-based adhesives.
Automated controls: Many glue filling machines are equipped with automated controls that can help to streamline the filling process and reduce the risk of human error.
High throughput: Glue filling machines are designed for high throughput, with the ability to fill large numbers of containers quickly and efficiently.
Overall, the features of a glue filling machine are designed to help make the filling process more efficient, consistent, and accurate, while also minimizing waste and reducing the risk of errors or product defects.
PARAMETER:
CONFIGURATION:
Model | MIC-L40 |
Volume | 0.5-5ml |
Precision | +/-0.1g |
Speed | 50 BPH |
Voltage | 380V 50HZ/60HZ |
Power | 2KW |
Air consumption | 0.4-0.6M3/min |
Air pressure | 0.5MPA-0.8MPA |
Weight | 400KG |
Size | 1500*1300*1500mm |
Work position | 16 pieces |
Filling type | Peristaltic pump |

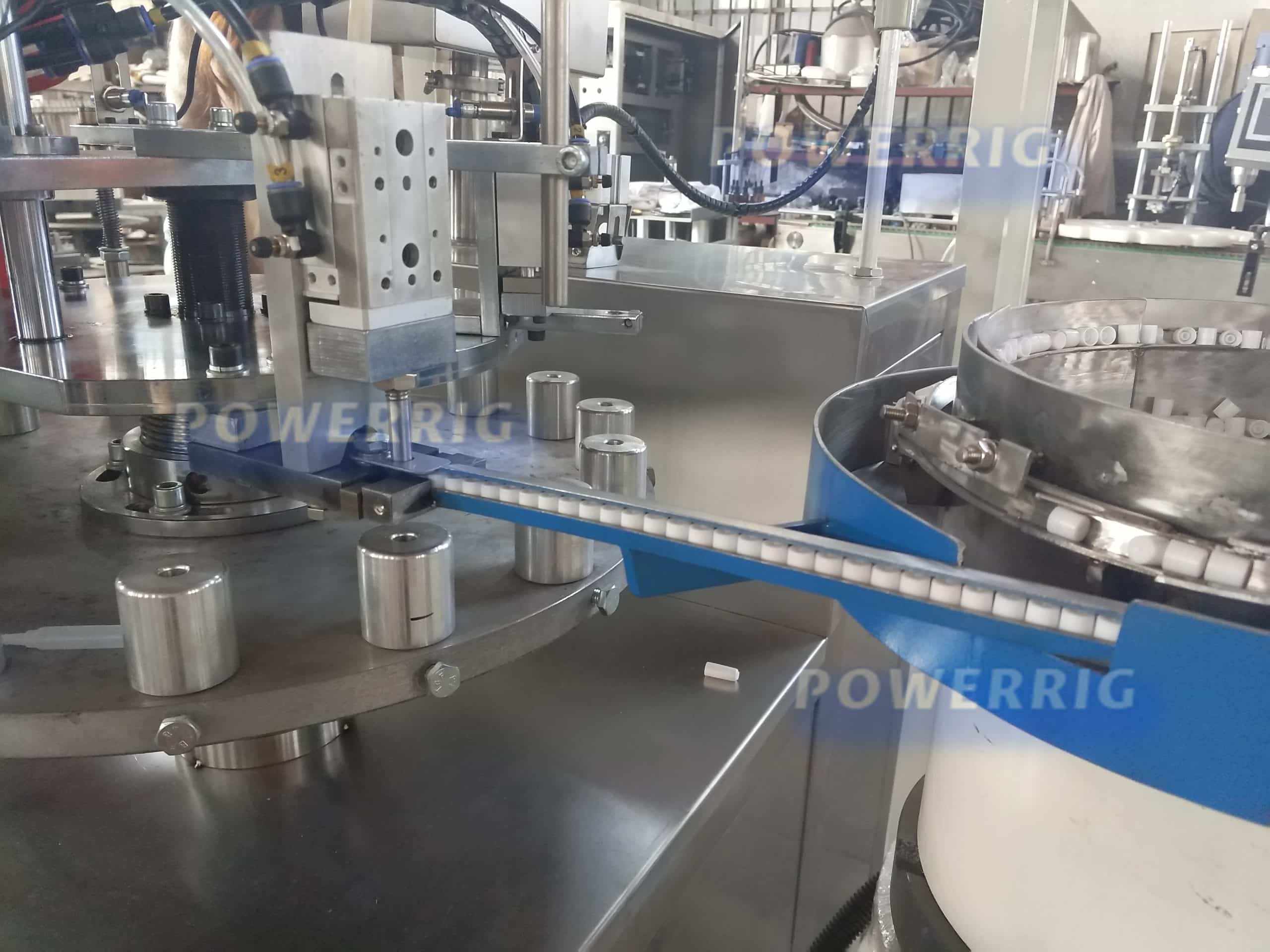

Cap loading | mechanical hand |
Apply | adhesive glue |
Main Tube loading | automatically |

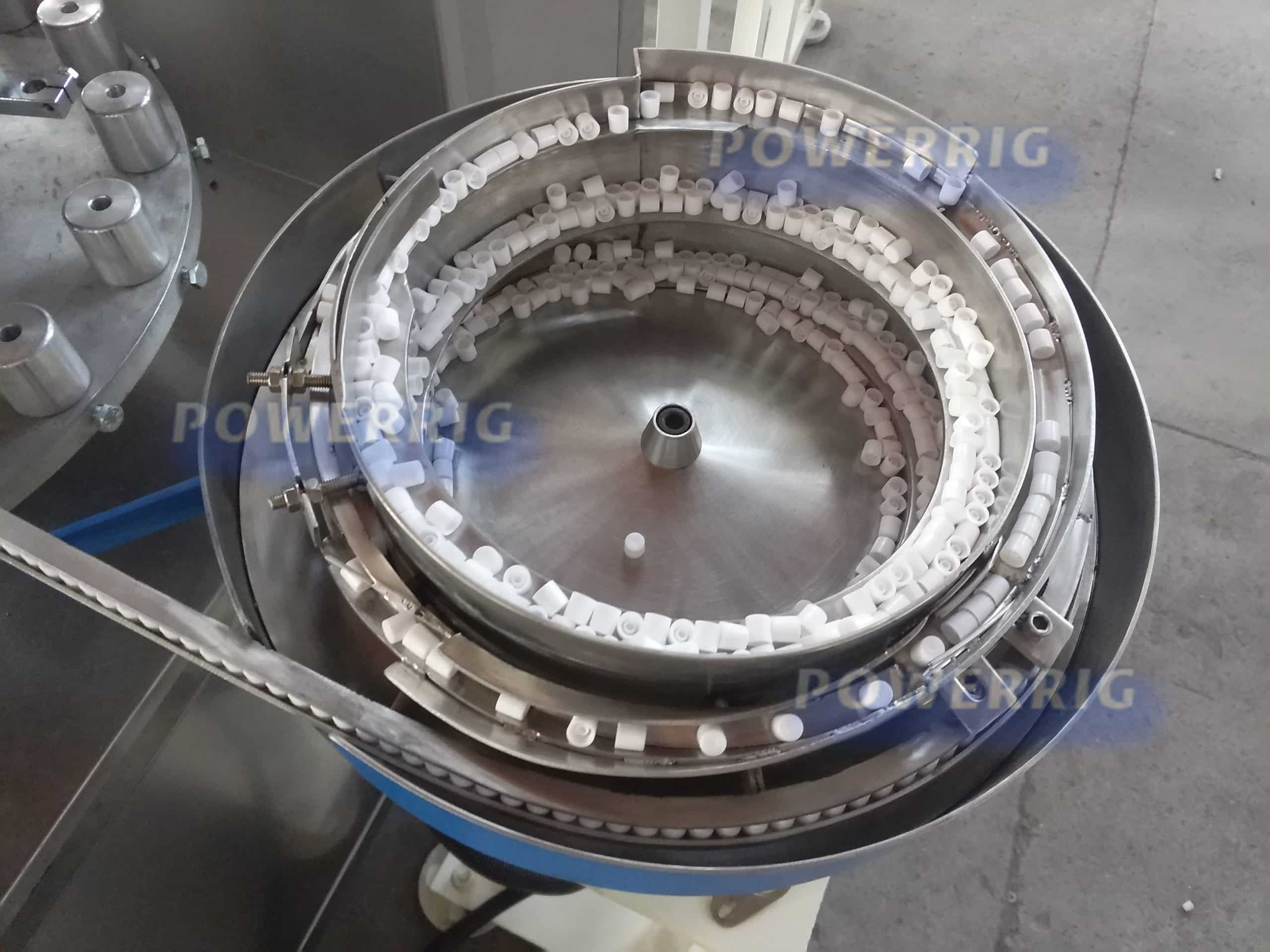

Vibrate tray | 3 vibration trays |
Name | Brand |
PLC | Siemens |
Touch screen | Siemens |
Air switch | CHINT |
Relay | OMRON |
Power Switch | OMRON |
Transducer | TaiAn Taiwan |
Motor | China |
Divider | China |
Reducer | China |
Approach switch | Omron |
Solenoid valve | AIRTAC |
Pressure regulating valve | AIRTAC |
Air Cylinder | AIRTAC |
Cap motor (servo motor) | Dongyuan, Taiwan |
Bearing | NSK, Japan |
