R45 Small Automatic Tube Filling Machine(Capacity 25-45 tubes per minute)

The machine is suitable for both laminated tube and plastic tube. And it is an ideal machine for filling and sealing both soft tube and composite tube.

Various types of hole punch can also be made or sealed by the machine.

The applied range: Daily chemical industry, medicine, food, chemical products, cosmetics. Specifically, including toothpaste, shoe oil, peanut paste, meat paste, adhesive, facial foam, hand cream and BB cream etc.

Whether to use dust covers which is good for medicine, food and other special industries in your products is free for choosing.

Description

Brief Introduction to Our R45 Soft Tube Filling & Sealing Machine:

The machine is suitable for both laminated tube and plastic tube. And it is an ideal machine for filling and sealing both soft tube and composite tube.

Various types of hole punch can also be made or sealed by the machine.

The applied range: Daily chemical industry, medicine, food, chemical products, cosmetics.  Specifically, including toothpaste, shoe oil, peanut paste, meat paste, adhesive, facial foam, hand cream and BB cream etc.

Whether to use dust covers which is good for medicine, food and other special industries in your products is free for choosing.


The Working Process of Our R45 Soft Tube Filling & Sealing Machine:

1.Automatically loading and filling

2.Internal and external heating

3.Sealing

4.Printing the code

5.Dividing the printed tube

6.Unloading the finished products


Five Competitive Edges of Our R45 Soft Tube Filling & Sealing Machine:

1. Touching screen and PLC controlling system make the operation convenient and easy to handle.

2. Having stable functioning performance and easy maintenance way, the machine is also possessing the quality assurance for one year and life-long free guarantee.

3. The whole automatic working process ensure the high accuracy and speed.

4. It is the Stainless Steel #316, which meet the requirements of GMP that make all contact parts in Our R45 Soft Tube Filling & Sealing machine.

5. The machine is available for different specifications of tubes. High measuring accuracy and reliable stability make the productions beautiful and firm.


Depending on the your tube materials, we will choose the best type of machine for your industry.

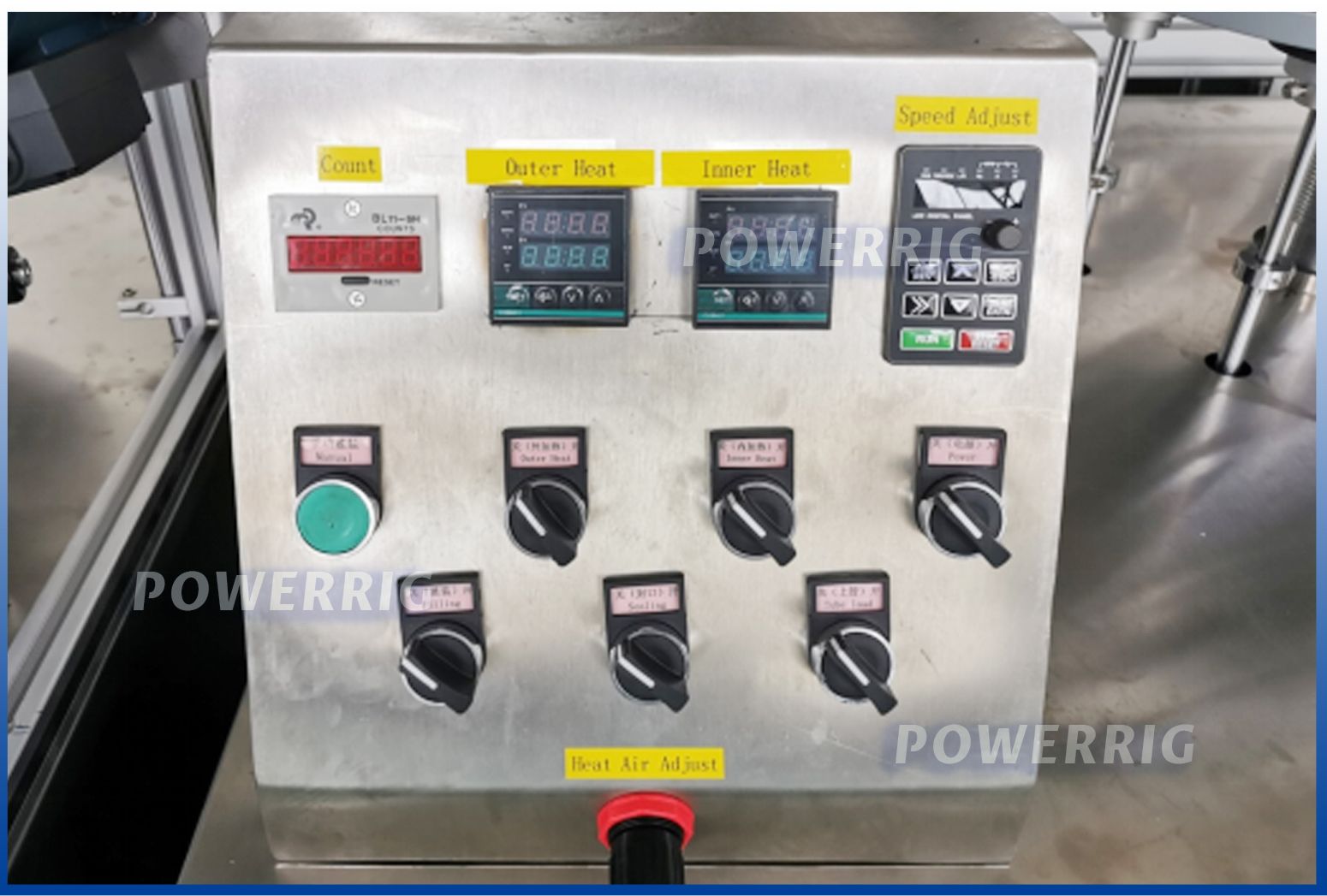

Control Panel

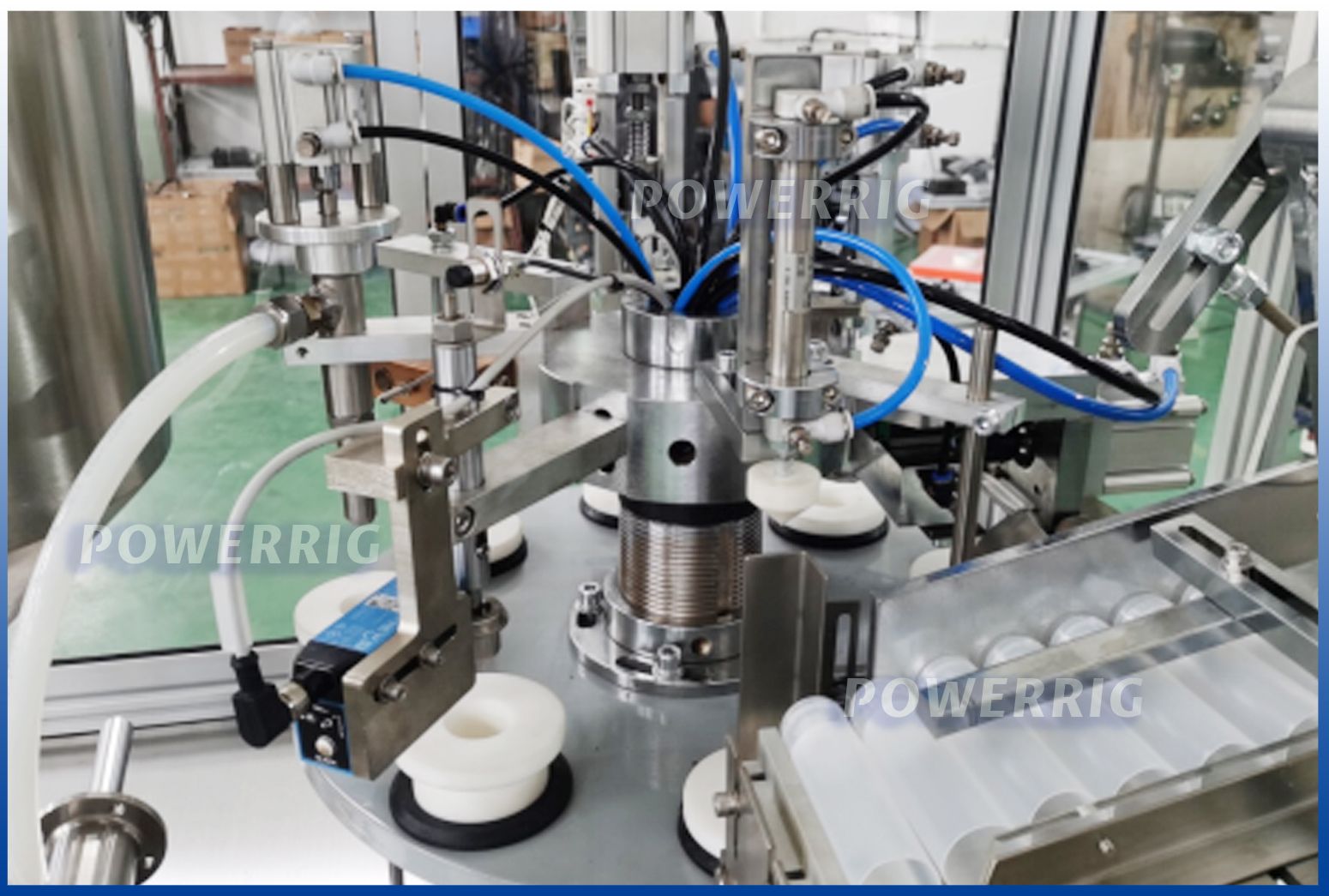

Sensor

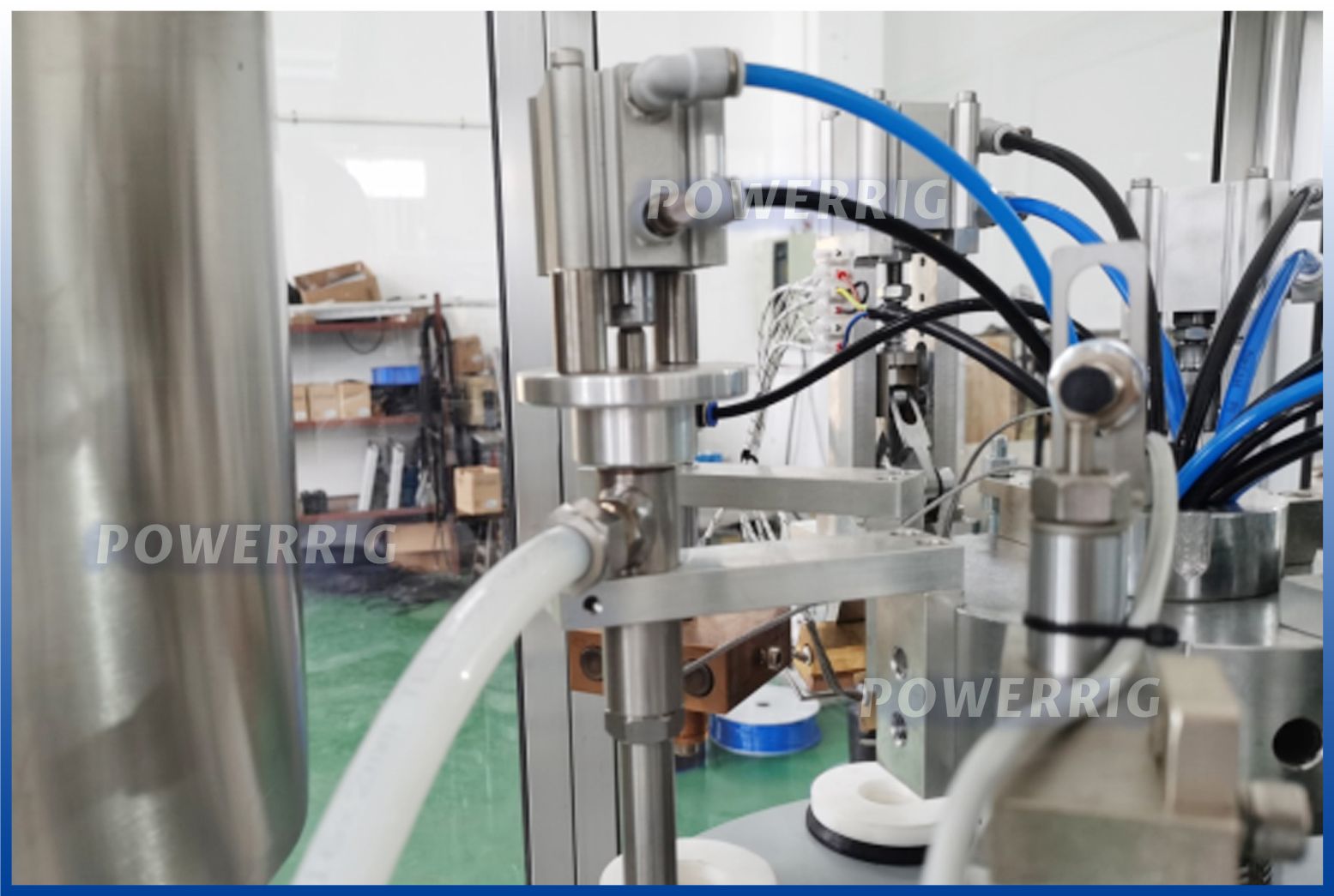

Filling Head

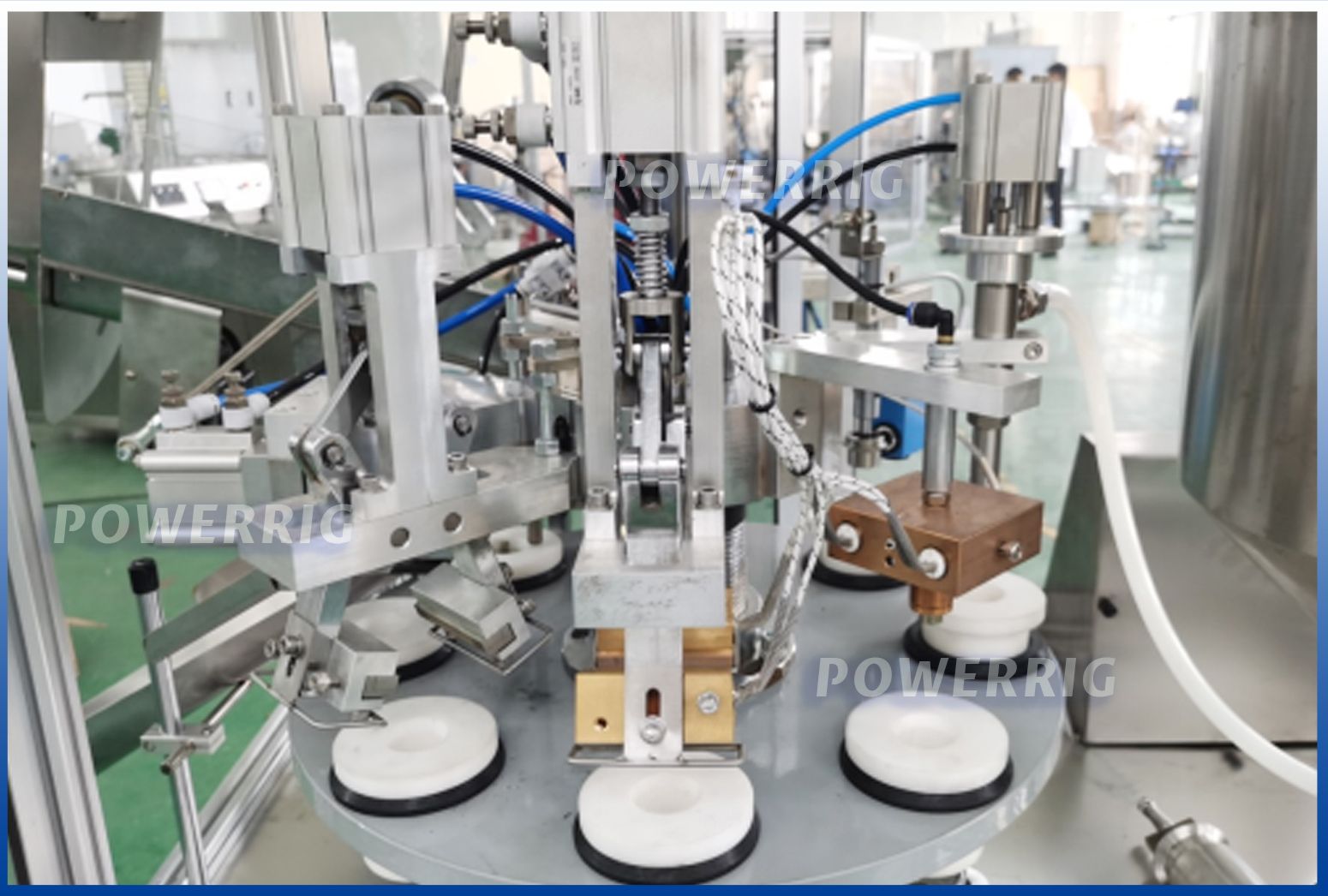

Inner And Outer Heating

PARAMETER:

CONFIGURATION:

Voltage110V/220V/380V
Power1.1kw
Heating Power400w*2
Air Pressure0.6-0.8Mpa
Production Capacity25-45 tubes/min
Filling Volume1-300ml
Filling Error± 0.5g
MaterialSS304/316
Dimensions1500*700*1800mm
Weight475KG
PartsBrand
Main MotorWu XI Qi Peng
PLCPanasonic JAPAN
Stepping MotorEast Japan
Stepping DriveEast Japan
SensorGermany Sick
Approach SwitchBFNFC
Intermediate RelaySchneider
electromagnetic V alveSi Mai Ge
EncoderOmron
Mixing M otor (O ptional)XiangGang Ease
Air C yli nderSi Mai Ge
BearingNsk
ButtonSchneider
Air S witchCHNT
Power S witchOmron
Temperature C ontrolHuoYU
