Adhesive Filling Machine(Super Glue,Super 502,30-60 Bottles Per Minute)

The machine typically consists of a glue reservoir, a glue application mechanism, and a control system. The glue reservoir holds the adhesive, which is pumped through the application mechanism and applied to the surface of the material being bonded. The control system regulates the amount and speed of the adhesive being applied to ensure an even and consistent application.

Description

FEATURES:

A glue filling machine is a device used to fill containers with a specific amount of glue or adhesive.    It is typically used in industrial settings where large quantities of glue need to be dispensed quickly and accurately.

The machine typically consists of a hopper or reservoir where the glue is stored, a pumping system that moves the glue from the reservoir to the dispensing nozzle, and a control system that regulates the flow of glue and the amount dispensed.


The primary difference between automatic and semiautomatic glue filling machines is the degree of automation involved in the glue filling process.

Automatic glue filling machines are fully automated, with little or no human intervention required during the filling process.  These machines typically have a higher production rate and are designed for large-scale operations.  They are capable of filling and dispensing adhesive into containers, such as tubes or bottles, and can also be used to apply adhesive directly to products.  Automatic machines typically have advanced features such as programmable controls, conveyor systems, and robotic arms to automate the filling process.

Semiautomatic glue filling machines, on the other hand, require some degree of human intervention during the filling process.  These machines are designed for smaller scale operations and have a lower production rate than automatic machines.  Semiautomatic machines may require an operator to load the adhesive and adjust settings such as fill volume, but the machine performs the actual filling process automatically.  These machines are typically more affordable and easier to maintain than fully automatic machines.


Overall, the main difference between automatic and semiautomatic glue filling machines is the degree of automation involved in the filling process.  Automatic machines are fully automated, while semiautomatic machines require some level of human intervention.  The choice between the two types of machines will depend on the production needs, budget, and level of automation required for a specific application.

PARAMETER:

CONFIGURATION:

Power

220V/50Hz

Motor

2.5Kw

Filling Quantity

1-50ml

Capacity

30-60 bpm

Gas Consumption

0.5-0.6 m³/min

Heating Power

400W

Air Pressure

0.5-0.8Mpa

Precision

±1%

Tube Socket

16

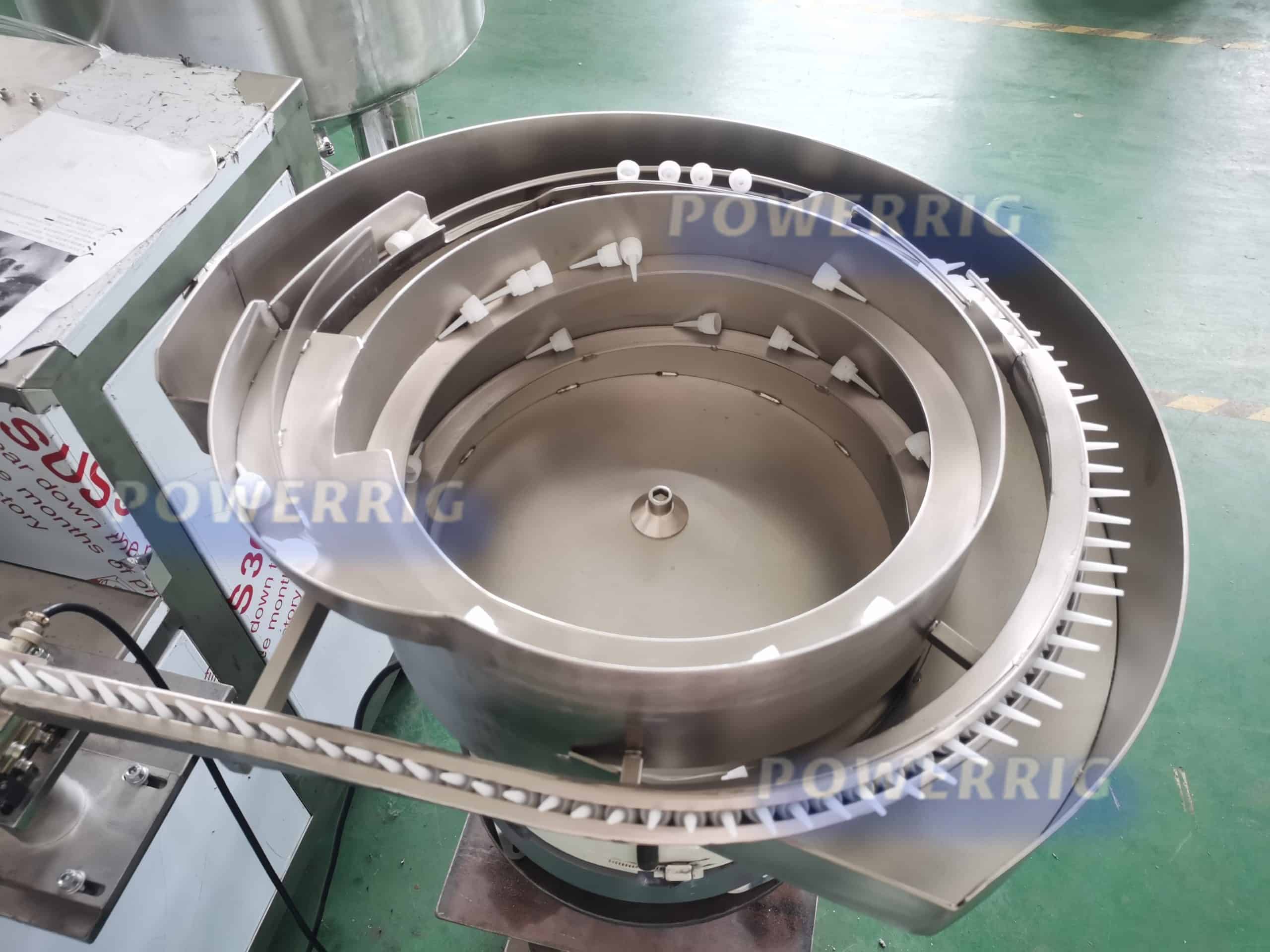

Vibrating Tray

3 pieces

Filling Form

Gravity Filling

Cap Covering

Mechanical Arm

Parts

Brand

Touch Screen

TECO

Relay

OMRON

Air Cylinder

CNCO

PLC

Siemens

Proximity Switch

Qianwei

Motor

Shangdong(China)

Variable-frequency Drive

TECO

Vacuum Graduator

CNCO

Solenoid Valve

SMUK

Pressure Regulating Valve

AIRTAC

Cover Plug Motor

CNDF

Cover Caps Motor

CNDF

APPLY:
