Nail Glue Filling Capping Machine(Speed 20-30 Bottles Per Minute)

It can be applied in food, cosmetics, daily chemical and pharmaceutical industries, for example, nail polish, e-liquid, eye drop. It can be used in low dose liquid filling and capping packaging production line. It can fill nail glue into various round, flat glass bottles and plastic bottles, which can be filled with 5-20ml.

Description

FEATURES:

Brief Introduction of Our Nail Glue Filling Capping Machine:
It can be applied in food, cosmetics, daily chemical and pharmaceutical industries, for example, nail polish, e-liquid, eye drop. It can be used in low dose liquid filling and capping packaging production line. It can fill nail glue into various round, flat glass bottles and plastic bottles, which can be filled with 5-20ml. The cam has high precision and can provide a fixed positioning plate, inner plug, brush and nut. If you need, we can add bottle feeder, bottle unloader and labeling machine to form a complete production line. It can send bottles into the production line. Without bottles, it will not be filled and plugged, and there will be no capping without plugs. It has high position and stable performance. According to the requirements of customers, the machine configuration with different specifications and production speed can be customized.

Six Competitive Edges of Our Nail Glue Filling Capping Machine:
1.It can feed the bottles automatically, if there is no bottle, it will not be filled, and if there is no filling, it will not be sealed.
2.It is dominated by PLC and touch screen.
3.The machine is filled with pressure tank and peristaltic pump, which can be used for glue and liquid with different viscosity. If there are requirements for low capacity, this machine is a good choice for automatic cover sorting, such as gland, spray pump cover, screw cover, etc.
4.The machine is filled with pressure tank and peristaltic pump, which can be used for glue and liquid with different viscosity. If there are requirements for low capacity, this machine is a good choice for automatic cover sorting, such as gland, spray pump cover, screw cover, etc.
5.It uses the material of SUS304 or SUS316, it meets food grade GMP standards and has a polished surface.
6.This machine can effectively prevent dripping and carry out high-precision filling.

Features of Our Nail Glue Filling Capping Machine:
1.The filler can prevent dripping.
2.If the machine breaks down, it will automatically stop running.
3.In order to prevent the cover from falling, the cover needs to be closed in advance.
4.Grasp the cover and tighten the cover by swinging the lifting cam and servo mechanical claw.
5.The speed can be changed. The speed can be adjusted. Based on 50ml, the speed can reach 30-40bpm.

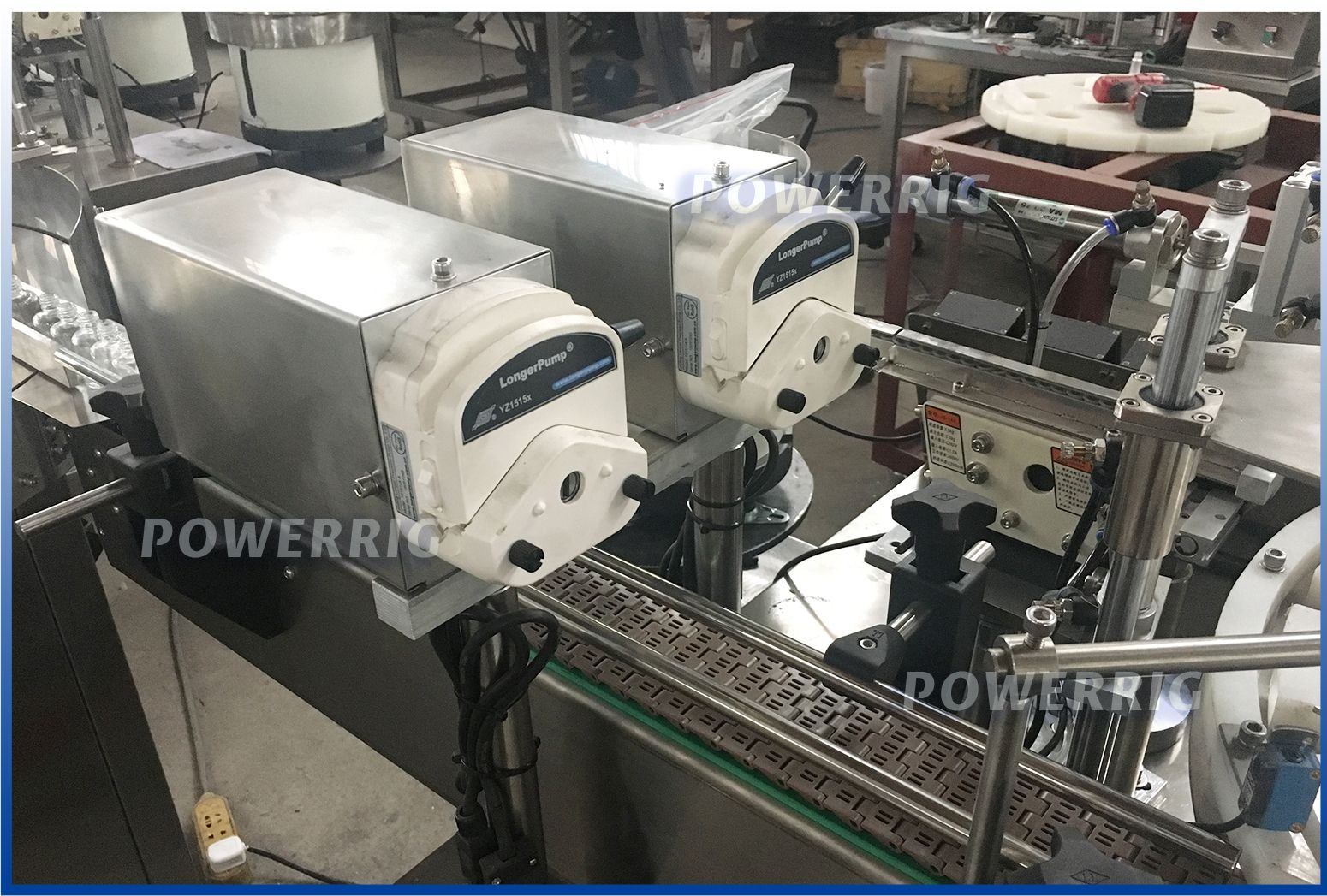

Conveyor

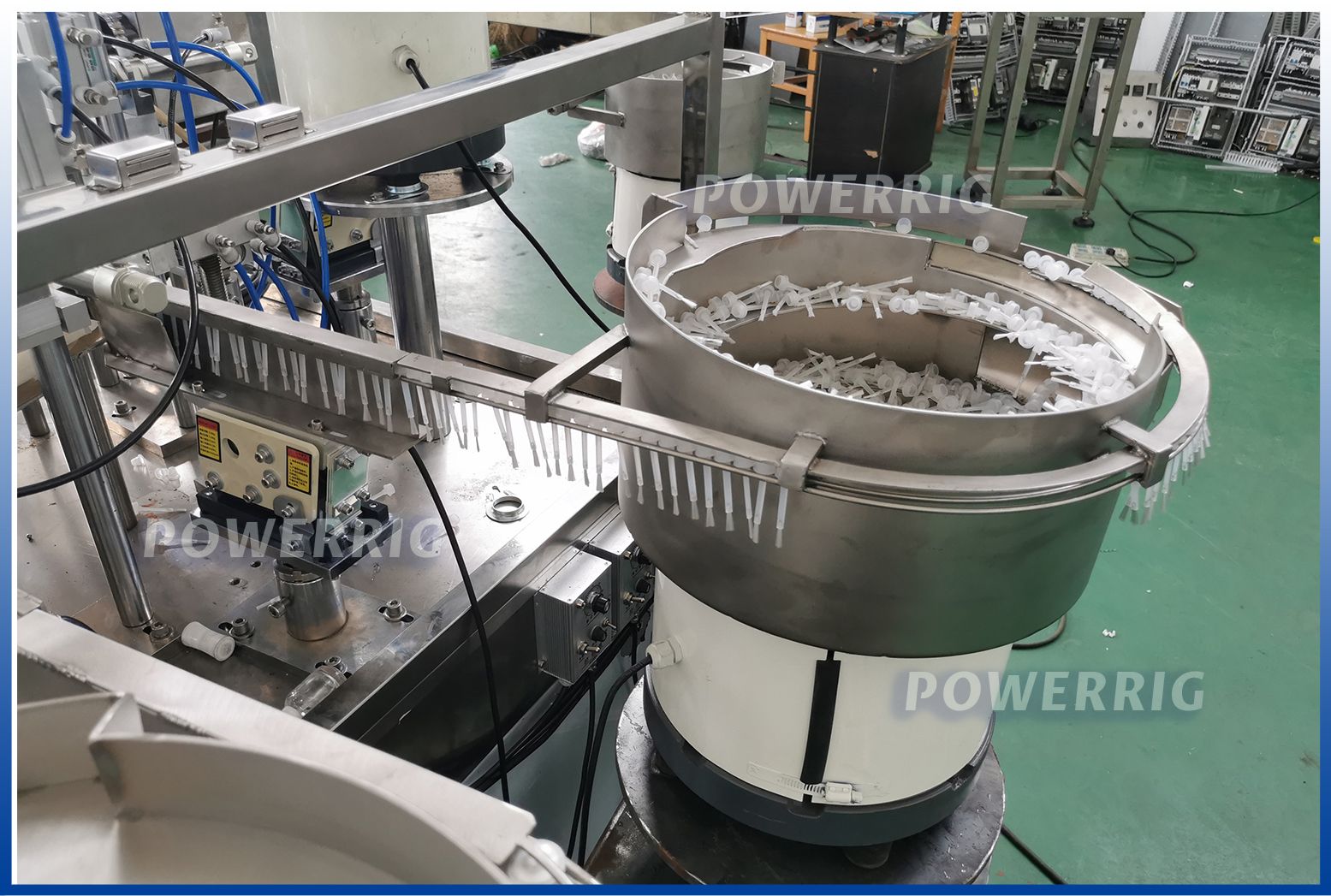

Inner cap loader

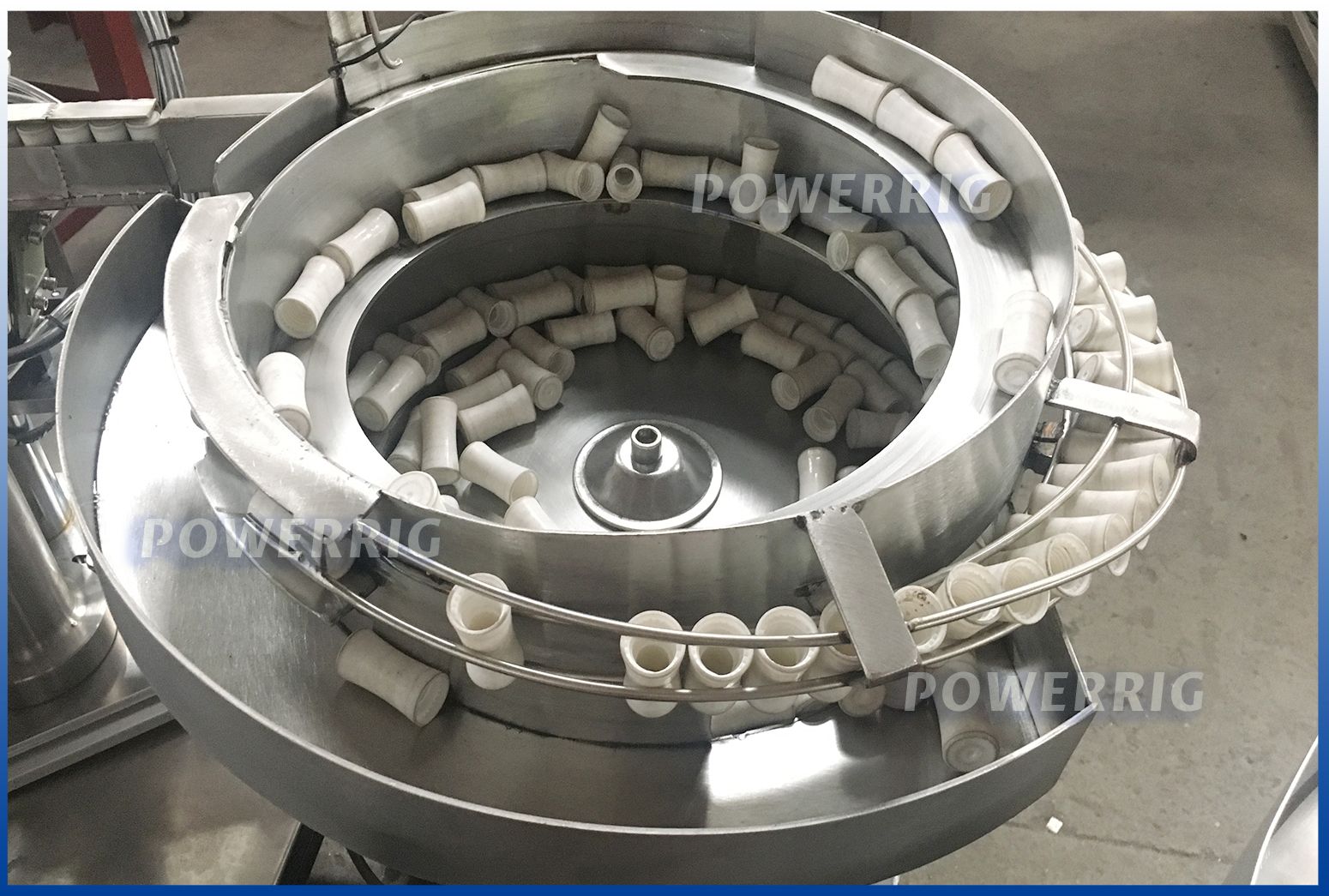

Vibration Plate

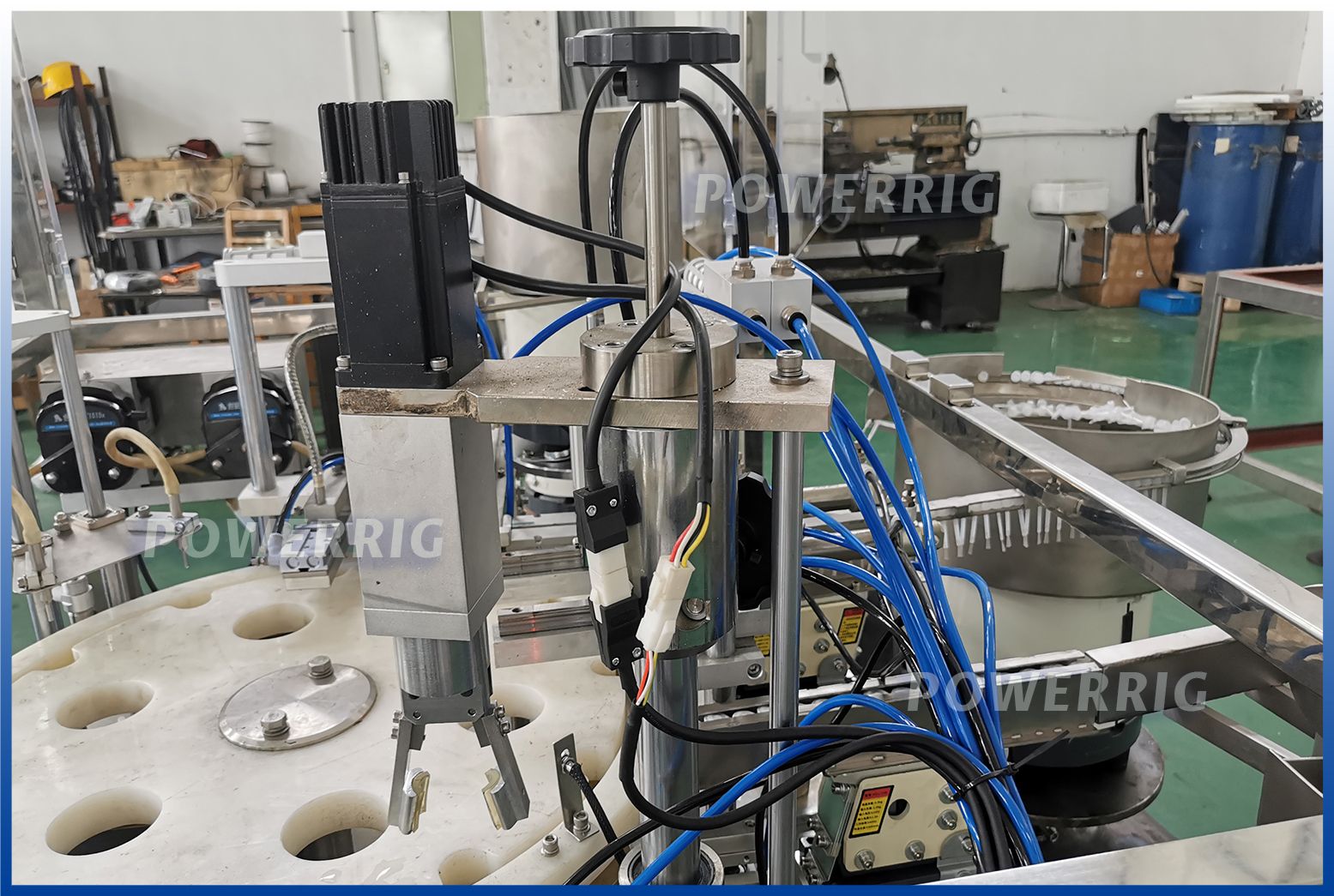

Screw Cap

PARAMETER:

CONFIGURATION:

Voltage220V 50Hz/380v
Power2.5kw
Air Pressure0.6-0.8Mpa
Air Consumption30dm^3/MIN
Production Capacity20-30 bottles/minute
Filling Error+/-1%
Dimensions2000*1000*1800mm
Weight500kg
Filling Volume5-20ml
PartsBrand
ButtonSchneider
AC ContactorSchneider
RelaySchneider
Frequency ConverterTaian
MotorQi peng
Air CylinderAIR TAC
The electromagnetic valveAIR TAC
BearingNSK
PLCSchneider
Touch ScreenSchneider
Photoelectric DetectionSick

peristaltic pump control filling

Servo motor + drive

TouchWin

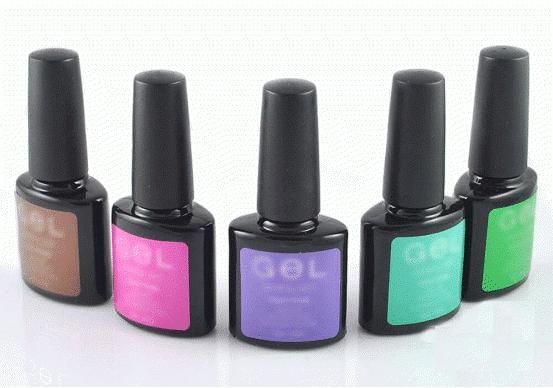

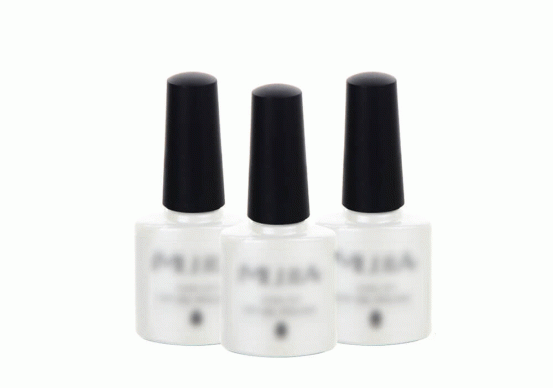

APPLY:
