Automatic Vaccine Tube Filling And Capping Machine ( Speed 50 bottles per minute )

This machine body made by stainless steel, and the working process is controlled by touch screen, and the filling volume is adjustable. This machine is suitable for filling capping small bottle of various specifications. According to customer filling material viscosity to choose piston filling system or peristaltic pump filling system.

Description

FEATURES:

This New upgrade filling capping machine is suitable for:

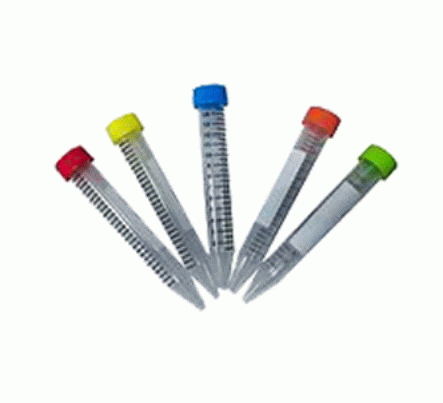

Medical, Daily chemistry, cosmetics. Small glass bottles and plastic bottles such as electronic liquids, vaccine, essential oils, syrups, etc.

A vial filling machine is a specialized equipment used for filling sterile liquids, powders, and other pharmaceutical products into vials, which are small glass or plastic containers.  Vial filling machines are widely used in the pharmaceutical industry for filling and packaging of injectable drugs, vaccines, and other liquid products.

The machine consists of several parts, including a filling station, a cap placement station, a labeling station, and a product conveyor.  The filling station is the heart of the machine, where the liquid or powder product is drawn from a holding tank and accurately dispensed into the vial.  The cap placement station then secures the vial with a closure, such as a rubber stopper or a screw cap. The labeling station prints and applies labels onto the vial.  Finally, the product conveyor moves the vials to the next stage of the packaging process.

Main Features:

1. Microcomputer setting, high filling accuracy
2. The main engine is equipped with stepless frequency speed control.
3. Automatic production capacity quantitative control.
4. With all kinds of fault alerting, for low pressure, no filling, no inner cap etc.
5. The machine can stop automatically in case of no filling, no inner cap etc.

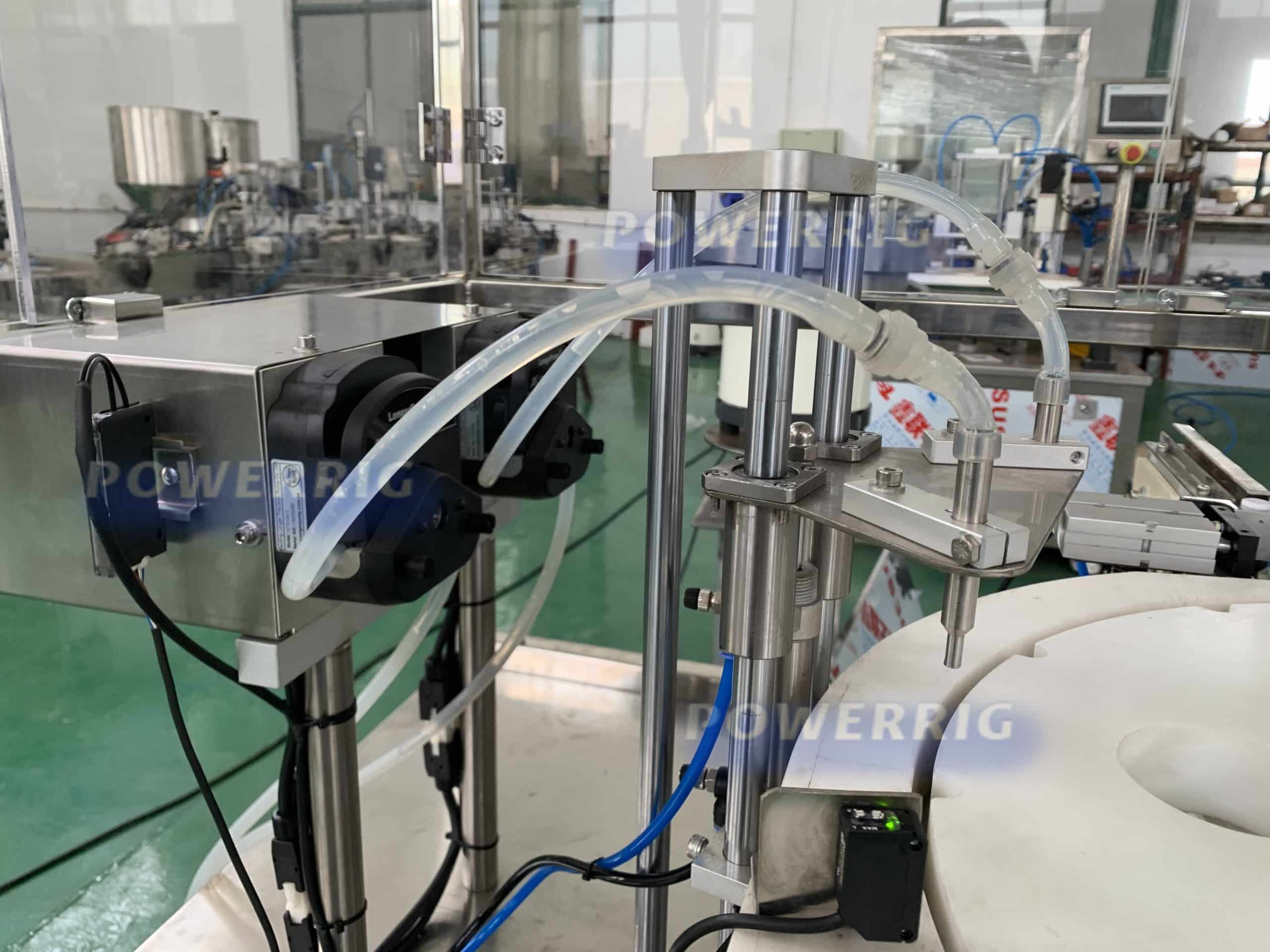

This machine body made by stainless steel, and the working process is controlled by touch screen, and the filling volume is adjustable. This machine is suitable for filling capping small bottle of various specifications. According to customer filling material viscosity to choose piston filling system or peristaltic pump filling system.

According to customer’s requirement, we will offer our technician for oversea to install and adjust machine.

We provide the full-lifetime warranty consult with one-year free accessories, if you need.

We also can arrange the engineer to your factory do field installation guidance.

PARAMETER:

CONFIGURATION:

Filling Ra nge5- 130ml
Capacity50 Bottles/Minute
Voltage220V/380V
Filling Precision≤±1%
Capping Rate≥99%
Air Supply1.3 m3/h 0.4-0.8Mpa
Dimension1200*1000*1800mm
Wei ght550kg

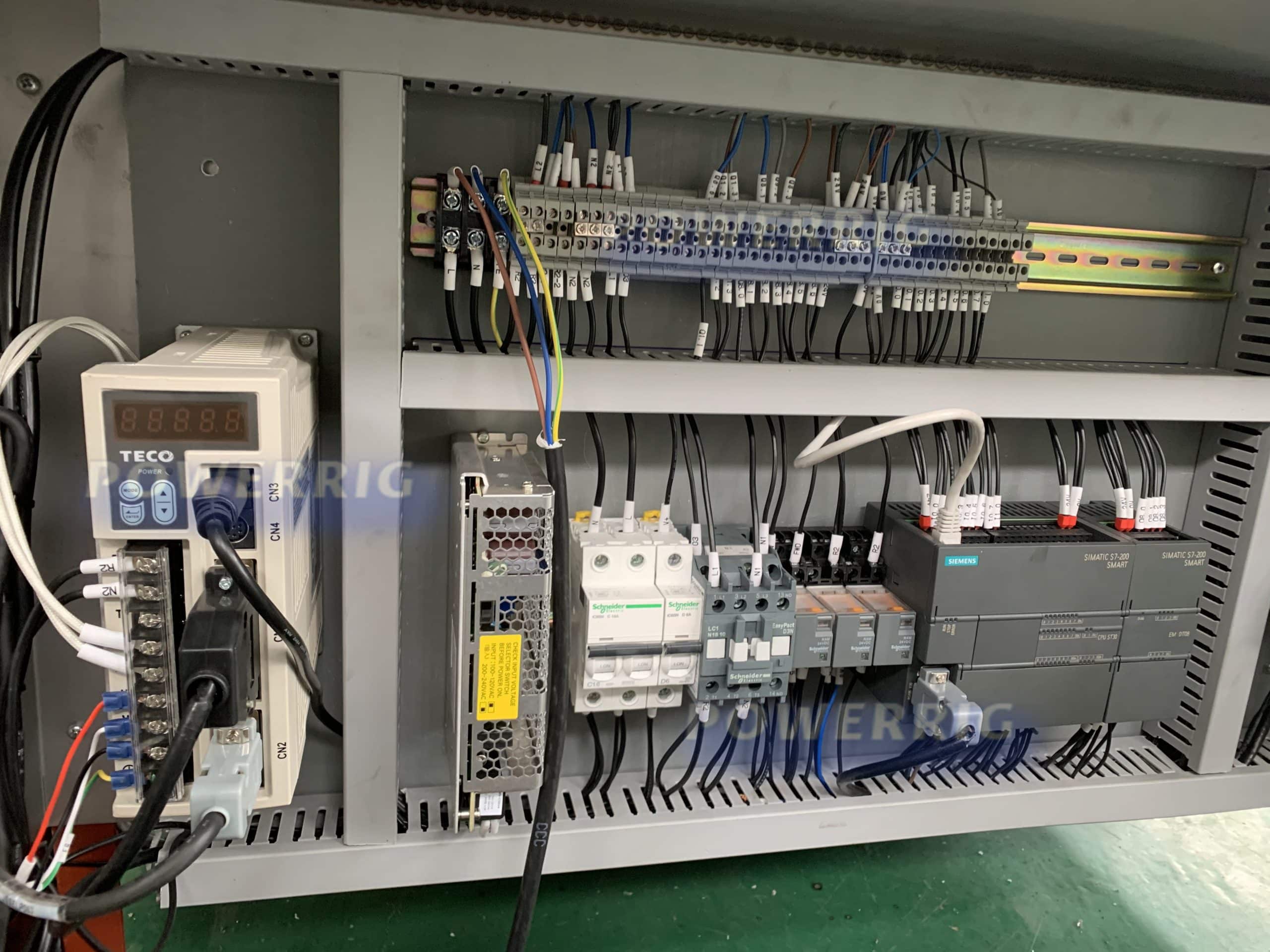

PartsBrand
ButtonSchneider
AC ContactorSchneider
RelaySchneider
Frequency ConverterTaian
MotorQi peng
Air CylinderAIR TAC Taiwan
The Electromagnetic ValveAIR TAC Taiwan
BearingNSK
PLCSiemens Germany

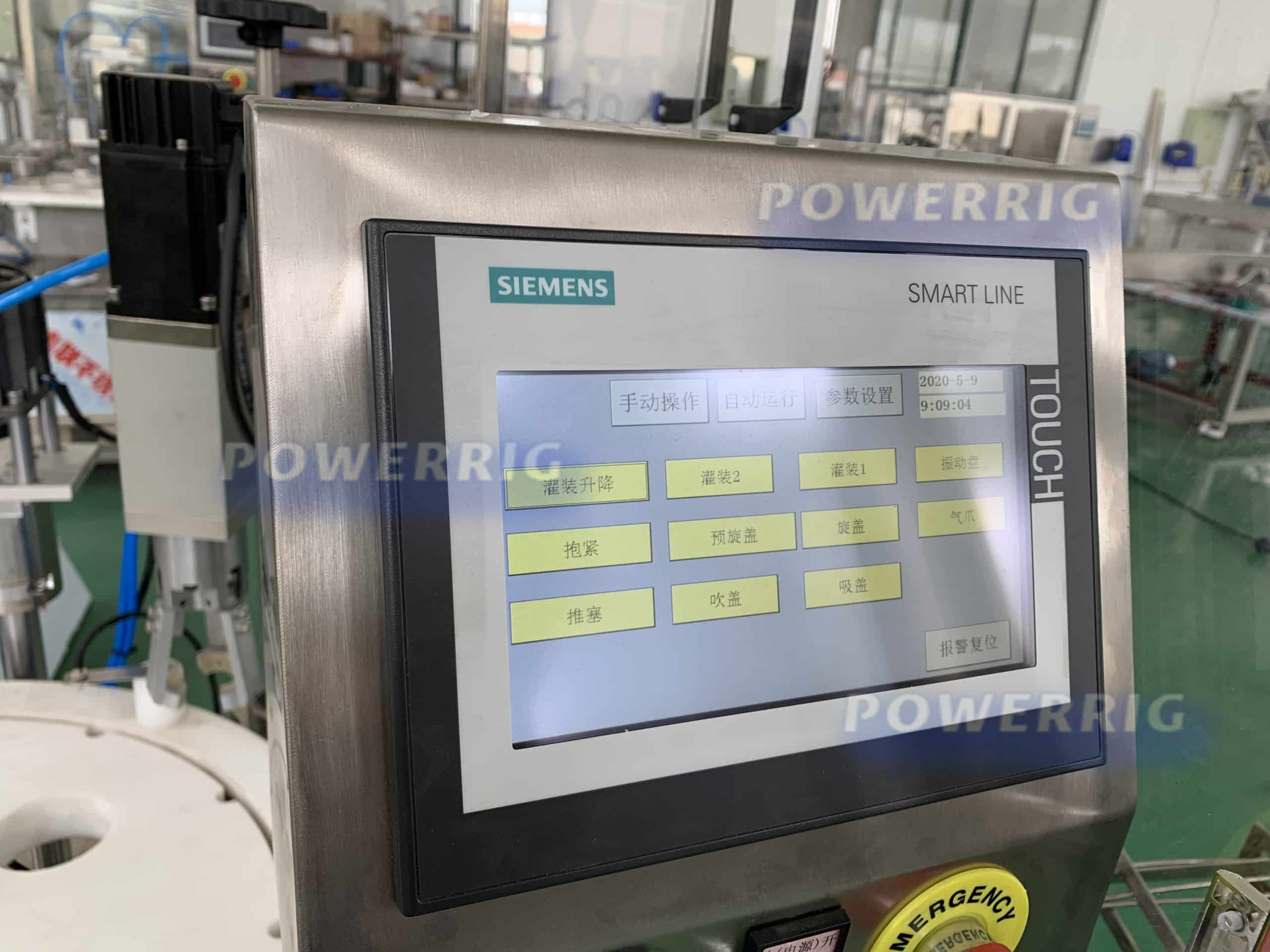

Touch ScreenSiemens Germany
PhotoelectricSick

APPLY:
