Silicone Dual Cartridge Filling Machine ( Speed 40-60 cartridges per minute )

It can be used for filling and pressing glass adhesive, silicone sealant, water-based acrylic glue, free-nail glue, titebond, series of polyurethane materials. It is a good choice for pharmaceutical industries, adhesives industries, and other related industries to use this machine.

Description

Brief Introduction of Our Glue Silicone Sealant Tube Dual Cartridge Filling Machine:

It can be used for filling and pressing glass adhesive, silicone sealant, water-based acrylic glue, free-nail glue, titebond, series of polyurethane materials. It is a good choice for pharmaceutical industries, adhesives industries, and other related industries to use this machine.

Fully automatic silica gel silicone sealant filling capping machine for silicone cartridge can be applied to high viscosity material filling and capping. This machine is made up of hydraulic pressing system, filling control system and automatic capping system. Multiple people cannot operate the machine at the same time. It has high filling accuracy, stable and reliable operation of the whole machine. It is environmental.

The Working Process of Our Glue Silicone Sealant Tube Dual Cartridge Filling Machine:

1.Adopt automatic control mode
2.Manually adding bottle caps
3.Automatic bottle feeding and quantitative filling
4.Automatic capping and automatic coding, but the process does not include coding printer
5.Finally automatic blanking

Three Competitive Edges of Our Glue Silicone Sealant Tube Dual Cartridge Filling Machine:
 1.The machine uses PLC controller and touch screen. It has strict precision control of various transmission parts and processing technology. It is stable and it will make the fast response.
2.Use servo motorand positive displacement measuring cylinder to regulate the capacity. Our machine has high filling measurement accuracy. The error rate is within 0.5%.
3.If you want to adjust the measurement parameters, you can touch the screen.

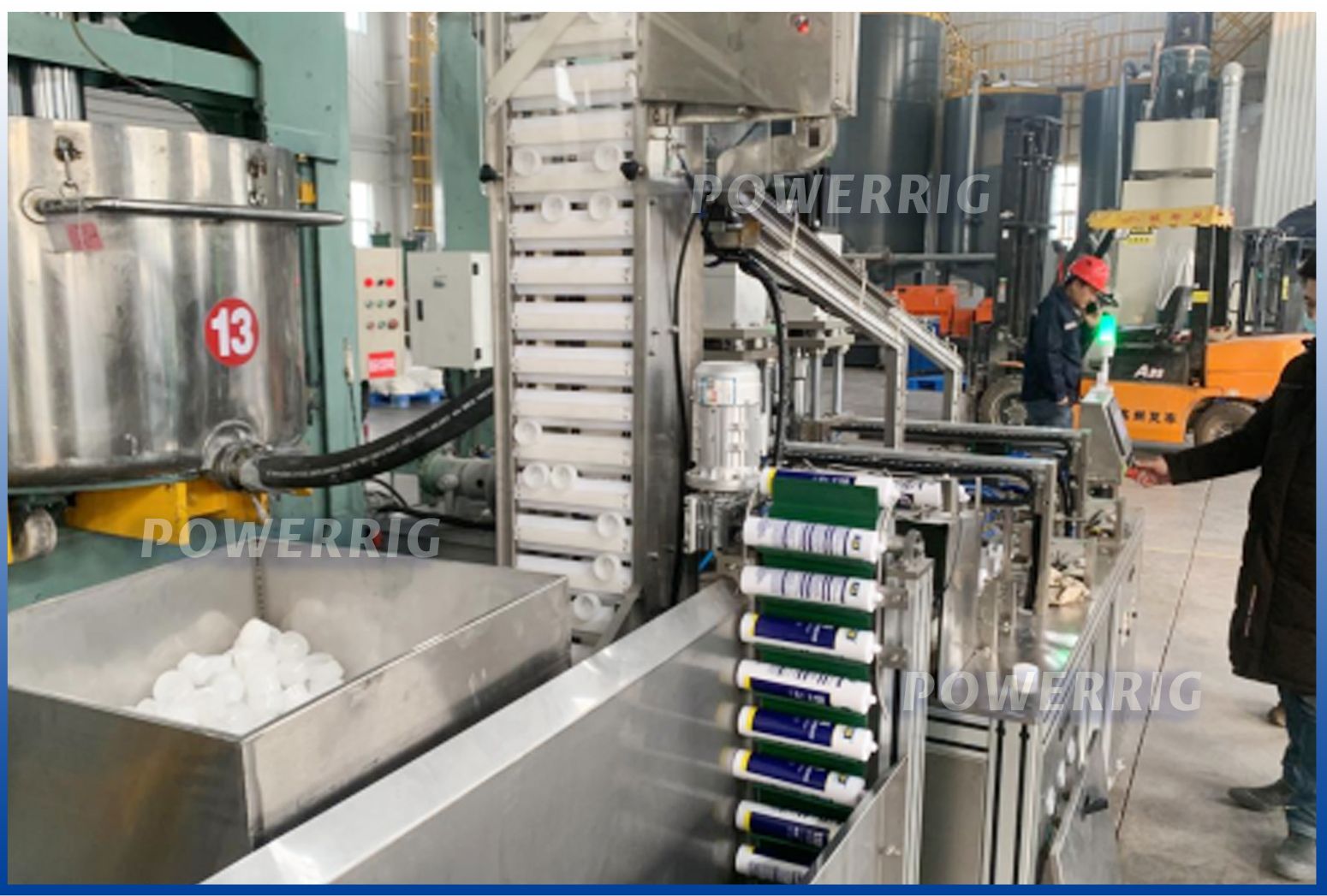

Cartridge Loader

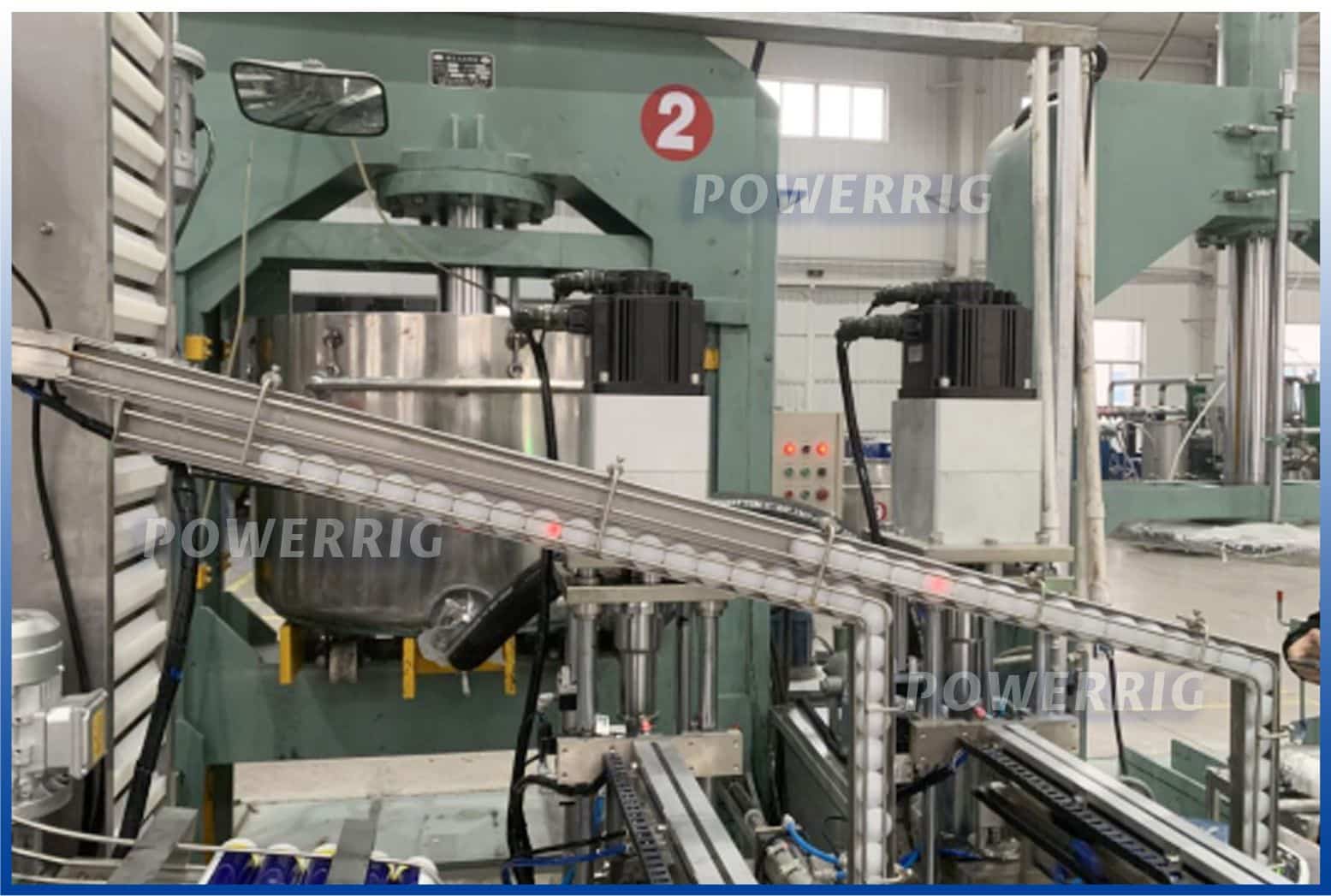

Cap Loader

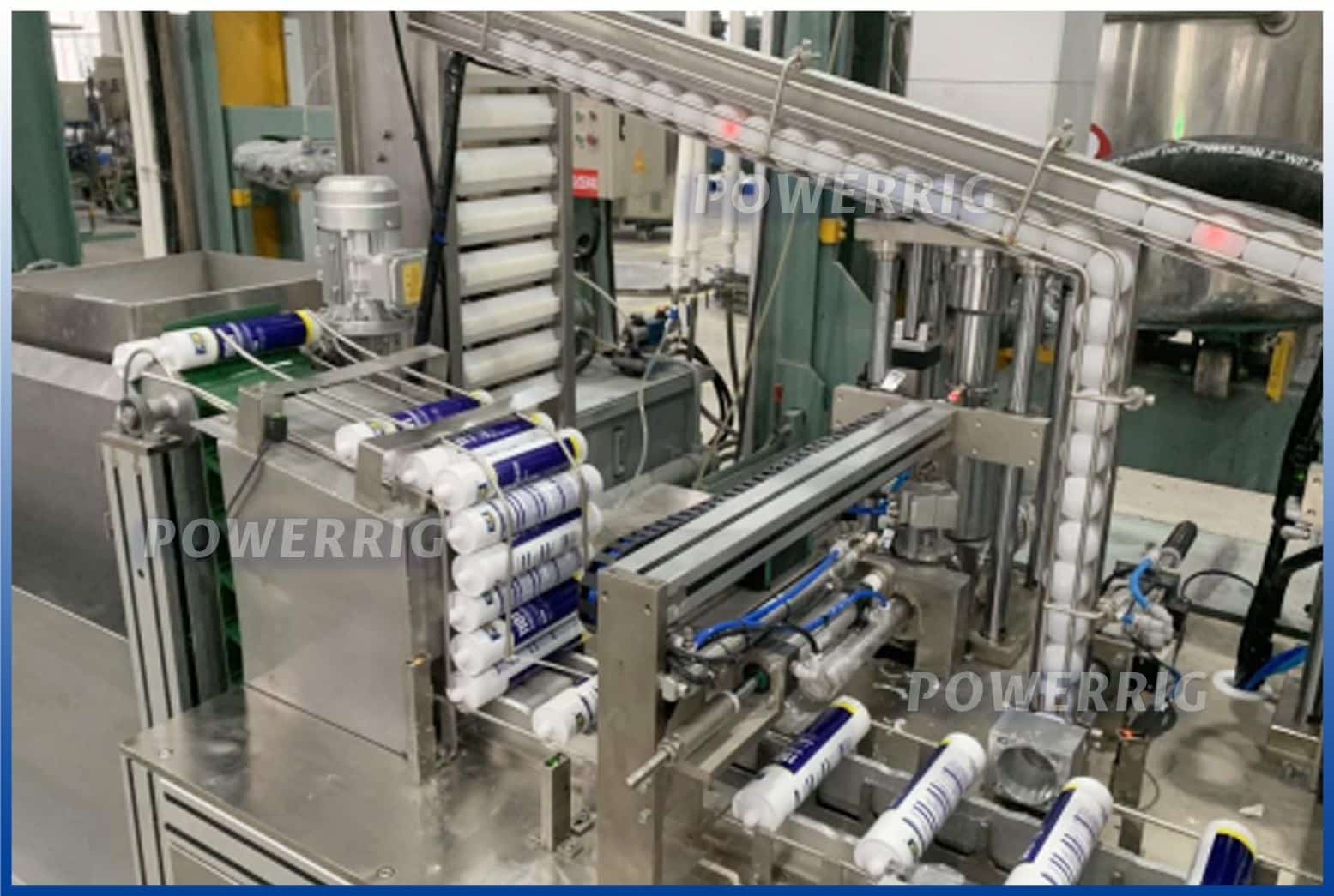

Press Capping System

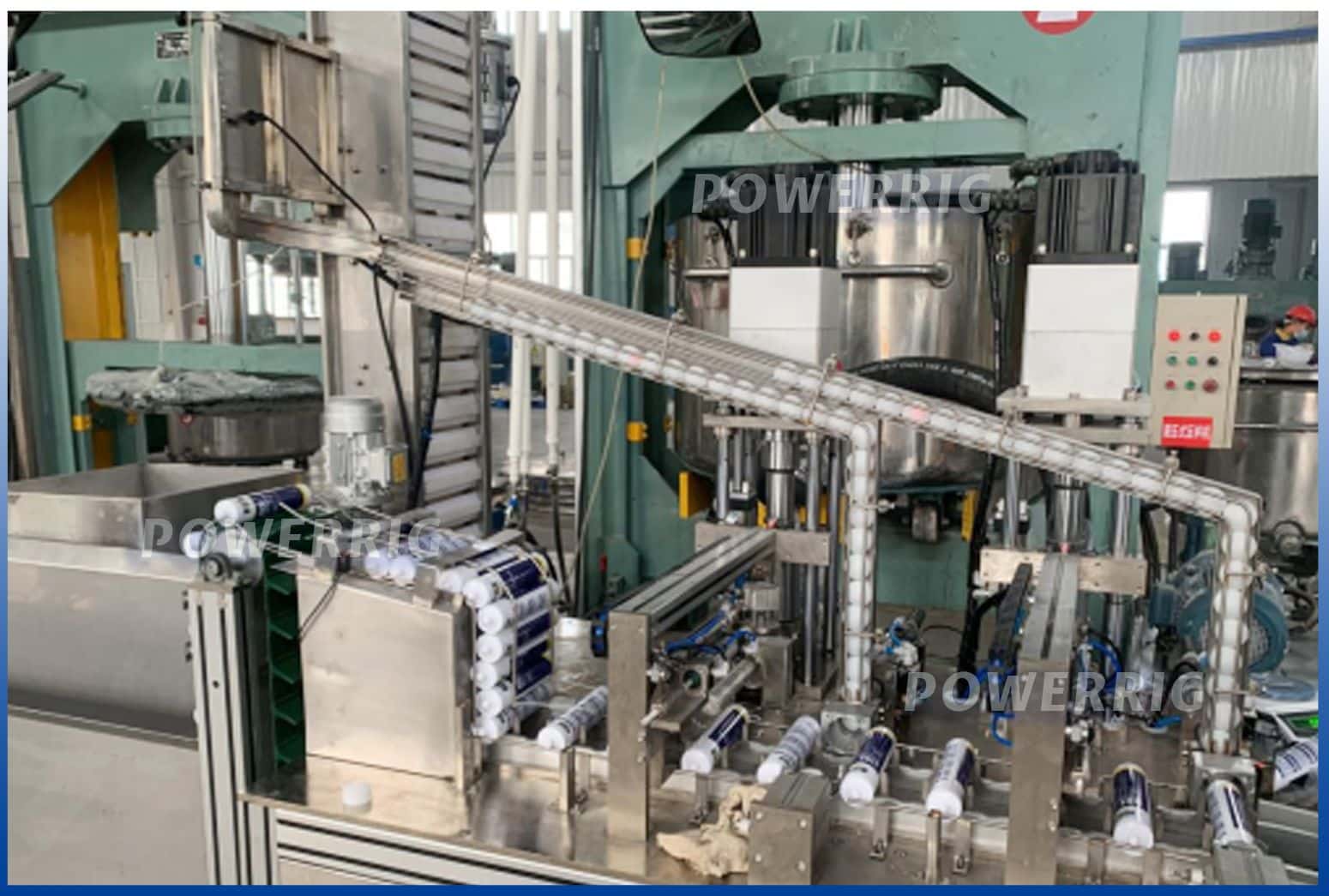

Servo Filling System

PARAMETER:

TypeMIC 300
Power Supply380V/50HZ
Air Supply≮ 0.5MPa
Air Consume<0.3m 3 /min
Filling VolumeMAX 310ml
Volume Precision≤± 0.5 ℅
Productivity40~60pcs/min
Tube Diameters¢ 50mm*300ML
Dimensions(L × W × H)5200 × 1450*2200
Weight(kg)1100KG

APPLY:
