R30 Cosmetic Tube Filling Machine(Cosmetic,Cream,Lotion,Speed 20-30 Tubes Per Minute)

Being the most ideal tube filling & sealing machine for both laminated tube and thin plastic tube, it can hold various types of contents, such as liquid, paste, cream, viscosity fluid and other material.

Description

Features:

The Applied Range of Our  Tube Filling & Sealing Machine:

1. Medical product: Ointment etc.

2. Food:Peanut paste, meat paste etc.

3. Daily chemical industry: Shoe polish, toothpaste, hair dyeing, glue etc.

4. Cosmetics: All kinds of cosmetics productions: Hand cream, face cream, BB cream, lotion etc.

Being the most ideal tube filling & sealing machine for both laminated tube and thin plastic tube, it can hold various types of contents, such as liquid, paste, cream, viscosity fluid and other material.


Five Competitive Edges of Our Tube Filling & Sealing Machine:

1. Fully automatic functioning throughout filling, heating, sealing and cutting.

2. Simple structure but steady operation, and easy to maintain but wide to apply, which give rise to beautiful and natty production.

3. It has reached the level of No tube No filling, which demonstrates the high accuracy of the machine. Moreover, no loud noise to provide a pleasure working environment.

4. It is the corrosion resistant stainless steel meeting the GMP standards that guarantee the long serving life of our tube filling & sealing machine.

5. Tube lifting cam can be attached into the machine for bottom filling, so the production speed can arrive at about 20-35tubes per minute.


The Whole Working Process of Our Tube Filling & Sealing Machine:

1. Manual loading the tube

2. Material filling inside automatically

3. Outside heating and inside heating

4. Printing the sealing-batch number

5. Unloading the finished products


Depending on the your personal needs , we will choose the best type of machine for your industry.

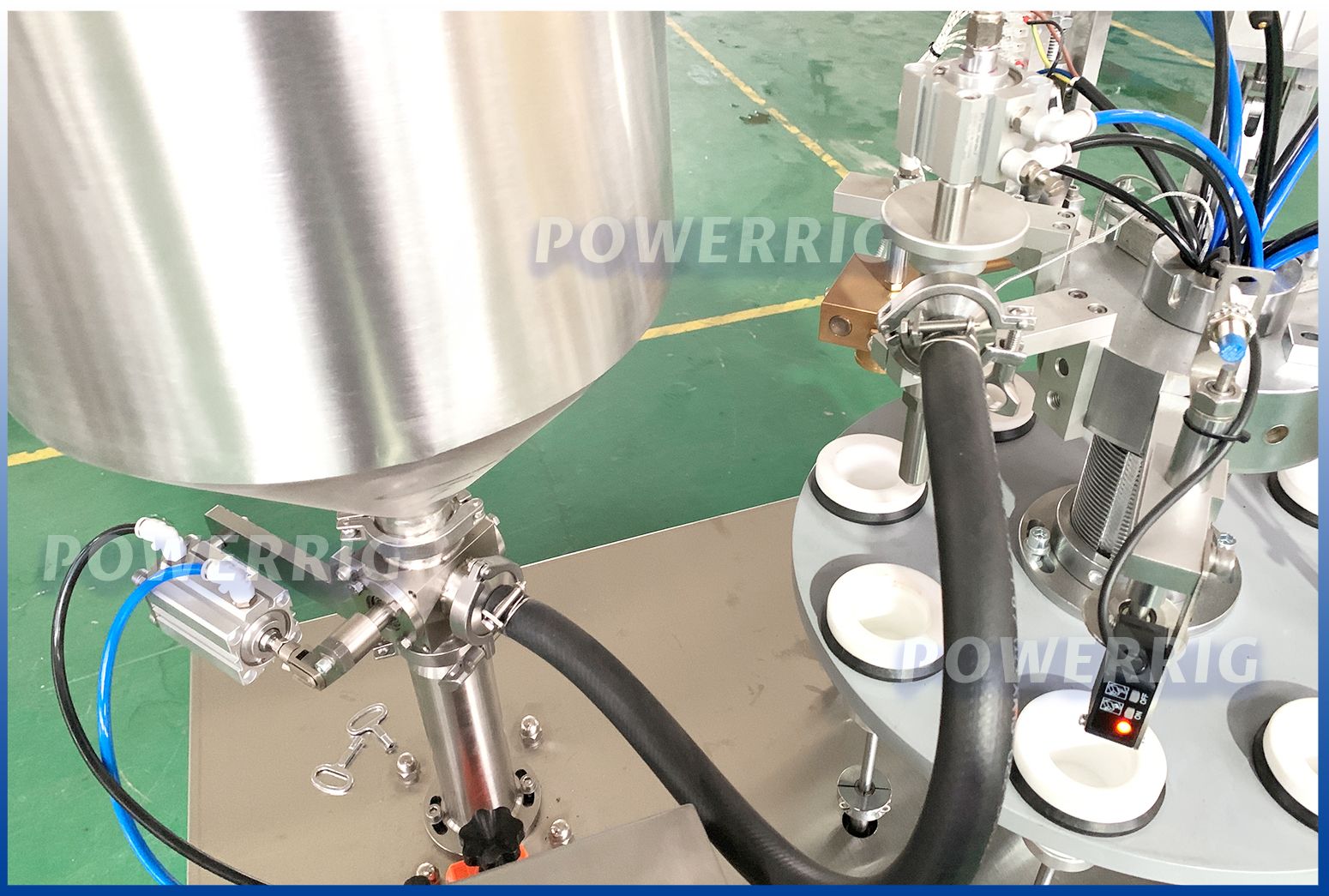

Filling Hopper

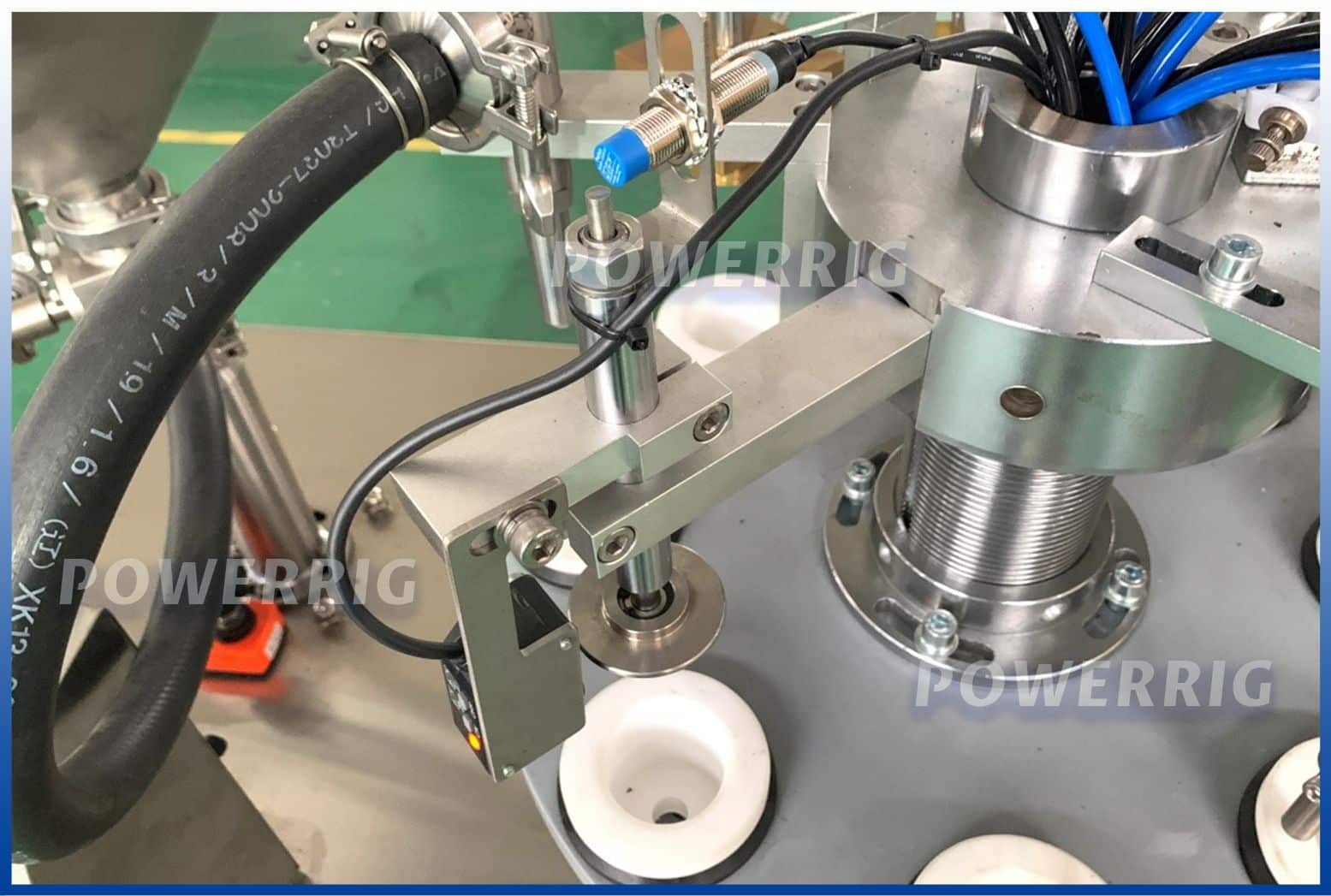

Sensor

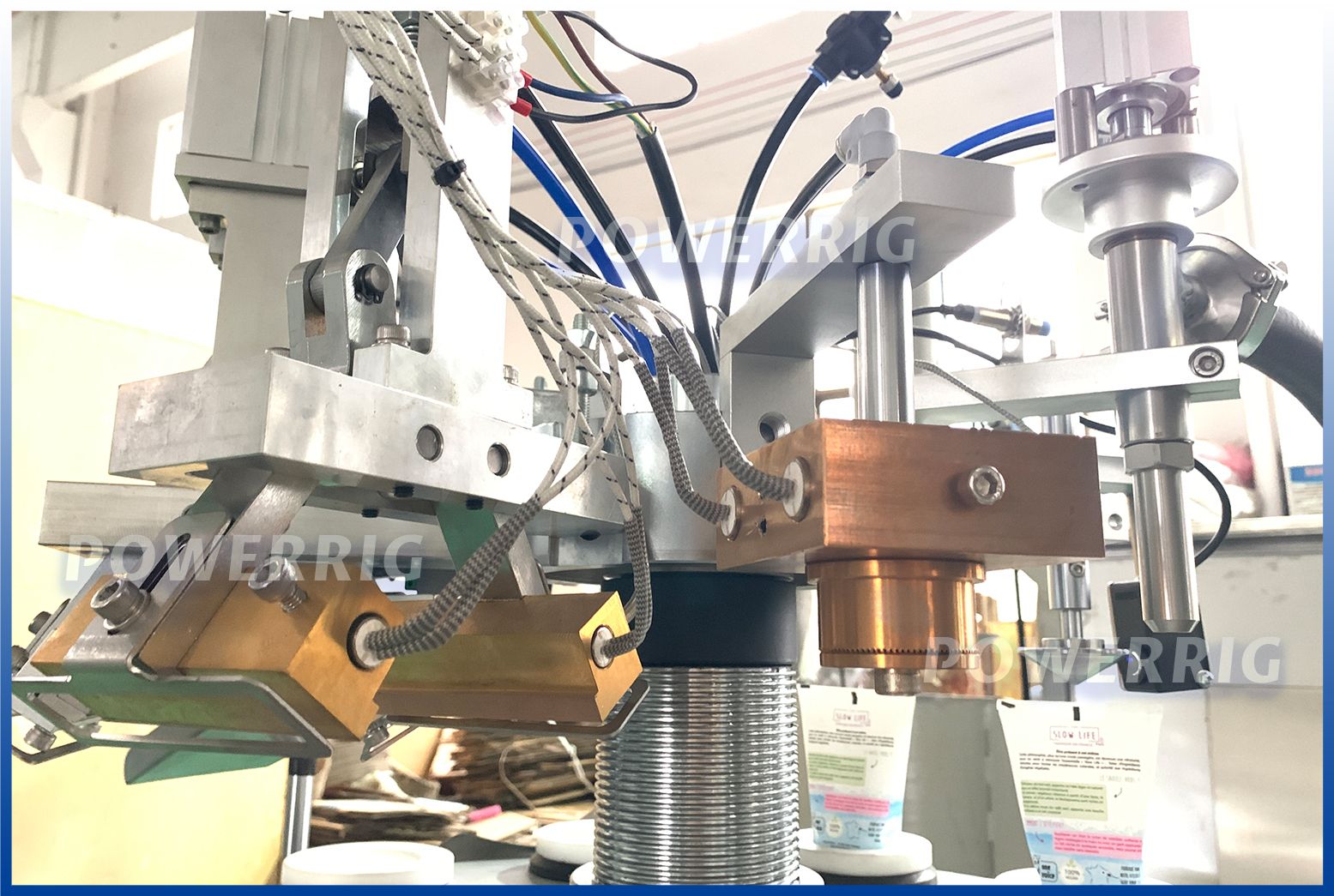

Inner And Outer Heating

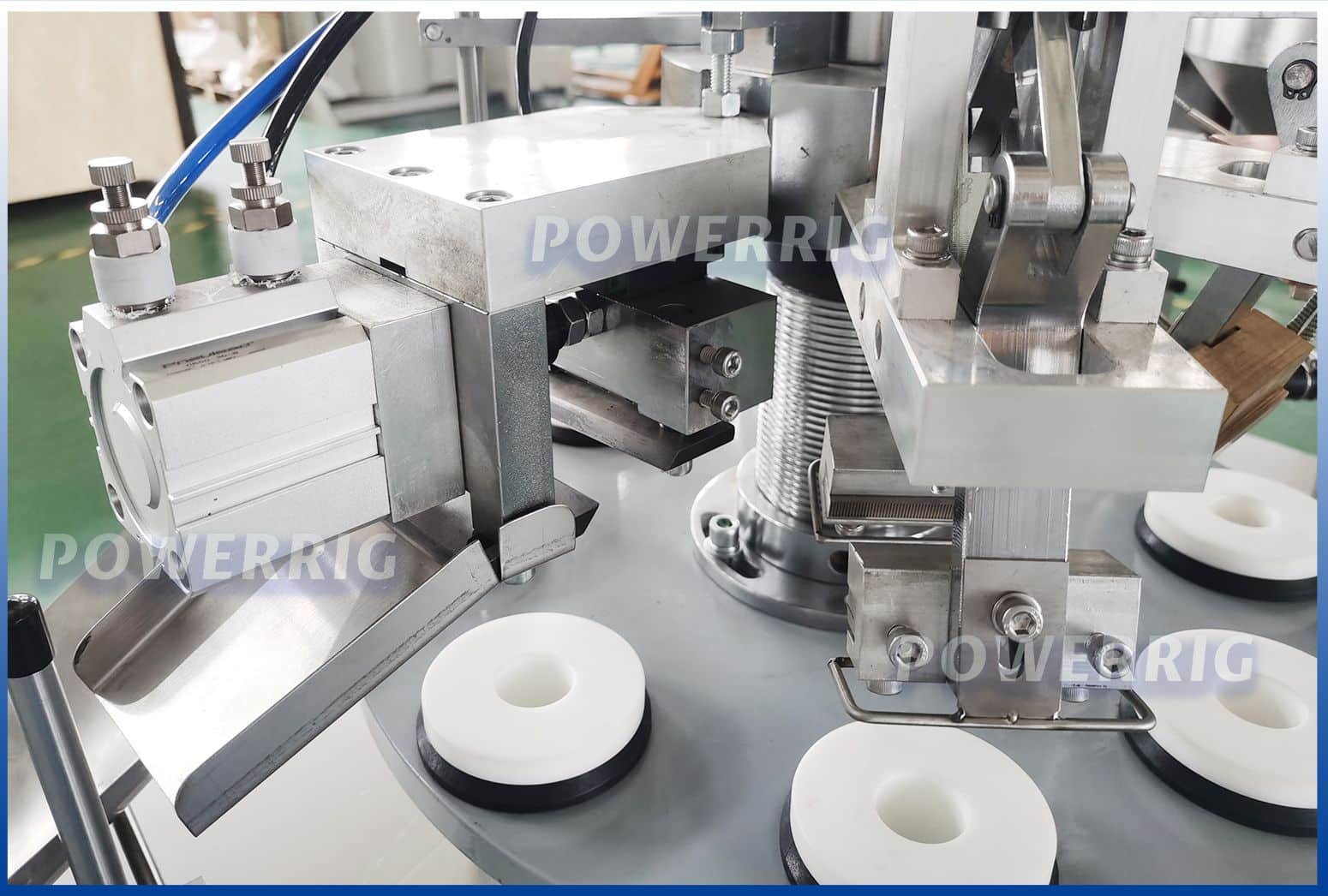

Tube Ouput

PARAMETER:

CONFIGURATION:

Weight250Kg
Dimension1300*700*1400mm
Power220V/380V/50-60Hz
Motor4.5Kw
Filling Volume2-30/5-75/30-150ML
Capacity20-30 tubes/min
Air Consumption<30 m3/min
Tube sizeф80MM max
Compressed Air0.6-0.8Mpa
Quantity<1%
PartsBrand
Main MotorWuxi,China
TransducerWoshen,China
PLC / Color SensorPanasonic
Temperature ControlHunan,China
Divider

Shandong,China,Copy from Taiwan

Air CylinderShinige
Solenoid ValveChina
Water Oil SeparatorChina
Heating TubeChina
Apprpach SwithQianwei,China
Media RelayOmron
Power SwithOmron
Heating GunLeister,Swiss
ShellSUS304
Step Motor/DriveJapan East
ButtonSchneider

APPLY:
