Dropper Bottle Filling Machine ( Speed 30-40 bottles per minute )

It can put E-liquid, essential oil and vg-pg seed oil into various round bottles, which can be filled with 5-50ml. Provide a regular positioning cam and cork plate with high precision; The acceleration cam moves the head up and down; Continuously rotate the screw cap of the arm; Peristaltic pump to measure the filling volume; Any operation can be carried out through the touch screen. Without bottles, filling and capping, the position of the machine is very high.

Description

FEATURES:

Brief Introduction of Our L40 Dropper Bottle Filling Machine:
It can put E-liquid, essential oil and vg-pg seed oil into various round bottles, which can be filled with 5-50ml. Provide a regular positioning cam and cork plate with high precision; The acceleration cam moves the head up and down; Continuously rotate the screw cap of the arm; Peristaltic pump to measure the filling volume; Any operation can be carried out through the touch screen. Without bottles, filling and capping, the position of the machine is very high.

Five Competitive Edges of Our L40 Dropper Bottle Filling Machine:
1.It is controlled by microcomputer and can be filled with high precision.
2.Stepless frequency conversion is used to adjust speed, which can automatically control production capacity.
3.If there is no filling, or if there is no lid, it will stop.
4.When a fault occurs, it will automatically give an alarm, which can be used on low pressure, no filling and no inner cover.
5.The machine can automatically and quantitatively control the production capacity.

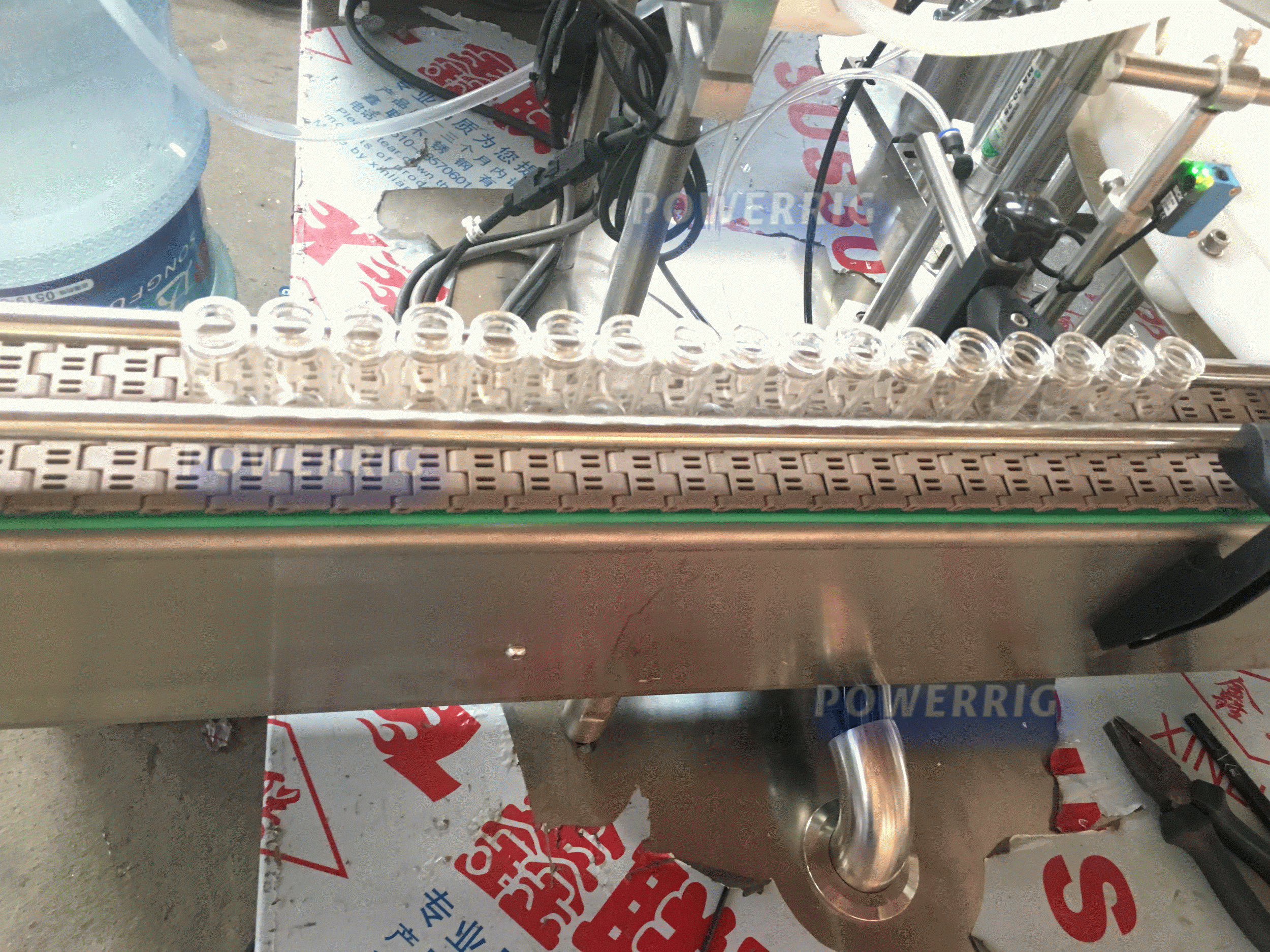

Conveyor Belt

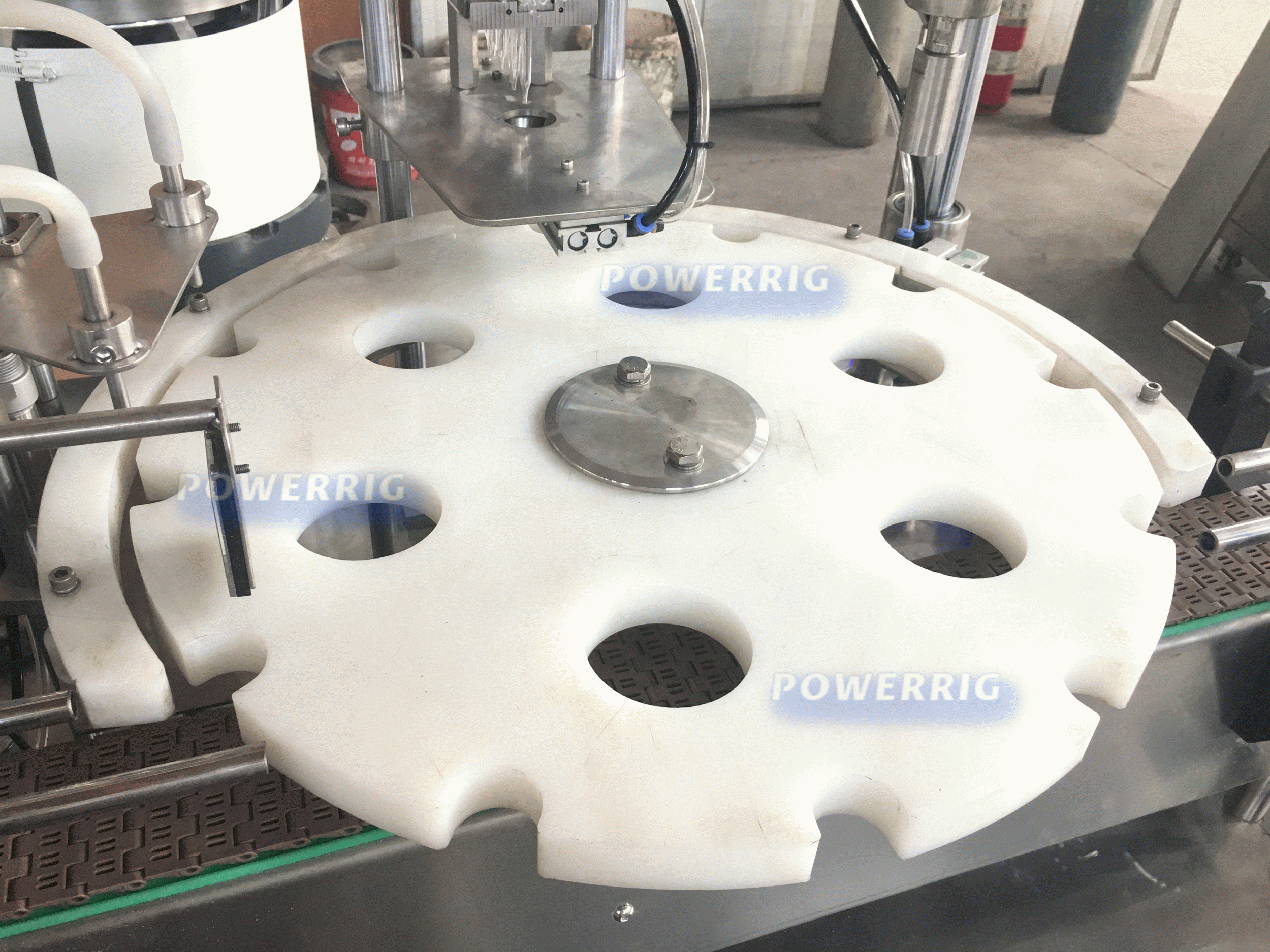

Chuck

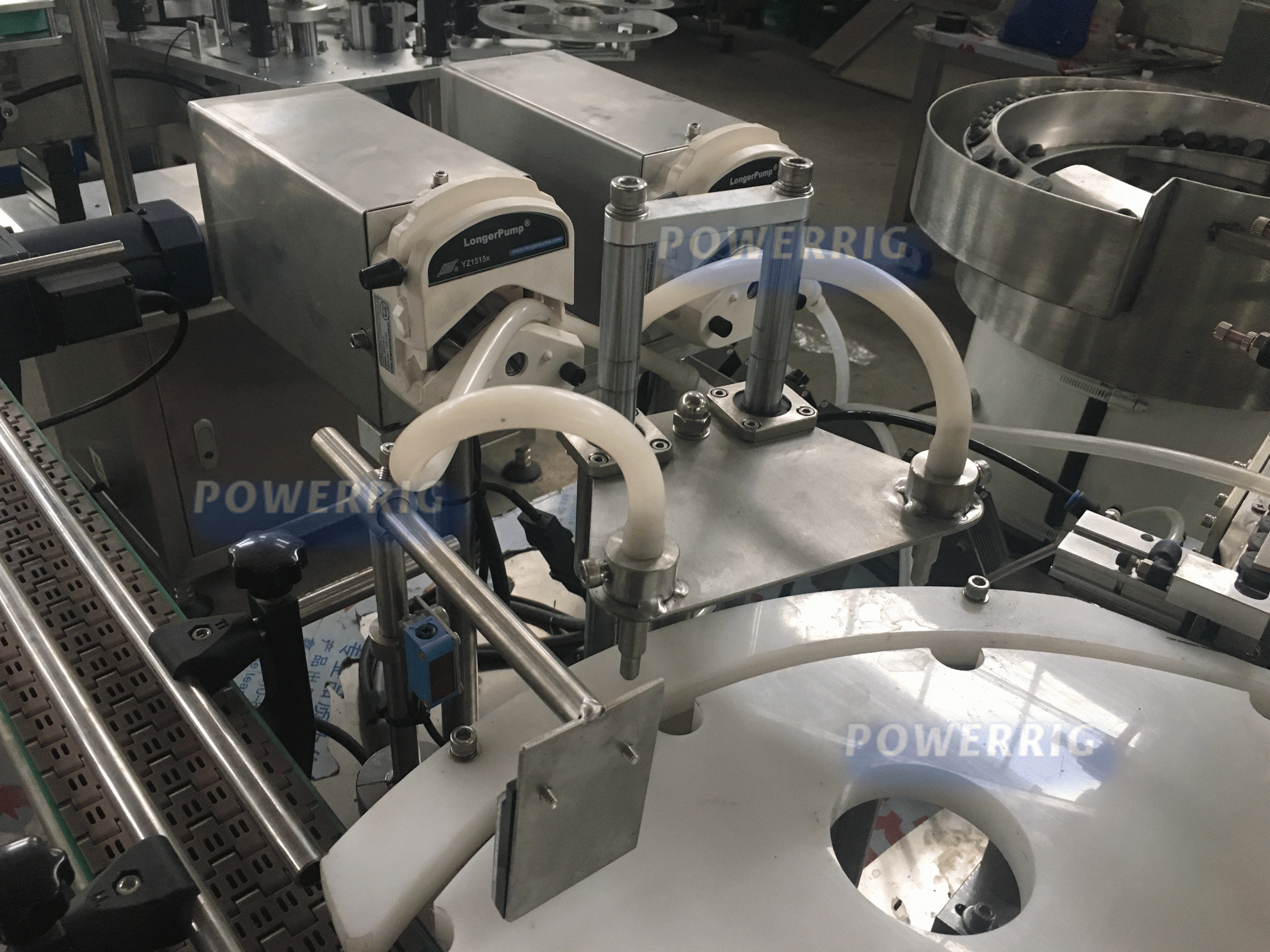

Filling Head

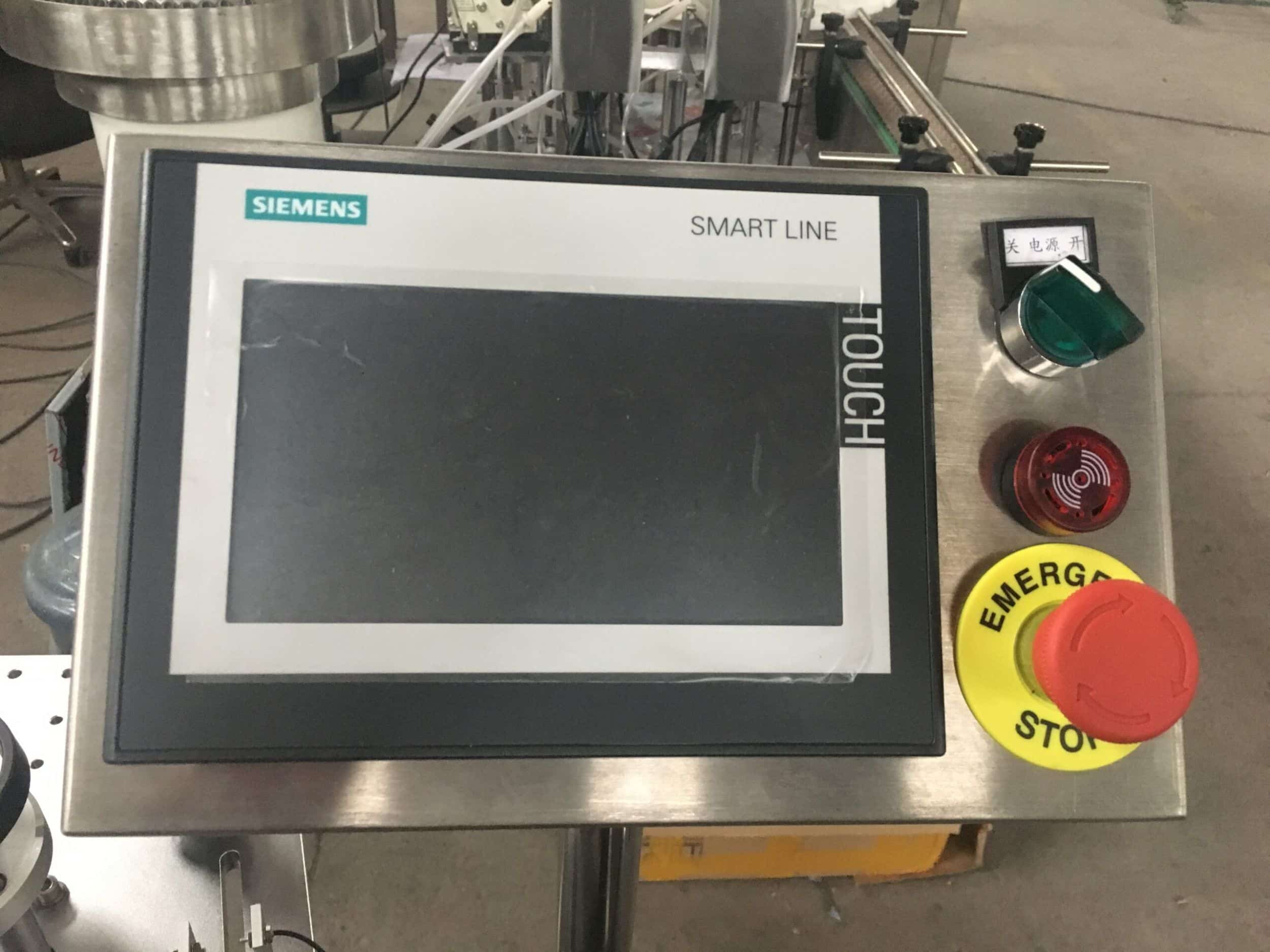

Panel

PARAMETER:

CONFIGURATION:

Filling Volume5-50ml
Capacity30-40bottles/hour
Filling Precision≤±1%
Power Supply380V/50Hz (Can customize)
Capping Rate≥99%
Stoppering Rate≥99%
Air Supply1.3 m3/h 0.4-0.8Mpa
Power2.0Kw
Weight850kg
NameBrand
ButtonSchneider
AC Conta ctorSchneider
RelaySchneider
Frequency TransformerTaian
MotorQi peng
Air CylinderAIR TAC
The electromagnatic valveAIR TAC
BearingNSK
PLCSchneider
Touch ScreenSchneider
Photoelectric DetectionSick

APPLY:
