Brief Introduction of Our 20L Lube Oil Drum Filling Machine:
It can fill mechanical lubricating oil, lubricating oil, gasoline, engine oil and other high-capacity barreled oil products, and can fill efficiently.
Four Competitive Edges of Our 20L Lube Oil Drum Filling Machine:
1.It uses a filling system with very high precision, and the material will not have a great impact.
2.The feed valve includes fast filling and slow filling, and the filling speed and accuracy can be accelerated.
3.It can measure a wide range and the error per barrel is less than 20g.
4.The filling head can avoid leakage, carry out efficient filling, and there will be no bubbles when filling materials.
The Working Process of Our 20L Lube Oil Drum Filling Machine:

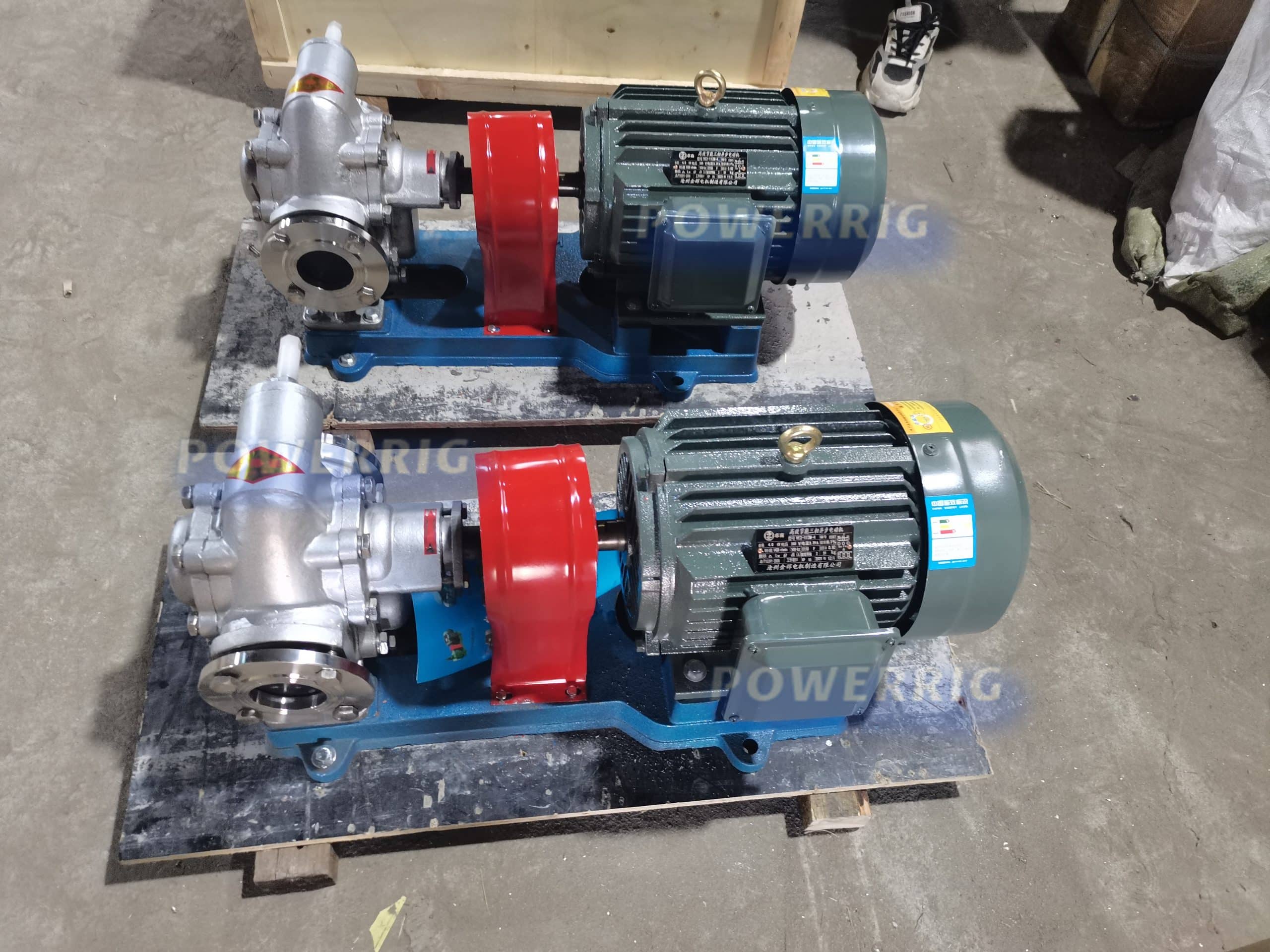

1.It uses the feeding pump to feed continuously and stably. For fast and slow feeding, the feeding mechanism controls the speed of the pump by the frequency converter.
2.You can choose lifting and diving filling when ordering the machine.
3.The machine uses pneumatic control system, which can achieve fast control and slow feed valve.
4.It includes weighing support, sensor, weighing platform with unpowered drum, rack support and filling system. When using the weighing platform, it cannot bear other forces.
5.Change the liquid level above the filling head and put it in the barrel.
6.It can automatically subtract the gross weight of the barrel. When the filling exceeds the upper limit of the empty barrel weight, the system will consider that there is material in the barrel and stop filling to avoid overflow. Foot switch and manual button can be used for filling, and it will stop automatically after filling.
Powerrig machine is one of the best manufacturers of cup filling machine and cup packaging machine in the world. We are very experienced.
PARAMETER:
CONFIGURATION:
Filling Head Number |
2 head |
Filling Capacity |
6L-30L |
Filling Speed |
320-150 b / h |
Filling Accuracy |
0.5% |
Power Supply |
L1, L2, L3, N PE |
Voltage |
380V 50HZ |
Power |
4KW |
Weight |
180Kg |
Overall Dimension |
900*1100*1500 (length * width * height) |
Name | Place of Production | Brand |
PLC | Fujian | WECON |
Load Cell | Guangzhou | YZC |
Vacuum Generator | Shenzhen | xin Col.on |
Oil-water Separator | Zhejiang | webforge |
Frequency Transformer | Shenzhen | Riye |
Mains Switch | Zhejiang | Delixi |
Transformer | Zhejiang | Delixi |
Electric Relay | Zhejiang | XINGXING |
Body Material | 304 Stainless steel | |
Contact Part With the Material | 316 Stainless steel |
