In the highly regulated world of pharmaceuticals, precision, sterility, and reliability are non-negotiable. For the production of ophthalmic solutions, a specialized piece of equipment stands as the guardian of these principles. This machinery is the cornerstone of producing sterile, accurate, and safe eye care products, from lubricating drops to complex medicinal formulations.

What is an Eye Drop Filling Machine?

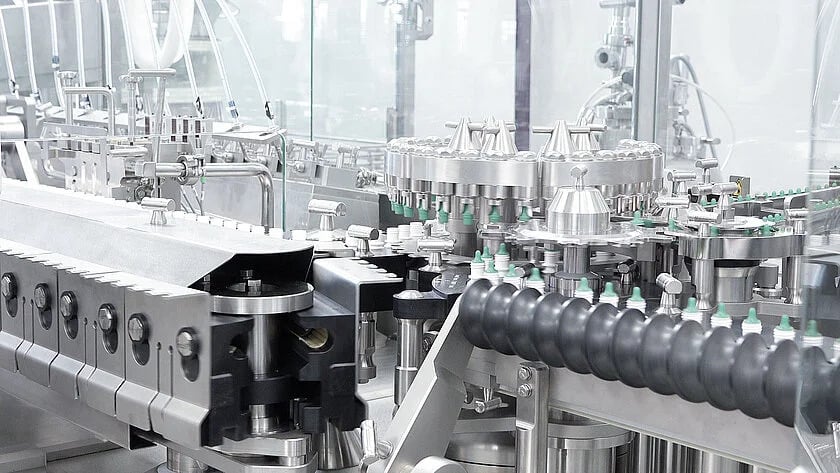

An eye drop filling machine is an automated or semi-automated system designed specifically to dispense sterile ophthalmic solutions into individual dropper bottles or containers with exceptional accuracy. It operates within controlled environments (often cleanrooms) to prevent contamination. While a basic unit handles the precise dosing of liquid, advanced lines often integrate the sealing process, becoming a comprehensive eye drop filling and capping machine.

Get the complete solution. ↓

The Ultimate Guide to Pharmaceutical Filling Machine

How Does an Eye Drop Filling Machine Work?

The operation of a modern integrated system is a symphony of precision engineering. While designs vary, the core workflow follows these key stages:

1. Bottle Feeding & Sterilization: Empty, sterile bottles are fed into the machine, often via a rotary table or linear conveyor. They may undergo a final blast of sterile air or UV treatment.

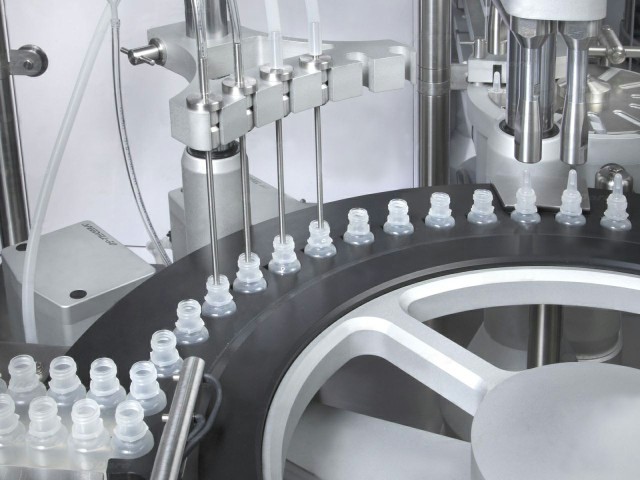

2. Precise Filling: This is the heart of the process. Using technologies like peristaltic pumps or piston pumps, the system dispenses the exact volume of solution—often measured in microliters—into each bottle within a laminar airflow zone.

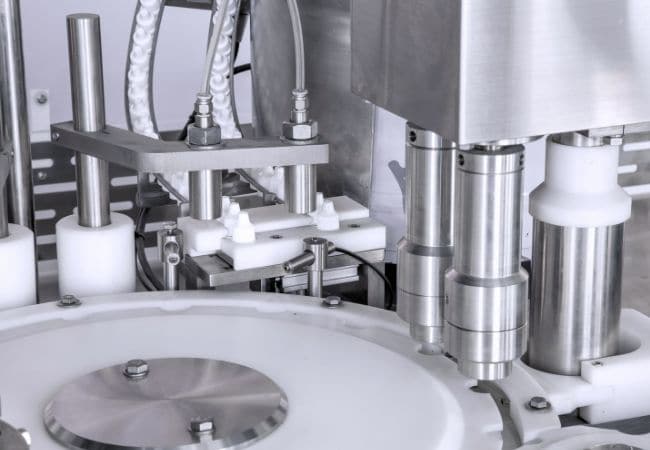

3. Dropper Insertion & Capping: Immediately after filling, sterile dropper tips are inserted. The equipment then screws on the outer caps to a precise torque, ensuring a proper seal.

4. Discharge: The finished, sealed bottles are discharged onto a conveyor for subsequent labeling and packaging.

The entire process is controlled by a Programmable Logic Controller (PLC), ensuring repeatable accuracy and allowing for quick changeovers.

What Does an Eye Drop Filling Machine Cost?

The cost is not a single figure but a range, typically spanning from $20,000 to over $200,000. This broad spectrum depends on several factors:

• Automation Level: Semi-automatic benchtop units are at the lower end, while fully automated, integrated lines command premium prices.

• Speed & Output: Machines with higher output require more sophisticated engineering.

• Technical Specifications: The type of filling technology, precision, and quality of materials all influence cost.

• Manufacturer & Origin: Pricing varies between established Western brands and China eye drop filling machine producers, who often offer competitive pricing.

How to Choose the Right Eye Drop Filling Machine?

Selecting the correct machine is a strategic decision that impacts product quality and operational efficiency. Consider these critical factors:

1. Product & Viscosity: Ensure the machine’s pumping technology (e.g., peristaltic, piston) is compatible with your solution’s viscosity and sensitivity.

2. Required Output Speed: Match the machine’s bottles-per-minute (BPM) capacity with your current and near-future production volumes. Avoid over-investing in excessive speed you won’t use.

3. Sterility and Compliance: The machine must be designed for easy cleaning and sterilization. It should be constructed with pharmaceutical-grade materials (like 316L stainless steel) and comply with current Good Manufacturing Practices (cGMP). Validate that the supplier provides necessary documentation.

4. Integration Needs: Determine if you need a standalone filler or an integrated filling and capping machine for greater efficiency and reduced handling.

5. Supplier Reliability: Research eye drop filling machine manufacturers thoroughly. Evaluate their industry reputation, service network, availability of spare parts, and technical support.
