What Are the Different Types of Capping Machines?

tracking capping machine

Capping plays a vital role in ensuring the integrity, safety, and shelf life of a wide range of products, from beverages and cosmetics to pharmaceuticals and chemicals. An automatic capping machine not only improves the speed and precision of this process but also offers the flexibility to accommodate various cap types and container formats. In this guide, we explore the types of caps and capping machines, explain the working principle of a cap sealing machine, and break down the capping process step-by-step.

If you’re looking for a capping machine for sale, understanding these fundamentals is the first step toward making the right investment.

How Many Types of Cap Are There?

There are many types of caps used in the packaging industry, each designed for specific purposes and container types. Some of the most common cap types include:

  • Screw Caps: Used for plastic or glass bottles; require torque to tighten.

  • Snap-On Caps: Pressed into place; popular in food and cosmetic applications.

  • ROPP (Roll-On Pilfer-Proof) Caps: Threaded aluminum caps formed during application; common in wine and pharmaceuticals.

  • Crown Caps: Metal caps often used in beer and carbonated drinks.

  • Pump & Trigger Caps: Found in cleaning products, cosmetics, and personal care items.

  • Press-on Caps: Simple push-fit caps used in lower-pressure sealing needs.

Each cap type influences the choice of capping equipment and process.

Get the complete solution. ↓

The Ultimate Guide to Capping Machine

What Are the Different Types of Capping Machines?

Capping machines are categorized by how they apply the cap and their level of automation. Here are the main types:

1. Chuck Capping Machine

Uses a mechanical chuck to grip and apply torque. Known for precision and consistent tightening.

2. Spindle Capping Machine

Uses spinning discs to tighten the cap as the bottle moves through the machine. Great for high-speed production.

3. Snap Capping Machine

Applies downward pressure to secure press-on caps. Common in food and cosmetics packaging.

4. ROPP Capping Machine

Forms the threads and seals the cap simultaneously using rollers. Ideal for tamper-evident aluminum caps.

5. Crown Capping Machine

Specifically used for sealing crown caps on glass bottles, often in breweries.

6. Pump/Trigger Capping Machine

Engineered to handle irregularly shaped caps like pumps and sprays without damaging them.

In industries involving flammable or hazardous liquids, an explosion proof capping machine is often required to meet safety standards.

A good capping machine factory will offer all these types, often customizing solutions based on bottle size, cap style, and industry.

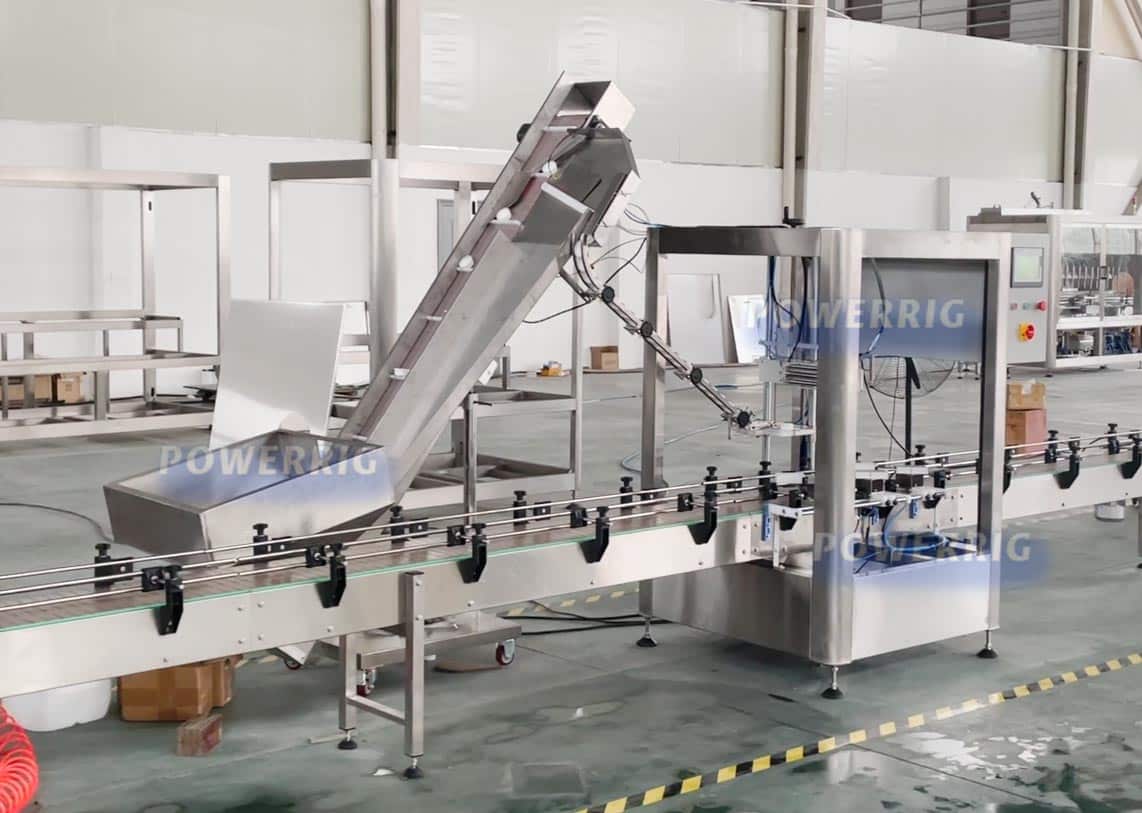

automatic capping machine

What Is the Working Principle of a Cap Sealing Machine?

A cap sealing machine works by applying force (either torque, pressure, or heat) to affix a cap securely onto a container. The core working principle involves:

  1. Cap feeding – Caps are oriented and delivered via a cap feeder or elevator.

  2. Bottle positioning – Bottles are conveyed to the capping station.

  3. Cap placement – The machine aligns the cap with the container.

  4. Sealing/torque application – Depending on the machine, torque is applied mechanically or pneumatically to seal the cap.

  5. Quality control – Sensors detect misaligned or missing caps.

In machines such as a glass jar capping machine, sealing may also include heat or vacuum-based systems to ensure airtight closure, especially for food products.

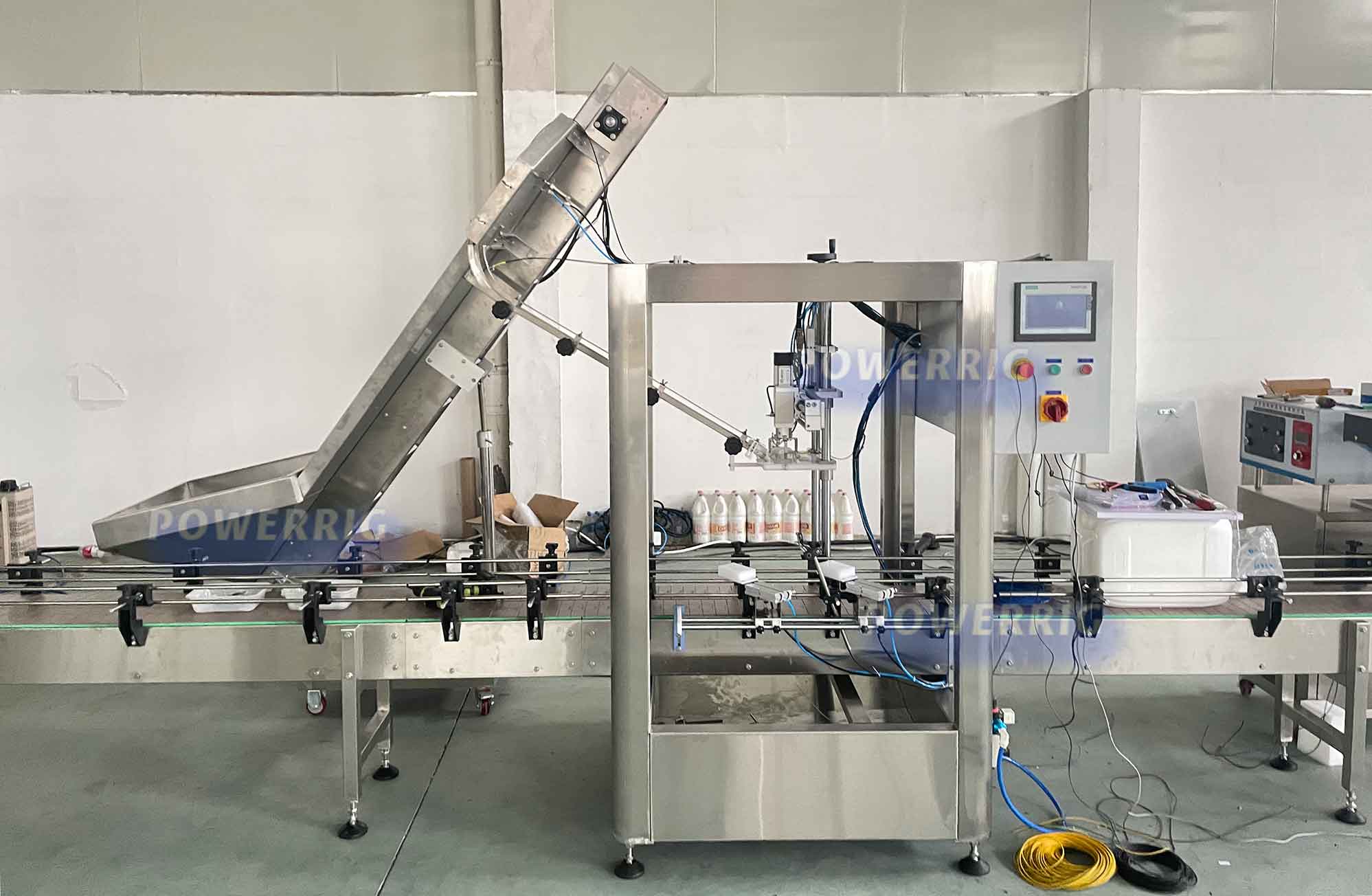

freestanding capping machine

What Are the Steps of Capping?

While the steps may vary slightly based on machine type, the general capping process involves:

  1. Container Feeding: Bottles are fed onto the conveyor system.

  2. Cap Feeding: Caps are loaded into a hopper or cap sorting system.

  3. Cap Application: The cap is aligned and applied using the chosen mechanism (chuck, spindle, etc.).

  4. Sealing: Torque or pressure secures the cap.

  5. Discharge: Finished products exit the capping zone.

  6. Inspection: Optional cameras or sensors verify each cap is properly sealed.

Many bottle capping machine suppliers offer integrated systems that perform capping in tandem with filling, labeling, and inspection processes.

Buying Considerations: Finding the Right Capping Machine for Sale

When looking for a capping machine for sale, consider the following factors:

  • Type of caps and containers in your production line

  • Required production speed and automation level

  • Torque control and consistency

  • Compatibility with existing conveyor systems

  • Safety requirements, especially in hazardous environments

  • Support and customization from the capping machine factory

Top bottle capping machine suppliers will also offer trial runs, integration guidance, and operator training.

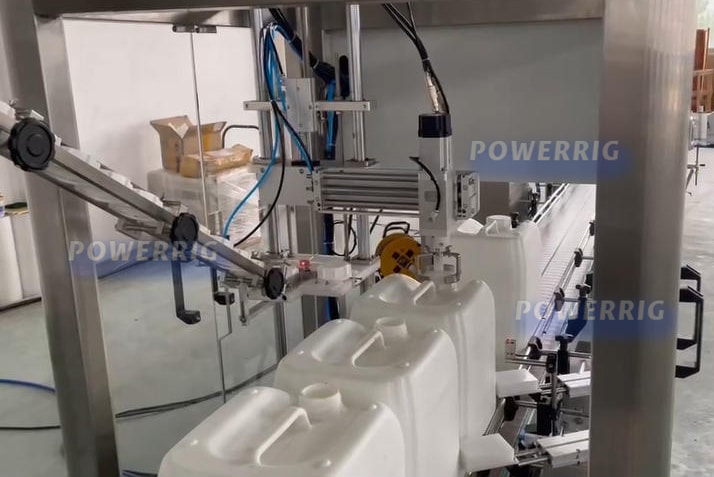

screw capping machine with cap feeder

Why Choose a Reputable Capping Machine Factory?

Partnering with an experienced capping machine factory ensures you receive:

  • Customized solutions for your industry and production scale

  • Durable construction that meets hygiene and safety standards

  • Advanced technology, such as servo motors and torque sensors

  • Ongoing technical support and spare parts availability

  • Integration-ready design, compatible with filling, labeling, and packaging lines

Leading bottle capping machine suppliers often provide turnkey systems, improving line efficiency while reducing downtime.

Conclusion

When investing in an automatic capping machine, it’s important to understand your product’s cap type, production scale, and safety requirements. Specialized solutions like the explosion proof capping machine are essential for volatile substances, while reliable service from a trusted capping machine factory ensures long-term efficiency and performance.
