In modern manufacturing, the automatic bottle capping machine is a cornerstone of efficient packaging. Whether in food and beverage, pharmaceuticals, cosmetics, or household products, these machines ensure that every container is securely sealed, meeting both quality and safety standards. By automating the capping process, businesses reduce labor costs, improve throughput, and maintain consistent sealing quality across large production volumes.

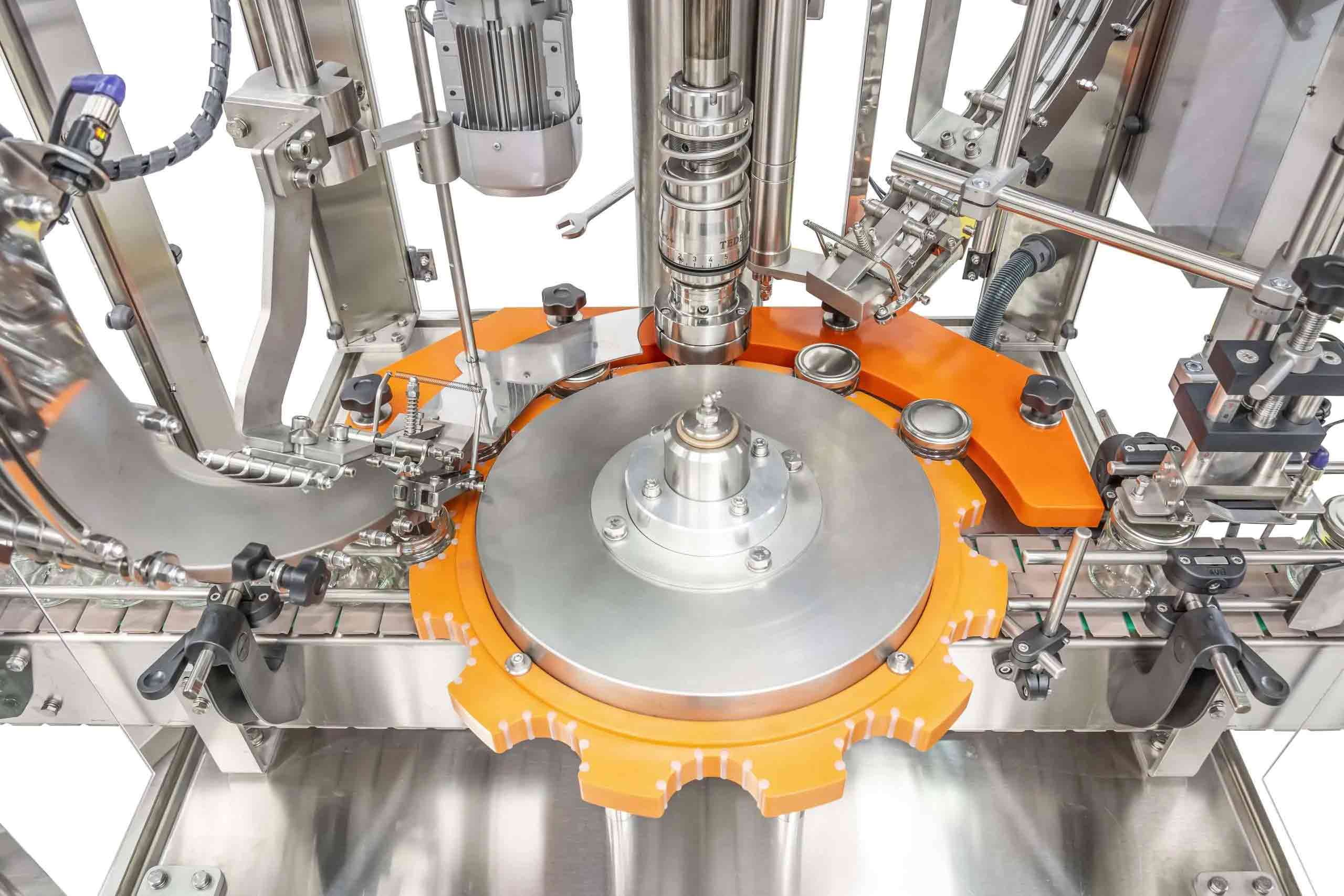

What Is an Automatic Bottle Capping Machine?

An automatic bottle capping machine is a device engineered to apply and secure caps on bottles without the need for manual handling. It can be adapted for different cap types, bottle materials, and container sizes. Depending on the production setup, these machines can be stand-alone units or integrated into a complete bottling line that also handles filling, labeling, and packaging.

Key features include adjustable torque settings, multiple head configurations, and compatibility with a wide range of caps, from screw tops to crown caps. The level of automation reduces the likelihood of human error, ensuring uniformity and product safety.

Get the complete solution. ↓

The Ultimate Guide to Capping Machine

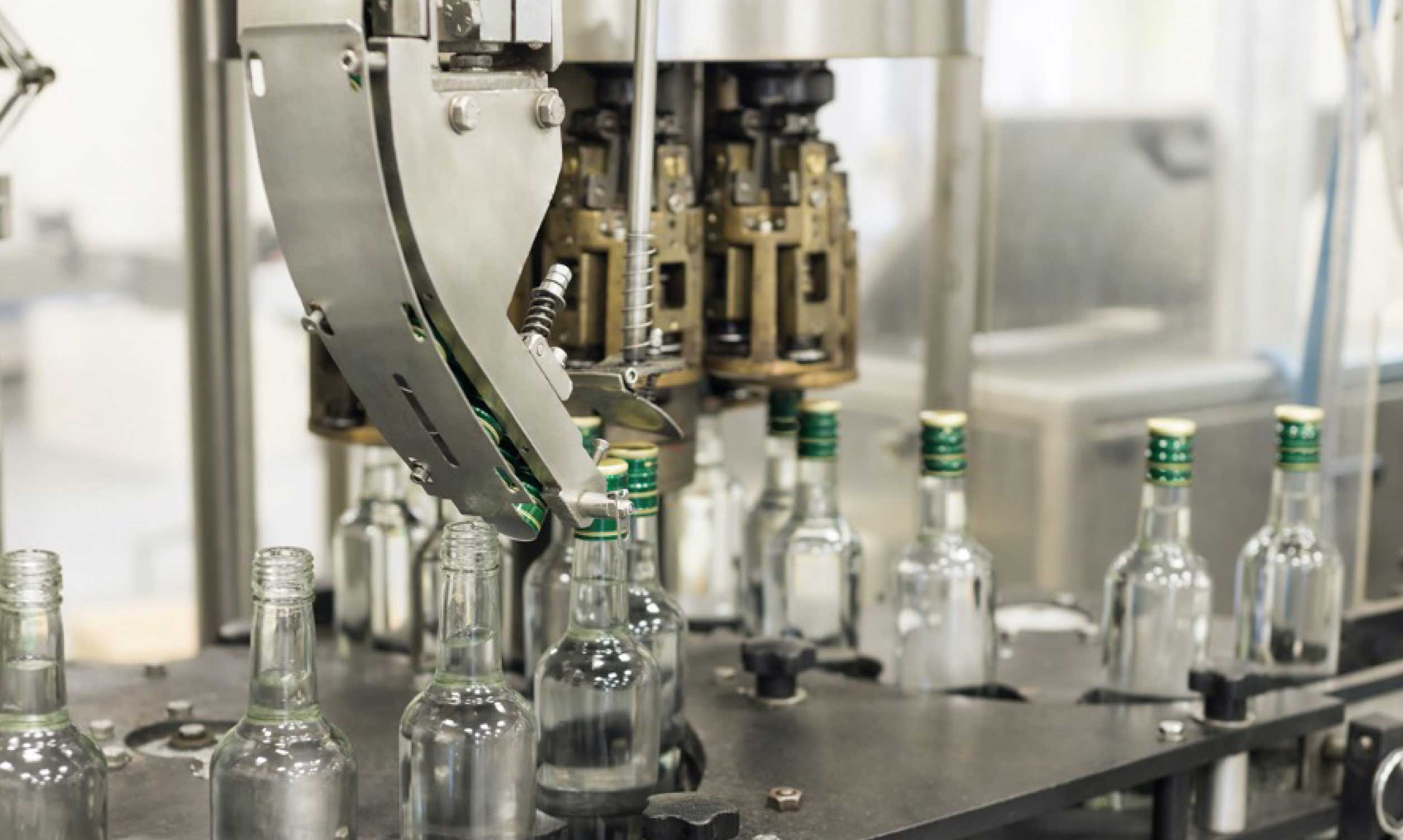

Working Principle of Capping Machine

The working principle of capping machine revolves around a systematic process of positioning, placing, and securing caps with consistent force. While there are variations between machine types, the core steps include:

1. Cap Feeding – A hopper and sorting system align caps for correct orientation.

2. Bottle Conveyance – Bottles are transported via conveyor belts to the capping zone.

3. Cap Placement – Mechanical arms or pick-and-place units position the cap over the bottle opening.

4. Sealing Application – The cap is tightened using mechanical torque, pneumatic pressure, or crimping, depending on the closure type.

5. Inspection & Ejection – Defective seals are detected by sensors and automatically removed from the line.

This principle ensures that every cap meets torque specifications, maintaining product integrity and preventing leaks or contamination.

How Do Beer Bottle Capping Machines Work?

A beer bottle capping machine is specifically designed for bottles sealed with crown caps. After the beer is filled, a crown cap is placed on the bottle neck and crimped tightly by a capping head. The metal flanges of the cap bend securely around the bottle lip, creating an airtight seal that maintains carbonation and freshness.

In large breweries, these machines are synchronized with high-speed filling lines, capable of processing thousands of bottles per hour. For smaller craft breweries, semi-automatic models offer flexibility while maintaining professional sealing quality.

How Many Types of Cap Are There?

The packaging industry uses various cap types, each serving a specific purpose:

• Screw Caps – Provide a tight seal and are easy to open and reseal.

• Snap-On Caps – Quick to apply and often used in cosmetics and food packaging.

• ROPP Caps – Tamper-evident aluminum caps formed during application.

• Crown Caps – Common in beer and soda bottling.

• Pump & Trigger Caps – Suitable for sprays, lotions, and cleaning agents.

• Press-On Caps – Push-fit closures used for lower-pressure sealing needs.

The cap type determines the choice of capping machine and the level of torque or pressure required for sealing.

Types of Automatic Bottle Capping Machines

Different production needs require different machine designs:

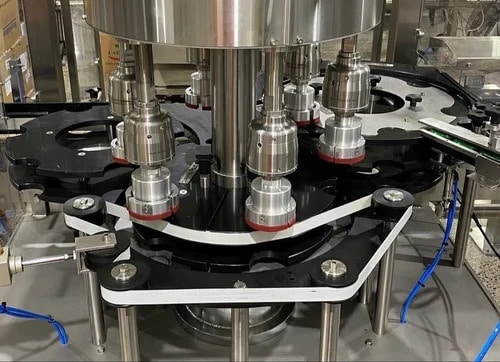

• Single Head Screw Capping Machine – Perfect for small-scale production or specialty products, ensuring precise torque on each bottle.

• Multi-Head Cappers – Designed for high-volume operations, sealing multiple bottles simultaneously for greater efficiency.

• Bottle Screw Capping Machine – Specializes in screw-type closures, delivering leak-proof seals for products like sauces, beverages, and pharmaceuticals.

Leading bottle capping machine manufacturers often provide custom configurations, integrating specialized feeding systems, torque monitoring, and automated inspection for complete production line solutions.

Maintenance and Operational Best Practices

To keep an automatic bottle capping machine running at peak performance:

• Routine Cleaning – Prevent debris buildup in feeding systems and sealing heads.

• Torque Calibration – Ensure caps are neither too tight (risking damage) nor too loose (risking leaks).

• Lubrication – Keep moving parts well-oiled to reduce wear and tear.

• Operator Training – Skilled personnel can quickly identify and resolve issues like cap misalignment or feeding jams.

A preventive maintenance schedule not only extends machine life but also reduces unplanned downtime.

Final Thoughts

Choosing the right capping machine is essential for ensuring product safety, quality, and production efficiency. Whether you need a solution for beverages, cosmetics, or pharmaceuticals, understanding the capping process and machine types will guide you toward the best fit. Partnering with reputable manufacturers will help secure durable, efficient equipment tailored to your production needs.
