Ketchup ranks among the world’s most popular condiments. Getting this product efficiently from factory to consumer requires specialized packaging technology. This is where the ketchup packing machine becomes essential. This article explains these machines, details ketchup’s packaging needs, and reveals how manufacturers create single-serve sachets.

What is a Ketchup Packing Machine?

A ketchup packing machine automates the filling and sealing of ketchup into various containers—such as bottles, jars, and flexible pouches. Essentially, any equipment used to package ketchup for sale falls under the broader category of a ketchup packaging machine.

Manufacturers design these machines specifically to handle ketchup’s thick, viscous texture. For example, a tomato ketchup packing machine must dispense the product cleanly and accurately, without dripping or trapping air.

Get the complete solution. ↓

The Ultimate Guide to Food Filling Machine

What are the Packaging Requirements for Ketchup?

Ketchup packaging does more than just hold the product—it preserves quality, ensures safety, and offers convenience. Key requirements include:

• Barrier Protection: Packaging must block oxygen and moisture to prevent oxidation, flavor loss, and microbial growth.

• Acid Resistance: Since ketchup is acidic, packaging materials must resist chemical reactions that could affect safety or taste.

• Hygiene and Seal Integrity: The filling process must be clean, and seals must be airtight to ensure shelf stability and prevent leaks.

• User Convenience: Packaging should be easy to open and dispense—leading to innovations like squeeze bottles and tear-notched sachets.

• Durability: Packages must withstand transportation, storage, and handling without breaking or leaking.

How are Ketchup Sachets Manufactured?

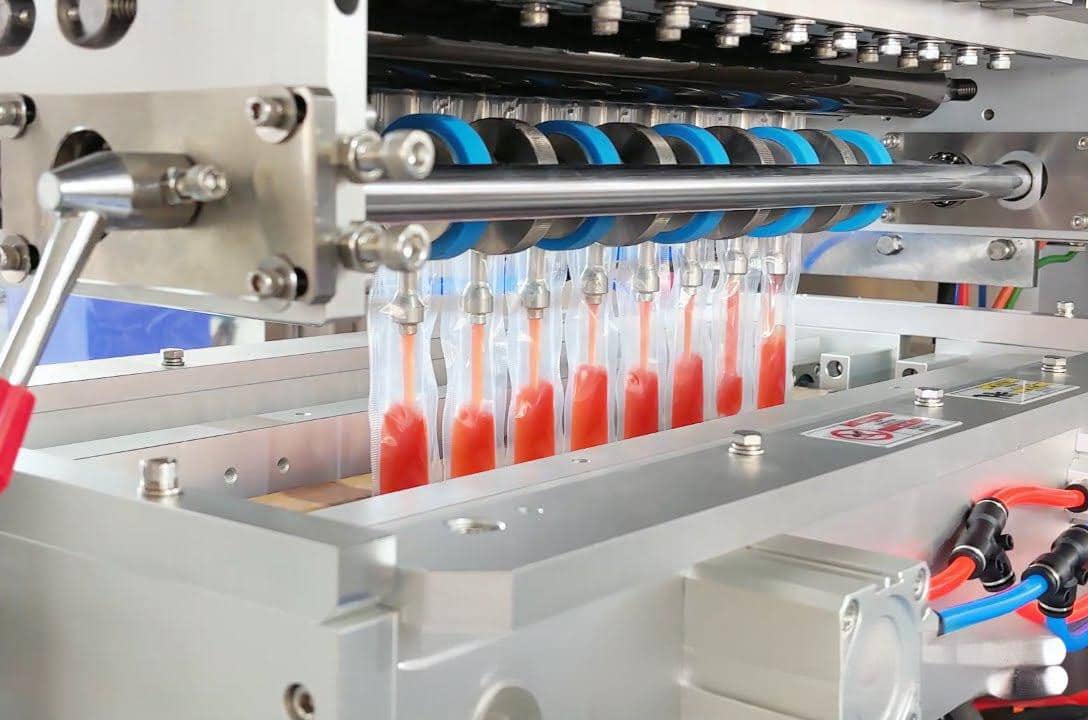

A ketchup sachet packing machine manufactures single-serve packets at high speeds. This process, also performed by a ketchup pouch packing machine, forms, fills, and seals packages in one continuous line.

1. Film Unwinding: The machine pulls laminated packaging film from a large roll, feeding the material into the forming section.

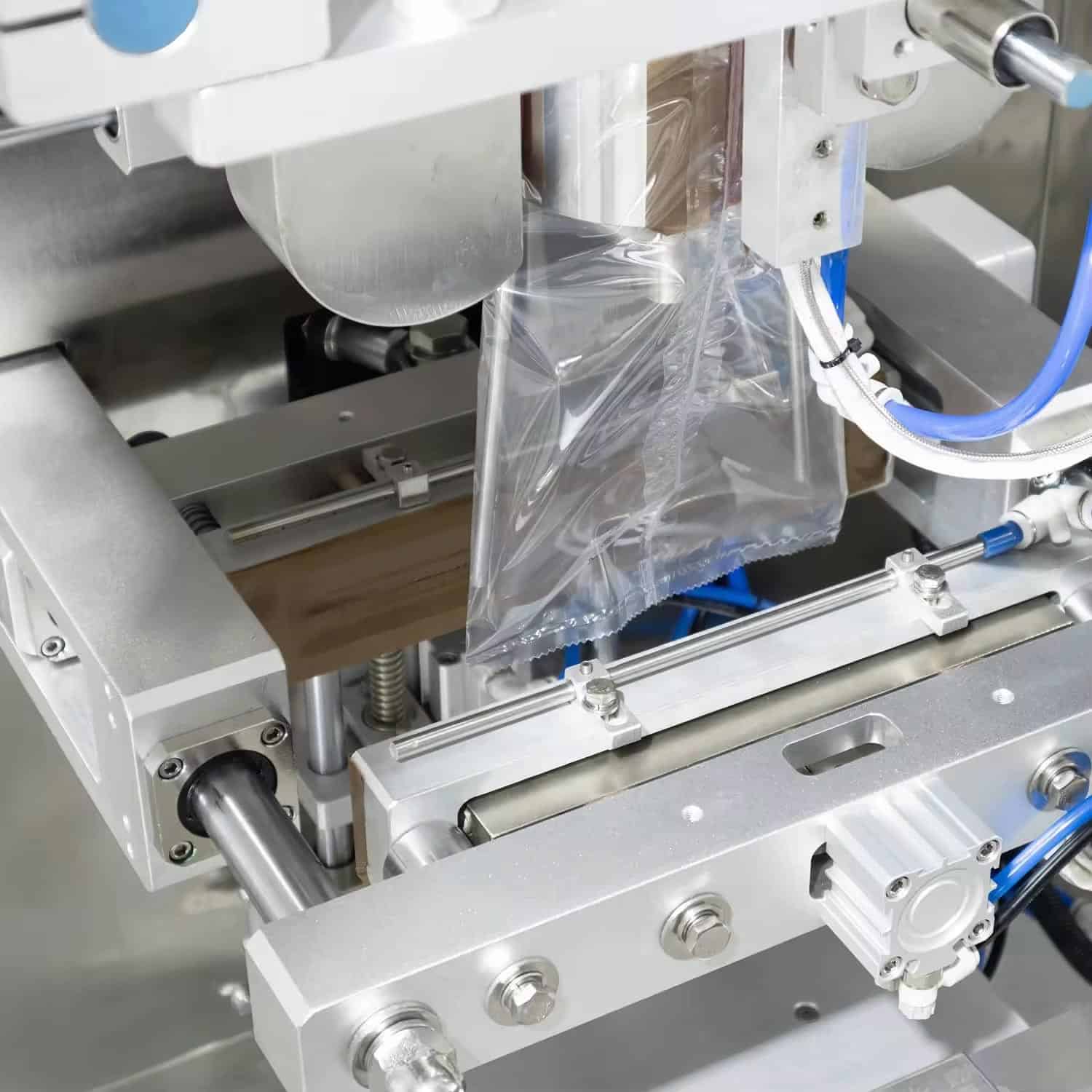

2. Pouch Forming: Next, the system folds the flat film into a tubular shape and makes a vertical seal along the back.

3. Cross Sealing (Bottom): The machine creates a horizontal seal, which becomes the bottom of the first sachet and the top of the next one in the cycle.

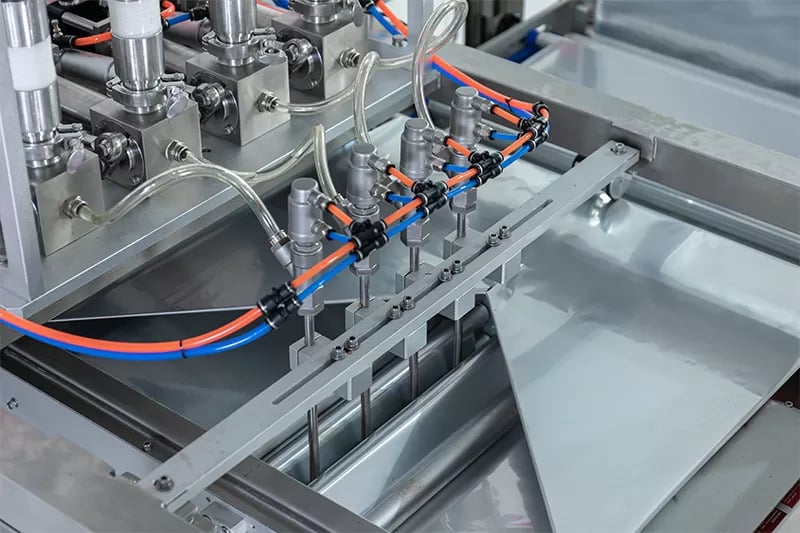

4. Filling: The formed pouch is moved under the filling nozzle. A precise volume of ketchup is injected into the open-topped pouch. A tomato ketchup pouch packing machine uses a piston filler or a precision pump to handle the product’s viscosity cleanly and accurately.

5. Gas Purging (Optional): Some machines replace the air in the pouch with nitrogen gas before sealing to extend shelf life.

6. Cross Sealing (Top) and Cutting: Finally, the machine seals the pouch top while creating the next bottom seal, then cuts the finished sachet free.

7. Discharge: Completed sachets travel along a conveyor to the collection area for counting and packaging.

Choosing the Right Machine for Your Needs

The choice of a specific ketchup packaging machine depends entirely on the intended packaging format.

• For single-serve sachets used in food service, a ketchup sachet packing machine is the clear choice.

• For retail-sized flexible pouches, a ketchup pouch packing machine with different forming capabilities would be selected.

• For bottles or jars, a different type of liquid filling machine, often a piston filler, would be used, which can still be referred to as a tomato ketchup packing machine.

Conclusion

The ketchup packing machine is a vital piece of food technology. It enables the efficient, hygienic, and consistent packaging of a global staple. From understanding barrier requirements to watching sachets form at high speed, it’s clear this specialized equipment meets massive demand. Whether for restaurant sachets or supermarket bottles, a ketchup packaging machine gets the job done right.
