In the vast world of industrial processing, from pharmaceuticals and food production to chemicals and cosmetics, manufacturers must blend substances harmoniously. This fundamental step relies on a workhorse of modern manufacturing: the mixing tank. This article explores these crucial vessels, explaining how they operate, their construction, and the different agitators that provide their versatility.

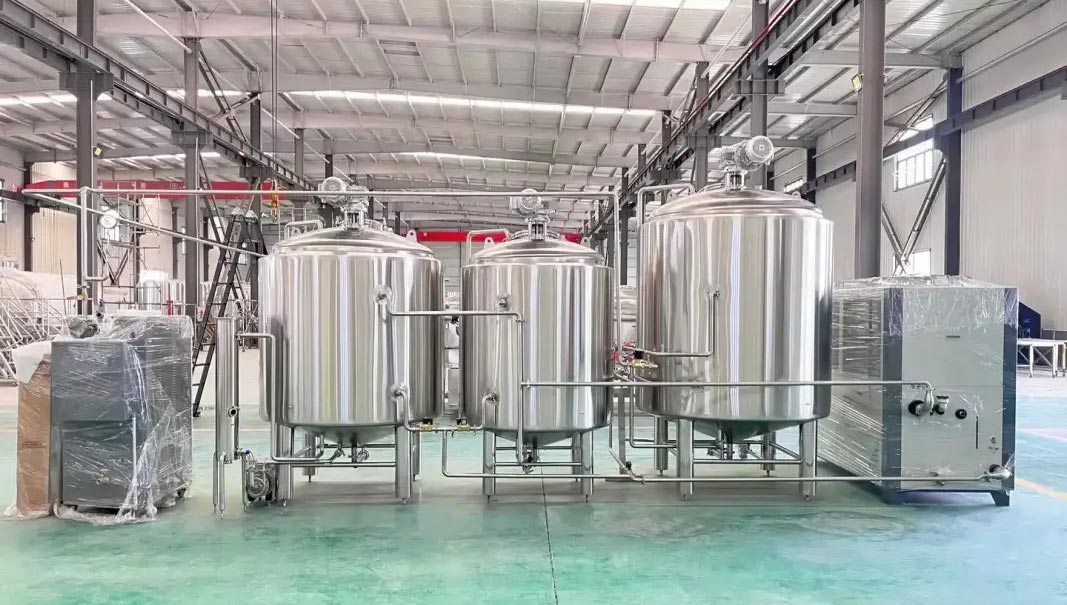

What is a Mixing Tank?

Simply put, a mixing tank is a container that blends two or more components into a homogeneous mixture. Also known as agitator tanks or reactors, they are far more sophisticated than a simple container with a stirrer. Engineers design these tanks to handle a wide range of processes, including dissolving solids, dispersing gases, suspending particles, and promoting chemical reactions. Consequently, the specific design of a mixing tank varies dramatically based on the materials’ properties and the desired outcome.

Get the complete solution. ↓

The Ultimate Guide to Mixing Tank

The Working Principle of a Mixing Tank

A mixing tank operates by inducing motion within a fluid to create a uniform composition. At the core of this process is the mixing tank agitator, a device with impellers on a rotating shaft. An electric motor (often through a gearbox) drives the agitator, which then imparts energy to the fluid.

This energy creates distinct flow patterns inside the tank—typically a combination of radial (outward) and axial (up/down) flows. These patterns achieve two critical things:

• Bulk Flow: This movement transfers the entire fluid volume from one tank area to another.

• Shear: This force creates a velocity difference between fluid layers, which is crucial for breaking down agglomerates and dispersing droplets.

Ultimately, the mixing efficiency depends on the balance between these flow and shear forces.

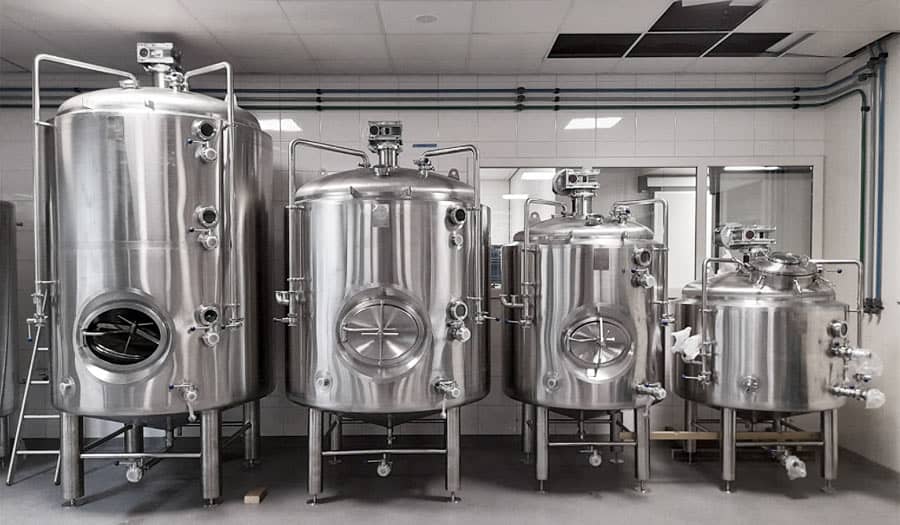

The Structure of a Mixing Tank

While designs can be custom, a standard mixing tank typically consists of several key components:

1. Tank Shell: This is the main vessel, usually cylindrical with a dished or conical bottom to prevent dead zones. Manufacturers often use stainless steel (e.g., 304 or 316L) or carbon steel.

2. Agitator Assembly: This includes the motor, gearbox, shaft, and impeller(s). The assembly mounts on the top (top-entering) or side (side-entering) of the tank.

3. Baffles: These are vertical, thin plates on the tank wall. Importantly, baffles prevent the fluid from swirling in a vortex, thereby promoting turbulent, top-to-bottom movement for effective mixing.

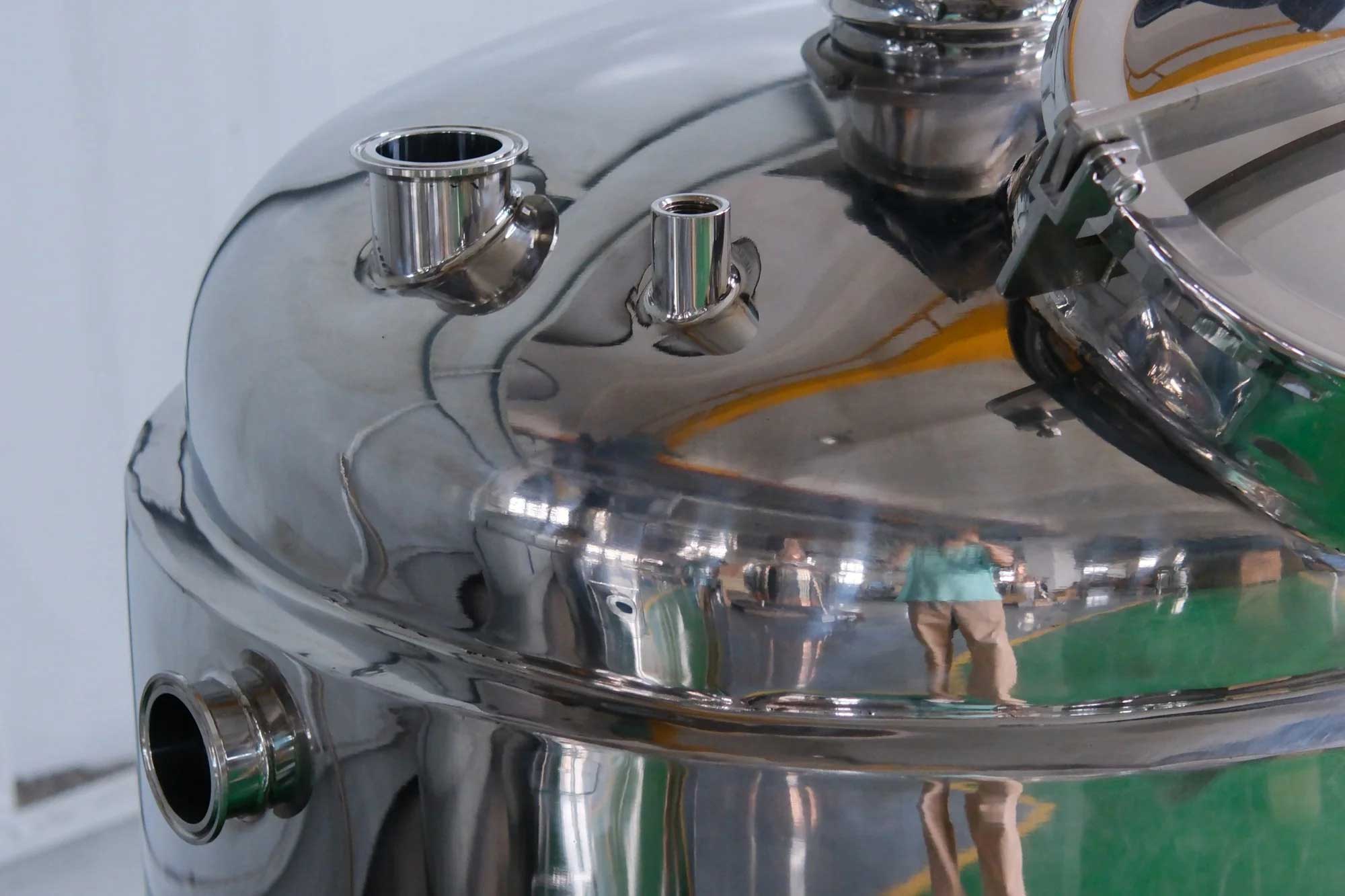

4. Nozzles and Ports: These openings allow for filling, discharging, sampling, and installing instruments.

5. Jacket (Optional): This feature is crucial for temperature control. A jacketed mixing tank with agitator has an outer shell surrounding the main vessel. Operators circulate a thermal fluid (steam, cooling water, or oil) through this jacket to heat or cool the contents simultaneously during mixing. A double jacketed mixing tank often provides enhanced safety or efficiency for high-pressure applications.

Different Types of Mixing Agitators

The agitator is the system’s heart, and its type depends on the fluid’s viscosity and the process goal. The main categories are:

• Turbine Agitators: These are the most common type for low to medium viscosity fluids. They generate high shear and a combination of radial and axial flow.

• Propeller Agitators: These are essentially marine propellers submerged in the tank. They are high-speed agitators that generate strong axial flow, which is ideal for blending low-viscosity liquids.

• Paddle Agitators: These simple flat blades provide radial flow and are suitable for simple, low-viscosity blending tasks.

• Anchor & Helical Agitators: Designed for high-viscosity fluids, these agitators closely follow the tank’s inner contour. They scrape the walls to prevent material buildup and ensure efficient heat transfer.

Choosing the Right System and Understanding Cost

Selecting the right mixing tank is a complex decision that affects product quality and efficiency. Therefore, partnering with experienced mixing tank manufacturers is invaluable. They can design a perfect system—from a simple open-top tank to a complex double jacketed mixing tank with PLC controls.

Finally, the mixing tank price is not a single figure but depends on several factors:

• Material of Construction: Stainless steel costs more than carbon steel.

• Capacity: Larger tanks command a higher price.

• Design Pressure/Temperature: Higher ratings require more robust engineering.

• Jacketing: A jacketed mixing tank with agitator is more complex and costly.

• Agitator Complexity: The motor power and impeller type affect the cost.

• Additional Features: Items like sight glasses and advanced controls add to the price.

In conclusion, investing in a well-designed mixing system from a reputable manufacturer pays off in product consistency and long-term reliability. By understanding these core principles, you can better engage with mixing tank manufacturers to specify the perfect equipment.
