In modern packaging lines, the final step before labeling and distribution is often capping — the process that keeps products fresh, secure, and ready for market. Among the many types of capping equipment available, the screw capping machine is one of the most widely used due to its ability to apply threaded caps with precision, speed, and consistency. These machines are used across industries such as food, beverages, pharmaceuticals, and cosmetics, providing both automation and reliability.

What Is the Function of a Capping Apparatus?

A capping apparatus serves one primary function: to attach and seal a cap onto a container so that it remains closed until the consumer opens it. In the case of a screw capping machine, this involves applying rotational torque to engage the cap threads securely with the container neck.

The benefits of a well-functioning capping apparatus include:

• Leak prevention – Ensures liquid or powdered products stay contained during transport.

• Extended shelf life – Prevents air or moisture from degrading the contents.

• Tamper evidence – Allows consumers to see if the seal has been broken.

• Brand consistency – Every cap is tightened to the same standard, maintaining a professional appearance.

Get the complete solution. ↓

The Ultimate Guide to Capping Machine

What Is Capping and Why Is It Necessary?

Capping is the process of closing and sealing containers after filling. It is necessary for several reasons:

1. Protection – Stops contamination from dust, bacteria, or foreign particles.

2. Safety – Ensures products are tamper-proof, especially in the food and pharmaceutical sectors.

3. Regulatory compliance – Many industries are required to meet strict packaging and sealing standards.

4. Consumer convenience – Allows easy resealing for products that are used over time.

For example, in the bottled beverage industry, a water bottle capping machine ensures every bottle is capped tightly enough to prevent leaks, yet not so tightly that consumers struggle to open it.

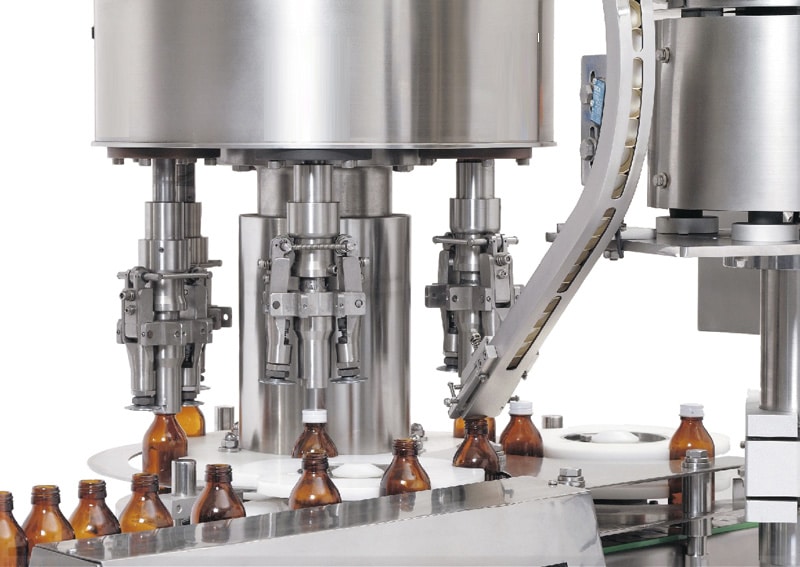

What Is a Chuck Capper?

A chuck capping machine uses a chuck head to grip the cap from above and rotate it onto the container with a controlled amount of torque. This method provides extremely precise tightening, which is vital for products that require exact torque specifications — such as pharmaceuticals, medical supplies, and specialty beverages.

Chuck cappers can be:

• Single-head – Suitable for low- to medium-volume operations.

• Multi-head – Designed for high-speed production lines, capping hundreds of containers per minute.

Chuck vs. Spindle Capping Machines – Comparison Table

Feature	Chuck Capping Machine	Spindle Capping Machine
Cap Application Method	Uses a chuck head to grip and rotate the cap.	Uses multiple spinning discs to tighten the cap as the bottle passes through.
Precision	Very high torque accuracy — ideal for sensitive or regulated products.	Good torque control, but slightly less precise than chuck systems.
Speed	Moderate (single-head) to high (multi-head rotary).	Very high — designed for continuous high-speed production lines.
Cap Types	Handles a wide variety of cap shapes and sizes, including specialty closures.	Best for standard screw caps.
Changeover Time	Longer due to precise adjustments.	Faster changeovers for different cap sizes.
Maintenance	More parts to maintain and calibrate.	Easier maintenance due to simpler mechanics.
Best For	Pharmaceuticals, cosmetics, specialty beverages, premium products.	Bottled water, soft drinks, sauces, and other high-volume goods.

How Do Capping Machines Work?

The working principle of a screw capping machine involves several coordinated steps:

1. Cap Feeding – Caps are sorted and oriented by a cap feeder or elevator.

2. Bottle Positioning – The container is guided into position under the capping head.

3. Cap Application – Torque or downward force secures the cap using either a chuck or spindle system.

4. Torque Verification – Sensors or testers ensure the seal meets quality requirements.

5. Discharge – The capped container moves down the line for labeling or packaging.

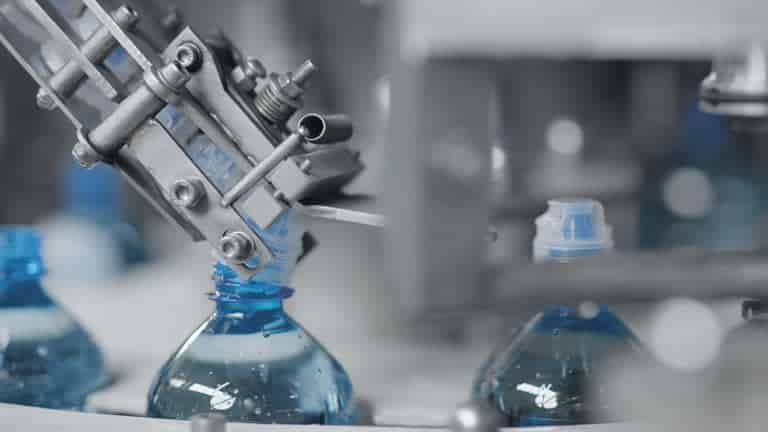

High-end models, such as the pet bottle capping machine automatic, combine capping with filling, labeling, and inspection in a single continuous process, reducing labor and increasing output.

Types of Screw Capping Applications

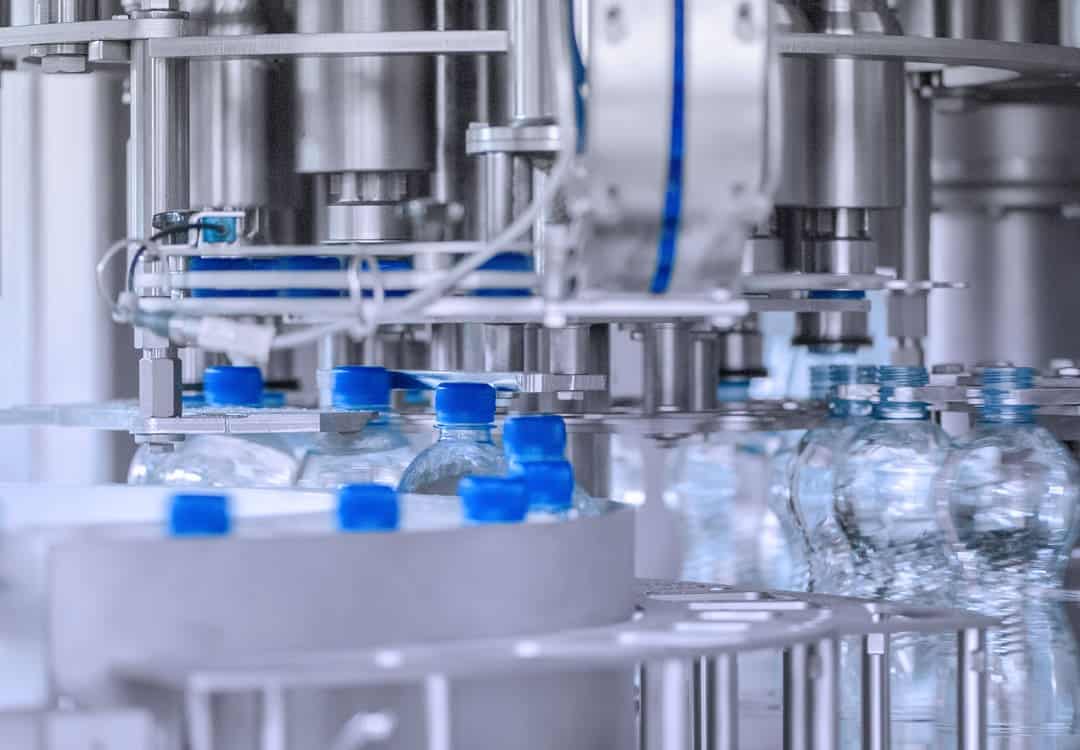

• Beverage Industry – Pet bottle capping machine and water bottle capping machine units seal carbonated drinks, juices, and mineral water.

• Canned Goods – A can capping machine is used for metal and composite cans containing foods, paints, or chemicals.

• Pharmaceuticals – Precision torque control prevents leaks while maintaining tamper-evidence.

• Cosmetics & Personal Care – Handles small caps, pumps, and sprayers without damaging decorative finishes.

Choosing the Right Screw Capping Machine

When selecting a screw capping machine, consider:

• Cap type and size – Machines must match your closure’s diameter and thread design.

• Container material – Glass, PET, and metal containers may require different handling.

• Production volume – Higher speeds may justify an inline or rotary pet bottle capping machine automatic system.

• Industry compliance – Pharmaceutical, food, and hazardous material packaging may have additional safety or hygiene requirements.

Maintenance Tips for Long-Term Reliability

To keep your equipment in top condition:

• Clean capping heads and torque discs regularly.

• Lubricate moving parts according to the manufacturer’s schedule.

• Check torque calibration frequently to ensure consistent sealing.

• Inspect belts, chucks, and spindles for wear.

A well-maintained screw capping machine can operate for years with minimal downtime, protecting your production schedule and product quality.

Industries That Rely on Screw Capping Machines

From small artisan beverage producers to global pharmaceutical companies, capping technology is essential for packaging success. Bottled water companies use water bottle capping machine systems to handle massive daily outputs, while food processors use can capping machine setups to seal sauces, canned vegetables, and more.

In cosmetics, delicate products like perfumes require chuck-based systems that apply just enough torque to secure caps without damaging decorative elements.

Conclusion

Choosing the right screw capping machine is an investment in both productivity and product quality. From beverages to pharmaceuticals, reliable capping ensures safety, preserves freshness, and maintains brand integrity. Whether you need a pet bottle capping machine for high-speed production or a chuck capping machine for precise torque control, working with a trusted manufacturer will help you find the best fit for your operation.
