Industries that work with thick, hard-to-blend materials—such as pharmaceuticals, cosmetics, electronics, and food processing—often rely on a double planetary mixer. This robust machine excels where standard mixers fall short, delivering consistent results for high-viscosity products like pastes, adhesives, creams, and doughs. In this article, we explore what a double planetary mixer is, how it operates, and what to consider when choosing one.

What is a Double Planetary Mixer?

A double planetary mixer is a heavy-duty industrial mixer designed to blend, knead, and homogenize highly viscous materials. It is equipped with two stirrer blades that not only rotate on their own axes but also orbit together around the mixing bowl. This dual motion ensures that the mixture is worked from every angle, eliminating dead zones and ensuring a perfectly uniform end product.

Many sectors depend on these mixers to achieve strict quality standards. For example, a pharmaceutical planetary mixer is built to comply with Good Manufacturing Practice (GMP) guidelines, making it ideal for producing ointments, gels, and other medical formulations. When the system includes vacuum functionality, it becomes a vacuum planetary mixer or planetary vacuum mixer, capable of removing trapped air during the mixing process—essential for avoiding bubbles and ensuring product integrity.

Get the complete solution. ↓

The Ultimate Guide to Mixing Tank

How Does a Double Planetary Mixer Work?

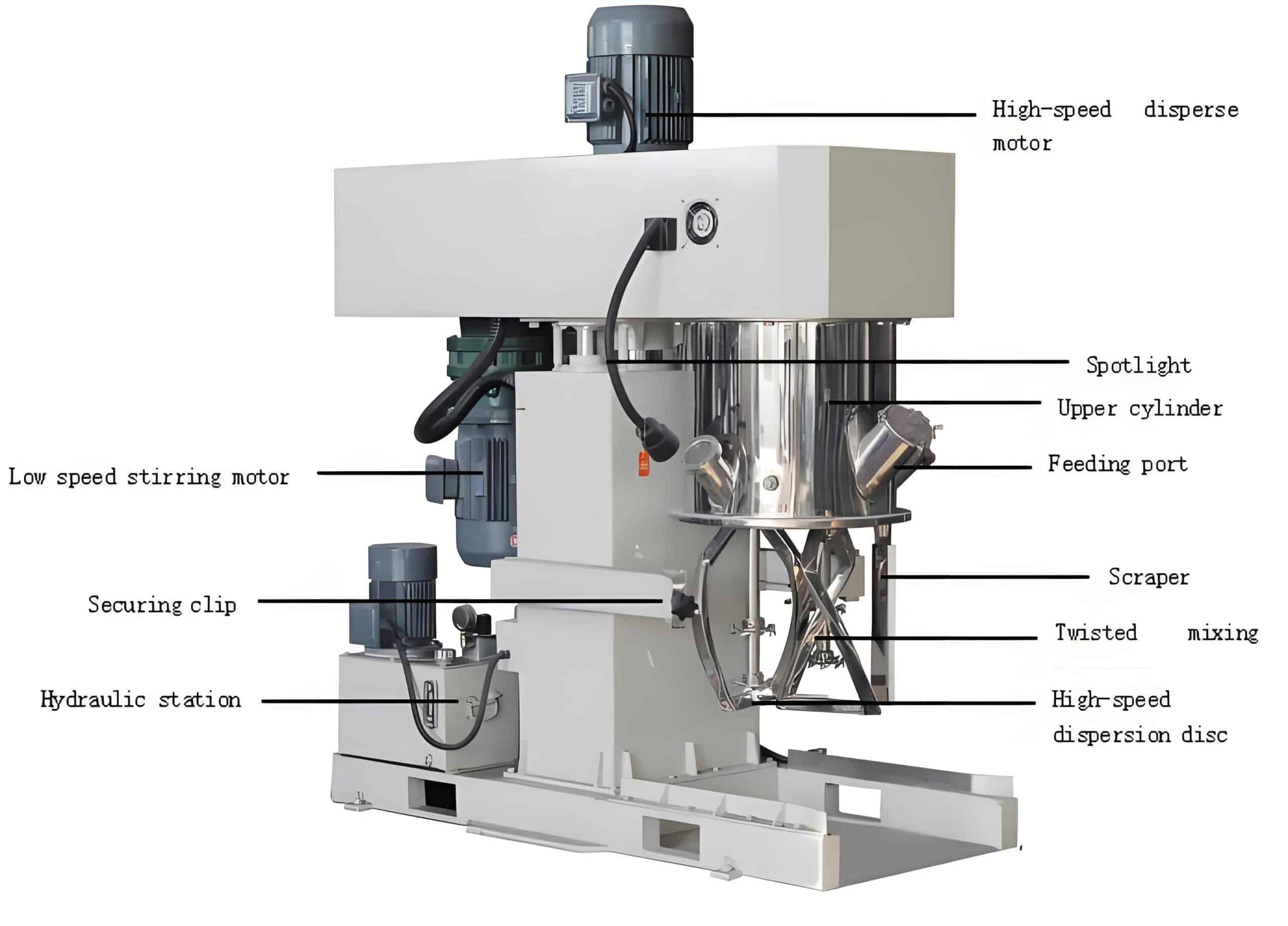

The efficiency of a double planetary mixer lies in its unique mechanical design:

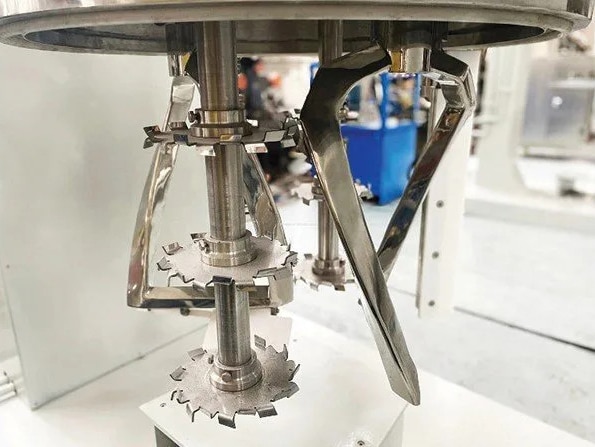

1. Dual-Action Mixing: The two blades spin clockwise on their own axes while simultaneously moving counterclockwise around the tank. This planetary movement ensures full coverage and intense mechanical processing.

2. Material Processing: As the blades travel, they continuously gather material from the bowl walls and sweep it toward the center. This creates a kneading, stretching, and folding effect that thoroughly incorporates even the most stubborn ingredients.

3. Shear and Elongation: The mixer applies both shear and elongation forces, effectively breaking up agglomerates and evenly dispersing powders into liquid bases.

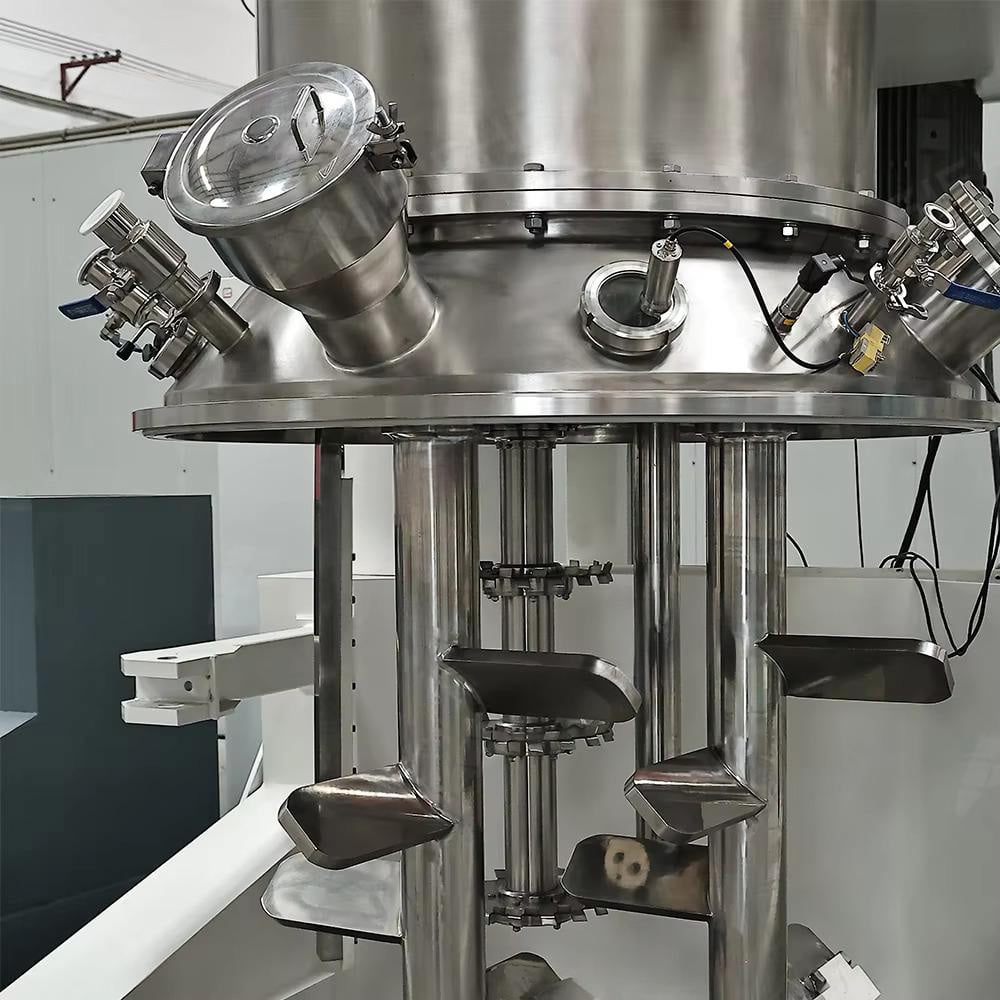

4. Vacuum Capability: When operating as a planetary vacuum mixer, the unit can remove air and volatile components under controlled pressure, resulting in a denser, more uniform product without entrapped gases.

5. Temperature Management: Many models include jacketed bowls for heating or cooling, enabling precise thermal control—a must for temperature-sensitive compounds.

This combination of features allows the double planetary mixer to outperform conventional agitators, especially when processing challenging high-viscosity materials.

How to Choose a Double Planetary Mixer

Selecting the right mixer requires careful evaluation of your process needs. Here are key points to consider:

• Material Properties: Assess viscosity, abrasiveness, and shear sensitivity. Higher viscosities demand more robust motors and construction.

• Batch Size: Match the mixer’s capacity to your production volume. Sizes vary from benchtop units for R&D to industrial-scale systems.

• Vacuum Requirements: If your process demands bubble-free results, a vacuum planetary mixer is essential. Verify the vacuum level and sealing effectiveness.

• Hygiene and Compliance: For use in food, pharmaceuticals, or cosmetics, choose a pharmaceutical planetary mixer with sanitary finishes, easy cleanability, and relevant certifications.

• Build Materials: Opt for stainless steel (304 or 316L) for corrosion resistance, especially when working with aggressive chemicals.

• Control Systems: Decide between basic manual controls and automated systems with programmable recipes—critical for regulated environments.

• Safety and Support: Ensure the equipment includes safety interlocks, emergency stops, and clear maintenance guidelines. Partner with a supplier that offers reliable technical support.

Key Applications Across Industries

Thanks to their ability to handle a wide viscosity range—from 5,000 to over 5,000,000 centipoise—double planetary mixers are indispensable in many fields. Pharmaceutical companies use planetary mixer pharmaceutical models to produce consistent creams and ointments. Electronics manufacturers rely on them for preparing thermal interface materials and conductive adhesives. In the food sector, they mix everything from dough and thick sauces to candy masses, while cosmetics manufacturers achieve smooth, lump-free lotions and foundations.

Operational Best Practices

To maximize performance and longevity:

• Always secure the bowl and check safety interlocks before starting.

• Gradually increase the mixer speed to avoid splashing or motor overload.

• For vacuum planetary mixer operation, regularly inspect and maintain seals.

• Clean thoroughly after each use—especially under GMP or sanitary requirements.

• Schedule routine inspections of blades, seals, and gearbox lubrication.

A double planetary mixer represents a significant investment, but its ability to deliver repeatable, high-quality mixing in demanding applications makes it a valuable asset. By understanding your needs and these key considerations, you can select a mixer that boosts productivity and product quality.
